AT220L-ALMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )1AZFSE,4AFE,7AFE

Click highlighted areas on diagram

diagram
Part # Description Qty Price

(9710-0007)4AFE,7AFE

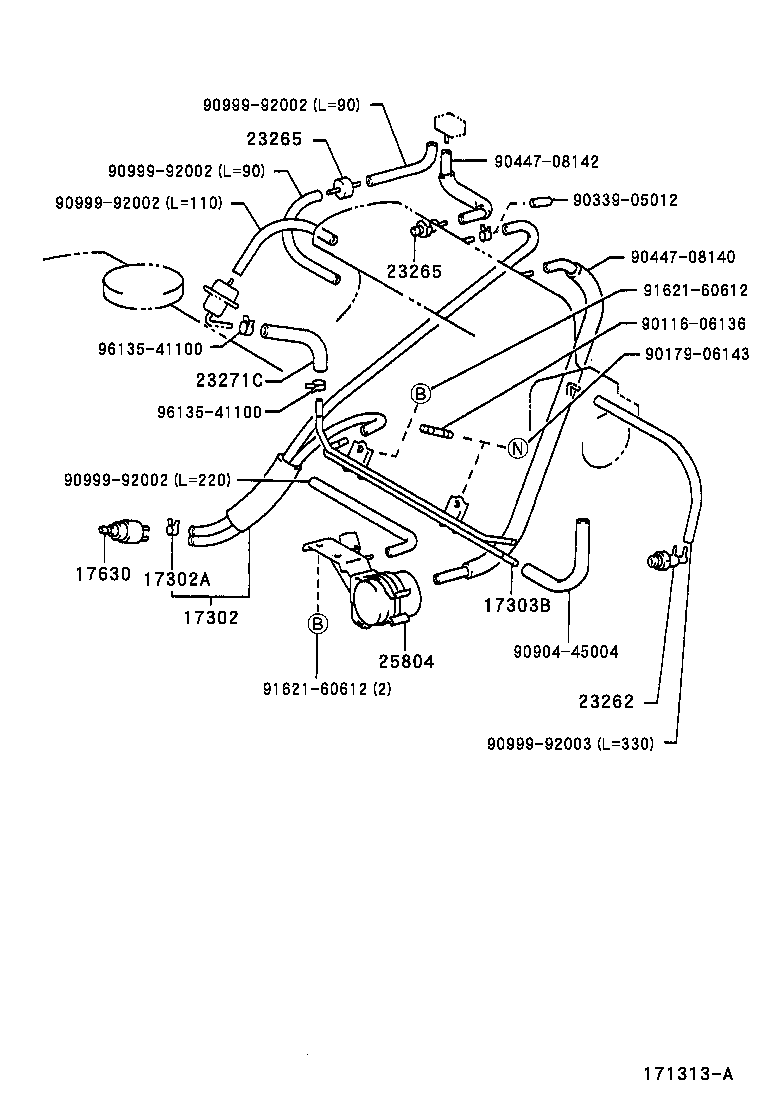

Click highlighted areas on diagram

diagram 17302 17302A 17303B 17630 23262 23265 23265 23271C 25804 9011606136 9017906143 9033905012 9044708140 9044708142 9090445004 9099992002 9099992002 9099992002 9099992002 9099992003 9162160612 9162160612 9613541100 9613541100
Part # Description Qty Price
17302A - CLIP, HOSE
96132-51000

4AFE..AT220..LHD

W/O(AIR CONTROL VALVE)

 1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05068

4AFE,7AFE..AT22#

 1
23265 - FILTER, GAS, NO.1
90917-11037

4AFE..AT220..LHD..TERRA

LEAN BURN

 1
90917-11030

4AFE..AT220..LHD

 1
23265 - FILTER, GAS, NO.1
90917-11037

4AFE..AT220..LHD..TERRA

LEAN BURN

 1
90917-11030

4AFE..AT220..LHD

 1
25804 - VALVE SET, VACUUM CONTROL
25804-16070

4AFE..AT220..LHD..TERRA

LEAN BURN

 1
Common parts
90116-06136
90179-06143
90339-05012
90447-08140
90447-08142
90904-45004
90999-92002
90999-92003
91621-60612
96135-41100
