AT220L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )4AFE..LHD

Click highlighted areas on diagram

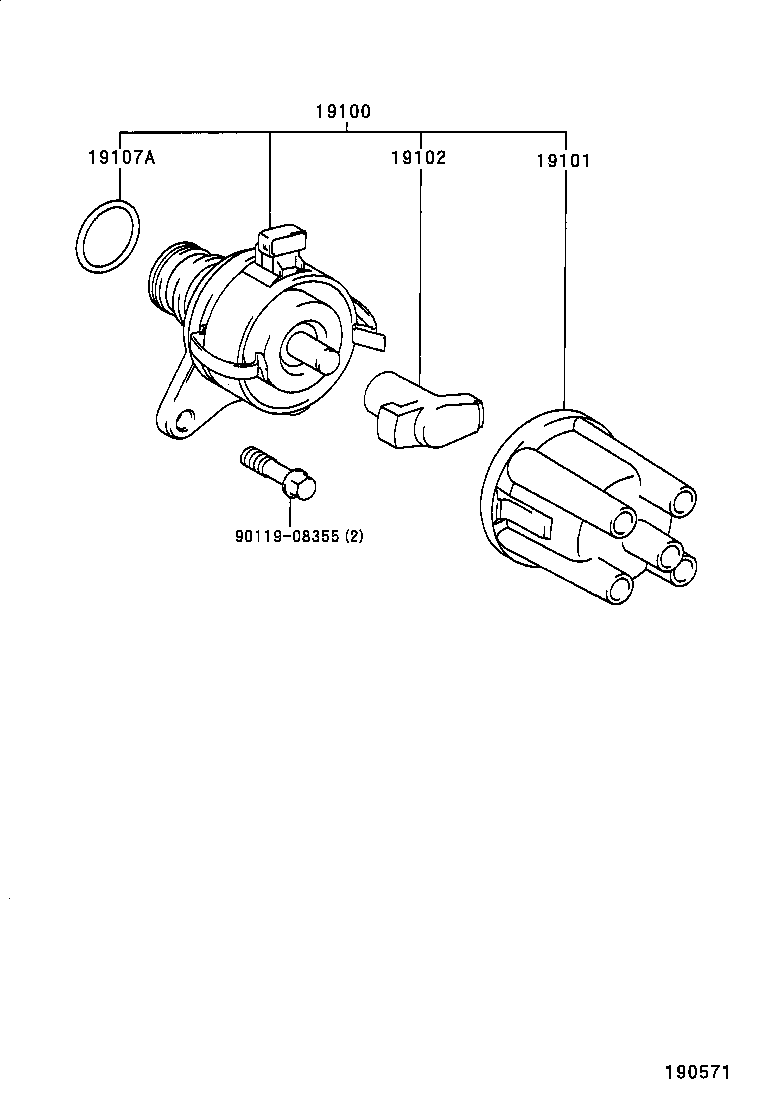

diagram 19100 19101 19102 19107A 9011908355
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-02020

4AFE..AT220..LHD

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-02020

4AFE..AT220..LHD

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-02020

4AFE..AT220..LHD

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90069-08014

4AFE..AT220..LHD

 1
Common parts
90119-08355

(9710- )4AFE..LHD

Click highlighted areas on diagram

W/O(OIL COOLER)

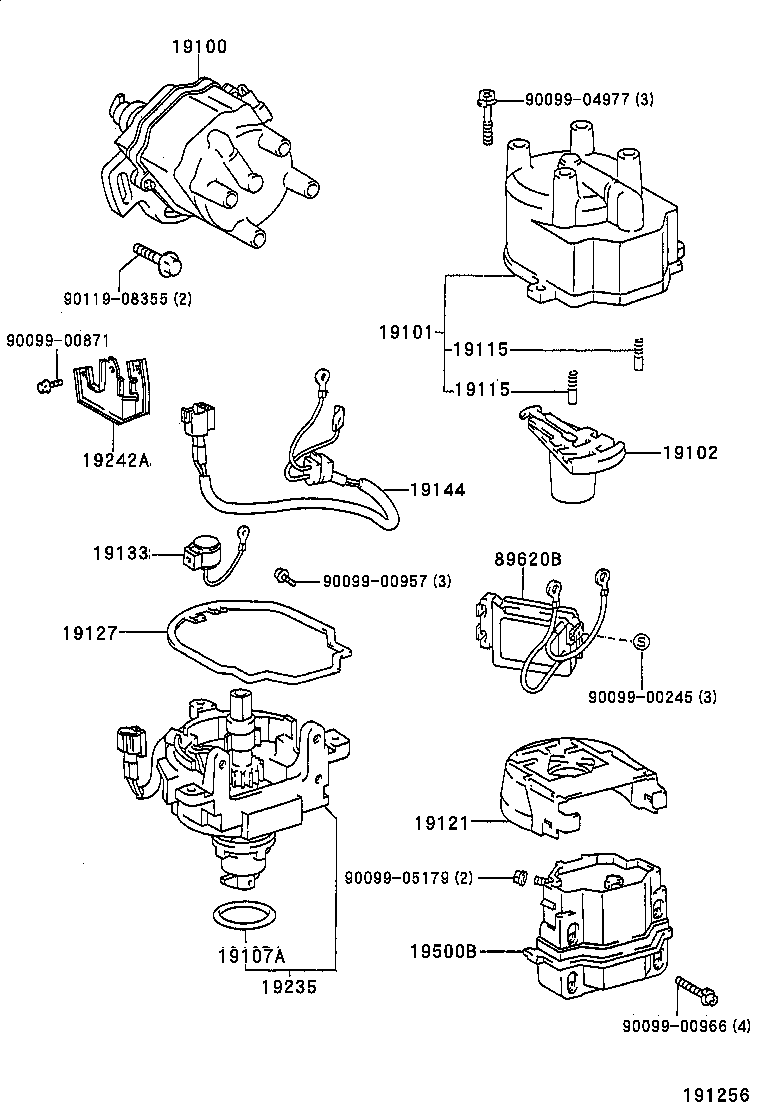

diagram 19100 19101 19102 19107A 19115 19115 19121 19127 19133 19144 19235 19242A 19500B 89620B 9009900245 9009900871 9009900957 9009900966 9009904977 9009905179 9011908355
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19100-02020

4AFE..AT220..LHD

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-02020

4AFE..AT220..LHD

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-02020

4AFE..AT220..LHD

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90069-08014

4AFE..AT220..LHD

 1
Common parts
90099-00245
90099-00871
90099-00957
90099-00966
90099-04977
90099-05179
90119-08355
