AT220L-ALMEKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 4AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)4AFE..LHD

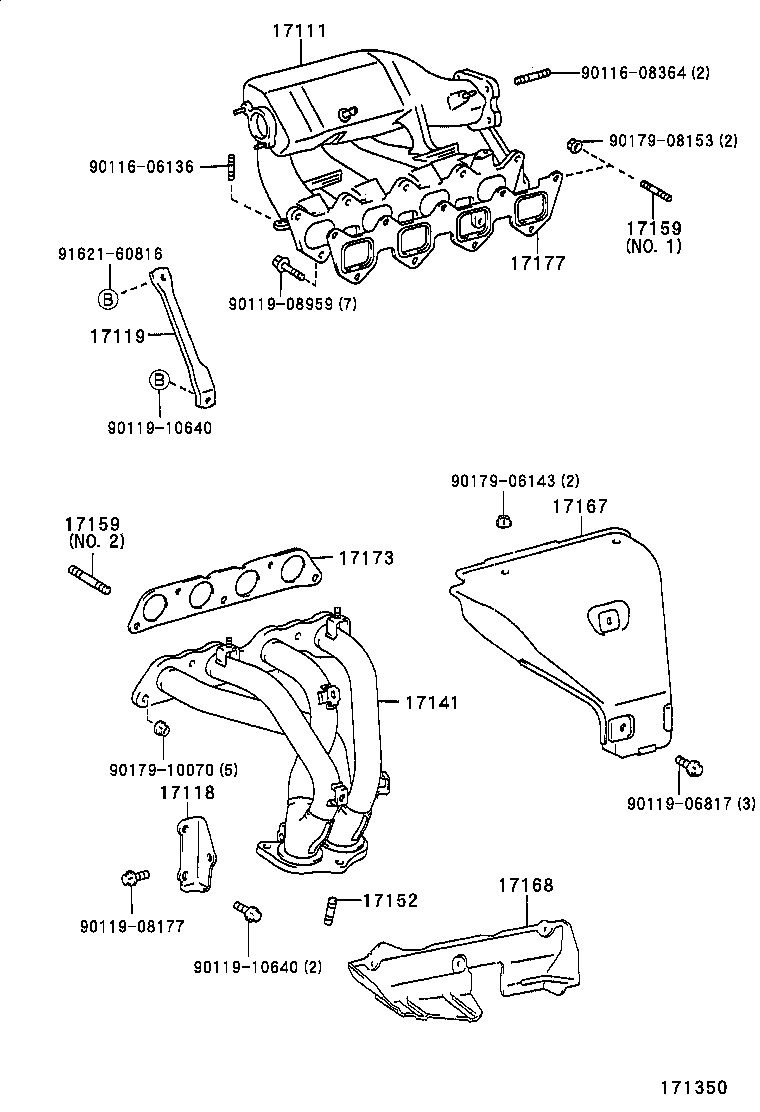

Click highlighted areas on diagram

W/O(OIL COOLER)

diagram 17111 17118 17119 17141 17152 17159 17159 17167 17168 17173 17177 9011606136 9011608364 9011906817 9011908633 9011908959 9011910640 9011910640 9017908153 9017910070 9162160816
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-02090

4AFE..AT220..LHD

(L)

 1
17101-02120

4AFE..AT220..LHD

(L)

 1
17101-16300

4AFE..AT220..LHD

(J)

 1
17118 - STAY, MANIFOLD
17118-02030

4AFE..AT220..LHD

 1
17119 - STAY, MANIFOLD, NO.2
17139-02080

4AFE..AT220..LHD

 1
17141 - MANIFOLD, EXHAUST
17141-02040

4AFE..AT220..LHD

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

4AFE..AT220..LHD

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

4AFE,7AFE..AT22#

NO.2

 5
92112-60825

4AFE,7AFE..AT22#

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

4AFE,7AFE..AT22#

NO.2

 5
92112-60825

4AFE,7AFE..AT22#

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-02030

4AFE..AT220..LHD

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-02030

4AFE,7AFE..AT22#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030

4AFE..AT220..LHD

 1
Common parts
90116-06136
90116-08364
90119-06817
90119-08633
90119-08959
90119-10640
90179-08153
90179-10070
91621-60816

(9710-0007)4AFE..LHD

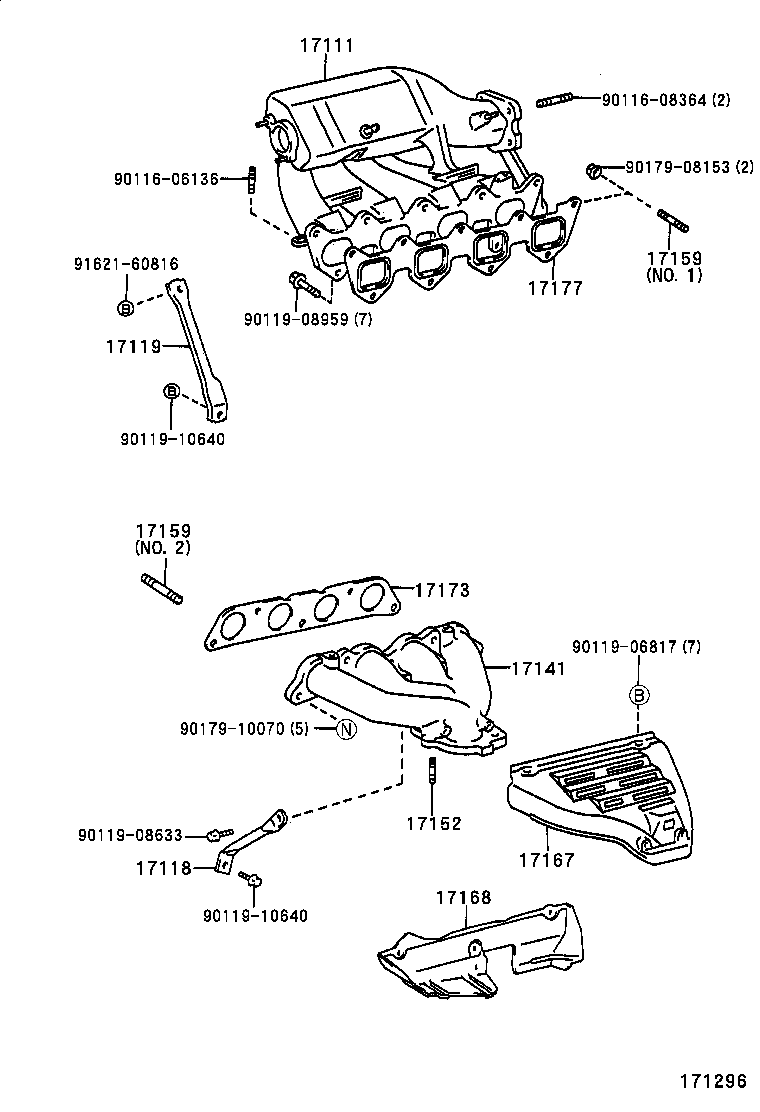

Click highlighted areas on diagram

diagram 17111 17118 17119 17141 17152 17159 17159 17167 17168 17173 17177 9011606136 9011608364 9011906817 9011908177 9011908959 9011910640 9011910640 9017906143 9017908153 9017910070 9162160816
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-02090

4AFE..AT220..LHD

(L)

 1
17101-02120

4AFE..AT220..LHD

(L)

 1
17101-16300

4AFE..AT220..LHD

(J)

 1
17118 - STAY, MANIFOLD
17118-02030

4AFE..AT220..LHD

 1
17119 - STAY, MANIFOLD, NO.2
17139-02080

4AFE..AT220..LHD

 1
17141 - MANIFOLD, EXHAUST
17141-02040

4AFE..AT220..LHD

 1
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10146

4AFE..AT220..LHD

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

4AFE,7AFE..AT22#

NO.2

 5
92112-60825

4AFE,7AFE..AT22#

NO.1

 2
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92112-61028

4AFE,7AFE..AT22#

NO.2

 5
92112-60825

4AFE,7AFE..AT22#

NO.1

 2
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-02030

4AFE..AT220..LHD

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-02030

4AFE,7AFE..AT22#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-15030

4AFE..AT220..LHD

 1
Common parts
90116-06136
90116-08364
90119-06817
90119-08177
90119-08959
90119-10640
90179-06143
90179-08153
90179-10070
91621-60816
