AT220L-AEMEKW (1997)
Toyota Avensis
Production
Oct 1997
-
Jul 2000
Engine
4AFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9710-0007)AT22#..LHD

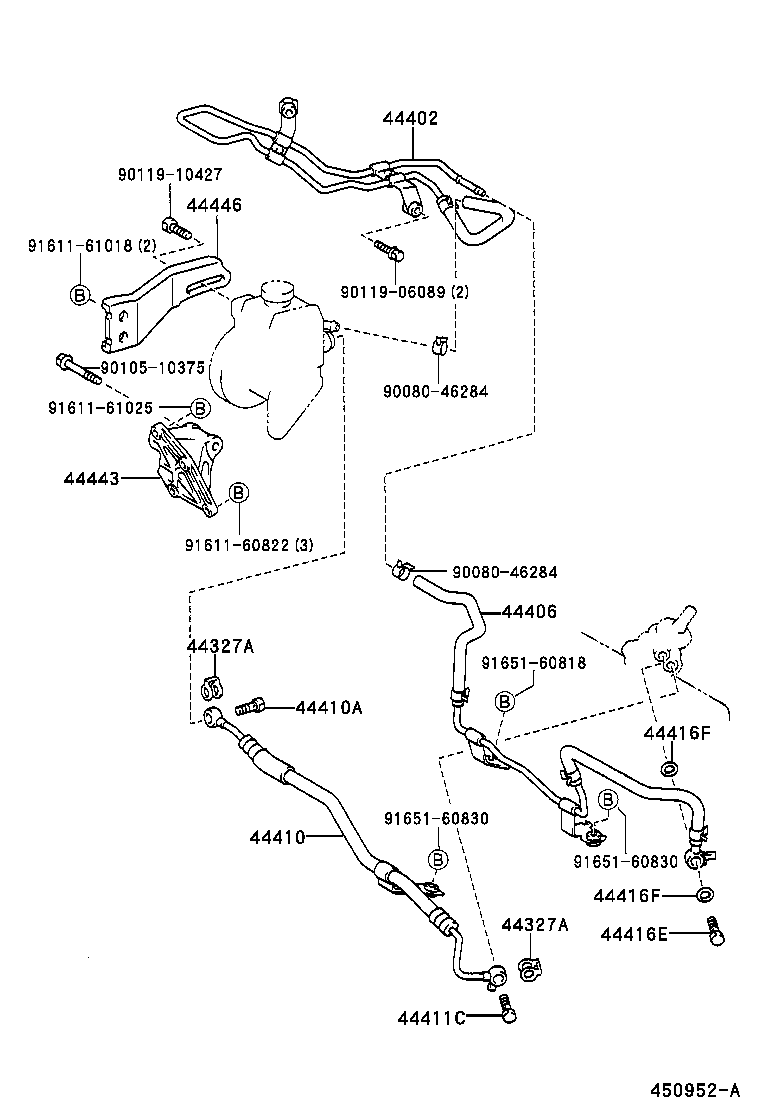

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT22#,AZT220,CDT220,CT220,ST220..LHD |
2 | ||
| 44327A - GASKET, PRESSURE PORT, NO.1 | ||||
| 44327-12010 |
AT22#,AZT220,CDT220,CT220,ST220..LHD |
2 | ||
| 44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1 | ||||
| 44402-20500 |
AT22#..LHD |
1 | ||
| 44402-05020 |
AT22#..LHD |
1 | ||
| 44406 - TUBE SUB-ASSY, RETURN | ||||
| 44406-05080 |
AT22#..LHD |
1 | ||
| 44406-20891 |
AT22#..LHD |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-2B360 |
AT22#..LHD |
1 | ||
| 44410-05130 |
AT22#..LHD |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
AT22#,CDT220,CT220,ST220 |
1 | ||
| 96341-41603 |
AT22#,AZT220,CDT220,CT220,ST220 |
1 | ||
| 44411C - BOLT, UNION(FOR PRESSURE FEED HOSE) | ||||
| 96341-41603 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 44416E - BOLT, UNION(FOR RETURN TUBE) | ||||
| 96341-11703 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
1 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
2 | ||
| 44416F - GASKET(FOR RETURN TUBE) | ||||
| 90430-17005 |
AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD |
2 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-12100 |
AT22# |
1 | ||
| 44446 - STRUT, ADJUSTING | ||||
| 44446-05010 |
AT220 |
1 | ||
| Common parts | ||||
| 90080-46284 | ||||
| 90105-10375 | ||||
| 90119-06089 | ||||
| 90119-10427 | ||||
| 91611-60822 | ||||
| 91611-61018 | ||||
| 91611-61025 | ||||
| 91651-60818 | ||||
| 91651-60830 | ||||
