ADT271L-AWFGXW (2008)
Toyota Avensis
ILLUST NO. 1 OF 2(0811- )
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-05020B0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
1 | ||
| 73023-05020E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73024-05020B0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
1 | ||
| 73024-05020E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02100 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-02100 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-05080C1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 73210-05080E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) GRAY |
1 | ||
| 73219-33010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK |
1 | ||
| 73219-33030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-05070E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 73220-05070C1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-05130C0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73230-05130E0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 73230-05110E0 |
ADT27#,ZRT27#..LHD..(E,G,V) GREGE,TRIM4# |
1 | ||
| 73230-05130C0 |
ADT271,ZRT272..LHD..(G,V) PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73230-05110C0 |
ADT27#,ZRT27#..LHD..(E,G,N,V) BLACK,TRIM2# |
1 | ||
| 73230-05130C0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 73230-05130E0 |
ADT271,ZRT272..LHD..(G,V) PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 73230-05130E0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER,GREGE,TRIM4# |
1 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-02040C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
2 | ||
| 73233-02040E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
2 | ||
| 73233 - COVER, LAP BELT OUTER ANCHOR | ||||
| 73233-02040C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
2 | ||
| 73233-02040E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
2 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-05100C0 |
ADT27#,ZRT27#..LHD..(E,G,N,V) BLACK,TRIM2# |
1 | ||
| 73230-05100E0 |
ADT27#,ZRT27#..LHD..(E,G,V) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 73214-75010 | ||||
| 90105-W0007 | ||||
| 90105-W0014 | ||||
| 90105-W0120 | ||||
| 90109-W0013 | ||||
| 90178-W0062 | ||||

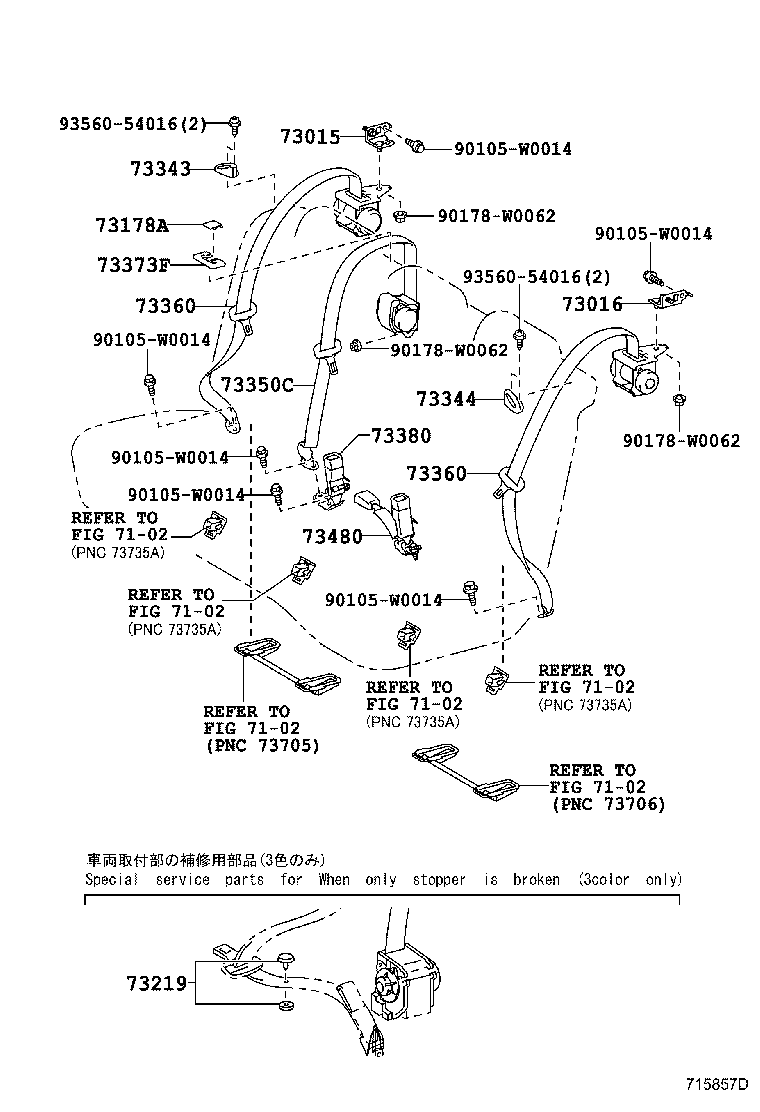

ILLUST NO. 2 OF 2(0811-1505)WG
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73015 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH | ||||
| 73015-05050 |
ADT27#,ZRT27#..WG |
1 | ||
| 73016 - BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH | ||||
| 73016-05050 |
ADT27#,ZRT27#..WG |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-12060E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 73178-12060C1 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) GRAY |
1 | ||
| 73219-33010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK |
1 | ||
| 73219-33030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BEIGE |
1 | ||
| 73343 - GUIDE, REAR SEAT SHOULDER BELT, RH | ||||
| 73343-30060E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 73343-30060C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 73344 - GUIDE, REAR SEAT SHOULDER BELT, LH | ||||
| 73344-30050C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 73344-30050E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 73350C - BELT ASSY, REAR SEAT, OUTER CENTER | ||||
| 73350-05060C1 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 73350-05060E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-05170C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
2 | ||
| 73360-05170E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
2 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-05170C0 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
2 | ||
| 73360-05170E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
2 | ||
| 73373F - COVER, REAR SEAT SHOULDER BELT HOLE | ||||
| 73373-12020E0 |
ADT27#,ZRT27#..WG..(E,G,V) GREGE,TRIM4# |
1 | ||
| 73373-12020C1 |
ADT27#,ZRT27#..WG BLACK,TRIM2# |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73380-05020E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 73380-05020C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 73480 - BELT ASSY, REAR SEAT INNER W/CENTER, LH | ||||
| 73480-05060C1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 73480-05060E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| Common parts | ||||
| 90105-W0014 | ||||
| 90178-W0062 | ||||
| 93560-54016 | ||||
| Linked diagrams | ||||
| 7102 | ||||
