ADT271L-AETGXW (2009)
Toyota Avensis
(0811- )LHD

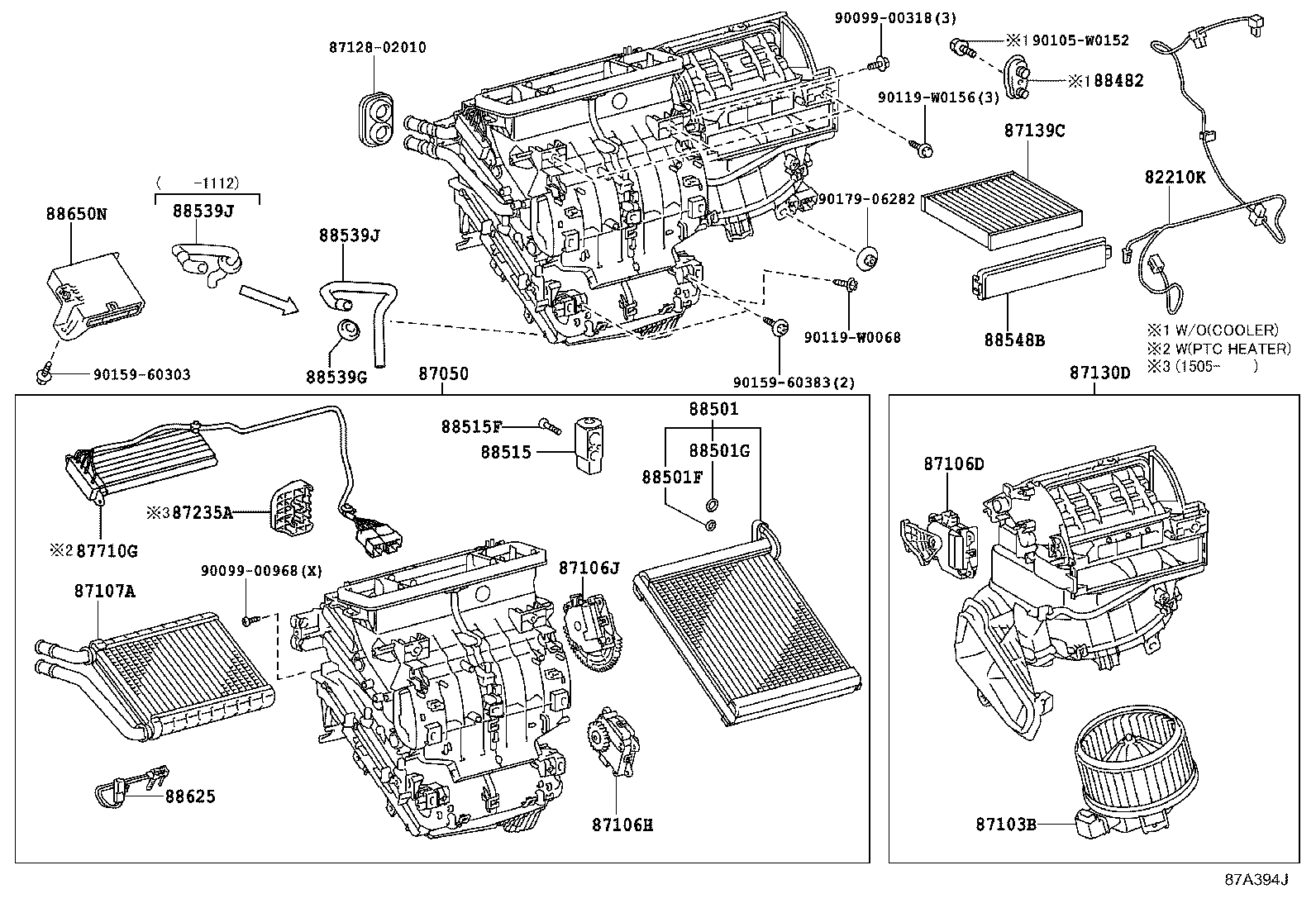

MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02010 |
ADT27#,ZRT27#..LHD..(E,G,V) |
1 | ||
| 82212-02050 |
ADT271..LHD..6FC..G;ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82212-02050 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) BASE PACKAGE |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05760 |
ADT27#..LHD..(E,F,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05770 |
ADT27#..LHD..(E,F,G,V) BASE PACKAGE |
1 | ||
| 87050-05770 |
ADT27#..LHD..(E,F);ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87050-02A00 |
ADT27#..LHD..(E,G,V) |
1 | ||
| 87050-02890 |
ADT27#..LHD..(E,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05761 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05760 |
ADT27#..LHD..(E,F);ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05761 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05771 |
ADT27#..LHD..(E,G,V) BASE PACKAGE |
1 | ||
| 87050-05771 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05060 |
ADT27#..LHD..(E,G,V) BASE PACKAGE |
1 | ||
| 87103-05060 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87103-05060 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87103-05060 |
ADT271..LHD..6FC..G;ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87103-02150 |
ADT27#,ZRT27#..LHD..(E,G,V) |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-02180 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-05040 |
ADT271;ADT270..LHD..E;ADT270,ZRT27#..RHD..(E,F)..(DCR,HTWVM) BASE PACKAGE |
1 | ||
| 87106-05040 |
ADT270..LHD..E;ADT271..6FC..G;ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87106-02120 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 87106-05040 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87106-05040 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-02140 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02150 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02311 |
ADT27#..LHD..(E,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| 87130-05191 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87130-05201 |
ADT27#..LHD..(E,G,V) BASE PACKAGE |
1 | ||
| 87130-05191 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87130-05201 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87130-02321 |
ADT27#..LHD..(E,G,V) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-02020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-02020 |
ADT27#..LHD..(E,G,N,V) |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-26040 |
ADT270..RHD;ADT270..LHD..(E,N);ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM) BASE PACKAGE |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02202 |
ADT27#,ZRT27# |
1 | ||
| 88501-02201 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
ADT27#,ZRT27# ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
ADT27#,ZRT27# ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02150 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02110 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02110 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02070 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-05220 |
ADT27#..LHD BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 88650-05250 |
ADT27#..E,F,G,V |
1 | ||
| 88650-05240 |
ADT27#..LHD..(E,F,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| 88650-05230 |
ADT27#..E,F,G,V BASE PACKAGE |
1 | ||
| 88650-05221 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 88650-05231 |
ADT271..E;ADT271..6FC..G;ADT270..LHD..E;ADT270..RHD..(E,F) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 88650-05252 |
ADT27#..E,F,G,V |
1 | ||
| 88650-05242 |
ADT27#..LHD..(E,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| Common parts | ||||
| 87128-02010 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90105-W0152 | ||||
| 90119-W0068 | ||||
| 90119-W0156 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
(0811- )LHD
AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-02010 |
ADT27#,ZRT27#..LHD..(E,G,V) |
1 | ||
| 82212-02050 |
ADT271..LHD..6FC..G;ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82212-02050 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) BASE PACKAGE |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-05760 |
ADT27#..LHD..(E,F,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05770 |
ADT27#..LHD..(E,F,G,V) BASE PACKAGE |
1 | ||
| 87050-05770 |
ADT27#..LHD..(E,F);ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87050-02A00 |
ADT27#..LHD..(E,G,V) |
1 | ||
| 87050-02890 |
ADT27#..LHD..(E,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05761 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05760 |
ADT27#..LHD..(E,F);ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05761 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87050-05771 |
ADT27#..LHD..(E,G,V) BASE PACKAGE |
1 | ||
| 87050-05771 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-05060 |
ADT27#..LHD..(E,G,V) BASE PACKAGE |
1 | ||
| 87103-05060 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87103-05060 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87103-05060 |
ADT271..LHD..6FC..G;ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87103-02150 |
ADT27#,ZRT27#..LHD..(E,G,V) |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-02180 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX) | ||||
| 87106-05040 |
ADT271;ADT270..LHD..E;ADT270,ZRT27#..RHD..(E,F)..(DCR,HTWVM) BASE PACKAGE |
1 | ||
| 87106-05040 |
ADT270..LHD..E;ADT271..6FC..G;ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87106-02120 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 87106-05040 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87106-05040 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87106J - SERVO SUB-ASSY, DAMPER(FOR MODE) | ||||
| 87106-02140 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87106V - SERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2) | ||||
| 87106-02130 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-02150 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-02311 |
ADT27#..LHD..(E,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| 87130-05191 |
ADT27#..LHD..(E,G,V) BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87130-05201 |
ADT27#..LHD..(E,G,V) BASE PACKAGE |
1 | ||
| 87130-05191 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 87130-05201 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 87130-02321 |
ADT27#..LHD..(E,G,V) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-02020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-02020 |
ADT27#..LHD..(E,G,N,V) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-02202 |
ADT27#,ZRT27# |
1 | ||
| 88501-02201 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88501F - O-RING, COOLER EVAPORATOR NO.1(DISCHARGE) | ||||
| 90099-14120 |
ADT27#,ZRT27# ID=10.8,OD=15.6 |
1 | ||
| 88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION) | ||||
| 90099-14121 |
ADT27#,ZRT27# ID=13.4,OD=18.2 |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-02150 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02110 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-02110 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-02070 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-02110 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-05220 |
ADT27#..LHD BASE PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 88650-05250 |
ADT27#..E,F,G,V |
1 | ||
| 88650-05240 |
ADT27#..LHD..(E,F,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| 88650-05230 |
ADT27#..E,F,G,V BASE PACKAGE |
1 | ||
| 88650-05221 |
ADT27#..LHD..E;ADT271..LHD..6FC..G MANUAL AIR CONDITIONER PACKAGE&HEATER-WITH(STOVE HEATER) |
1 | ||
| 88650-05231 |
ADT271..E;ADT271..6FC..G;ADT270..LHD..E;ADT270..RHD..(E,F) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 88650-05252 |
ADT27#..E,F,G,V |
1 | ||
| 88650-05242 |
ADT27#..LHD..(E,G,V) HEATER-WITH(STOVE HEATER) |
1 | ||
| Common parts | ||||
| 87128-02010 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90119-W0068 | ||||
| 90119-W0156 | ||||
| 90159-60303 | ||||
| 90159-60383 | ||||
| 90179-06282 | ||||
