ADT271L-AETGXW (2009)

Toyota Avensis

Production Feb 2009 - Nov 2011
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )LHD

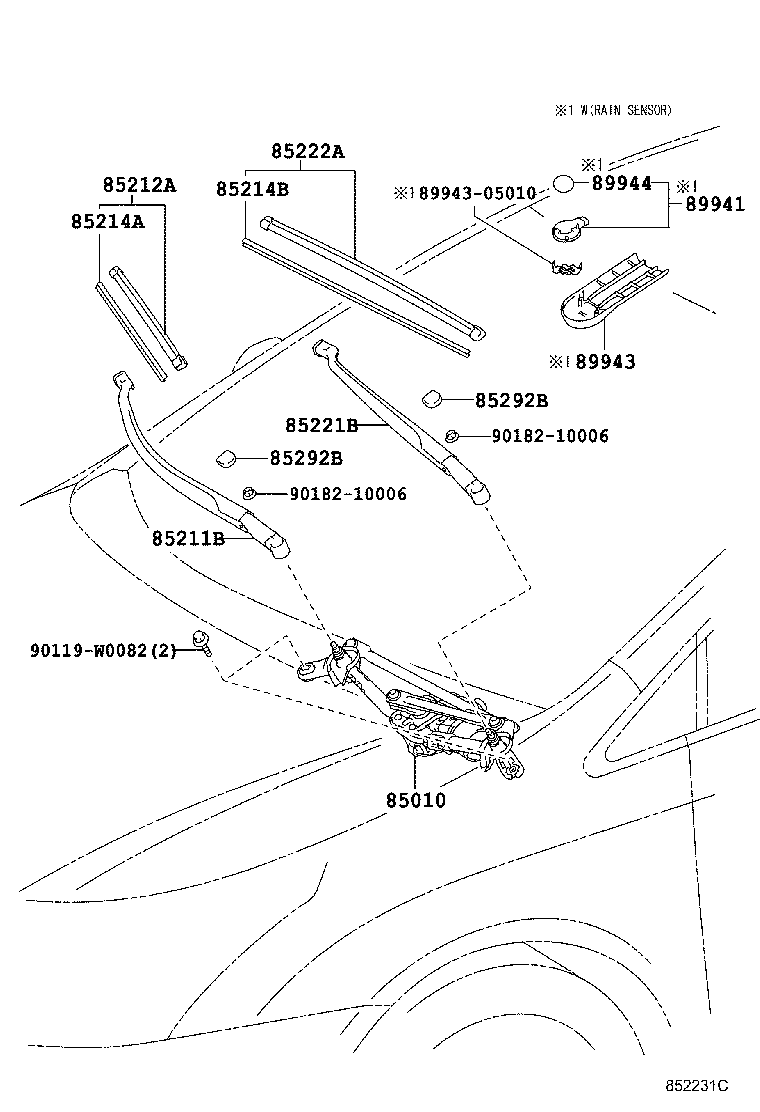

Click highlighted areas on diagram

diagram 85010 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 89941 89943 8994305010 89944 90119W0082 9018210006 9018210006
Part # Description Qty Price
85010 - MOTOR & LINK ASSY, FR WIPER
85010-05080

ADT27#,ZRT27#..LHD..(E,G,N,V)

 1
85211B - ARM, FRONT WIPER, RH
85211-05090

ADT27#,ZRT27#..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-05100

ADT27#,ZRT27#..LHD..(E,G,N,V)

 1
85214A - RUBBER, WIPER, RH
85214-05140

ADT27#,ZRT27#..LHD..(E,G,N,V)

 1
85214B - RUBBER, WIPER, LH
85214-05150

ADT27#,ZRT27#..LHD..(E,G,N,V)

 1
85221B - ARM, FRONT WIPER, LH
85221-05090

ADT27#,ZRT27#..LHD

 1
85222A - BLADE, FR WIPER, LH
85222-05070

ADT27#,ZRT27#..LHD..(E,G,N,V)

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
89941 - SENSOR, RAIN
89941-05030

ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC)

LIGHT CONTROL SYSTEM-WITH(AUTO)

 1
89941-05030

ADT271,ZRT272..G,V

 1
89941-05030

ADT27#,ZRT27#..E,F

 1
89943 - COVER, RAIN SENSOR
89943-05050

ADT27#,ZRT27#..E,F

 1
89943-05050

ADT271,ZRT272..G,V

 1
89943-05040

ADT271..6FC..G

CRUISE CONTROL-WITH(W/RADAR CRUISE)

 1
89943-05040

ADT271..6FC..V

CRUISE CONTROL-WITH(W/RADAR CRUISE)

 1
89943-05050

ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC)

LIGHT CONTROL SYSTEM-WITH(AUTO)

 1
89943-05040

ADT271..6FC..V

PREMIUM GRADE&CRUISE CONTROL-WITH(W/RADAR CRUISE)

 1
89944 - TAPE, RAIN SENSOR
89944-05020

ADT271,ZRT272..G,V

 1
89944-05020

ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC)

LIGHT CONTROL SYSTEM-WITH(AUTO)

 1
89944-05020

ADT27#,ZRT27#..E,F

 1
Common parts
89943-05010
90119-W0082
90182-10006
