ADT271L-AETGXW (2009)

Toyota Avensis

Production Feb 2009 - Nov 2011
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811-1111)LHD

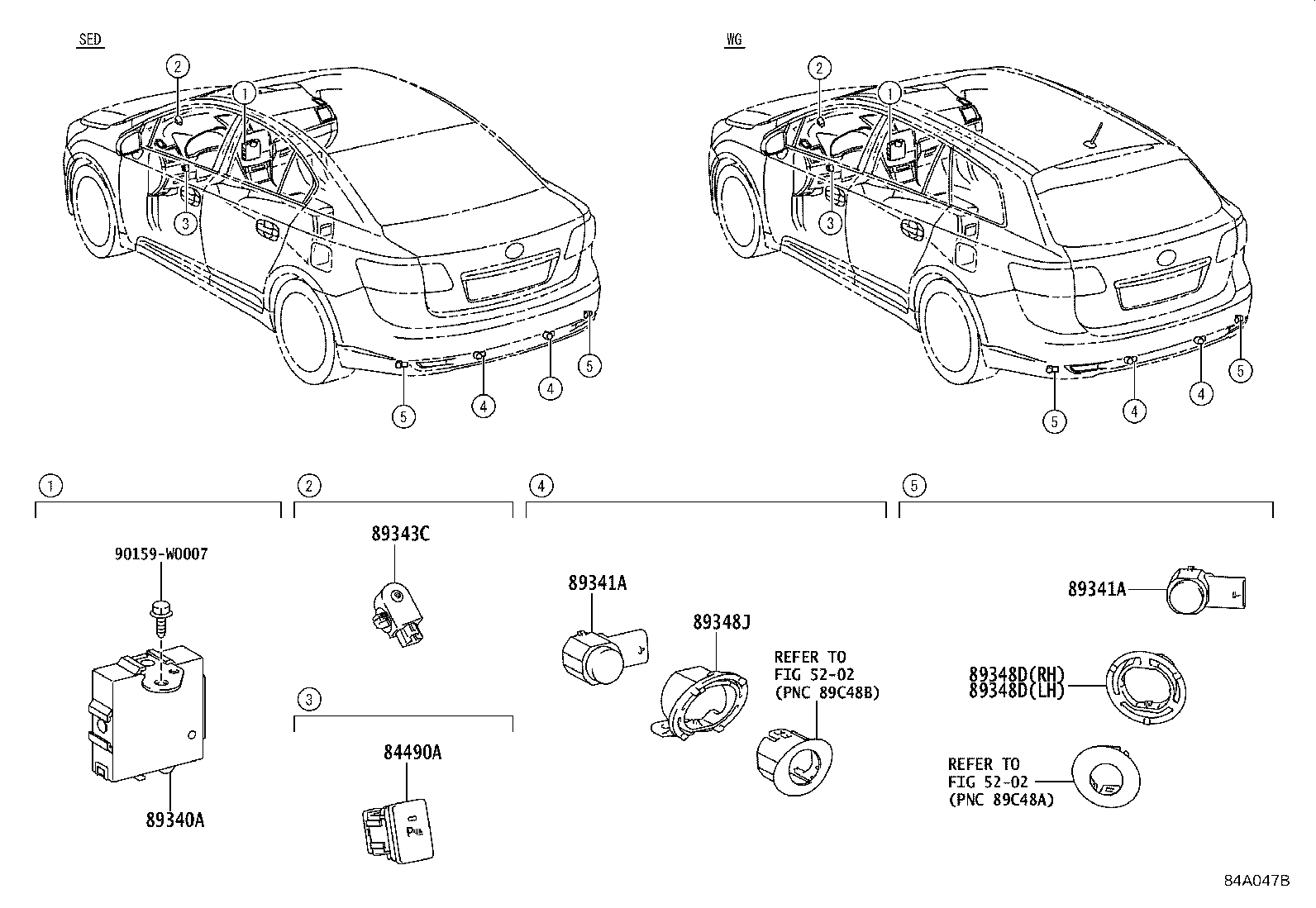

Click highlighted areas on diagram

diagram 84490A 89340A 89341A 89341A 89343C 89348D 89348D 89348J 90159W0007
Part # Description Qty Price
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-05010

ADT271..V;ADT270..RHD..F;ADT271..RHD..6F..G..DCRL

CLEARANCE & BACK SONAR-WITH

 1
84490-05010

ADT271..6FC..G;ADT271..RHD..DCR;ADT271..LHD..6F..(E,G);ADT270,ZRT27#..(E,G)..(DCR,HTWVM)

CLEARANCE & BACK SONAR-WITH

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-05011

ADT271..SED..6FC..G;ADT271..RHD..SED..DCR;ADT271..LHD..SED..6F..(E,G);ADT270,ZRT27#..SED..(E,G)..(DCR,HTWVM)

CLEARANCE & BACK SONAR-WITH

 1
89340-05011

ADT270..RHD..F;ADT271..SED..V;ADT271..RHD..SED..6F..G..DCRL

CLEARANCE & BACK SONAR-WITH

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-05010A0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

 4
89341-05010C0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209

 4
89341-05010D0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3

 4
89341-05010J0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6

 4
89341-05010B3

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6

 4
89341-05010J1

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5

 4
89341-05010K0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK

 4
89341-05010B2

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7

 4
89341-05010B4

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2

 4
89341-05010G1

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

 4
89341A - SENSOR, ULTRASONIC, NO.1
89341-05010A0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040

 4
89341-05010C0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209

 4
89341-05010D0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3

 4
89341-05010J0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6

 4
89341-05010B3

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6

 4
89341-05010J1

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5

 4
89341-05010K0

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK

 4
89341-05010B2

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7

 4
89341-05010B4

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2

 4
89341-05010G1

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7

 4
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-30010

ADT271..6FC..G;ADT271..RHD..DCR;ADT271..LHD..6F..(E,G);ADT270,ZRT27#..(E,G)..(DCR,HTWVM)

CLEARANCE & BACK SONAR-WITH

 1
89343-30010

ADT271..V;ADT270..RHD..F;ADT271..RHD..6F..G..DCRL

CLEARANCE & BACK SONAR-WITH

 1
89348D - CLIP, ULTRASONIC SENSOR
89348-05061

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,LH

 1
89348-05041

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,RH

 1
89348D - CLIP, ULTRASONIC SENSOR
89348-05061

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,LH

 1
89348-05041

ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH,RH

 1
89348J - CLIP, ULTRASONIC SENSOR
89348-05020

ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM)

CLEARANCE & BACK SONAR-WITH

 2
Common parts
90159-W0007
