ADT271L-AETGXW (2009)
Toyota Avensis

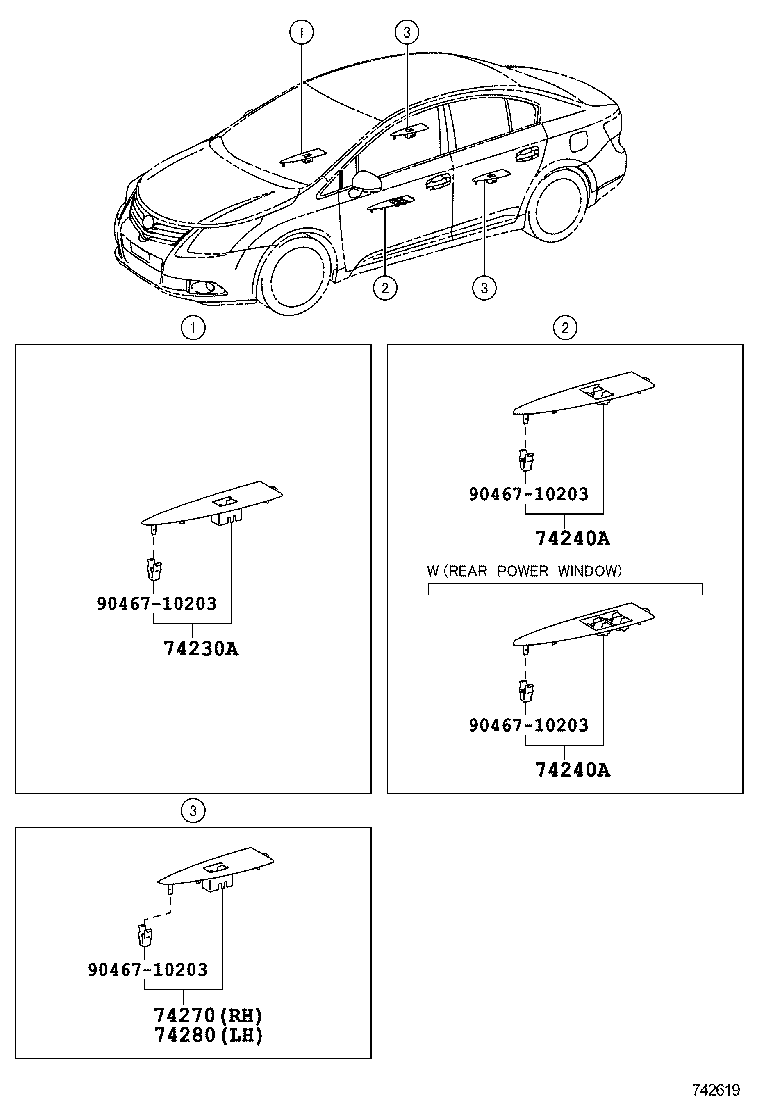

ILLUST NO. 1 OF 3(0811- )LHD
ARMREST
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74230A - PANEL ASSY, FRONT DOOR ARMREST BASE, RH | ||||
| 74231-05220 |
ADT27#,ZRT27#..LHD..E |
1 | ||
| 74231-05180 |
ADT271,ZRT272..LHD..(G,V) |
1 | ||
| 74231-05220 |
ADT271..LHD..6FC..G SOL GRADE |
1 | ||
| 74231-05220 |
ADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74232-05200 |
ADT27#,ZRT27#..LHD..E |
1 | ||
| 74232-05210 |
ADT271,ZRT272..LHD..(G,V) |
1 | ||
| 74232-05200 |
ADT271..LHD..6FC..G SOL GRADE |
1 | ||
| 74232-05200 |
ADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 74240A - PANEL ASSY, FRONT DOOR ARMREST BASE, LH | ||||
| 74232-05200 |
ADT27#,ZRT27#..LHD..E |
1 | ||
| 74232-05210 |
ADT271,ZRT272..LHD..(G,V) |
1 | ||
| 74232-05200 |
ADT271..LHD..6FC..G SOL GRADE |
1 | ||
| 74232-05200 |
ADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 74270 - PANEL ASSY, REAR DOOR ARMREST BASE, RH | ||||
| 74271-05040 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) |
1 | ||
| 74271-05050 |
ADT271,ZRT272..G,V |
1 | ||
| 74271-05040 |
ADT271..6FC..G SOL GRADE |
1 | ||
| 74271-05040 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 74280 - PANEL ASSY, REAR DOOR ARMREST BASE, LH | ||||
| 74272-05040 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 74272-05040 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) |
1 | ||
| 74272-05040 |
ADT271..6FC..G SOL GRADE |
1 | ||
| 74272-05050 |
ADT271,ZRT272..G,V |
1 | ||
| Common parts | ||||
| 90467-10203 | ||||
ILLUST NO. 2 OF 3(0811- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-05250B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) BULGARIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) ROMANIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) BULGARIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05250B0 |
ZRT271..LHD..SED;ADT27#,ZRT270,272..LHD..(E,F,G,N)..(DCR,DCRL,HTWVM) TURKEY SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05200E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05200E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) PORTUGAL SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05250E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) ROMANIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) GREECE SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250E0 |
ADT27#,ZRT27#..LHD..(E,F,G)..(DCR,DCRL,HTWVM) LATVIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05250E0 |
ZRT271..LHD..SED..E;ADT27#,ZRT270,272..LHD..(E,F,G)..(DCR,DCRL,HTWVM) TURKEY SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) PORTUGAL SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05200B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) ROMANIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250B0 |
ADT27#,ZRT27#..LHD..(E,F,G,N)..(DCR,DCRL,HTWVM) LATVIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250B0 |
ADT27#,ZRT27#..LHD..(E,F,G,N)..(DCR,DCRL,HTWVM) LITHUANIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250E0 |
ADT27#,ZRT27#..LHD..(E,F,G)..(DCR,DCRL,HTWVM) LITHUANIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) BULGARIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200B0 |
ZRT271..LHD..SED;ADT27#,ZRT270,272..LHD..(E,F,G,N)..(DCR,DCRL,HTWVM) TURKEY SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05200E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) ROMANIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200E0 |
ZRT271..LHD..SED..E;ADT27#,ZRT270,272..LHD..(E,F,G)..(DCR,DCRL,HTWVM) TURKEY SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) GREECE SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05250E0 |
ADT27#,ZRT27#..LHD..(E,F,G)..(DCR,DCRL,HTWVM) ICELAND SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05250B0 |
ADT27#,ZRT27#..LHD..(E,F,G,N)..(DCR,DCRL,HTWVM) ICELAND SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05250E0 |
ADT27#,ZRT27#..LHD..(E,F,G,V)..(DCR,DCRL,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05200B0 |
ADT27#,ZRT27#..LHD..(DCR,DCRL,HTWVM) BULGARIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05190B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V) LT.GRAY,TRIM2# |
1 | ||
| 74310-05190E0 |
ADT27#,ZRT27#..LHD..(E,G,V) GREGE,TRIM4# |
1 | ||
| 74310-05240B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) SLOVAKIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05240B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) SLOVENIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05240E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) HUNGARY SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05240B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) CZECH SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05240B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) POLAND SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05260B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) GREECE SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05240E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) POLAND SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05260B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) BULGARIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05240B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) HUNGARY SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05260B0 |
ZRT271..LHD..SED;ADT27#,ZRT270,272..LHD..(E,G,N)..(DCR,DCRL,HTWVM) TURKEY SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05240E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) SLOVENIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05270B0 |
ADT27#,ZRT27#..LHD..(E,G,N)..(DCR,DCRL,HTWVM) LATVIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05260E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) BULGARIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05260E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) GREECE SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05240E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) CZECH SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05260B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) ROMANIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05260E0 |
ZRT271..LHD..SED..E;ADT27#,ZRT270,272..LHD..(E,G)..(DCR,DCRL,HTWVM) TURKEY SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05270B0 |
ADT27#,ZRT27#..LHD..(E,G,N)..(DCR,DCRL,HTWVM) LITHUANIA SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05240E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) SLOVAKIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05270B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05270E0 |
ADT27#,ZRT27#..LHD..(E,G)..(DCR,DCRL,HTWVM) LATVIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05260E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) PORTUGAL SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05260E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) ROMANIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05270B0 |
ADT27#,ZRT27#..LHD..(E,G,N)..(DCR,DCRL,HTWVM) ICELAND SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05270E0 |
ADT27#,ZRT27#..LHD..(E,G)..(DCR,DCRL,HTWVM) ICELAND SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05270E0 |
ADT27#,ZRT27#..LHD..(E,G)..(DCR,DCRL,HTWVM) LITHUANIA SPEC,GREGE,TRIM4# |
1 | ||
| 74310-05260B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V)..(DCR,DCRL,HTWVM) PORTUGAL SPEC,LT.GRAY,TRIM2# |
1 | ||
| 74310-05270E0 |
ADT27#,ZRT27#..LHD..(E,G,V)..(DCR,DCRL,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,GREGE,TRIM4# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-05180E0 |
ADT27#,ZRT27#..LHD..(E,G,V) GREGE,TRIM4# |
1 | ||
| 74320-05180B0 |
ADT27#,ZRT27#..LHD..(E,G,N,V) LT.GRAY,TRIM2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
2 | ||
| 74348-33040B1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
2 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-05140E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
2 | ||
| 74610-05140B0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
2 | ||
| 74611C - COVER, ASSIST GRIP, LH | ||||
| 74611-05020C0 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2# |
1 | ||
| 74611-05020C0 |
ZRT271..WG..6F..E;ZRT270,271..SED..E;ADT270..RHD..(E,F);ZRT271..LHD..WG..CVT..E;ADT271,ZRT272..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..E..(DCR,HTWC) BLACK,TRIM2#,4# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
8 | ||
| 74612-0D080B1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
8 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-0D080E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
8 | ||
| 74612-0D080B1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
8 | ||
| 74612C - COVER, ASSIST GRIP, RH | ||||
| 74612-05030C0 |
ZRT271..WG..6F..E;ZRT270,271..SED..E;ADT270..RHD..(E,F);ZRT271..LHD..WG..CVT..E;ADT271,ZRT272..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..E..(DCR,HTWC) BLACK,TRIM2#,4# |
1 | ||
| 74612-05030C0 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2# |
1 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-05130B0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
1 | ||
| 74610-05130E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-05130E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 74610-05130B0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
1 | ||
| 74645A - COVER, DOOR ASSIST GRIP, RH | ||||
| 74645-05010C0 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2# |
1 | ||
| 74645-05010C0 |
ZRT271..WG..6F..E;ZRT270,271..SED..E;ADT270..RHD..(E,F);ZRT271..LHD..WG..CVT..E;ADT271,ZRT272..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..E..(DCR,HTWC) BLACK,TRIM2#,4# |
1 | ||
| 74646 - COVER, DOOR ASSIST GRIP, LH | ||||
| 74646-05010C0 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-E FABRIC,BLACK,TRIM2# |
1 | ||
| 74646-05010C0 |
ZRT271..WG..6F..E;ZRT270,271..SED..E;ADT270..RHD..(E,F);ZRT271..LHD..WG..CVT..E;ADT271,ZRT272..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..E..(DCR,HTWC) BLACK,TRIM2#,4# |
1 | ||
ILLUST NO. 3 OF 3(0811- )
ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74636 - GRIP, BACK DOOR ASSIST | ||||
| 74649-51010 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 74641B - GRIP, DOOR ASSIST | ||||
| 74641-05030C0 |
ADT270..RHD..SED..(E,F);ADT270,ZRT272..LHD..SED..E..(DCR,HTWC);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 90164-60018 | ||||
