ADT271L-AETGXW (2009)
Toyota Avensis

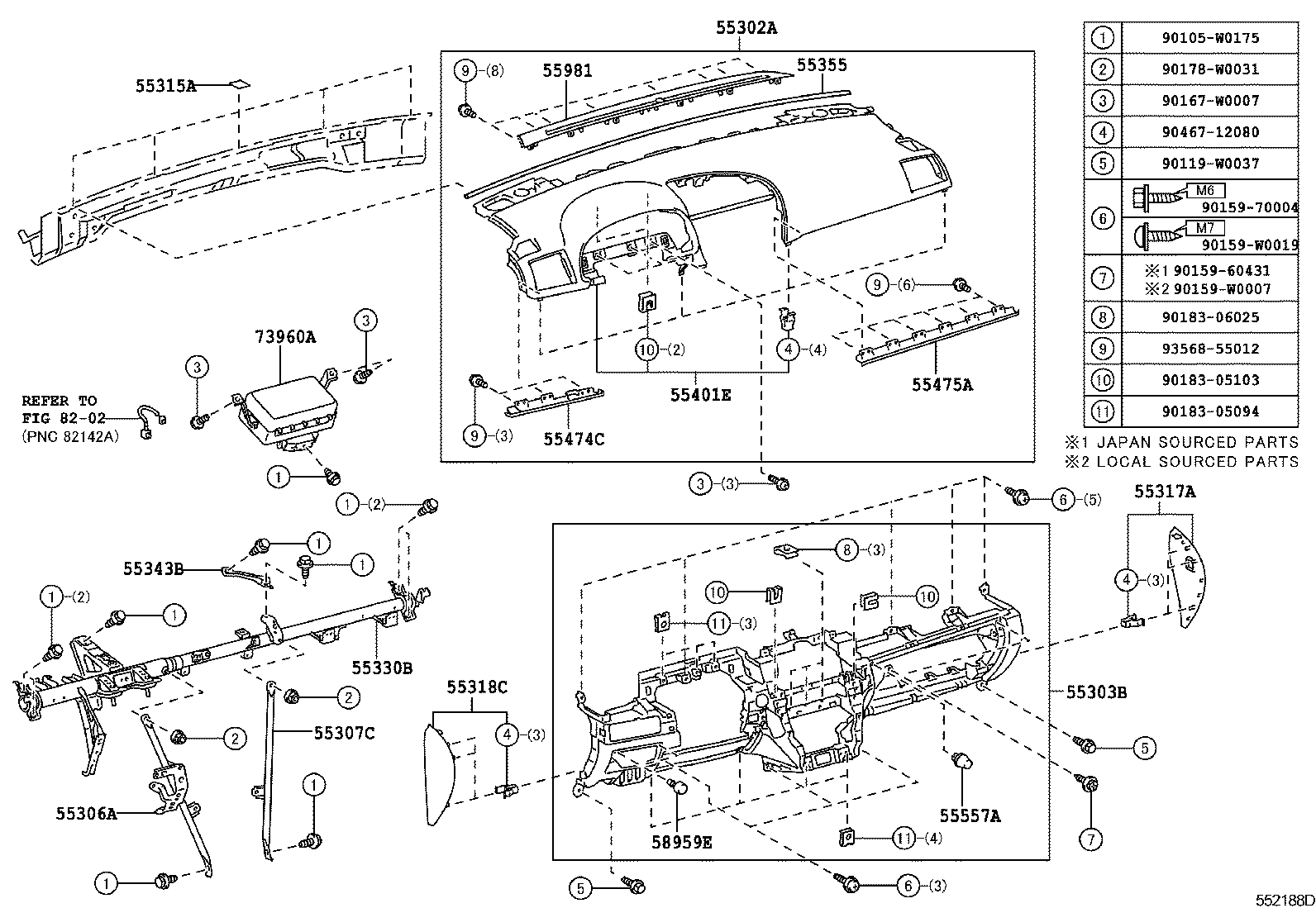

ILLUST NO. 1 OF 2(0811-1505)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-05051C0 |
ADT27#,ZRT27#..LHD..(E,F,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55302-05060C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55302-05060C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55302-05061C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55302-05051C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55302-05061C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-05030C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05100 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-05030 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
5 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-05150 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55330-05151 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-05060 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-05091C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55401-05101C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55401-05101C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-05110 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-05210 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-05010C0 |
ADT27#,ZRT27#..LHD..(E,F,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55981-05011C0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) BLACK,TRIM2#,4# |
1 | ||
| 55981-05011C0 |
ADT270,ZRT271..LHD..N;ADT271,ZRT270,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-05010 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90159-W0007 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90183-06025 | ||||
| 90467-12080 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

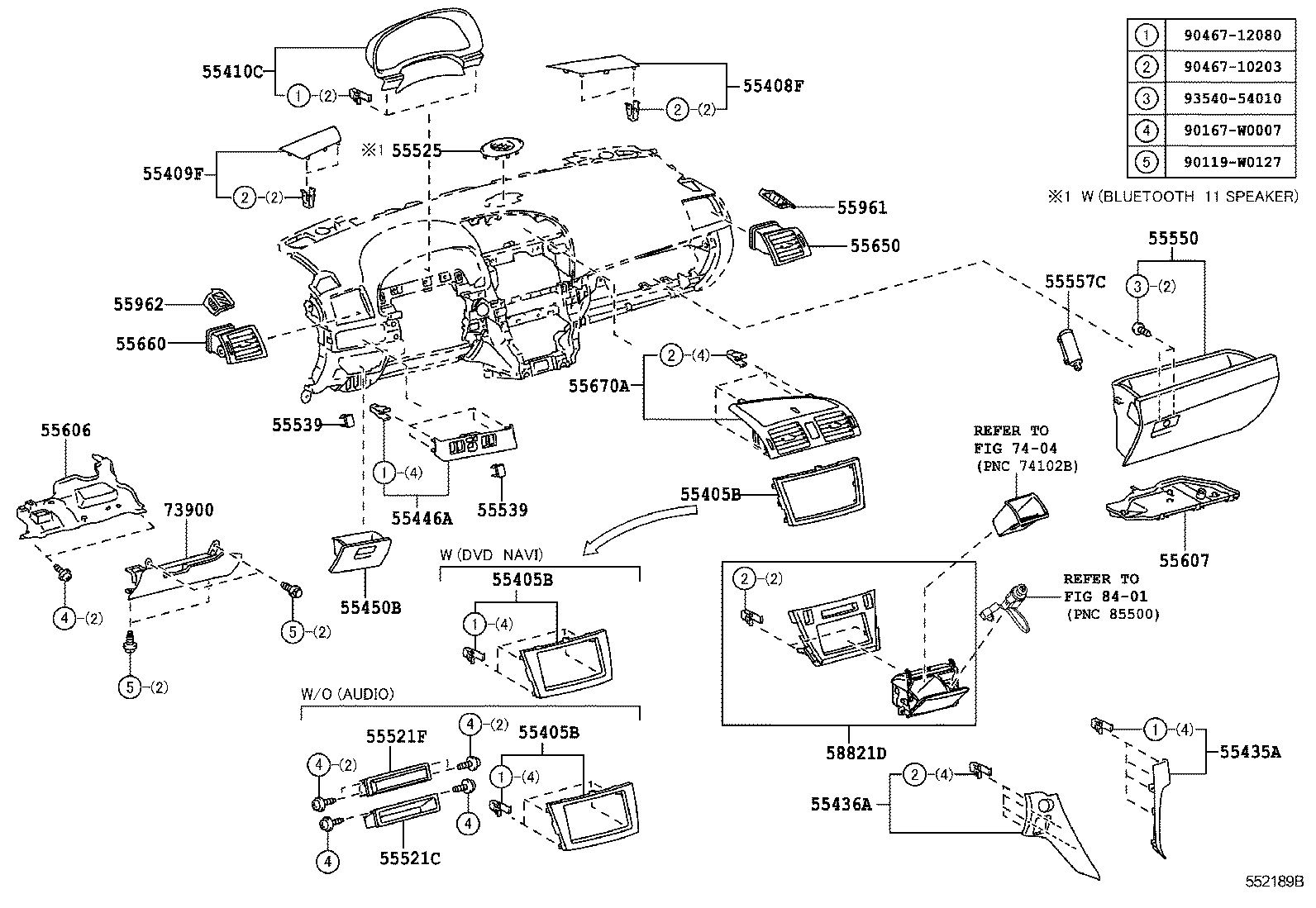

ILLUST NO. 2 OF 2(0811-1111)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05180 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05190 |
ADT27#,ZRT27#..E,F |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..E,F AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05210 |
ADT271,ZRT272..G,V |
1 | ||
| 55405-05190 |
ADT271..6FC..G SOL GRADE |
1 | ||
| 55405-05200 |
ADT271,ZRT272..G,V AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT271..6FC..G SOL GRADE&AUDIO-ENTRY NAVI |
1 | ||
| 55405-05220 |
ADT270..LHD..E;ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 55405-05230 |
ADT271..6FC..G SOL GRADE&AUDIO-RADIO/CD&6SPEAKER(TITANIUM) |
1 | ||
| 55405-05220 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT271..6FC..G SOL GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05230 |
ADT271..6FC..G SOL GRADE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER(TITANIUM) |
1 | ||
| 55405-05230 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05180 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05190 |
ADT27#,ZRT27#..E,F |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..E,F AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05210 |
ADT271,ZRT272..G,V |
1 | ||
| 55405-05190 |
ADT271..6FC..G SOL GRADE |
1 | ||
| 55405-05200 |
ADT271,ZRT272..G,V AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT271..6FC..G SOL GRADE&AUDIO-ENTRY NAVI |
1 | ||
| 55405-05220 |
ADT270..LHD..E;ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 55405-05230 |
ADT271..6FC..G SOL GRADE&AUDIO-RADIO/CD&6SPEAKER(TITANIUM) |
1 | ||
| 55405-05220 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT271..6FC..G SOL GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05230 |
ADT271..6FC..G SOL GRADE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER(TITANIUM) |
1 | ||
| 55405-05230 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05180 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05190 |
ADT27#,ZRT27#..E,F |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT271..6FC..G SOL GRADE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..E,F AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05210 |
ADT271,ZRT272..G,V |
1 | ||
| 55405-05190 |
ADT271..6FC..G SOL GRADE |
1 | ||
| 55405-05200 |
ADT271,ZRT272..G,V AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT271..6FC..G SOL GRADE&AUDIO-ENTRY NAVI |
1 | ||
| 55405-05220 |
ADT270..LHD..E;ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 55405-05230 |
ADT271..6FC..G SOL GRADE&AUDIO-RADIO/CD&6SPEAKER(TITANIUM) |
1 | ||
| 55405-05220 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05220 |
ADT271..6FC..G SOL GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05230 |
ADT271..6FC..G SOL GRADE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER(TITANIUM) |
1 | ||
| 55405-05230 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-05010C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55472-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55472-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-05010C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55473-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55473-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-05030C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-05020C0 |
ADT27#,ZRT27#..LHD..(E,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2#,4# |
1 | ||
| 55436-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-05060C0 |
ADT27#,ZRT27#..LHD..E BLACK,TRIM2#,4# |
1 | ||
| 55446-05060C0 |
ADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G BASE PACKAGE,BLACK,TRIM2#,4# |
1 | ||
| 55446-05050C0 |
ADT27#,ZRT27#..LHD..E OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),BLACK,TRIM2#,4# |
1 | ||
| 55446-05060C0 |
ADT271..LHD..6FC..G OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER),BLACK,TRIM2#,4# |
1 | ||
| 55446-05050C0 |
ADT271,ZRT272..LHD..(G,V) BLACK,TRIM2#,4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-02070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-02090 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-05010C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55525-05010C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05100 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05100 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-05090C0 |
ADT270..LHD..F;ADT271,ZRT270,272..LHD..E..(DCR,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55550-05090C0 |
ADT270..LHD..F;ADT271,ZRT270,272..LHD..E..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55550-05090C0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) BLACK,TRIM2#,4# |
1 | ||
| 55550-05110C0 |
ADT270,ZRT271..LHD..N;ADT271,ZRT270,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55550-05111C0 |
ADT270,ZRT271..LHD..N;ADT271,ZRT270,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55550-05110C0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) BLACK,TRIM2#,4# |
1 | ||
| 55550-05111C0 |
ZRT272..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) BLACK,TRIM2#,4# |
1 | ||
| 55557C - DAMPER, GLOVE COMPARTMENT DOOR | ||||
| 55557-33030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-05050 |
ADT27#..LHD..(E,G,N,V) |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-05050 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-05140C0 |
ADT27#,ZRT27#..E,F,G,V BLACK,TRIM2#,4# |
1 | ||
| 55650-05141C0 |
ZRT271..N;ADT270..LHD..N;ADT270..RHD..(F,N);ADT271,ZRT270..E,N;ZRT272..LHD..E..HTWVM BLACK,TRIM2# |
1 | ||
| 55650-05141C0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V BLACK,TRIM2#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-05101C0 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V BLACK,TRIM2#,4# |
1 | ||
| 55660-05100C0 |
ADT27#,ZRT27#..E,F,G,V BLACK,TRIM2#,4# |
1 | ||
| 55660-05101C0 |
ZRT271..N;ADT270..LHD..N;ADT270..RHD..(F,N);ADT271,ZRT270..E,N;ZRT272..LHD..E..HTWVM BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-05090 |
ADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 55670-05090 |
ADT27#,ZRT27#..LHD..(E,F) |
1 | ||
| 55670-05090 |
ADT271..LHD..6FC..G SOL GRADE |
1 | ||
| 55670-05130 |
ADT27#,ZRT27#..LHD..(E,F)..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 55670-05110 |
ADT271,ZRT272..LHD..(G,V) |
1 | ||
| 55670-05130 |
ADT271..LHD..6FC..G SOL GRADE&AUDIO-ENTRY NAVI |
1 | ||
| 55670-05130 |
ADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 55670-05130 |
ADT271..LHD..6FC..G SOL GRADE |
1 | ||
| 55670-05130 |
ADT27#,ZRT27#..LHD..E |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-05050C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-05050C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 58821D - PANEL, CONSOLE, UPPER FRONT | ||||
| 58804-05903 |
ADT27#,ZRT27#..6F..(E,F)..(DCR,HTWVM) BASE PACKAGE |
1 | ||
| 58804-05900 |
ADT27#,ZRT27#..LHD..6F..(E,F)..(DCR,HTWVM) BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05900 |
ADT271,ZRT272..LHD..6F..(G,V) BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05903 |
ADT271,ZRT272..6F..(G,V) BASE PACKAGE |
1 | ||
| 58804-05901 |
ZRT271..CVT..E;ZRT272..LHD..HTWC;ADT271,ZRT272..G,V;ZRT272..RHD..6F..HTWC;ZRT272..RHD..(ATM,CVT) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05901 |
ADT271,ZRT272..LHD..(G,V) PREMIUM GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05902 |
ZRT272..CVT..G;ADT271..LHD..6FC..V BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05901 |
ADT271,ZRT272..G,V PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05901 |
ADT271,ZRT272..LHD..(G,V) WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05902 |
ADT27#,ZRT27#..LHD..(E,F)..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05905 |
ADT271..6FC..V;ZRT272..CVT..G BASE PACKAGE |
1 | ||
| 58804-05904 |
ADT271,ZRT272..G,V |
1 | ||
| 58804-05902 |
ADT271..LHD..6FC..G SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-E FABRIC |
1 | ||
| 58804-05905 |
ADT27#,ZRT27#..E,F |
1 | ||
| 58804-05902 |
ADT271,ZRT272..LHD..6F..(G,V) BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05901 |
ZRT271..LHD..CVT..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05905 |
ADT271,ZRT272..6F..(G,V) BASE PACKAGE |
1 | ||
| 58804-05902 |
ADT271..LHD..6FC..G SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05905 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05905 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-E FABRIC |
1 | ||
| 58804-05907 |
ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05907 |
ADT271,ZRT272..G,V PREMIUM GRADE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05907 |
ADT271,ZRT272..LHD..(G,V) PREMIUM GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05910 |
ADT271..LHD..V;ADT271,ZRT272..LHD..(CVT,MTM)..G BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05907 |
ADT271,ZRT272..LHD..(G,V) WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05911 |
ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) |
1 | ||
| 58804-05909 |
ADT271,ZRT272..G,V |
1 | ||
| 58804-05910 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 58804-05911 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-E FABRIC |
1 | ||
| 58804-05910 |
ADT271..LHD..6FC..G SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-E FABRIC |
1 | ||
| 58804-05911 |
ADT271..V;ADT271,ZRT272..(CVT,MTM)..G BASE PACKAGE |
1 | ||
| 58804-05910 |
ADT271..LHD..6FC..G SOL GRADE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05907 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 58804-05911 |
ADT271..6FC..G SOL GRADE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-05030C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 7404 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
