ADT271L-AETGXW (2009)

Toyota Avensis

Production Feb 2009 - Nov 2011
Engine 2ADFHV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )LHD

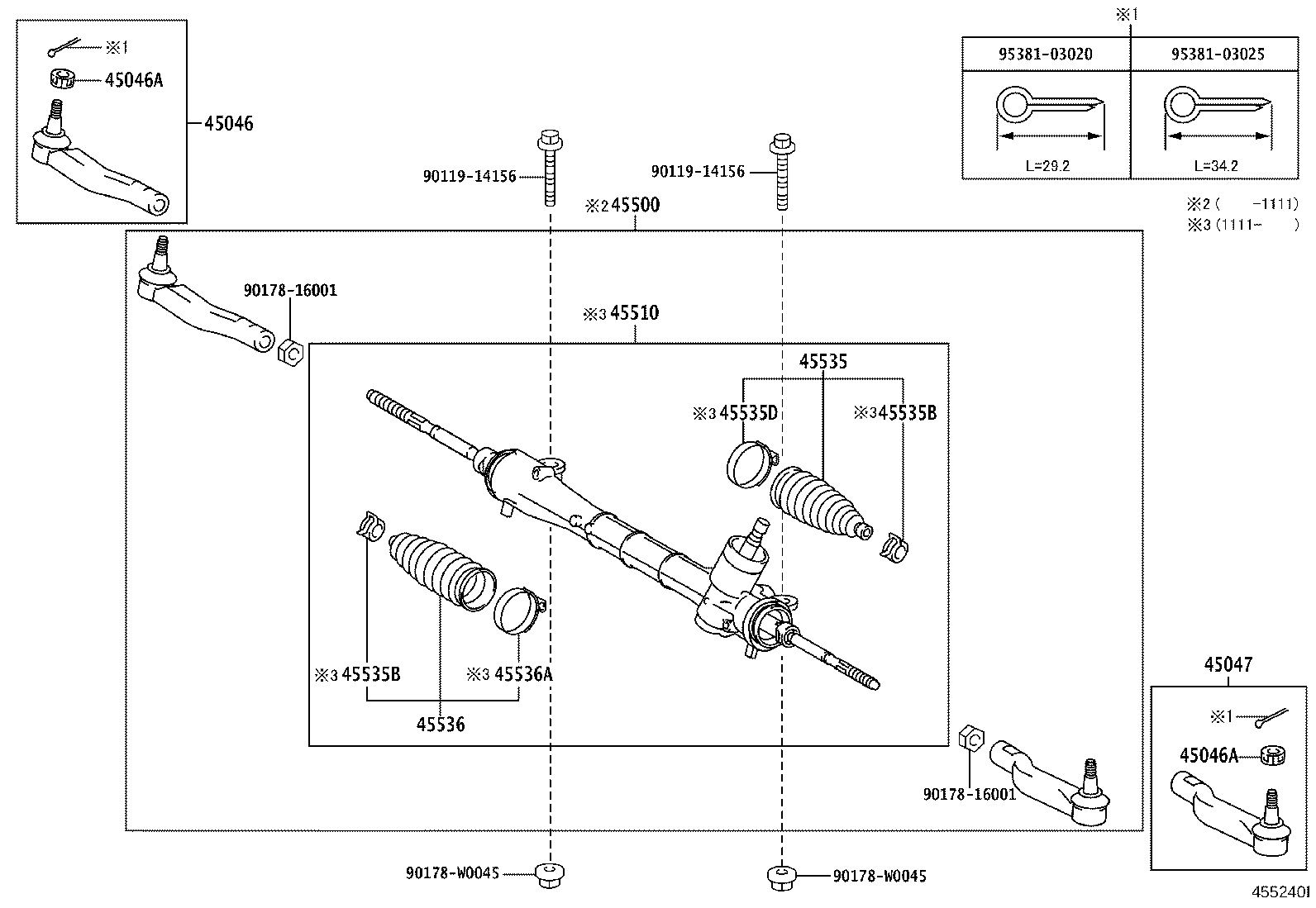

Click highlighted areas on diagram

diagram 45046 45046A 45046A 45047 45500 45510 45535 45535B 45535B 45535D 45536 45536A 9011914156 9011914156 9017816001 9017816001 9017816001 90178W0045 90178W0045 9538103020 9538103025
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-09660

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12028

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
45047 - END SUB-ASSY, TIE ROD, LH
45047-09320

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
45500 - LINK ASSY, STEERING
45500-05040

ADT27#,ZRT27#..LHD..(E,G,N,V)

 1
45535 - BOOT, STEERING RACK, NO.1
45535-09120

ADT27#,ZRT27#

 1
45536 - BOOT, STEERING RACK, NO.2
45535-09120

ADT27#,ZRT27#

 1
Common parts
90119-14156
90178-16001
90178-W0045
95381-03020
95381-03025
