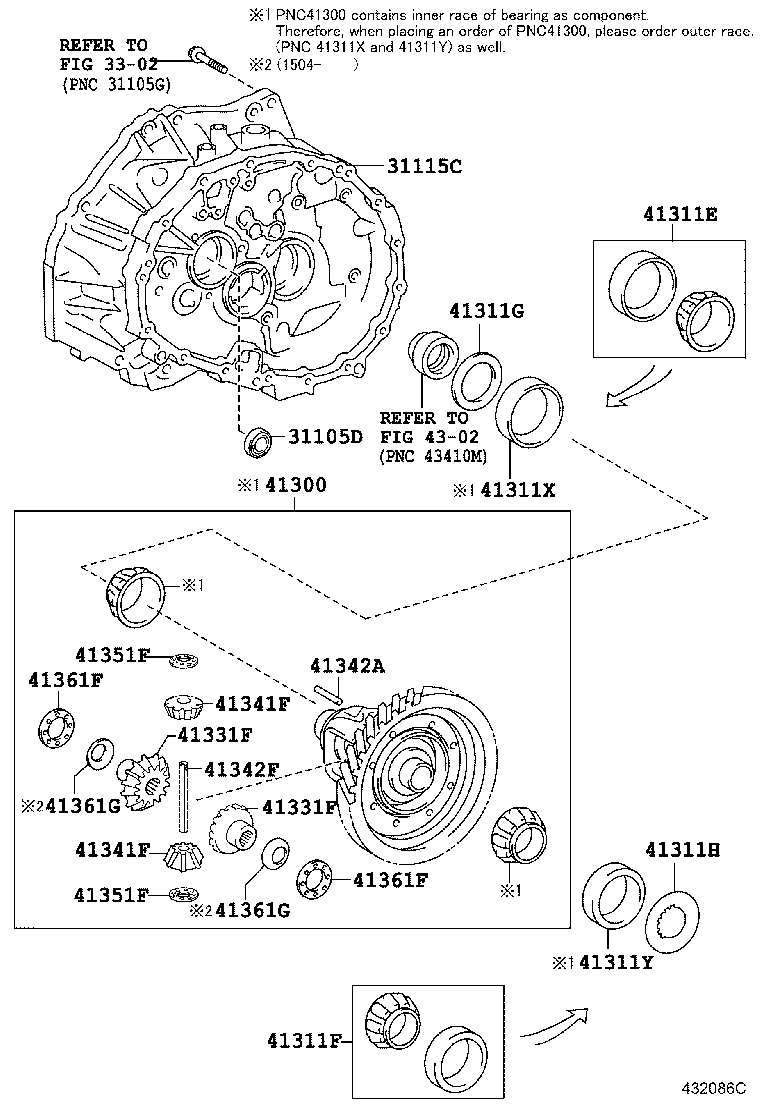

ADT271L-AETGXW (2009)
Toyota Avensis
(0811- )ADT27#,WWT27#..6F
EA62,EA63,EA65
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
ZRT270,271..6F *201 |
1 | ||
| 90311-30017 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-20110 |
ZRT270,271..6F *201 |
1 | ||
| 31115-20080 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31115F - BOLT(FOR FRONT TRANSAXLE CASE) | ||||
| 90105-12354 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31115G - GASKET(FOR FRONT TRANSAXLE CASE) | ||||
| 90430-13004 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-33160 |
ADT271..6FC |
1 | ||
| 41221-20410 |
ADT271..DCR;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 41221-64010 |
ADT271..6F..DCRL |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
16 | ||
| 41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 | ||||
| 41301-20240 |
ADT271..6F |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-56075 |
ADT27#..6F T=2.10,MARK 2 |
1 | ||
| 90564-56073 |
ADT27#..6F T=2.00,MARK 0 |
1 | ||
| 90564-56076 |
ADT27#..6F T=2.15,MARK 3 |
1 | ||
| 90564-56081 |
ADT27#..6F T=2.40,MARK 8 |
1 | ||
| 90564-56082 |
ADT27#..6F T=2.45,MARK 9 |
1 | ||
| 90564-56074 |
ADT27#..6F T=2.05,MARK 1 |
1 | ||
| 90564-56085 |
ADT27#..6F T=2.60,MARK C |
1 | ||
| 90564-56077 |
ADT27#..6F T=2.20,MARK 4 |
1 | ||
| 90564-56084 |
ADT27#..6F T=2.55,MARK B |
1 | ||
| 90564-56079 |
ADT27#..6F T=2.30,MARK 6 |
1 | ||
| 90564-56088 |
ADT27#..6F T=2.75,MARK F |
1 | ||
| 90564-56089 |
ADT27#..6F T=2.80,MARK G |
1 | ||
| 90564-56086 |
ADT27#..6F T=2.65,MARK D |
1 | ||
| 90564-56080 |
ADT27#..6F T=2.35,MARK 7 |
1 | ||
| 90564-56087 |
ADT27#..6F T=2.70,MARK E |
1 | ||
| 90564-56078 |
ADT27#..6F T=2.25,MARK 5 |
1 | ||
| 90564-56090 |
ADT27#..6F T=2.85,MARK H |
1 | ||
| 90564-56083 |
ADT27#..6F T=2.50,MARK A |
1 | ||
| 90564-56109 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.00,MARK 0 |
1 | ||
| 90564-56112 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.15,MARK 3 |
1 | ||
| 90564-56115 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.30,MARK 6 |
1 | ||
| 90564-56111 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.10,MARK 2 |
1 | ||
| 90564-56117 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.40,MARK 8 |
1 | ||
| 90564-56114 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.25,MARK 5 |
1 | ||
| 90564-56116 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.35,MARK 7 |
1 | ||
| 90564-56122 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.65,MARK D |
1 | ||
| 90564-56121 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.60,MARK C |
1 | ||
| 90564-56120 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.55,MARK B |
1 | ||
| 90564-56113 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.20,MARK 4 |
1 | ||
| 90564-56110 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.05,MARK 1 |
1 | ||
| 90564-56123 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.70,MARK E |
1 | ||
| 90564-56125 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.80,MARK G |
1 | ||
| 90564-56118 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.45,MARK 9 |
1 | ||
| 90564-56124 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.75,MARK F |
1 | ||
| 90564-56119 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.50,MARK A |
1 | ||
| 90564-56126 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=2.85,MARK H |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50100 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 90366-50092 |
ADT271..6FC |
1 | ||
| 90366-40129 |
ZRT270,271..6F *201 |
1 | ||
| 90366-50136 |
ADT271..6FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55065 |
ADT271..6FC |
1 | ||
| 90366-50103 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 90366-42009 |
ZRT270,271..6F *201 |
1 | ||
| 90366-55074 |
ADT271..6FC |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
ZRT270,271..6F *201 |
2 | ||
| 41331-42040 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
ZRT270,271..6F *201 |
2 | ||
| 41331-42040 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20050 |
ZRT270,271..6F *201 |
2 | ||
| 41341-35050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20050 |
ZRT270,271..6F *201 |
2 | ||
| 41341-35050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ADT270..RHD;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC);ADT271,ZRT272..(6F,6FC)..(DCR,DCRL,HTWVM) |
1 | ||
| 90250-06058 |
ZRT270,271..6F *201 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20070 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 41342-33050 |
ADT271..6FC |
1 | ||
| 41342-32020 |
ZRT270,271..6F *201 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41351-32010 |
ZRT270,271..6F *201 |
2 | ||
| 41351-33030 |
ADT271..6FC |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41351-32010 |
ZRT270,271..6F *201 |
2 | ||
| 41351-33030 |
ADT271..6FC |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20240 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.25 |
2 | ||
| 41361-20320 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.35 |
2 | ||
| 41361-20340 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.45 |
2 | ||
| 41361-20350 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.50 |
2 | ||
| 41361-20370 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.60 |
2 | ||
| 41361-20410 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.80 |
2 | ||
| 41361-20430 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.90 |
2 | ||
| 41361-20400 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.75 |
2 | ||
| 41361-20380 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.65 |
2 | ||
| 41361-20330 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.40 |
2 | ||
| 41361-20420 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.85 |
2 | ||
| 41361-20310 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.30 |
2 | ||
| 41361-20390 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.70 |
2 | ||
| 41361-20360 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.55 |
2 | ||
| 41361-22140 |
ZRT270,271..6F T=0.95,MARK 14,*201 |
2 | ||
| 41361-33020 |
ADT271..6FC T=1.50 |
2 | ||
| 41361-33050 |
ADT271..6FC T=1.65 |
2 | ||
| 41361-20440 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.95 |
2 | ||
| 41361-22160 |
ZRT270,271..6F T=1.15,MARK 16,*201 |
2 | ||
| 41361-22030 |
ZRT270,271..6F T=1.10,MARK 03,*201 |
2 | ||
| 41361-22040 |
ZRT270,271..6F T=1.20,MARK 04,*201 |
2 | ||
| 41361-22150 |
ZRT270,271..6F T=1.05,MARK 15,*201 |
2 | ||
| 41361-22020 |
ZRT270,271..6F T=1.00,MARK 02,*201 |
2 | ||
| 41361-33060 |
ADT271..6FC T=1.70 |
2 | ||
| 41361-33080 |
ADT271..6FC T=1.80 |
2 | ||
| 41361-33030 |
ADT271..6FC T=1.55 |
2 | ||
| 41361-33070 |
ADT271..6FC T=1.75 |
2 | ||
| 41361-33040 |
ADT271..6FC T=1.60 |
2 | ||
| 41361-33100 |
ADT271..6FC T=1.90 |
2 | ||
| 41361-33090 |
ADT271..6FC T=1.85 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20240 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.25 |
2 | ||
| 41361-20320 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.35 |
2 | ||
| 41361-20340 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.45 |
2 | ||
| 41361-20350 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.50 |
2 | ||
| 41361-20370 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.60 |
2 | ||
| 41361-20410 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.80 |
2 | ||
| 41361-20430 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.90 |
2 | ||
| 41361-20400 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.75 |
2 | ||
| 41361-20380 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.65 |
2 | ||
| 41361-20330 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.40 |
2 | ||
| 41361-20420 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.85 |
2 | ||
| 41361-20310 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.30 |
2 | ||
| 41361-20390 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.70 |
2 | ||
| 41361-20360 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.55 |
2 | ||
| 41361-22140 |
ZRT270,271..6F T=0.95,MARK 14,*201 |
2 | ||
| 41361-33020 |
ADT271..6FC T=1.50 |
2 | ||
| 41361-33050 |
ADT271..6FC T=1.65 |
2 | ||
| 41361-20440 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.95 |
2 | ||
| 41361-22160 |
ZRT270,271..6F T=1.15,MARK 16,*201 |
2 | ||
| 41361-22030 |
ZRT270,271..6F T=1.10,MARK 03,*201 |
2 | ||
| 41361-22040 |
ZRT270,271..6F T=1.20,MARK 04,*201 |
2 | ||
| 41361-22150 |
ZRT270,271..6F T=1.05,MARK 15,*201 |
2 | ||
| 41361-22020 |
ZRT270,271..6F T=1.00,MARK 02,*201 |
2 | ||
| 41361-33060 |
ADT271..6FC T=1.70 |
2 | ||
| 41361-33080 |
ADT271..6FC T=1.80 |
2 | ||
| 41361-33030 |
ADT271..6FC T=1.55 |
2 | ||
| 41361-33070 |
ADT271..6FC T=1.75 |
2 | ||
| 41361-33040 |
ADT271..6FC T=1.60 |
2 | ||
| 41361-33100 |
ADT271..6FC T=1.90 |
2 | ||
| 41361-33090 |
ADT271..6FC T=1.85 |
2 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
(0811- )ZRT270,271..6F
EC60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-25030 |
ZRT270,271..6F *201 |
1 | ||
| 90311-30017 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-20110 |
ZRT270,271..6F *201 |
1 | ||
| 31115-20080 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50100 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 90366-50092 |
ADT271..6FC |
1 | ||
| 90366-40129 |
ZRT270,271..6F *201 |
1 | ||
| 90366-50136 |
ADT271..6FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55065 |
ADT271..6FC |
1 | ||
| 90366-50103 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 90366-42009 |
ZRT270,271..6F *201 |
1 | ||
| 90366-55074 |
ADT271..6FC |
1 | ||
| 41311G - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90560-41003 |
ZRT270,271..6F T=2.1,*201 |
1 | ||
| 41311H - WASHER, PLATE (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-44012 |
ZRT270,271..6F T=2.200, MARK 4,*201 |
1 | ||
| 90564-44010 |
ZRT270,271..6F T=2.150, MARK 2,*201 |
1 | ||
| 90564-44015 |
ZRT270,271..6F T=2.275, MARK 7,*201 |
1 | ||
| 90564-44008 |
ZRT270,271..6F T=2.100, MARK 0,*201 |
1 | ||
| 90564-44013 |
ZRT270,271..6F T=2.225, MARK 5,*201 |
1 | ||
| 90564-44022 |
ZRT270,271..6F T=2.450, MARK E,*201 |
1 | ||
| 90564-44016 |
ZRT270,271..6F T=2.300, MARK 8,*201 |
1 | ||
| 90564-44009 |
ZRT270,271..6F T=2.125, MARK 1,*201 |
1 | ||
| 90564-44017 |
ZRT270,271..6F T=2.325, MARK 9,*201 |
1 | ||
| 90564-44018 |
ZRT270,271..6F T=2.350, MARK A,*201 |
1 | ||
| 90564-44027 |
ZRT270,271..6F T=2.575, MARK K,*201 |
1 | ||
| 90564-44029 |
ZRT270,271..6F T=2.625, MARK M,*201 |
1 | ||
| 90564-44025 |
ZRT270,271..6F T=2.525, MARK H,*201 |
1 | ||
| 90564-44026 |
ZRT270,271..6F T=2.550, MARK J,*201 |
1 | ||
| 90564-44019 |
ZRT270,271..6F T=2.375, MARK B,*201 |
1 | ||
| 90564-44020 |
ZRT270,271..6F T=2.400, MARK C,*201 |
1 | ||
| 90564-44031 |
ZRT270,271..6F T=2.675, MARK P,*201 |
1 | ||
| 90564-44023 |
ZRT270,271..6F T=2.475, MARK F,*201 |
1 | ||
| 90564-44014 |
ZRT270,271..6F T=2.250, MARK 6,*201 |
1 | ||
| 90564-44028 |
ZRT270,271..6F T=2.600, MARK L,*201 |
1 | ||
| 90564-44011 |
ZRT270,271..6F T=2.175, MARK 3,*201 |
1 | ||
| 90564-44021 |
ZRT270,271..6F T=2.425, MARK D,*201 |
1 | ||
| 90564-44032 |
ZRT270,271..6F T=2.700, MARK Q,*201 |
1 | ||
| 90564-44033 |
ZRT270,271..6F T=2.725, MARK R,*201 |
1 | ||
| 90564-44035 |
ZRT270,271..6F T=2.775, MARK T,*201 |
1 | ||
| 90564-44024 |
ZRT270,271..6F T=2.500, MARK G,*201 |
1 | ||
| 90564-44038 |
ZRT270,271..6F T=2.850, MARK W,*201 |
1 | ||
| 90564-44030 |
ZRT270,271..6F T=2.650, MARK N,*201 |
1 | ||
| 90564-44036 |
ZRT270,271..6F T=2.800, MARK U,*201 |
1 | ||
| 90564-44037 |
ZRT270,271..6F T=2.825, MARK V,*201 |
1 | ||
| 90564-44034 |
ZRT270,271..6F T=2.750, MARK S,*201 |
1 | ||
| 90564-44044 |
ZRT270,271..6F T=2.225, MARK 15,*201,*202 |
1 | ||
| 90564-44042 |
ZRT270,271..6F T=2.175, MARK 13,*201,*202 |
1 | ||
| 90564-44040 |
ZRT270,271..6F T=2.125, MARK 11,*201,*202 |
1 | ||
| 90564-44046 |
ZRT270,271..6F T=2.275, MARK 17,*201,*202 |
1 | ||
| 90564-44053 |
ZRT270,271..6F T=2.450, MARK 24,*201,*202 |
1 | ||
| 90564-44051 |
ZRT270,271..6F T=2.400, MARK 22,*201,*202 |
1 | ||
| 90564-44048 |
ZRT270,271..6F T=2.325, MARK 19,*201,*202 |
1 | ||
| 90564-44045 |
ZRT270,271..6F T=2.250, MARK 16,*201,*202 |
1 | ||
| 90564-44050 |
ZRT270,271..6F T=2.375, MARK 21,*201,*202 |
1 | ||
| 90564-44049 |
ZRT270,271..6F T=2.350, MARK 20,*201,*202 |
1 | ||
| 90564-44054 |
ZRT270,271..6F T=2.475, MARK 25,*201,*202 |
1 | ||
| 90564-44059 |
ZRT270,271..6F T=2.600, MARK 30,*201,*202 |
1 | ||
| 90564-44056 |
ZRT270,271..6F T=2.525, MARK 27,*201,*202 |
1 | ||
| 90564-44041 |
ZRT270,271..6F T=2.150, MARK 12,*201,*202 |
1 | ||
| 90564-44057 |
ZRT270,271..6F T=2.550, MARK 28,*201,*202 |
1 | ||
| 90564-44039 |
ZRT270,271..6F T=2.100, MARK 10,*201,*202 |
1 | ||
| 90564-44062 |
ZRT270,271..6F T=2.675, MARK 33,*201,*202 |
1 | ||
| 90564-44043 |
ZRT270,271..6F T=2.200, MARK 14,*201,*202 |
1 | ||
| 90564-44060 |
ZRT270,271..6F T=2.625, MARK 31,*201,*202 |
1 | ||
| 90564-44064 |
ZRT270,271..6F T=2.725, MARK 35,*201,*202 |
1 | ||
| 90564-44058 |
ZRT270,271..6F T=2.575, MARK 29,*201,*202 |
1 | ||
| 90564-44061 |
ZRT270,271..6F T=2.650, MARK 32,*201,*202 |
1 | ||
| 90564-44067 |
ZRT270,271..6F T=2.800, MARK 38,*201,*202 |
1 | ||
| 90564-44063 |
ZRT270,271..6F T=2.700, MARK 34,*201,*202 |
1 | ||
| 90564-44052 |
ZRT270,271..6F T=2.425, MARK 23,*201,*202 |
1 | ||
| 90564-44047 |
ZRT270,271..6F T=2.300, MARK 18,*201,*202 |
1 | ||
| 90564-44065 |
ZRT270,271..6F T=2.750, MARK 36,*201,*202 |
1 | ||
| 90564-44069 |
ZRT270,271..6F T=2.850, MARK 40,*201,*202 |
1 | ||
| 90564-44068 |
ZRT270,271..6F T=2.825, MARK 39,*201,*202 |
1 | ||
| 90564-44066 |
ZRT270,271..6F T=2.775, MARK 37,*201,*202 |
1 | ||
| 90564-44055 |
ZRT270,271..6F T=2.500, MARK 26,*201,*202 |
1 | ||
| 41311X - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE FRON | ||||
| 90366-40130 |
ZRT270,271..6F *201 |
1 | ||
| 41311Y - OUTER RACE, TAPERED ROLLER BEARING (FOR DIFF. CASE REAR | ||||
| 90366-42010 |
ZRT270,271..6F *201 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
ZRT270,271..6F *201 |
2 | ||
| 41331-42040 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-20130 |
ZRT270,271..6F *201 |
2 | ||
| 41331-42040 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20050 |
ZRT270,271..6F *201 |
2 | ||
| 41341-35050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-20050 |
ZRT270,271..6F *201 |
2 | ||
| 41341-35050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ADT270..RHD;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC);ADT271,ZRT272..(6F,6FC)..(DCR,DCRL,HTWVM) |
1 | ||
| 90250-06058 |
ZRT270,271..6F *201 |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20070 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 41342-33050 |
ADT271..6FC |
1 | ||
| 41342-32020 |
ZRT270,271..6F *201 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41351-32010 |
ZRT270,271..6F *201 |
2 | ||
| 41351-33030 |
ADT271..6FC |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
2 | ||
| 41351-32010 |
ZRT270,271..6F *201 |
2 | ||
| 41351-33030 |
ADT271..6FC |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20240 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.25 |
2 | ||
| 41361-20320 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.35 |
2 | ||
| 41361-20340 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.45 |
2 | ||
| 41361-20350 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.50 |
2 | ||
| 41361-20370 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.60 |
2 | ||
| 41361-20410 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.80 |
2 | ||
| 41361-20430 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.90 |
2 | ||
| 41361-20400 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.75 |
2 | ||
| 41361-20380 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.65 |
2 | ||
| 41361-20330 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.40 |
2 | ||
| 41361-20420 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.85 |
2 | ||
| 41361-20310 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.30 |
2 | ||
| 41361-20390 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.70 |
2 | ||
| 41361-20360 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.55 |
2 | ||
| 41361-22140 |
ZRT270,271..6F T=0.95,MARK 14,*201 |
2 | ||
| 41361-33020 |
ADT271..6FC T=1.50 |
2 | ||
| 41361-33050 |
ADT271..6FC T=1.65 |
2 | ||
| 41361-20440 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.95 |
2 | ||
| 41361-22160 |
ZRT270,271..6F T=1.15,MARK 16,*201 |
2 | ||
| 41361-22030 |
ZRT270,271..6F T=1.10,MARK 03,*201 |
2 | ||
| 41361-22040 |
ZRT270,271..6F T=1.20,MARK 04,*201 |
2 | ||
| 41361-22150 |
ZRT270,271..6F T=1.05,MARK 15,*201 |
2 | ||
| 41361-22020 |
ZRT270,271..6F T=1.00,MARK 02,*201 |
2 | ||
| 41361-33060 |
ADT271..6FC T=1.70 |
2 | ||
| 41361-33080 |
ADT271..6FC T=1.80 |
2 | ||
| 41361-33030 |
ADT271..6FC T=1.55 |
2 | ||
| 41361-33070 |
ADT271..6FC T=1.75 |
2 | ||
| 41361-33040 |
ADT271..6FC T=1.60 |
2 | ||
| 41361-33100 |
ADT271..6FC T=1.90 |
2 | ||
| 41361-33090 |
ADT271..6FC T=1.85 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20240 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.25 |
2 | ||
| 41361-20320 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.35 |
2 | ||
| 41361-20340 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.45 |
2 | ||
| 41361-20350 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.50 |
2 | ||
| 41361-20370 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.60 |
2 | ||
| 41361-20410 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.80 |
2 | ||
| 41361-20430 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.90 |
2 | ||
| 41361-20400 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.75 |
2 | ||
| 41361-20380 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.65 |
2 | ||
| 41361-20330 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.40 |
2 | ||
| 41361-20420 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.85 |
2 | ||
| 41361-20310 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.30 |
2 | ||
| 41361-20390 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.70 |
2 | ||
| 41361-20360 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.55 |
2 | ||
| 41361-22140 |
ZRT270,271..6F T=0.95,MARK 14,*201 |
2 | ||
| 41361-33020 |
ADT271..6FC T=1.50 |
2 | ||
| 41361-33050 |
ADT271..6FC T=1.65 |
2 | ||
| 41361-20440 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) T=1.95 |
2 | ||
| 41361-22160 |
ZRT270,271..6F T=1.15,MARK 16,*201 |
2 | ||
| 41361-22030 |
ZRT270,271..6F T=1.10,MARK 03,*201 |
2 | ||
| 41361-22040 |
ZRT270,271..6F T=1.20,MARK 04,*201 |
2 | ||
| 41361-22150 |
ZRT270,271..6F T=1.05,MARK 15,*201 |
2 | ||
| 41361-22020 |
ZRT270,271..6F T=1.00,MARK 02,*201 |
2 | ||
| 41361-33060 |
ADT271..6FC T=1.70 |
2 | ||
| 41361-33080 |
ADT271..6FC T=1.80 |
2 | ||
| 41361-33030 |
ADT271..6FC T=1.55 |
2 | ||
| 41361-33070 |
ADT271..6FC T=1.75 |
2 | ||
| 41361-33040 |
ADT271..6FC T=1.60 |
2 | ||
| 41361-33100 |
ADT271..6FC T=1.90 |
2 | ||
| 41361-33090 |
ADT271..6FC T=1.85 |
2 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
