ADT271L-AETGXW (2009)
Toyota Avensis

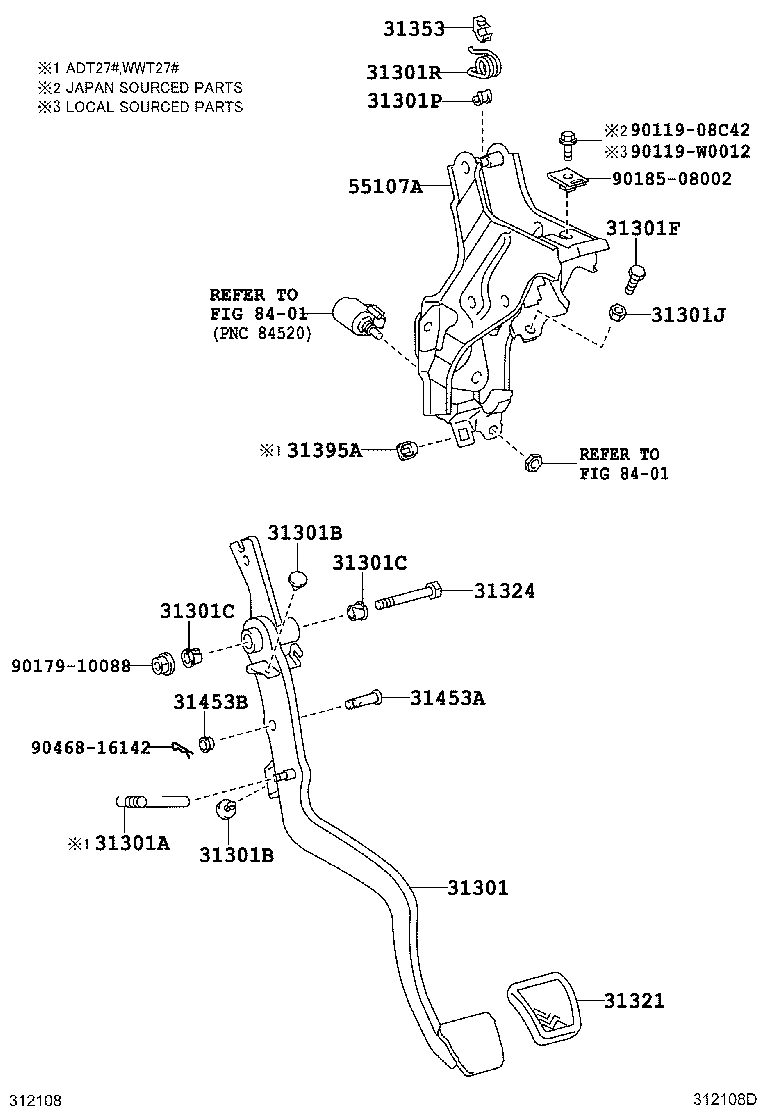

ILLUST NO. 1 OF 2(0811- )ADT27#,WWT27#,ZRT271,272..LHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-20600 |
ADT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 31394-25010 |
ADT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
2 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-10369 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-61000 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90389-06055 |
ADT270..RHD;ADT271,ZRT271,272..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT) | ||||
| 31394-12070 |
ADT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-42010 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 90109-10167 |
ADT27#,ZRT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-26010 |
ADT270..RHD;ADT271,ZRT271,272..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 31395A - HOOK, PEDAL SPRING, NO.1 | ||||
| 31395-33020 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08256 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) L=36.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-20490 |
ADT27#,ZRT271,272..LHD..6F..(E,G,N,V) |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90119-W0012 | ||||
| 90179-10088 | ||||
| 90185-08002 | ||||
| 90468-16142 | ||||
| Linked diagrams | ||||
| 8401 | ||||

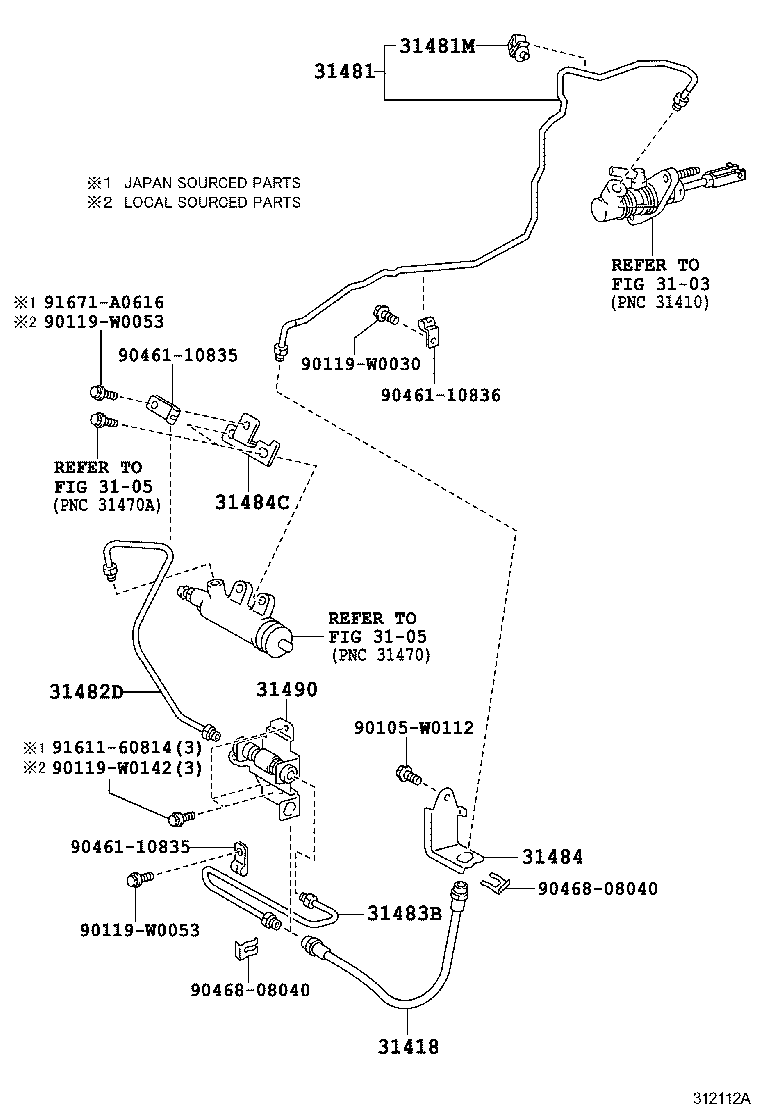

ILLUST NO. 2 OF 2(0811-1105)ADT27#..LHD..6F ; (1105-1404)ADT271..LHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-W2020 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02230 |
ADT27#,ZRT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D46 |
ADT27#,ZRT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR | ||||
| 31482-05120 |
ADT271..6F |
1 | ||
| 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE | ||||
| 31483-12070 |
ADT271..6F |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-02090 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 31484C - BRACKET, CLUTCH TUBE, NO.1 | ||||
| 31484-20460 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31490 - ACCUMULATOR ASSY, CLUTCH | ||||
| 31490-05010 |
ADT271..6F |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90119-W0030 | ||||
| 90119-W0053 | ||||
| 90119-W0142 | ||||
| 90461-10835 | ||||
| 90461-10836 | ||||
| 90468-08040 | ||||
| 91611-60814 | ||||
| 91671-A0616 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||

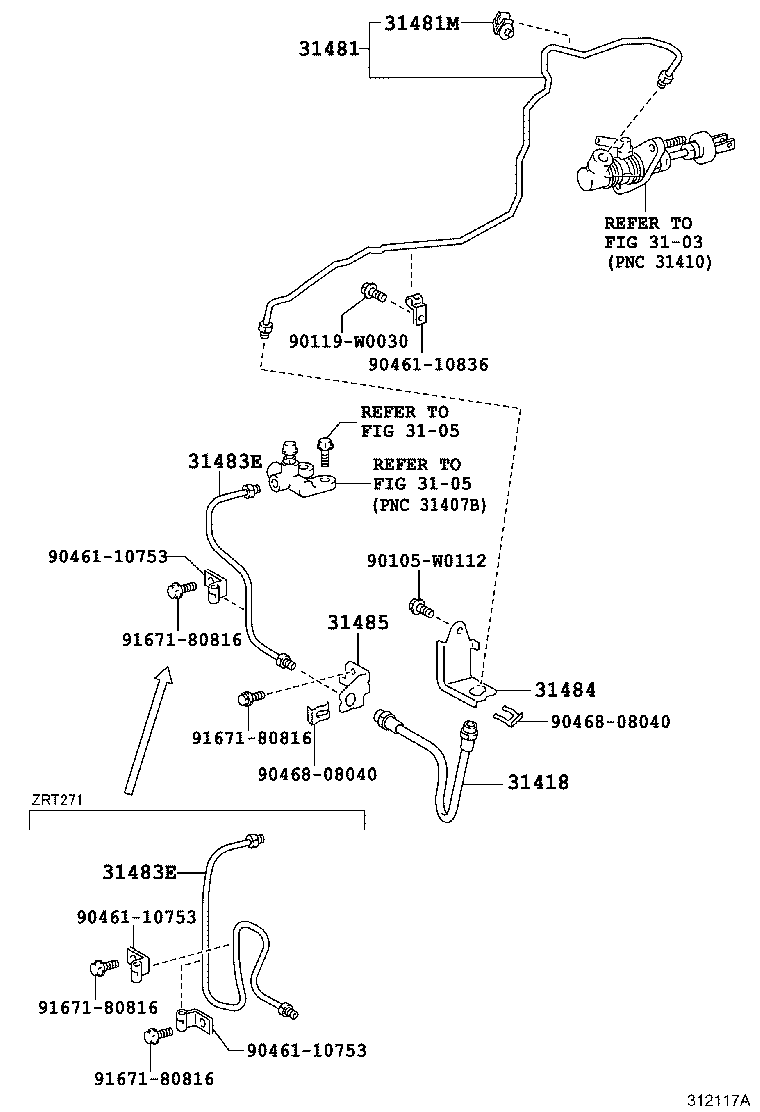

ILLUST NO. 2 OF 2(0811- )ZRT270,271..LHD..6F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 90947-W2020 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE | ||||
| 31481-02230 |
ADT27#,ZRT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) | ||||
| 90949-01D46 |
ADT27#,ZRT27#..LHD..6F..(E,G,N,V) |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-02090 |
ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) |
1 | ||
| 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) | ||||
| 31484-05030 |
ZRT270,271..6F |
1 | ||
| Common parts | ||||
| 90105-W0112 | ||||
| 90119-W0030 | ||||
| 90461-10753 | ||||
| 90461-10836 | ||||
| 90468-08040 | ||||
| 91671-80816 | ||||
| Linked diagrams | ||||
| 3103 | ||||
| 3105 | ||||
