ADT270R-AEFNYW (2011)
Toyota Avensis

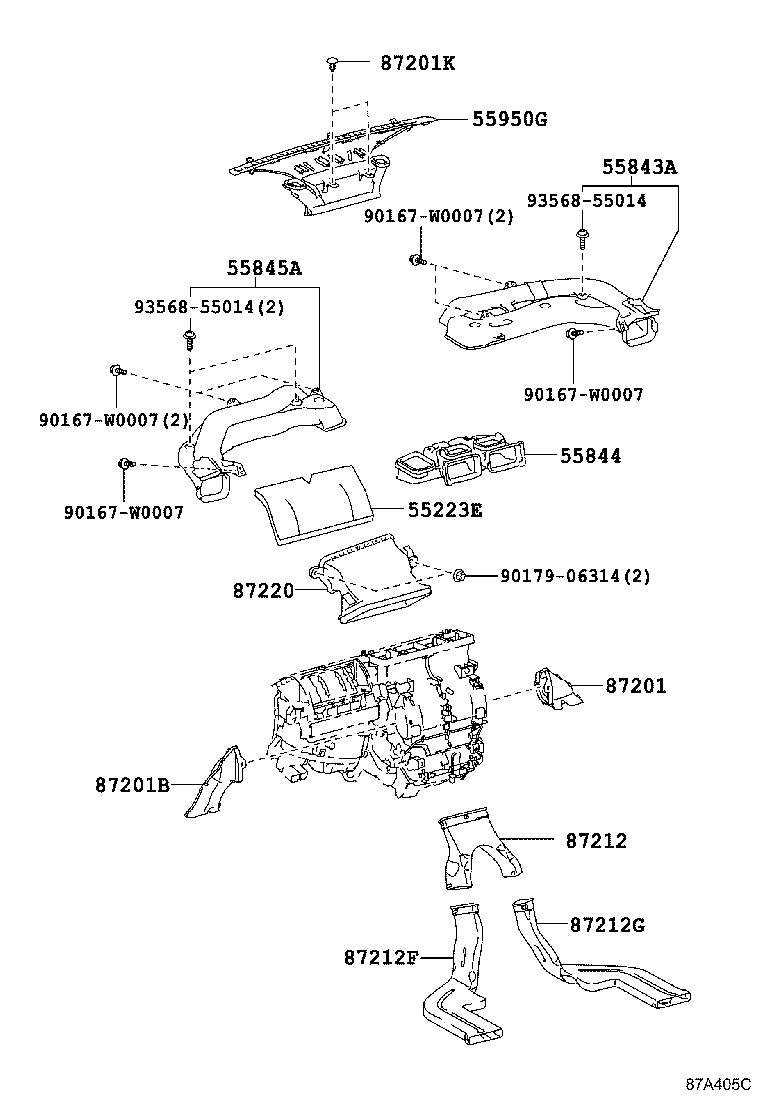

ILLUST NO. 2 OF 3(0811- )RHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55223E - INSULATOR, DASH PANEL HEAT, NO.1 | ||||
| 55223-05120 |
ADT27#,ZRT27# |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-05120 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 55843-05120 |
ADT27#,ZRT27#..RHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-05090 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55844-05090 |
ADT27#,ZRT27# |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-05080 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 55845-05080 |
ADT27#,ZRT27#..RHD |
1 | ||
| 55845-05081 |
ADT27#,ZRT27#..RHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-05080 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55950-05080 |
ADT27#,ZRT27# |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87211-05020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 87211-05020 |
ADT27#,ZRT27#..RHD |
1 | ||
| 87201B - DUCT SUB-ASSY, AIR, NO.2 | ||||
| 87211-05050 |
ADT27#,ZRT27#..RHD |
1 | ||
| 87211-05050 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 87201K - CLIP (FOR AIR DUCT) | ||||
| 90467-W0001B0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) DK.GRAY |
2 | ||
| 90467-W0001B0 |
ADT27#,ZRT27# DK.GRAY |
2 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87215-02070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87215-02070 |
ADT27#,ZRT27# |
1 | ||
| 87212F - DUCT, AIR, REAR NO.2 | ||||
| 87213-02090 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87213-02090 |
ADT27#,ZRT27# |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-02090 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 87212-02090 |
ADT27#,ZRT27# |
1 | ||
| 87220 - DUCT ASSY, AIR | ||||
| 87220-05041 |
ADT27#,ZRT27#..RHD |
1 | ||
| 87220-05040 |
ADT27#,ZRT27#..RHD |
1 | ||
| 87220-05030 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 90179-06314 | ||||
| 93568-55014 | ||||
ILLUST NO. 3 OF 3(0811- )RHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-05010 |
ADT27#,ZRT27#..RHD..(E,G) |
1 | ||
| 88505-05010 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 88897-02180 |
ADT270,ZRT270,271..N |
1 | ||
| 88897-02180 |
ADT271,ZRT272..6F;ADT270,ZRT270,271..6F..E BASE PACKAGE |
1 | ||
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-05010 |
ADT27#,ZRT27#..RHD..(E,G) |
1 | ||
| 88505-05010 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 88897-02180 |
ADT270,ZRT270,271..N |
1 | ||
| 88897-02180 |
ADT271,ZRT272..6F;ADT270,ZRT270,271..6F..E BASE PACKAGE |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-51010 |
ADT27#,ZRT27#..E,G |
1 | ||
| 88625-51010 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 88625P - THERMISTOR, COOLER (AMBIENT TEMP. SENSOR) | ||||
| 88790-22131 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 88790-22131 |
ADT27#,ZRT27# |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
ADT27#,ZRT27#..E,G |
1 | ||
| 88625-47021 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| Common parts | ||||
| 88688-0Z150 | ||||

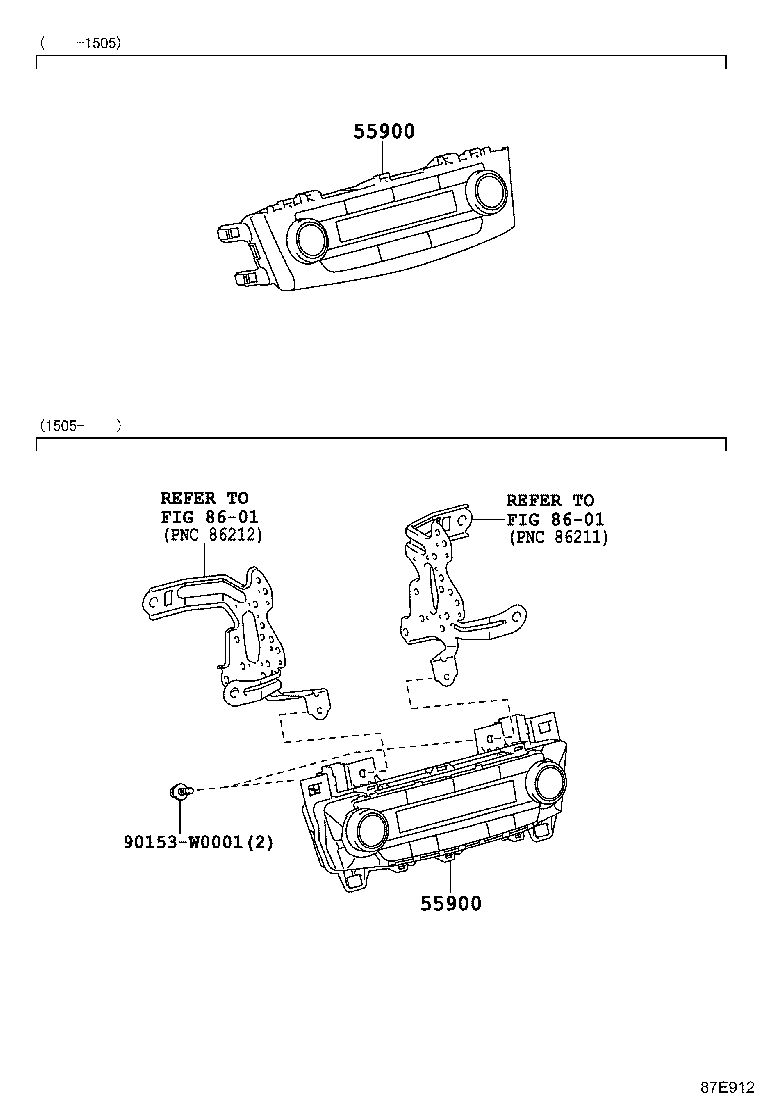

ILLUST NO. 1 OF 3(0811- )
HATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-05350 |
ADT270,ZRT271,272..RHD..6F..E..(DCR,HTWVM) SOL-PLUS GRADE |
1 | ||
| 55900-05350 |
ADT270,ZRT271,272..RHD..6F..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE |
1 | ||
| 55900-05310 |
ADT27#..E,F,V;ADT271..6F..G;ZRT27#..RHD..E..HTWVM BASE PACKAGE |
1 | ||
| 55900-05400 |
ADT27#,ZRT27#..RHD..(E,F) |
1 | ||
| 55900-05310 |
ADT270,ZRT270,271..N |
1 | ||
| 55900-05540 |
ADT27#,ZRT27#..RHD..E |
1 | ||
| 55900-05570 |
ADT270,ZRT270,271..N |
1 | ||
| 55900-05570 |
ADT270..E;ADT271..6F;ZRT272..RHD..6F;ZRT270,271..RHD..6F..E BASE PACKAGE |
1 | ||
| 55900-05541 |
ADT27#,ZRT27#..RHD..E |
1 | ||
| 55900-05571 |
ADT270..E;ADT271..6F;ZRT272..RHD..6F;ZRT270,271..RHD..6F..E BASE PACKAGE |
1 | ||
| 55900-05571 |
ADT270,ZRT270,271..N |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-05350 |
ADT270,ZRT271,272..RHD..6F..E..(DCR,HTWVM) SOL-PLUS GRADE |
1 | ||
| 55900-05350 |
ADT270,ZRT271,272..RHD..6F..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE |
1 | ||
| 55900-05310 |
ADT27#..E,F,V;ADT271..6F..G;ZRT27#..RHD..E..HTWVM BASE PACKAGE |
1 | ||
| 55900-05400 |
ADT27#,ZRT27#..RHD..(E,F) |
1 | ||
| 55900-05310 |
ADT270,ZRT270,271..N |
1 | ||
| 55900-05540 |
ADT27#,ZRT27#..RHD..E |
1 | ||
| 55900-05570 |
ADT270,ZRT270,271..N |
1 | ||
| 55900-05570 |
ADT270..E;ADT271..6F;ZRT272..RHD..6F;ZRT270,271..RHD..6F..E BASE PACKAGE |
1 | ||
| 55900-05541 |
ADT27#,ZRT27#..RHD..E |
1 | ||
| 55900-05571 |
ADT270..E;ADT271..6F;ZRT272..RHD..6F;ZRT270,271..RHD..6F..E BASE PACKAGE |
1 | ||
| 55900-05571 |
ADT270,ZRT270,271..N |
1 | ||
| Common parts | ||||
| 90153-W0001 | ||||
| Linked diagrams | ||||
| 8601 | ||||
