ADT270R-AEFNYW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1111- )

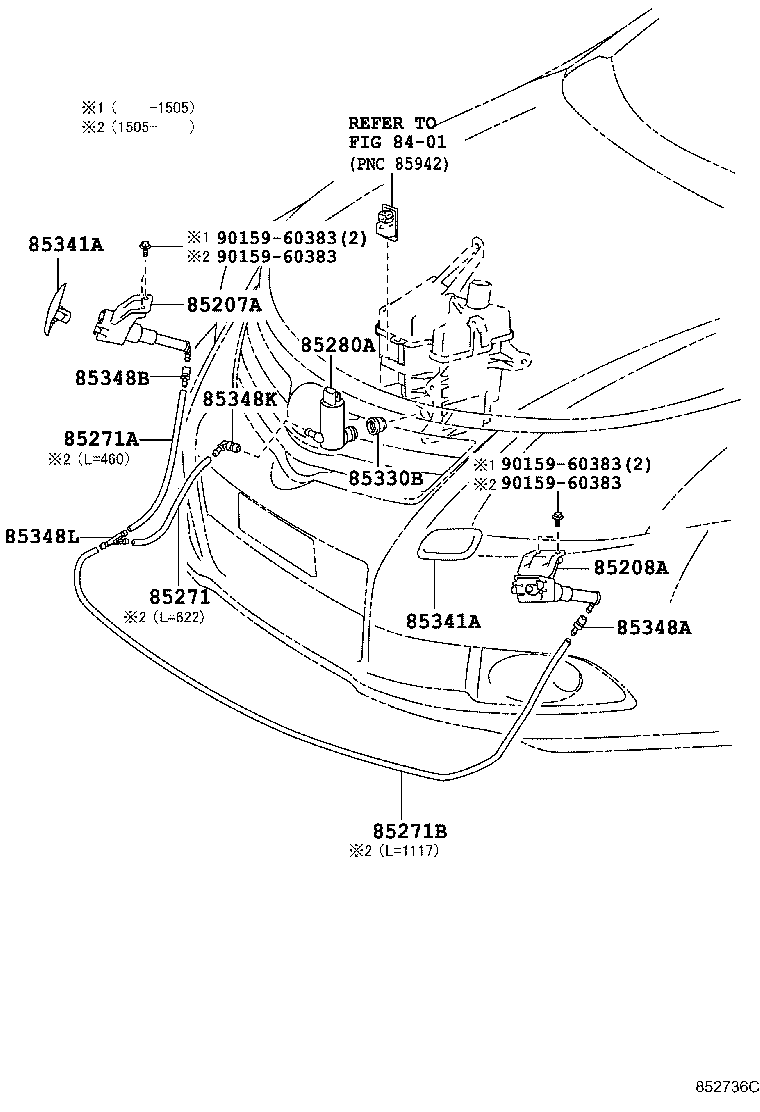

Click highlighted areas on diagram

diagram 8401 85207A 85208A 85271 85271A 85271B 85280A 85330B 85341A 85341A 85348A 85348B 85348K 85348L 9015960383 9015960383 9015960383 9015960383
Part # Description Qty Price
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-05030

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85207-05041

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85207-05040

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-05041

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85208-05030

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85208-05040

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85276-05100

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

*H,L=185,HEAD LAMP CLEANER-WITH

 1
85277-05110

ADT27#,ZRT27#..DCR,DCRL,HTWVM

L=222,HEAD LAMP CLEANER-WITH

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85276-05110

ADT27#,ZRT27#..DCR,DCRL,HTWVM

L=269,HEAD LAMP CLEANER-WITH

 1
85271-0W030

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

*H,L=100,HEAD LAMP CLEANER-WITH

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85271-0W040

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

*H,L=1290,HEAD LAMP CLEANER-WITH

 1
85275-05110

ADT27#,ZRT27#..DCR,DCRL,HTWVM

L=1578,HEAD LAMP CLEANER-WITH

 1
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-05050

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85280-05040

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85330B - BUSH, HEADLAMP CLEANER WASHER JAR
90069-20005

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
90069-20005

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85353-05902

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,RH

 1
85354-05901

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,LH

 1
85354-05902

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,LH

 1
85353-05903

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,RH

 1
85341A - COVER,HEADLAMP CLEANER WASHER NOZZLE
85353-05902

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,RH

 1
85354-05901

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,LH

 1
85354-05902

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,LH

 1
85353-05903

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH,RH

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85279-05110

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85287-02070

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85279-05110

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85287-02070

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85286-02060

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85278-05110

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85287-05110

ADT27#,ZRT27#..DCR,DCRL,HTWVM

HEAD LAMP CLEANER-WITH

 1
85285-02060

ZRT271..CVT;ZRT270..WG..N;ZRT271..6F..E;ADT270..LHD..(E,N);ADT270..RHD..(E,F);ZRT271..LHD..6F..N;ZRT270..LHD..SED..N;ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
Common parts
90159-60383
Linked diagrams
8401
