ADT270R-AEFNYW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1311-1505)

Click highlighted areas on diagram

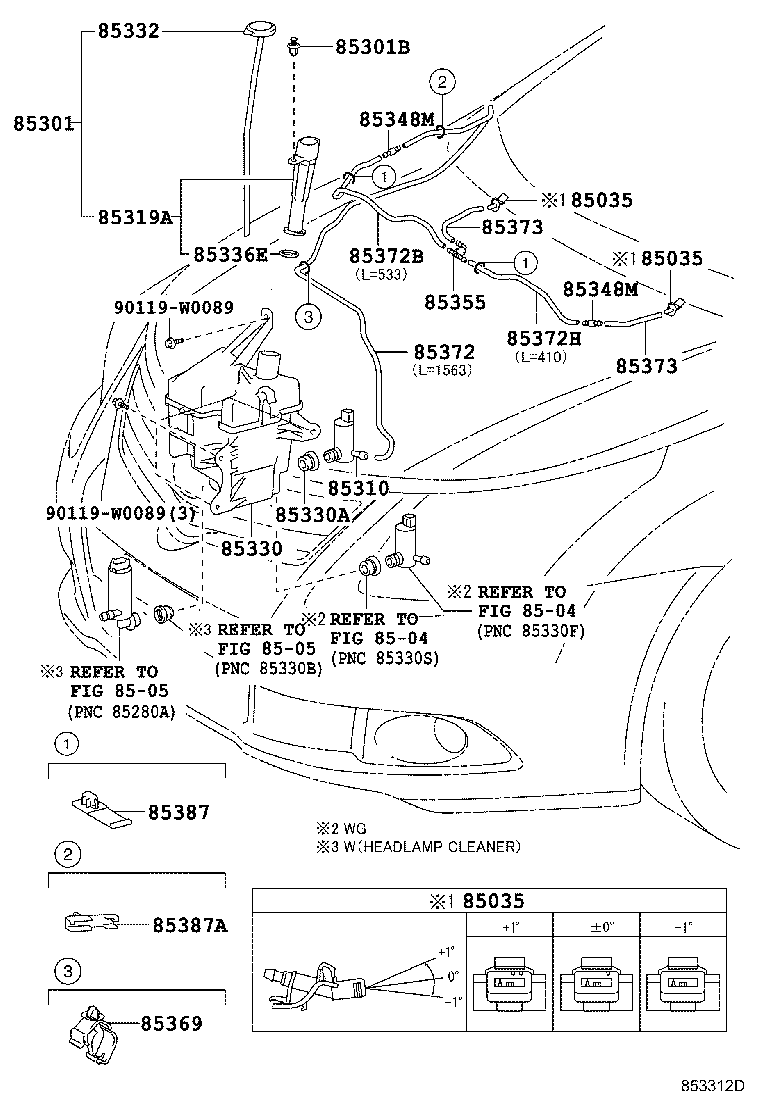

diagram 85035 85035 85035 8504 8504 8505 8505 85301 85301B 85310 85319A 85330 85330A 85332 85336E 85348M 85348M 85355 85369 85372 85372B 85372H 85373 85373 85387 85387A 90119W0089 90119W0089
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12300

ADT27#,ZRT27#

ANGLE 0

 2
85381-12310

ADT27#,ZRT27#

ANGLE -2

 2
85381-12320

ADT27#,ZRT27#

ANGLE +2

 2
85381-20220

ADT27#,ZRT27#

ANGLE -1

 2
85381-20290

ADT27#,ZRT27#

ANGLE +1

 2
85381-20280

ADT27#,ZRT27#

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12300

ADT27#,ZRT27#

ANGLE 0

 2
85381-12310

ADT27#,ZRT27#

ANGLE -2

 2
85381-12320

ADT27#,ZRT27#

ANGLE +2

 2
85381-20220

ADT27#,ZRT27#

ANGLE -1

 2
85381-20290

ADT27#,ZRT27#

ANGLE +1

 2
85381-20280

ADT27#,ZRT27#

ANGLE 0

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12300

ADT27#,ZRT27#

ANGLE 0

 2
85381-12310

ADT27#,ZRT27#

ANGLE -2

 2
85381-12320

ADT27#,ZRT27#

ANGLE +2

 2
85381-20220

ADT27#,ZRT27#

ANGLE -1

 2
85381-20290

ADT27#,ZRT27#

ANGLE +1

 2
85381-20280

ADT27#,ZRT27#

ANGLE 0

 2
85301 - INLET SUB-ASSY, WASHER
85301-05011

ADT27#,ZRT27#

 1
85301B - CLIP, WASHER
90467-07076C0

ADT27#,ZRT27#

BLACK

 1
90467-07076C0

ADT27#,ZRT27#

BLACK

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-02030

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
85330-02030

ADT27#,ZRT27#

 1
85319A - HOSE, INLET
90069-46037

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
90069-46037

ADT27#,ZRT27#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-05120

ADT27#,ZRT27#..SED

 1
85315-05120

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
85355-05060

ADT27#,ZRT27#..SED..(DCR,DCRL,HTWVM)

HEAD LAMP CLEANER-WITH

 1
85355-05060

ZRT271..SED..CVT;ZRT272..SED..HTWVM;ADT270..RHD..SED..(E,F);ADT270..LHD..SED..(E,N);ZRT270,271..LHD..SED..6F..N;ADT271,ZRT270,271..SED..(6F,6FC)..(E,G,V)

HEAD LAMP CLEANER-WITH

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90069-20005

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
90069-20005

ADT27#,ZRT27#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85356-02060

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
85356-02060

ADT27#,ZRT27#

 1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
90069-38005

ADT27#,ZRT27#

 1
90069-38005

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-05050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
85375-05050

ADT27#,ZRT27#

 2
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85375-05050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
85375-05050

ADT27#,ZRT27#

 2
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020

ADT27#,ZRT27#

 1
85321-28020

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
85369 - CLAMP
82711-1E350

ADT27#,ZRT27#

 1
82711-1E350

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90069-16010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
90069-16010

ADT27#,ZRT27#

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90069-16009

ADT27#,ZRT27#

 1
90069-16009

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90069-16009

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
90069-16009

ADT27#,ZRT27#

 1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

*H,L=165

 2
90099-33080

ADT27#,ZRT27#

*H,L=170

 2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-33080

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

*H,L=165

 2
90099-33080

ADT27#,ZRT27#

*H,L=170

 2
85387 - CLAMP NO.1 (FOR WINDSEIELD WASHER)
82711-3A540

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
82711-3A540

ADT27#,ZRT27#

 2
85387A - CLAMP, WASHER, NO.2
85387-02240

ADT27#,ZRT27#

 1
85387-02240

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
Common parts
90119-W0089
