ADT270R-AEFNYW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )RHD

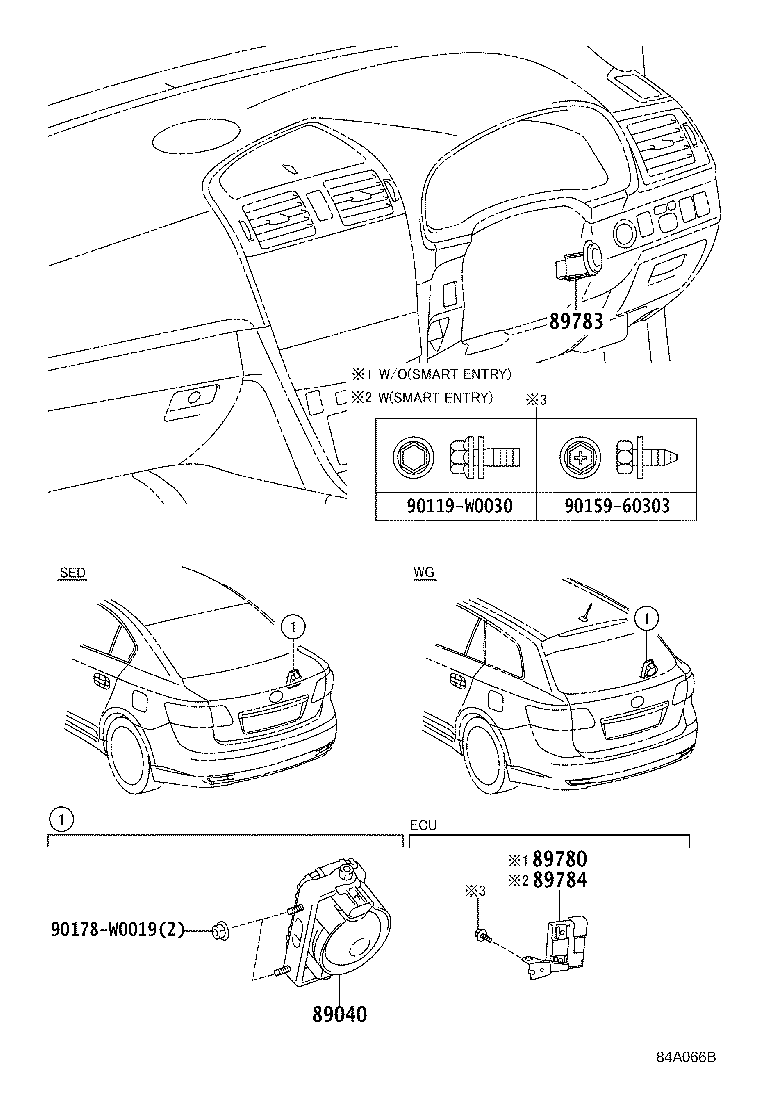

Click highlighted areas on diagram

diagram 89040 89780 89783 89784 90119W0030 9015960303 90178W0019
Part # Description Qty Price
89040 - SIREN ASSY, THEFT WARNING
89040-05040

ADT270,ZRT270,271..RHD..N

ENGLAND SPEC

 1
89040-05040

ADT270,ZRT270,271..RHD..N

MALTA SPEC

 1
89040-05040

ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM)

 1
89040-05040

ZRT271..RHD..CVT;ZRT271..RHD..6F..(E,G);ADT27#,ZRT270,272..RHD..(E,G)

 1
89040-05040

ADT270,ZRT270,271..RHD..6F..N

ENGLAND SPEC

 1
89040-05040

ADT270,ZRT270,271..RHD..6F..N

MALTA SPEC

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-05050

ADT27#,ZRT27#

 1
89780-05080

ADT27#,ZRT27#..E,N

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02041

ADT27#,ZRT27#

 1
89783-05030

ADT27#,ZRT27#..E,N

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-05020

ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
89784-05020

ADT27#,ZRT27#..E

WIRELESS DOOR LOCK-WITH(SMART ENTRY)

 1
Common parts
90119-W0030
90159-60303
90178-W0019
