ADT270R-AEFNYW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

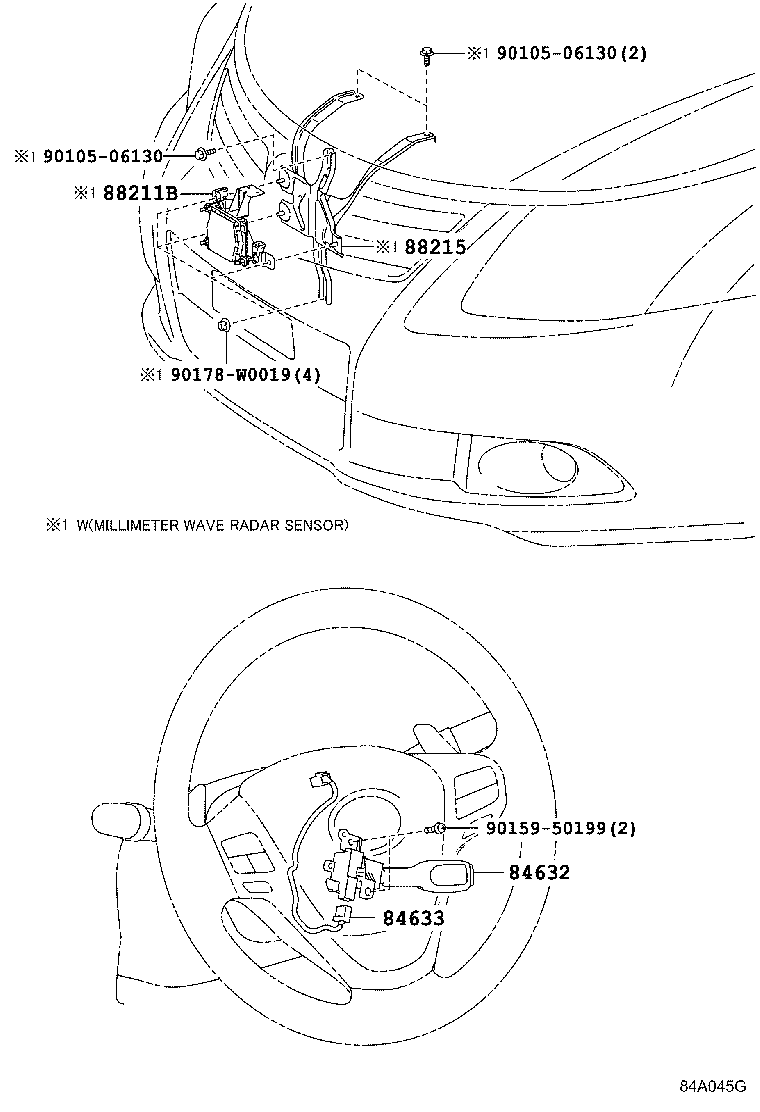

Click highlighted areas on diagram

diagram 84632 84633 88211B 88215 9010506130 9010506130 9015950199 90178W0019
Part # Description Qty Price
84632 - SWITCH, CRUISE CONTROL MAIN
84632-05010

ZRT272..RHD..HTWVM;ADT270,ZRT271..6F..E

CRUISE CONTROL-WITH&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER

 1
84632-05010

ZRT272..RHD..HTWVM;ADT270,ZRT271..6F..E

CRUISE CONTROL-WITH&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER

 1
84632-05010

ZRT272..E..HTWVM;ADT27#,ZRT271..6F..(E,F)

CRUISE CONTROL-WITH&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC)

 1
84632-05010

ZRT271..6F..E;ADT270..LHD..E;ADT270,ZRT272..RHD..(E,F)..(DCR,HTWVM)

CRUISE CONTROL-WITH&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER

 1
84632-05010

ZRT272..E..HTWVM;ADT27#,ZRT271..6F..(E,F)

CRUISE CONTROL-WITH&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC)

 1
84632-0F010

ADT27#,ZRT27#..E..(DCR,HTWVM)

CRUISE CONTROL-WITH

 1
84632-0F010

ADT27#,ZRT27#..E..(DCR,HTWVM)

CRUISE CONTROL-WITH&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER

 1
84632-0F010

ADT270,ZRT270,271..N

CRUISE CONTROL-WITH&STEERING WHEEL-LEATHER&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER

 1
84633 - WIRE, CRUISE CONTROL SWITCH
84633-05010

ZRT272..E..HTWVM;ADT27#,ZRT271..6F..(E,F)

CRUISE CONTROL-WITH&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC)

 1
84633-05010

ZRT272..RHD..HTWVM;ADT270,ZRT271..6F..E

CRUISE CONTROL-WITH&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER

 1
84633-05010

ZRT272..E..HTWVM;ADT27#,ZRT271..6F..(E,F)

CRUISE CONTROL-WITH&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC)

 1
84633-05010

ZRT272..RHD..HTWVM;ADT270,ZRT271..6F..E

CRUISE CONTROL-WITH&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER

 1
84633-05010

ZRT271..6F..E;ADT270..LHD..E;ADT270,ZRT272..RHD..(E,F)..(DCR,HTWVM)

CRUISE CONTROL-WITH&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER

 1
84633-05010

ADT27#,ZRT27#..E..(DCR,HTWVM)

CRUISE CONTROL-WITH

 1
84633-05010

ADT270,ZRT270,271..N

CRUISE CONTROL-WITH&STEERING WHEEL-LEATHER&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER

 1
84633-05010

ADT27#,ZRT27#..E..(DCR,HTWVM)

CRUISE CONTROL-WITH&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER

 1
Common parts
90105-06130
90159-50199
90178-W0019
