ADT270R-AEFNYW (2011)
Toyota Avensis
ILLUST NO. 1 OF 2(0811-1505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81230 - LAMP ASSY, COURTESY | ||||
| 81330-05050 |
ADT27#,ZRT27# |
2 | ||
| 81330-05050 |
ADT27#,ZRT27# |
2 | ||
| 81230B - BULB(FOR COURTESY LAMP) | ||||
| 90981-WE003 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 5W |
2 | ||
| 90981-WE003 |
ADT27#,ZRT27# 12V 5W |
2 | ||
| 81240 - LAMP ASSY, ROOM, NO.1 | ||||
| 81250-05030B0 |
ADT27#,ZRT27# LT.GRAY,TRIM2# |
1 | ||
| 81250-05030B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2# |
1 | ||
| 81250-05030B0 |
ADT271..6FC;ADT27#,ZRT27#..E..(DCR,HTWVM) LT.GRAY,TRIM1#,20,21 |
1 | ||
| 81250-05030E0 |
ADT27#,ZRT27#..E,F,G,V GREGE,TRIM4# |
1 | ||
| 81250-05030E0 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 81250-05030E0 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4# |
1 | ||
| 81250-05030E0 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) PREMIUM GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 81240B - BULB, ROOM LAMP, NO.1 | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-05030 |
ADT27#,ZRT27# |
1 | ||
| 81251-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81251B - LENS, REAR ROOM LAMP, RH | ||||
| 81251-05030 |
ADT27#,ZRT27# |
1 | ||
| 81251-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81260 - LAMP ASSY, GLOVE BOX | ||||
| 81080-48010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81080-48010 |
ADT27#,ZRT27# |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-05030 |
ADT27#,ZRT27# |
1 | ||
| 81291-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81291A - LENS, REAR ROOM LAMP, LH | ||||
| 81291-05030 |
ADT27#,ZRT27# |
1 | ||
| 81291-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-05050 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 81330-05050 |
ADT27#,ZRT27# |
1 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-05050 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 81330-05050 |
ADT27#,ZRT27# |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-WE003 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 5W |
1 | ||
| 90981-WE003 |
ADT27#,ZRT27# 12V 5W |
1 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 90981-WE003 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 5W |
1 | ||
| 90981-WE003 |
ADT27#,ZRT27# 12V 5W |
1 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30100E1 |
ZRT270..WG..E;ADT271..SED..E;ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM;ZRT270,272..LHD..SED..E GREGE,TRIM4# |
2 | ||
| 81340-30100B0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
2 | ||
| 81340-30100B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2# |
2 | ||
| 81340-30100E1 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) GREGE,TRIM21,4# |
2 | ||
| 81340-30100B0 |
ADT271..6FC;ADT27#,ZRT27#..E..(DCR,HTWVM) LT.GRAY,TRIM1#,20,21 |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| Linked diagrams | ||||
| 8202 | ||||

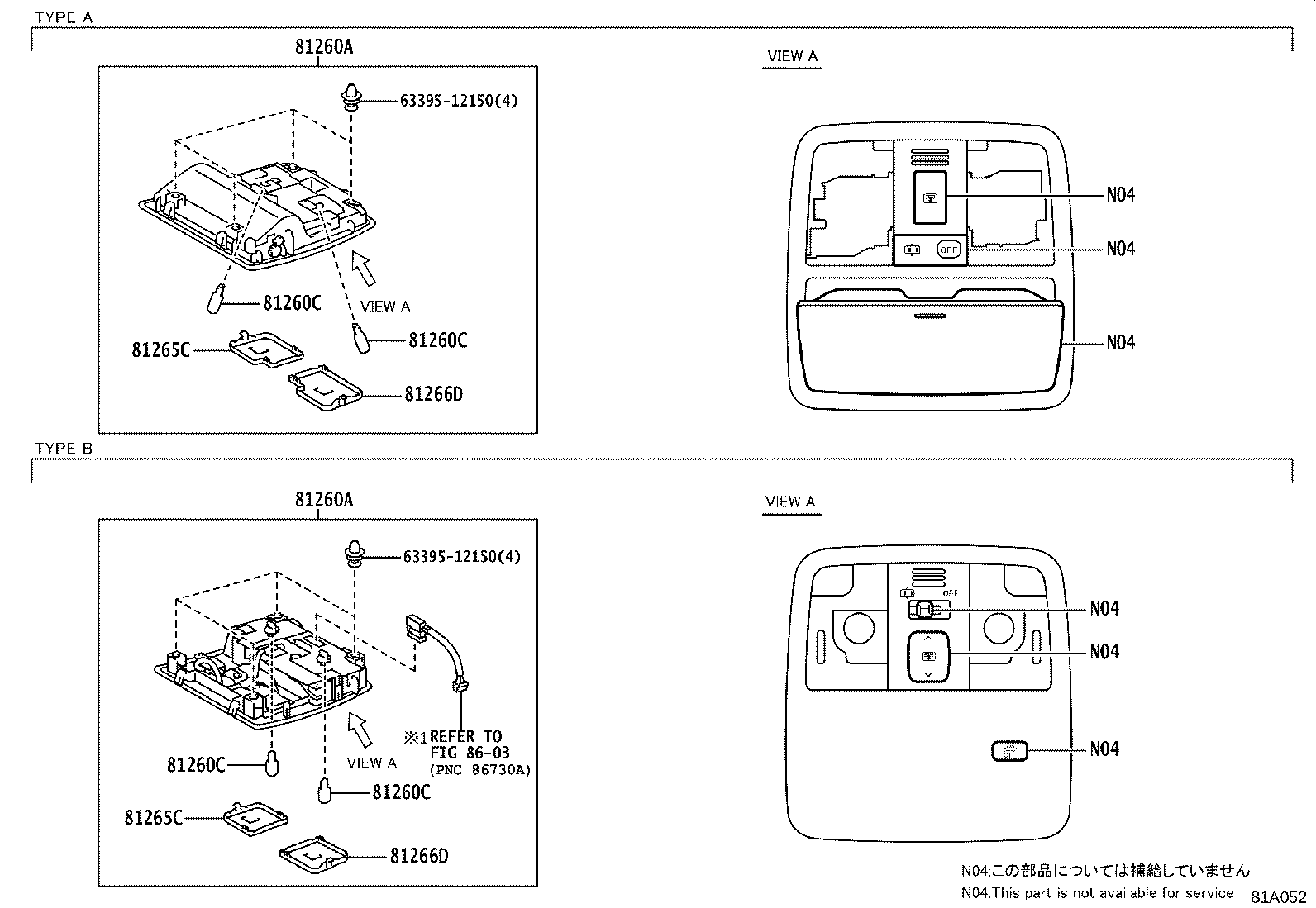

ILLUST NO. 2 OF 2(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81260A - LAMP ASSY, MAP | ||||
| 81260-05370E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT27#,ZRT27#..E,F GREGE,TRIM4#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05360B0 |
ADT27#,ZRT27#..E,F,N LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT270,ZRT271,272..RHD..(E,F) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT270,ZRT271,272..RHD..(E,F) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT271..6FC;ADT27#,ZRT27#..E SOL-PLUS GRADE(NICKEL 2)&AUDIO-RADIO & CD & 6SPEAKER,GREGE,TRIM21,4#,TYPE A:REFERILLUST. |
1 | ||
| 81260-05360B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05360B0 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM1#,20,21,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT270,ZRT270,271..RHD..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT271..6FC;ADT27#,ZRT27#..E SOL-PLUS GRADE(NICKEL)&AUDIO-RADIO & CD & 6SPEAKER,GREGE,TRIM21,4#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E LT.GRAY,TRIM1#,20,21,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E PREMIUM GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT271..6FC;ADT27#,ZRT27#..E PREMIUM GRADE(NICKEL)&AUDIO-RADIO & CD & 6SPEAKER,GREGE,TRIM21,4#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC,LT.GRAY,TRIM1#,20,21,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM1#,2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM1#,2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&PREMIUM GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&PREMIUM GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC,LT.GRAY,TRIM1#,20,21,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05371B0 |
ADT270,ZRT270,271..RHD..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05361B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05371B0 |
ADT27#,ZRT271,272..RHD..E LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05361B0 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT27#,ZRT271,272..RHD..E MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT27#,ZRT271,272..RHD..E ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81260-05370E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC),GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT27#,ZRT27#..E,F GREGE,TRIM4#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05360B0 |
ADT27#,ZRT27#..E,F,N LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT270,ZRT271,272..RHD..(E,F) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT270,ZRT271,272..RHD..(E,F) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331E0 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFERILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER,GREGE,TRIM4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT271..6FC;ADT27#,ZRT27#..E SOL-PLUS GRADE(NICKEL 2)&AUDIO-RADIO & CD & 6SPEAKER,GREGE,TRIM21,4#,TYPE A:REFERILLUST. |
1 | ||
| 81260-05360B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05360B0 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM1#,20,21,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT270,ZRT270,271..RHD..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT271..6FC;ADT27#,ZRT27#..E SOL-PLUS GRADE(NICKEL)&AUDIO-RADIO & CD & 6SPEAKER,GREGE,TRIM21,4#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05370B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E LT.GRAY,TRIM1#,20,21,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05370E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E PREMIUM GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05360E0 |
ADT271..6FC;ADT27#,ZRT27#..E PREMIUM GRADE(NICKEL)&AUDIO-RADIO & CD & 6SPEAKER,GREGE,TRIM21,4#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC,LT.GRAY,TRIM1#,20,21,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM1#,2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20331B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM1#,2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&PREMIUM GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&PREMIUM GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC,LT.GRAY,TRIM1#,20,21,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20341E0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05371B0 |
ADT270,ZRT270,271..RHD..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05361B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-05371B0 |
ADT27#,ZRT271,272..RHD..E LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-05361B0 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM2#,TYPE A:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT27#,ZRT271,272..RHD..E MALTA SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20332B0 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260-20342B0 |
ADT27#,ZRT271,272..RHD..E ENGLAND SPEC,LT.GRAY,TRIM2#,TYPE B:REFER ILLUST. |
1 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 8W |
2 | ||
| 81260C - BULB(FOR MAP LAMP) | ||||
| 90981-11062 |
ADT27#,ZRT27# 12V 8W |
2 | ||
| 90981-11062 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 8W |
2 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81265-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81265-05360 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81265-05370 |
ZRT271..E;ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT270,ZRT272..RHD..(E,F)..(DCR,HTWVM) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 81265-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) MALTA SPEC |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD ENGLAND SPEC |
1 | ||
| 81265-05360 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81265-05360 |
ADT270,ZRT270,271..N |
1 | ||
| 81265-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81265-05370 |
ADT270,ZRT270,271..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD MALTA SPEC |
1 | ||
| 81265-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81265-05370 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81265-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81265-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81265-05360 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81265-05370 |
ZRT271..E;ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT270,ZRT272..RHD..(E,F)..(DCR,HTWVM) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 81265-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) MALTA SPEC |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD ENGLAND SPEC |
1 | ||
| 81265-05360 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81265-05360 |
ADT270,ZRT270,271..N |
1 | ||
| 81265-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81265-05370 |
ADT270,ZRT270,271..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81265-42020 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81265-42020 |
ADT27#,ZRT27#..RHD MALTA SPEC |
1 | ||
| 81265-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81265-05370 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81266-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81266-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81266-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-05370 |
ZRT271..E;ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT270,ZRT272..RHD..(E,F)..(DCR,HTWVM) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81266-05360 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) MALTA SPEC |
1 | ||
| 81266-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-05370 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD ENGLAND SPEC |
1 | ||
| 81266-05370 |
ADT270,ZRT270,271..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81266-05360 |
ADT270,ZRT270,271..N |
1 | ||
| 81266-05360 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD MALTA SPEC |
1 | ||
| 81266-42020 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81266-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81266-05370 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) MALTA SPEC&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 81266-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-05370 |
ZRT271..E;ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT270,ZRT272..RHD..(E,F)..(DCR,HTWVM) AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81266-05360 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) ENGLAND SPEC |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) MALTA SPEC |
1 | ||
| 81266-05370 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) ENGLAND SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..(E,F)..(DCR,HTWVM) MALTA SPEC&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) MALTA SPEC&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 81266-05370 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD ENGLAND SPEC |
1 | ||
| 81266-05370 |
ADT270,ZRT270,271..N AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81266-05360 |
ADT270,ZRT270,271..N |
1 | ||
| 81266-05360 |
ADT271..6FC;ADT27#,ZRT27#..E AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E ENGLAND SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT27#,ZRT27#..RHD MALTA SPEC |
1 | ||
| 81266-42020 |
ADT270,ZRT270,271..RHD..N ENGLAND SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT270,ZRT270,271..RHD..N MALTA SPEC&AUDIO-RADIO & CD & BLUETOOTH & 6SPEAKER |
1 | ||
| 81266-42020 |
ADT271..RHD..DCRL;ADT27#,ZRT27#..RHD..E MALTA SPEC&AUDIO-RADIO & CD & 6SPEAKER |
1 | ||
| Common parts | ||||
| 63395-12150 | ||||
| Linked diagrams | ||||
| 8603 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
