ADT270R-AEFNYW (2011)
Toyota Avensis
(1111-1505)

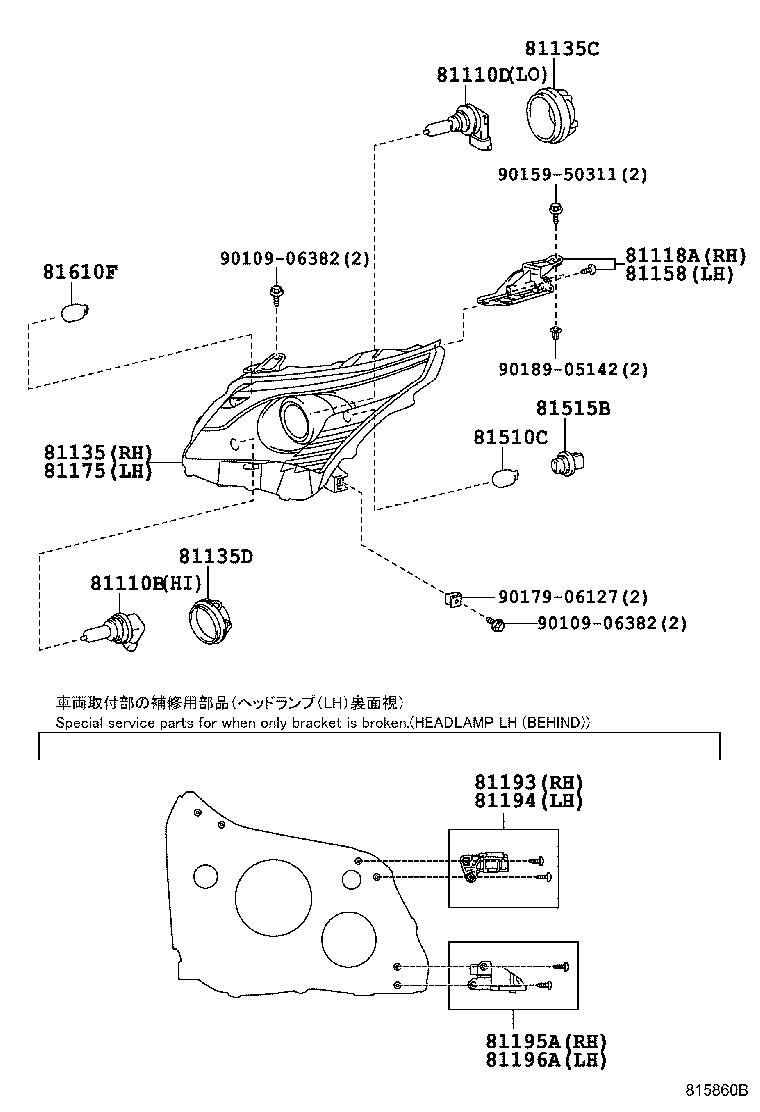

HALOGEN HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13046 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V65W(SAE),60W(ECE) |
2 | ||
| 90981-13084 |
ADT27#,ZRT27# 12V 65W,HALOGEN |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 55W,HALOGEN |
2 | ||
| 90981-13075 |
ADT27#,ZRT27# 12V 55W,HALOGEN |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81118-05350 |
ADT27#,ZRT27# |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-05300 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81140-05320 |
ADT27#,ZRT27#..RHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05361 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05340 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81130-05362 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05360 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81135C - COVER, HEADLAMP BACK, NO.1 | ||||
| 81135-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 81135-05340 |
ADT27#,ZRT27# |
2 | ||
| 81135-05330 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) HEADLAMP-DISCHARGE & AFS |
2 | ||
| 81135D - COVER, HEADLAMP BACK, NO.2 | ||||
| 81135-05350 |
ADT27#,ZRT27# |
2 | ||
| 81135-05320 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-05350 |
ADT27#,ZRT27# |
1 | ||
| 81158-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-05300 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81070-05320 |
ADT27#,ZRT27#..RHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05361 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05362 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05360 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05340 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-05040 |
ADT27#,ZRT27# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-05040 |
ADT27#,ZRT27# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-05030 |
ADT27#,ZRT27# |
1 | ||
| 81193-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81196-05030 |
ADT27#,ZRT27# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 21W,AMBER |
2 | ||
| 90981-15021 |
ADT27#,ZRT27# 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ADT27#,ZRT27# |
2 | ||
| 90075-60028 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 81610F - BULB(FOR CLEARANCE LAMP) | ||||
| 90981-WB006 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 5W |
2 | ||
| 90981-13088 |
ADT27#,ZRT27# 12V 21/5W |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
(1111-1505)

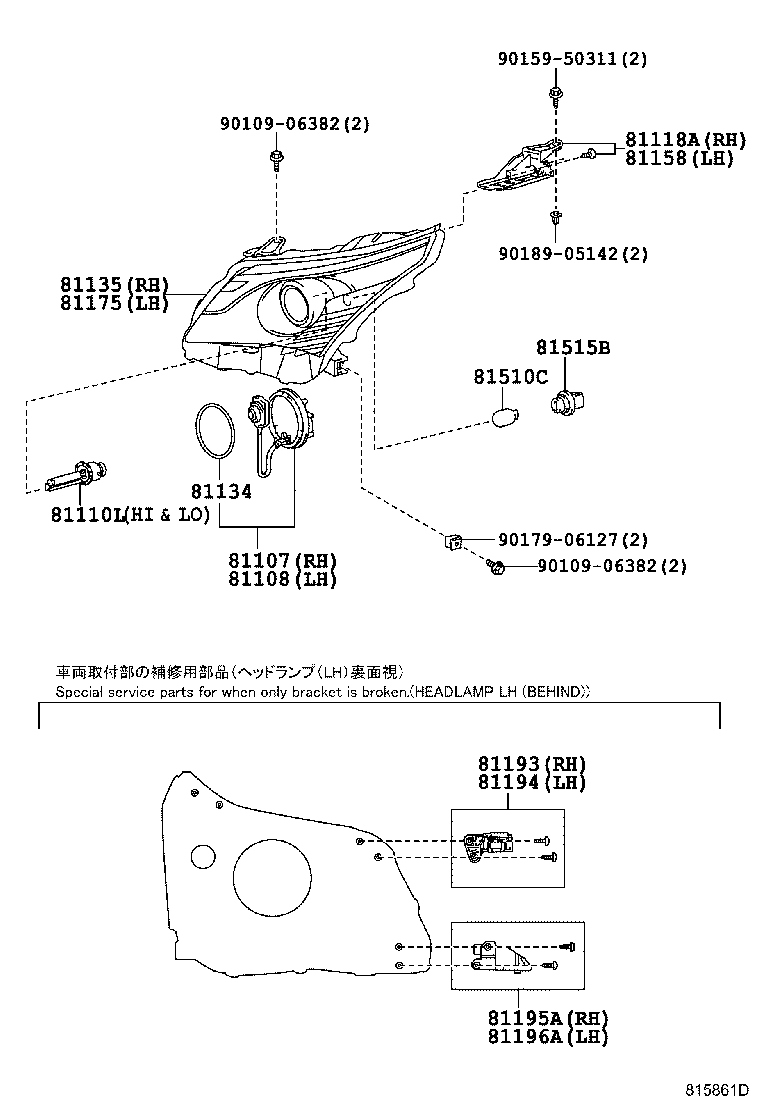

DISCHARGE HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH | ||||
| 81107-75020 |
ZRT271,272..LHD..CVT..(E,G);ADT27#,ZRT27#..(ATM,MTM)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH | ||||
| 81107-75020 |
ZRT271,272..LHD..CVT..(E,G);ADT27#,ZRT27#..(ATM,MTM)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81110L - BULB, DISCHARGE HEADLAMP | ||||
| 90981-20024 |
ZRT271,272..LHD..CVT..(E,G);ADT27#,ZRT27#..(ATM,MTM)..(E,G) 42V 35W,HEADLAMP-DISCHARGE & AFS |
2 | ||
| 90981-20024 |
ZRT271,272..LHD..CVT..(E,G);ADT27#,ZRT27#..(ATM,MTM)..(E,G) 42V 35W,HEADLAMP-DISCHARGE & AFS |
2 | ||
| 90981-20021 |
ADT27#,ZRT27#..E,F,G,V 45V 35W,HEADLAMP-DISCHARGE & AFS |
2 | ||
| 81118A - BRACKET, HEADLAMP, RH | ||||
| 81118-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81118-05350 |
ADT27#,ZRT27# |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 90075-23002 |
ZRT271,272..LHD..CVT..(E,G);ADT27#,ZRT27#..(ATM,MTM)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81130-05300 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81140-05320 |
ADT27#,ZRT27#..RHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05361 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05340 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81130-05362 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81130-05360 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81158 - BRACKET, HEADLAMP, LH | ||||
| 81158-05350 |
ADT27#,ZRT27# |
1 | ||
| 81158-05310 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-05300 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81070-05320 |
ADT27#,ZRT27#..RHD..(E,F,G,V) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05361 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05362 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05360 |
ADT27#,ZRT27#..RHD..(6F,6FC)..(E,G) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 81170-05340 |
ADT27#,ZRT27#..RHD |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-05040 |
ADT27#,ZRT27# |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-05040 |
ADT27#,ZRT27# |
1 | ||
| 81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH | ||||
| 81195-05030 |
ADT27#,ZRT27# |
1 | ||
| 81193-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH | ||||
| 81194-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 81196-05030 |
ADT27#,ZRT27# |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15011 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) 12V 21W,AMBER |
2 | ||
| 90981-15021 |
ADT27#,ZRT27# 12V 21W,AMBER |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
ADT27#,ZRT27# |
2 | ||
| 90075-60028 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| Common parts | ||||
| 90109-06382 | ||||
| 90159-50311 | ||||
| 90179-06127 | ||||
| 90189-05142 | ||||
