ADT270R-AEFNYW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

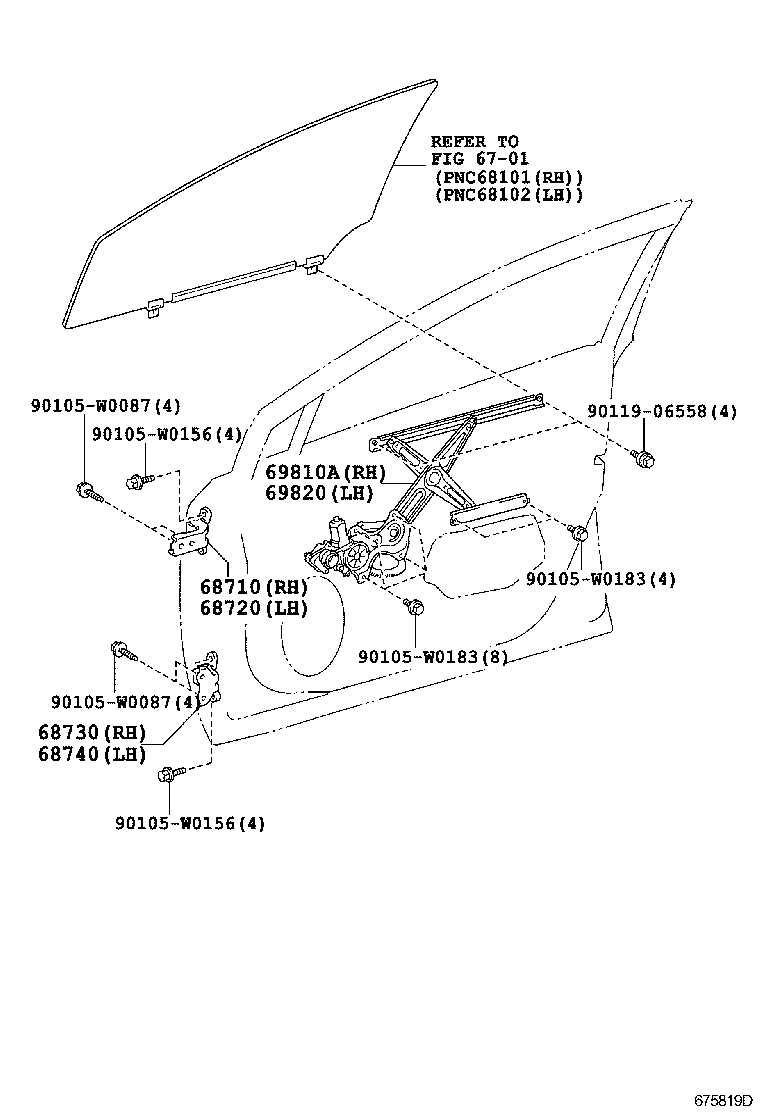

Click highlighted areas on diagram

diagram 6701 68710 68720 68730 68740 69810A 69820 90105W0087 90105W0087 90105W0156 90105W0156 90105W0183 90105W0183 9011906558
Part # Description Qty Price
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-02060

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
68710-02060

ADT27#,ZRT27#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-02060

ADT27#,ZRT27#

 1
68720-02060

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68730-02050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
68730-02050

ADT27#,ZRT27#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68740-02050

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
68740-02050

ADT27#,ZRT27#

 1
69810A - REGULATOR ASSY, FRONT DOOR WINDOW, RH
69810-05070

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
69810-05070

ADT27#,ZRT27#

 1
69810-05071

ADT27#,ZRT27#

 1
69820 - REGULATOR ASSY, FRONT DOOR WINDOW, LH
69820-05070

ADT27#,ZRT27#

 1
69820-05071

ADT27#,ZRT27#

 1
69820-05070

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
Common parts
90105-W0087
90105-W0156
90105-W0183
90119-06558
Linked diagrams
6701
