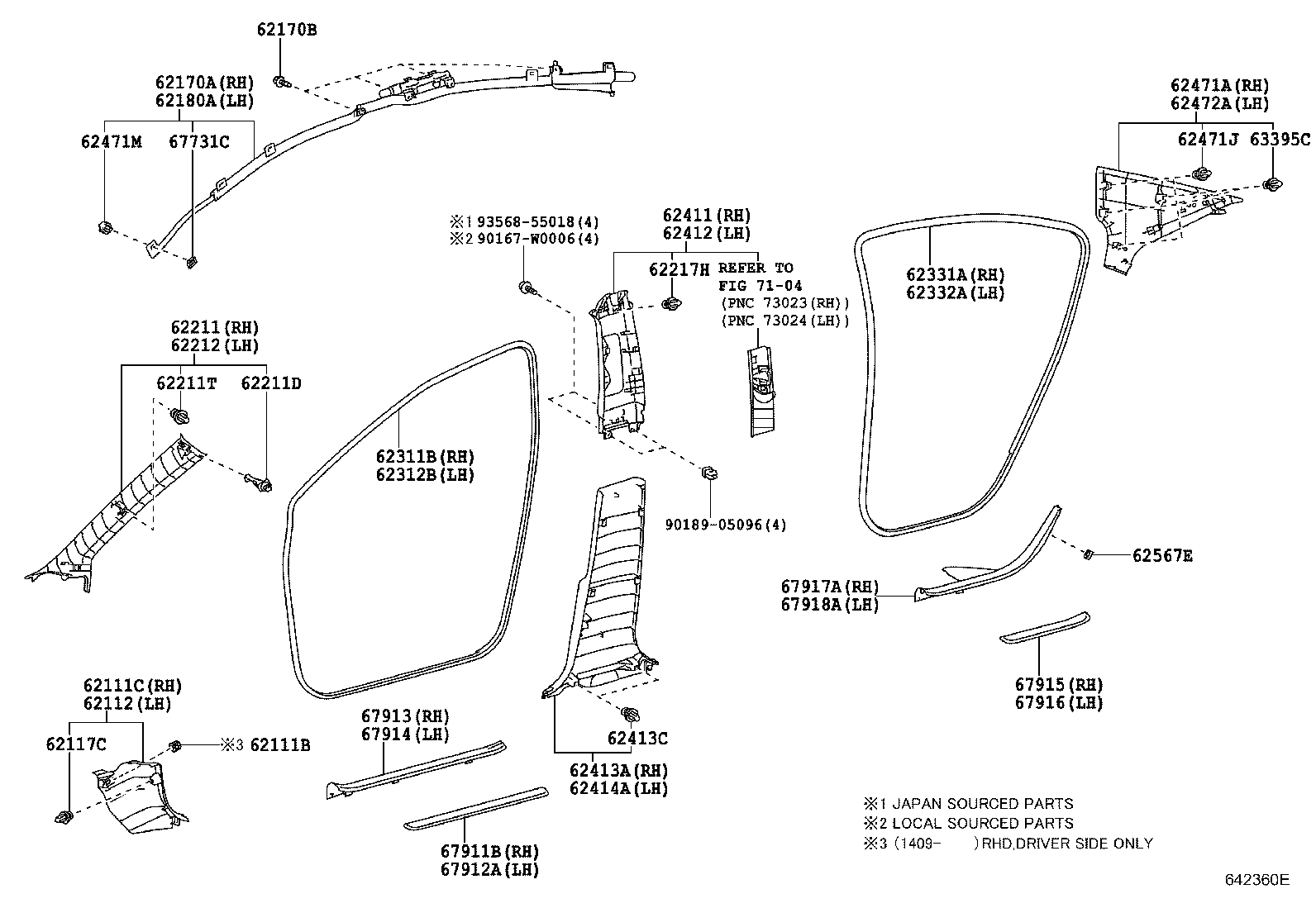

ADT270R-AEFNYW (2011)
Toyota Avensis
(0811- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
ADT27#,ZRT27#..RHD |
1 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-05060C0 |
ADT27#,ZRT27#..RHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 62111-05060C0 |
ADT271..RHD..G;ZRT271..RHD..WG..6F..E;ADT271,ZRT271..RHD..SED..E;ADT270,ZRT272..RHD..E..(DCR,HTWVM) BLACK,TRIM2#,40 |
1 | ||
| 62111-05060E0 |
ADT271..RHD..G;ZRT271..RHD..WG..6F..E;ADT271,ZRT271..RHD..SED..E;ADT270,ZRT272..RHD..E..(DCR,HTWVM) GREGE,TRIM40 |
1 | ||
| 62111-05060E0 |
ZRT270..RHD..E;ADT271..RHD..WG..E;ADT27#..RHD..(F,V);ZRT271..RHD..WG..CVT..E GREGE,TRIM4# |
1 | ||
| 62111-05060C0 |
ADT270,ZRT270,271..RHD..N BLACK,TRIM2# |
1 | ||
| 62111-05060C0 |
ADT271..RHD..WG..E;ZRT271..RHD..WG..CVT..E;ADT270,ZRT271..RHD..(F,N);ADT271,ZRT270..RHD..(E,N,V)..(DCRL,HTWVM) BLACK,TRIM2# |
1 | ||
| 62111-05061C0 |
ZRT270..RHD..N;ADT27#,ZRT271,272..RHD..(E,N) BLACK,TRIM2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-05050C0 |
ZRT270..RHD;ADT271..WG..E;ADT270..RHD..(F,N);ADT271,ZRT271..N,V;ADT270,ZRT270..LHD..N;ZRT270,272..LHD..WG..E;ZRT271..RHD..WG..CVT..E BLACK,TRIM2# |
1 | ||
| 62112-05050C0 |
ADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E BLACK,TRIM2#,40 |
1 | ||
| 62112-05050E0 |
ADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E GREGE,TRIM40 |
1 | ||
| 62112-05050C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 62112-05050C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 62112-05050E0 |
ADT271..V;ADT271..WG..E;ADT270..RHD..F;ZRT270..RHD..E;ZRT270,272..LHD..WG..E;ZRT271..RHD..WG..CVT..E GREGE,TRIM4# |
1 | ||
| 62117C - CLIP, NO.2(FOR COWL SIDE TRIM) | ||||
| 90467-W0005 |
ADT27#,ZRT27# |
2 | ||
| 90467-W0005 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-05091 |
ADT27#,ZRT27#..SED |
1 | ||
| 62170-05090 |
ADT27#,ZRT27#..SED |
1 | ||
| 62170-05090 |
ADT270..RHD..SED;ADT270..LHD..SED..(E,N);ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM) |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-W0078 |
ADT270..RHD;ADT270..LHD..(E,N);ADT271,ZRT27#..DCR,DCRL,HTWVM |
8 | ||
| 90119-W0078 |
ADT27#,ZRT27# |
8 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-05091 |
ADT27#,ZRT27#..SED |
1 | ||
| 62180-05090 |
ADT27#,ZRT27#..SED |
1 | ||
| 62180-05090 |
ADT270..RHD..SED;ADT270..LHD..SED..(E,N);ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM) |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-05050E2 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62211-05050B2 |
ADT27#,ZRT27#..DCR,DCRL,HTWVM LT.GRAY,TRIM2# |
1 | ||
| 62211-05901B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2# |
1 | ||
| 62211-05901B0 |
ADT27#,ZRT27#..E..(DCR,HTWVM) LT.GRAY,TRIM20,21 |
1 | ||
| 62211-05901E0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) SOL-PLUS GRADE(NICKEL),GRAGE,TRIM21 |
1 | ||
| 62211-05901E0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) SOL-PLUS GRADE(NICKEL 2),GRAGE,TRIM21 |
1 | ||
| 62211-05901E0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) PREMIUM GRADE(NICKEL),GRAGE,TRIM21 |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 90950-08004 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 90950-08004 |
ADT27#,ZRT27# |
2 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-W0005 |
ADT27#,ZRT27# |
2 | ||
| 90467-W0005 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-05050E2 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62212-05050B2 |
ADT27#,ZRT27#..DCR,DCRL,HTWVM LT.GRAY,TRIM2# |
1 | ||
| 62212-05901B0 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2# |
1 | ||
| 62212-05901B0 |
ADT27#,ZRT27#..E..(DCR,HTWVM) LT.GRAY,TRIM20,21 |
1 | ||
| 62212-05901E0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) PREMIUM GRADE(NICKEL),GRAGE,TRIM21 |
1 | ||
| 62212-05901E0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) SOL-PLUS GRADE(NICKEL),GRAGE,TRIM21 |
1 | ||
| 62212-05901E0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) SOL-PLUS GRADE(NICKEL 2),GRAGE,TRIM21 |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 62217-13010 |
ADT27#,ZRT27# |
2 | ||
| 62217-13010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-05050E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62311-05050C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 62311-05050C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 62311-05050C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-05050C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 62312-05050C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 62312-05050C0 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 62312-05050E0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62331A - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-05120E0 |
ADT270..RHD..SED..(E,F);ADT270,ZRT272..LHD..SED..E..(DCR,HTWC);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62331-05120C0 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 62331-05120C0 |
ADT270,ZRT270,271..SED..N BLACK,TRIM2# |
1 | ||
| 62331-05120C0 |
ADT27#,ZRT27#..SED..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 62332A - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-05120C0 |
ADT27#,ZRT27#..SED..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 62332-05120C0 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) BLACK,TRIM2# |
1 | ||
| 62332-05120E0 |
ADT270..RHD..SED..(E,F);ADT270,ZRT272..LHD..SED..E..(DCR,HTWC);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62332-05120C0 |
ADT270,ZRT270,271..SED..N BLACK,TRIM2# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-05030B2 |
ADT271..6FC;ADT27#,ZRT27#..E..(DCR,HTWVM) LT.GRAY,TRIM1#,20,21 |
1 | ||
| 62410-05030B2 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2# |
1 | ||
| 62410-05030E2 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) PREMIUM GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62410-05030E2 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62410-05030B2 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
1 | ||
| 62410-05030E2 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62410-05030E2 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-05030B2 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) LT.GRAY,TRIM2# |
1 | ||
| 62420-05030E2 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62420-05030E2 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) PREMIUM GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62420-05030B2 |
ADT271..6FC;ADT27#,ZRT27#..E..(DCR,HTWVM) LT.GRAY,TRIM1#,20,21 |
1 | ||
| 62420-05030E2 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4# |
1 | ||
| 62420-05030B2 |
ADT270,ZRT270,271..N LT.GRAY,TRIM2# |
1 | ||
| 62420-05030E2 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-05040E1 |
ADT271..V;ADT271..WG..E;ADT270..RHD..F;ZRT270..RHD..E;ZRT270,272..LHD..WG..E;ZRT271..RHD..WG..CVT..E GREGE,TRIM4# |
1 | ||
| 62413-05040C0 |
ZRT270..RHD;ADT271..WG..E;ADT270..RHD..(F,N);ADT271,ZRT271..N,V;ADT270,ZRT270..LHD..N;ZRT270,272..LHD..WG..E;ZRT271..RHD..WG..CVT..E BLACK,TRIM2# |
1 | ||
| 62413-05040C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 62413-05040C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 62413-05040E1 |
ADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E GREGE,TRIM40 |
1 | ||
| 62413-05040C0 |
ADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E BLACK,TRIM2#,40 |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-W0005 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 90467-W0005 |
ADT27#,ZRT27# |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-05040C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 62414-05040C0 |
ADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E BLACK,TRIM2#,40 |
1 | ||
| 62414-05040E1 |
ADT270..E;ADT271,ZRT272..G;ZRT271..WG..6F..E;ZRT272..RHD..HTWVM;ADT271,ZRT271..SED..E;ZRT271..LHD..WG..CVT..E;ZRT270,272..LHD..SED..E GREGE,TRIM40 |
1 | ||
| 62414-05040C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 62414-05040C0 |
ZRT270..RHD;ADT271..WG..E;ADT270..RHD..(F,N);ADT271,ZRT271..N,V;ADT270,ZRT270..LHD..N;ZRT270,272..LHD..WG..E;ZRT271..RHD..WG..CVT..E BLACK,TRIM2# |
1 | ||
| 62414-05040E1 |
ADT271..V;ADT271..WG..E;ADT270..RHD..F;ZRT270..RHD..E;ZRT270,272..LHD..WG..E;ZRT271..RHD..WG..CVT..E GREGE,TRIM4# |
1 | ||
| 62471A - GARNISH, ROOF SIDE, INNER RH | ||||
| 62471-05120B2 |
ADT270..RHD..SED;ADT270..LHD..SED..(E,N);ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM) LT.GRAY,TRIM2# |
1 | ||
| 62471-05120E2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) PREMIUM GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62471-05120E2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62471-05120B2 |
ADT271..SED..6FC;ADT27#,ZRT27#..SED..E..(DCR,HTWVM) LT.GRAY,TRIM1#,20,21 |
1 | ||
| 62471-05120E2 |
ADT270..LHD..SED..E;ADT270..RHD..SED..(E,F);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62471-05120B2 |
ADT270,ZRT270,271..SED..N LT.GRAY,TRIM2# |
1 | ||
| 62471-05120E2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-W0009 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
4 | ||
| 90467-W0009 |
ADT27#,ZRT27#..SED |
4 | ||
| 62471M - CLIP | ||||
| 90467-15033 |
ADT270..RHD;ADT270..LHD..(E,N);ADT271,ZRT27#..DCR,DCRL,HTWVM |
10 | ||
| 90467-15033 |
ADT27#,ZRT27# |
10 | ||
| 62472A - GARNISH, ROOF SIDE, INNER LH | ||||
| 62472-05120B2 |
ADT270..RHD..SED;ADT270..LHD..SED..(E,N);ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM) LT.GRAY,TRIM2# |
1 | ||
| 62472-05120B2 |
ADT270,ZRT270,271..SED..N LT.GRAY,TRIM2# |
1 | ||
| 62472-05120E2 |
ADT270..LHD..SED..E;ADT270..RHD..SED..(E,F);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) GREGE,TRIM4# |
1 | ||
| 62472-05120E2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) PREMIUM GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62472-05120B2 |
ADT271..SED..6FC;ADT27#,ZRT27#..SED..E..(DCR,HTWVM) LT.GRAY,TRIM1#,20,21 |
1 | ||
| 62472-05120E2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL 2),GREGE,TRIM21,4# |
1 | ||
| 62472-05120E2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) SOL-PLUS GRADE(NICKEL),GREGE,TRIM21,4# |
1 | ||
| 62567E - CLAMP, ROCKER PANEL INNER PROTECTOR, NO.2 | ||||
| 62567-33040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 62567-33040 |
ADT27#,ZRT27# |
2 | ||
| 63395C - CLIP(FOR ROOF SIDE INNER GARNISH) | ||||
| 63395-12150 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
4 | ||
| 63395-12150 |
ADT27#,ZRT27#..SED |
4 | ||
| 67731C - SPACER, SIDE TRIM, NO.1 | ||||
| 62189-20010 |
ADT27#,ZRT27# |
8 | ||
| 62189-20010 |
ADT270..RHD;ADT270..LHD..(E,N);ADT271,ZRT27#..DCR,DCRL,HTWVM |
8 | ||
| 67911B - PLATE, FRONT DOOR SCUFF, OUTSIDE, RH | ||||
| 67911-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE |
1 | ||
| 67911-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE & LUXURY PACKAGE |
1 | ||
| 67911-05040 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 67911-05040 |
ADT27#,ZRT27#..E,N |
1 | ||
| 67911-05030 |
ADT27#,ZRT27#..E DOOR SCUFF PLATE-WITH & WITH(ORNAMENT) |
1 | ||
| 67912A - PLATE, FRONT DOOR SCUFF, OUTSIDE LH | ||||
| 67912-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE |
1 | ||
| 67912-05030 |
ADT27#,ZRT27#..E DOOR SCUFF PLATE-WITH & WITH(ORNAMENT) |
1 | ||
| 67912-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE & LUXURY PACKAGE |
1 | ||
| 67912-05040 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 67912-05040 |
ADT27#,ZRT27#..E,N |
1 | ||
| 67913 - PLATE, FRONT DOOR SCUFF, RH | ||||
| 67913-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,GREGE,TRIM40 |
1 | ||
| 67913-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,BLACK,TRIM2#,40 |
1 | ||
| 67913-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,GREGE,TRIM40 |
1 | ||
| 67913-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,BLACK,TRIM2#,40 |
1 | ||
| 67913-05060C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 67913-05060C0 |
ZRT270..RHD;ADT271,ZRT271..N,V;ADT270..RHD..(F,N);ZRT270..LHD..WG..E;ADT270,ZRT270..LHD..N;ADT27#,ZRT271,272..WG..E BLACK,TRIM2# |
1 | ||
| 67913-05060C0 |
ZRT272..LHD..HTWC;ZRT270..LHD..SED..E;ADT27#,ZRT271,272..SED..E..(DCR,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 67913-05060C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 67914 - PLATE, FRONT DOOR SCUFF, LH | ||||
| 67914-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,BLACK,TRIM2#,40 |
1 | ||
| 67914-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,BLACK,TRIM2#,40 |
1 | ||
| 67914-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,GREGE,TRIM40 |
1 | ||
| 67914-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,GREGE,TRIM40 |
1 | ||
| 67914-05060C0 |
ZRT270..RHD;ADT271,ZRT271..N,V;ADT270..RHD..(F,N);ZRT270..LHD..WG..E;ADT270,ZRT270..LHD..N;ADT27#,ZRT271,272..WG..E BLACK,TRIM2# |
1 | ||
| 67914-05060C0 |
ZRT272..LHD..HTWC;ZRT270..LHD..SED..E;ADT27#,ZRT271,272..SED..E..(DCR,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 67914-05060C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 67914-05060C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 67915 - PLATE, REAR DOOR SCUFF, OUTSIDE RH | ||||
| 67915-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE |
1 | ||
| 67915-05040 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 67915-05030 |
ADT27#,ZRT27#..E DOOR SCUFF PLATE-WITH & WITH(ORNAMENT) |
1 | ||
| 67915-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE & LUXURY PACKAGE |
1 | ||
| 67915-05040 |
ADT27#,ZRT27#..E,N |
1 | ||
| 67916 - PLATE, REAR DOOR SCUFF, OUTSIDE LH | ||||
| 67916-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE & LUXURY PACKAGE |
1 | ||
| 67916-05030 |
ZRT272..RHD;ADT270,ZRT271..E;ZRT272..LHD..HTWC SOL-PLUS GRADE |
1 | ||
| 67916-05030 |
ADT27#,ZRT27#..E DOOR SCUFF PLATE-WITH & WITH(ORNAMENT) |
1 | ||
| 67916-05040 |
ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 67916-05040 |
ADT27#,ZRT27#..E,N |
1 | ||
| 67917A - PLATE, REAR DOOR SCUFF, RH | ||||
| 67917-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,GREGE,TRIM40 |
1 | ||
| 67917-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,BLACK,TRIM2#,40 |
1 | ||
| 67917-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,BLACK,TRIM2#,40 |
1 | ||
| 67917-05060C0 |
ZRT270..RHD;ADT271,ZRT271..N,V;ADT270..RHD..(F,N);ZRT270..LHD..WG..E;ADT270,ZRT270..LHD..N;ADT27#,ZRT271,272..WG..E BLACK,TRIM2# |
1 | ||
| 67917-05060C0 |
ZRT272..LHD..HTWC;ZRT270..LHD..SED..E;ADT27#,ZRT271,272..SED..E..(DCR,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 67917-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,GREGE,TRIM40 |
1 | ||
| 67917-05060C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 67917-05060C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 67918A - PLATE, REAR DOOR SCUFF, LH | ||||
| 67918-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,BLACK,TRIM2#,40 |
1 | ||
| 67918-05060C0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,BLACK,TRIM2#,40 |
1 | ||
| 67918-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE,GREGE,TRIM40 |
1 | ||
| 67918-05060E0 |
ADT270..E;ZRT272..RHD;ZRT271..SED..E;ZRT271..WG..6F..E;ZRT272..LHD..HTWC;ZRT271..LHD..WG..CVT..E SOL-PLUS GRADE & LUXURY PACKAGE,GREGE,TRIM40 |
1 | ||
| 67918-05060C0 |
ZRT272..LHD..HTWC;ZRT270..LHD..SED..E;ADT27#,ZRT271,272..SED..E..(DCR,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 67918-05060C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 67918-05060C0 |
ADT270,ZRT270,271..N BLACK,TRIM2# |
1 | ||
| 67918-05060C0 |
ZRT270..RHD;ADT271,ZRT271..N,V;ADT270..RHD..(F,N);ZRT270..LHD..WG..E;ADT270,ZRT270..LHD..N;ADT27#,ZRT271,272..WG..E BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90167-W0006 | ||||
| 90189-05096 | ||||
| 93568-55018 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
