ADT270R-AEFNYW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )SED

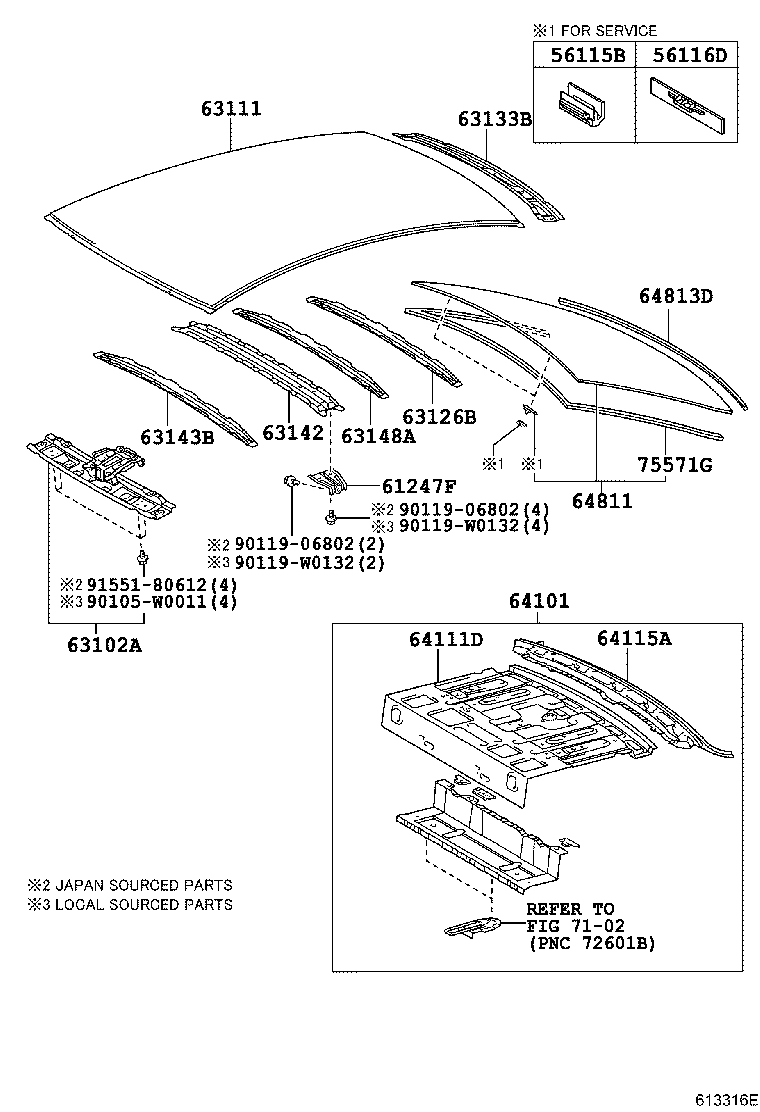

Click highlighted areas on diagram

diagram 56115B 56116D 61247F 63102A 63111 63126B 63133B 63142 63143B 63148A 64101 64111D 64115A 64811 64813D 7102 75571G 90105W0011 9011906802 9011906802 90119W0132 90119W0132 9155180612
Part # Description Qty Price
56115B - STOPPER, BACK WINDOW GLASS, NO.1
56115-30120

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
56115-30120

ADT27#,ZRT27#..SED

 1
56116D - STOPPER, BACK WINDOW GLASS, NO.2
56116-22050

ADT27#,ZRT27#..SED

 1
56116-22050

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
61247F - REINFORCEMENT, ROOF SIDE RAIL, INNER
61247-05020

ADT27#,ZRT27#..SED

 2
61247-05020

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 2
63102A - PANEL SUB-ASSY, WINDSHIELD HEADER
63102-05090

ADT27#,ZRT27#

 1
63102-05090

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
63111 - PANEL, ROOF
63111-05290

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
63111-05290

ADT27#,ZRT27#..SED

 1
63126B - REINFORCEMENT, ROOF PANEL, REAR NO.2
63126-05010

ADT27#,ZRT27#..SED

 1
63126-05010

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
63133B - FRAME, BACK WINDOW
63133-05040

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
63133-05040

ADT27#,ZRT27#..SED

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63103-05030

ADT27#,ZRT27#

 1
63103-05030

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-05070

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
63143-05070

ADT27#,ZRT27#

 1
63148A - REINFORCEMENT, ROOF PANEL, NO.7
63148-05040

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
63148-05040

ADT27#,ZRT27#..SED

 1
64101 - PANEL SUB-ASSY, UPPER BACK
64101-05100

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
64101-05100

ADT27#,ZRT27#..SED

 1
64101-05102

ADT27#,ZRT27#..SED

 1
64101-05101

ADT27#,ZRT27#..SED

 1
64111D - PANEL, UPPER BACK
64111-05060

ADT27#,ZRT27#..SED

 1
64111-05061

ADT27#,ZRT27#..SED

 1
64111-05060

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
64111-05062

ADT27#,ZRT27#..SED

 1
64115A - REINFORCEMENT, BACK, UPPER
64115-05040

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
64115-05040

ADT27#,ZRT27#..SED

 1
64811 - GLASS, BACK WINDOW
64801-05010

ADT27#,ZRT27#..SED

*EHT,T=3.1,GREEN

 1
64801-05011

ADT27#,ZRT27#..SED

*EHT,T=3.1,GREEN

 1
64801-05010

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

*EHT,T=3.1,GREEN

 1
64813D - DAM, BACK WINDOW GLASS ADHESIVE
64813-20160

ADT27#,ZRT27#..SED

 1
64813-20160

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1
75571-05020

ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)

 1
75571-05020

ADT27#,ZRT27#..SED

 1
Common parts
90105-W0011
90119-06802
90119-W0132
91551-80612
Linked diagrams
7102
