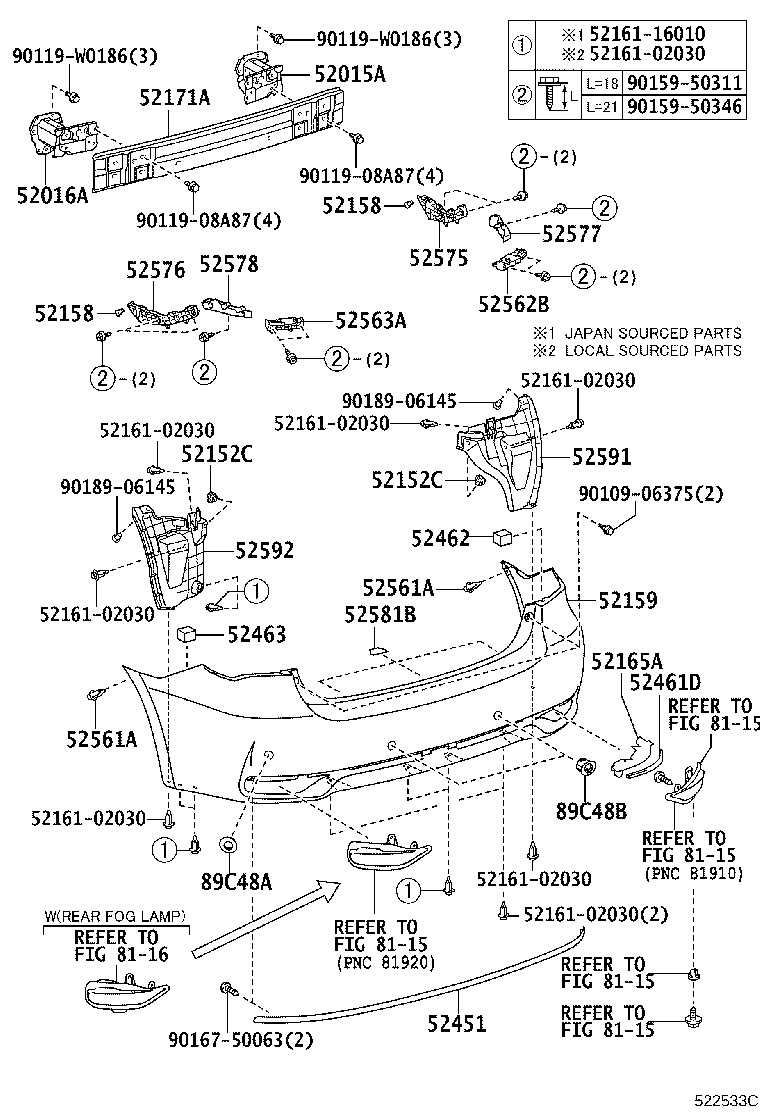

ADT270R-AEFNYW (2011)
Toyota Avensis
(1111-1505)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52015A - ARM SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-05030 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52015-05030 |
ADT27#,ZRT27#..SED |
1 | ||
| 52016A - ARM SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-05030 |
ADT27#,ZRT27#..SED |
1 | ||
| 52016-05030 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-06121 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 90467-06206C0 |
ADT27#,ZRT27# BLACK |
2 | ||
| 52152C - CLIP, REAR BUMPER SIDE | ||||
| 90467-06121 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 90467-06206C0 |
ADT27#,ZRT27# BLACK |
2 | ||
| 52158 - BRACKET, REAR BUMPER | ||||
| 52197-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52197-05020 |
ADT27#,ZRT27# |
2 | ||
| 52158 - BRACKET, REAR BUMPER | ||||
| 52197-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 52197-05020 |
ADT27#,ZRT27# |
2 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-05906 |
ADT270..LHD..SED..E;ADT270..RHD..SED..(E,F);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52159-05905 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) PAINT REQ. |
1 | ||
| 52159-05910 |
ADT27#,ZRT27#..SED PAINT REQ. |
1 | ||
| 52159-05909 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52165A - COVER, REAR BUMPER, UPR RH | ||||
| 52165-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) NO PAINT REQ. |
1 | ||
| 52165-05020 |
ADT27#,ZRT27#..SED NO PAINT REQ. |
1 | ||
| 52171A - REINFORCEMENT, REAR BUMPER, NO.1 | ||||
| 52171-02080 |
ADT27#,ZRT27# |
1 | ||
| 52171-02080 |
ADT27#,ZRT27# |
1 | ||
| 52171-02080 |
ADT27#,ZRT27# |
1 | ||
| 52451 - GUARD, REAR BUMPER | ||||
| 52453-05010 |
ADT27#,ZRT27#..SED |
1 | ||
| 52461D - CUSHION, REAR BUMPER | ||||
| 52461-05010 |
ADT27#,ZRT27#..SED |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-05020 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52462-05030 |
ADT27#,ZRT27#..SED |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52462-05030 |
ADT27#,ZRT27#..SED |
1 | ||
| 52462-05020 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05170 |
ADT27#,ZRT27# |
2 | ||
| 90467-05090B1 |
ADT27#,ZRT27# DK.GRAY |
2 | ||
| 90467-05090B1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) DK.GRAY |
2 | ||
| 52561A - CLIP(FOR REAR BUMPER RETAINER) | ||||
| 90467-05170 |
ADT27#,ZRT27# |
2 | ||
| 90467-05090B1 |
ADT27#,ZRT27# DK.GRAY |
2 | ||
| 90467-05090B1 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) DK.GRAY |
2 | ||
| 52562B - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-05030 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52562-05050 |
ADT27#,ZRT27#..SED |
1 | ||
| 52563A - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-05030 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52563-05050 |
ADT27#,ZRT27#..SED |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-05040 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52575-05040 |
ADT27#,ZRT27#..SED |
1 | ||
| 52575-05041 |
ADT27#,ZRT27#..SED |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-05041 |
ADT27#,ZRT27#..SED |
1 | ||
| 52576-05040 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52576-05040 |
ADT27#,ZRT27#..SED |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-05030 |
ADT27#,ZRT27#..SED |
1 | ||
| 52577-05010 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-05010 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 52578-05030 |
ADT27#,ZRT27#..SED |
1 | ||
| 52581B - PROTECTOR, REAR BUMPER | ||||
| 52581-02020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
3 | ||
| 52581-02020 |
ADT27#,ZRT27# |
3 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-05030 |
ADT27#,ZRT27# |
1 | ||
| 52591-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-05020 |
ADT27#,ZRT27# |
1 | ||
| 52592-05020 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-05031G1 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7,RH |
1 | ||
| 89348-05031A0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,RH |
1 | ||
| 89348-05031K0 |
ZRT271..WG..6F..E;ZRT270,271..SED..E;ZRT271..LHD..WG..CVT..E;ADT27#,ZRT272..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK,RH |
1 | ||
| 89348-05031D0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3,RH |
1 | ||
| 89348-05031B3 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6,RH |
1 | ||
| 89348-05031J1 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5,RH |
1 | ||
| 89348-05031C0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209,RH |
1 | ||
| 89348-05031J0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6,RH |
1 | ||
| 89348-05051C0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209,LH |
1 | ||
| 89348-05051A0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040,LH |
1 | ||
| 89348-05051B2 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,LH |
1 | ||
| 89348-05051J0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6,LH |
1 | ||
| 89348-05051B3 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6,LH |
1 | ||
| 89348-05051J1 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5,LH |
1 | ||
| 89348-05031B2 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7,RH |
1 | ||
| 89348-05051D0 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3,LH |
1 | ||
| 89348-05051G1 |
ADT27#,ZRT27#..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7,LH |
1 | ||
| 89348-02010G0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7 |
2 | ||
| 89348-02010A0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040 |
2 | ||
| 89348-02010B0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 |
2 | ||
| 89348-02010B1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3 |
2 | ||
| 89348-02010B2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6 |
2 | ||
| 89348-02010C0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,BLACK MC.,209 |
2 | ||
| 89348-05051K0 |
ZRT271..WG..6F..E;ZRT270,271..SED..E;ZRT271..LHD..WG..CVT..E;ADT27#,ZRT272..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK,LH |
1 | ||
| 89348-02010D1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7 |
2 | ||
| 89348-02010J1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6 |
2 | ||
| 89348-02010B3 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2 |
2 | ||
| 89348-02010J4 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5 |
2 | ||
| 89348-02010A1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070 |
2 | ||
| 89348-02010E0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8 |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-05011A0 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040 |
2 | ||
| 89348-05011G1 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7 |
2 | ||
| 89348-05011B2 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 |
2 | ||
| 89348-05011J1 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5 |
2 | ||
| 89348-05011J0 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6 |
2 | ||
| 89348-05011C0 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,BLACK MC.,1G3 ,209 |
2 | ||
| 89348-05011D0 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,RED M.M.,3R3 |
2 | ||
| 89348-05011K0 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.PURPLE,9AK |
2 | ||
| 89348-05011B3 |
ADT27#,ZRT27#..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6 |
2 | ||
| 89348-02010B0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SILVER ME.,1F7 |
2 | ||
| 89348-02010J1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE MC.,8S6 |
2 | ||
| 89348-02010B2 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G6 |
2 | ||
| 89348-02010G0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,OLIVE M.M.,6T7 |
2 | ||
| 89348-02010J4 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK.BLUE ME.,8U5 |
2 | ||
| 89348-02010B3 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK. STEEL MC.,1H2 |
2 | ||
| 89348-02010D1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,DK RED MC,3Q7 |
2 | ||
| 89348-02010A0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,SUPER WHITE 2,040 |
2 | ||
| 89348-02010C0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,BLACK MC.,209 |
2 | ||
| 89348-02010B1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,GRAY ME.,1G3 |
2 | ||
| 89348-02010A1 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,070 |
2 | ||
| 89348-02010E0 |
ADT27#,ZRT27#..SED..(E,G)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH,AVANT-GARDE BRONZE ME.,4V8 |
2 | ||
| Common parts | ||||
| 52161-02030 | ||||
| 52161-16010 | ||||
| 90109-06375 | ||||
| 90119-08A87 | ||||
| 90119-W0186 | ||||
| 90159-50311 | ||||
| 90159-50346 | ||||
| 90167-50063 | ||||
| 90189-06145 | ||||
| Linked diagrams | ||||
| 8115 | ||||
| 8116 | ||||
