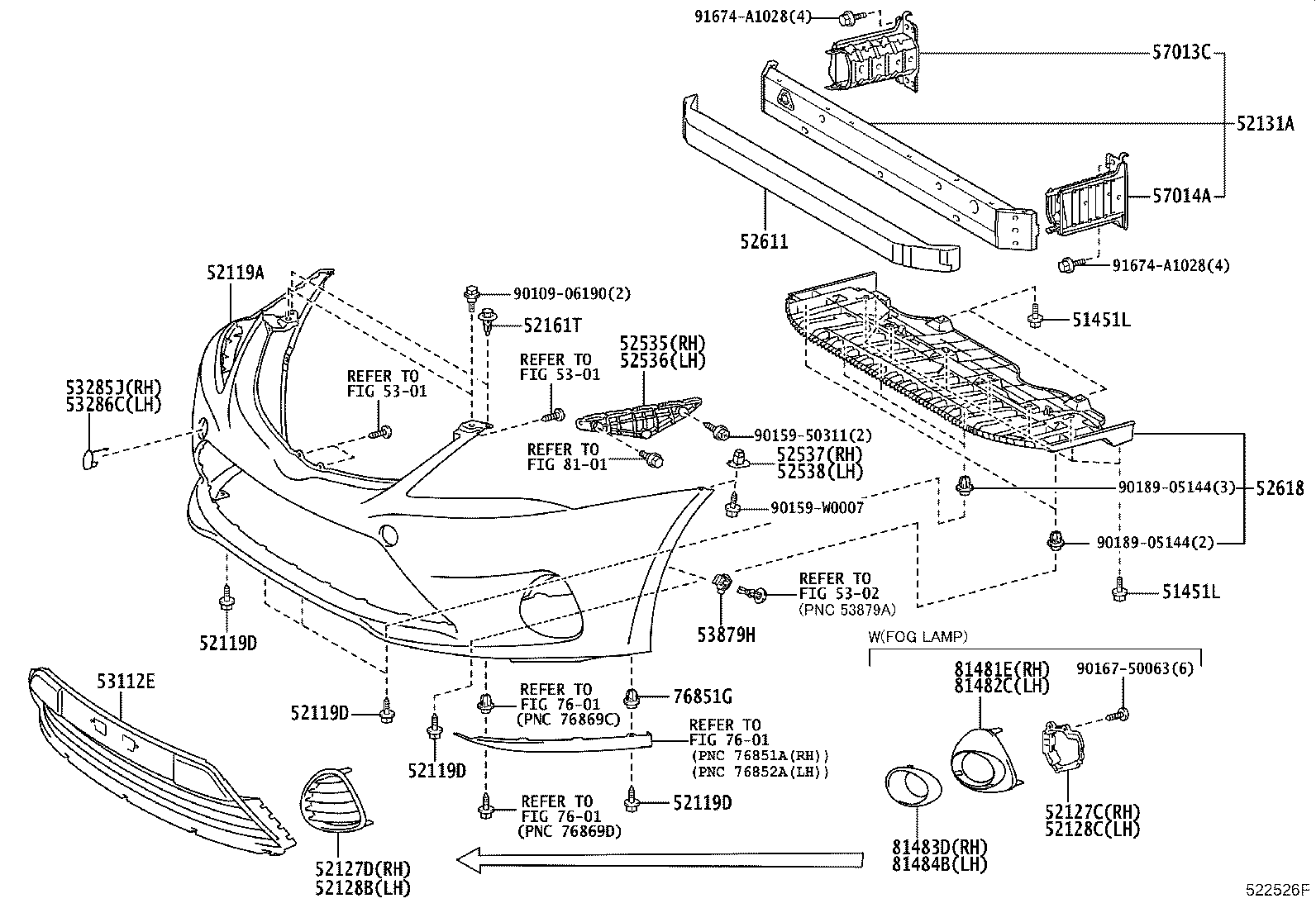

ADT270R-AEFNYW (2011)
Toyota Avensis
(1111-1505)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51451L - BOLT, NO.1 | ||||
| 90119-W0089 |
ADT27#,ZRT27# |
10 | ||
| 90119-W0089 |
ADT27#,ZRT27# |
10 | ||
| 51451L - BOLT, NO.1 | ||||
| 90119-W0089 |
ADT27#,ZRT27# |
10 | ||
| 90119-W0089 |
ADT27#,ZRT27# |
10 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-05915 |
ADT27#,ZRT27# PAINT REQ. |
1 | ||
| 52119-05916 |
ZRT271..CVT;ZRT271..6F..E;ZRT270..RHD..WG..N;ADT27#,ZRT270,272..(E,F,G,V)..(DCR,DCRL,HTWVM) PAINT REQ.,HEAD LAMP CLEANER-WITH |
1 | ||
| 52119-05920 |
ADT27#,ZRT27#..6F..E PAINT REQ.,BASE PACKAGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 52119-05920 |
ADT270,ZRT270,271..N PAINT REQ.,HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52119-05919 |
ADT27#,ZRT27# PAINT REQ. |
1 | ||
| 52119-05920 |
ADT27#,ZRT27#..DCR,DCRL,HTWVM PAINT REQ.,HEAD LAMP CLEANER-WITH |
1 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 52119D - SCREW, NO.1 | ||||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 90159-60488 |
ADT27#,ZRT27# |
7 | ||
| 52127C - COVER, FRONT BUMPER HOLE | ||||
| 52127-05070 |
ADT27#,ZRT27#..E,G |
1 | ||
| 52127-05070 |
ADT270,ZRT270,271..N HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52127-05070 |
ADT270,ZRT270,271..N FRONT FOG LAMP-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 81481-05020 |
ADT270,ZRT270,271..N |
1 | ||
| 81481-05020 |
ADT27#,ZRT27#..6F..E BASE PACKAGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 52127-05050 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E |
1 | ||
| 81481-05020 |
ADT27#,ZRT27#..6F..E BASE PACKAGE |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-05070 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E |
1 | ||
| 81482-05020 |
ADT27#,ZRT27#..6F..E BASE PACKAGE&HEAD LAMP CLEANER-WITH |
1 | ||
| 81482-05020 |
ADT270,ZRT270,271..N |
1 | ||
| 81482-05020 |
ADT27#,ZRT27#..6F..E BASE PACKAGE |
1 | ||
| 52128C - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-05090 |
ADT27#,ZRT27#..E,G |
1 | ||
| 52128-05090 |
ADT270,ZRT270,271..N HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 52128-05090 |
ADT270,ZRT270,271..N FRONT FOG LAMP-WITH |
1 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52021-05050 |
ADT27#,ZRT27# |
1 | ||
| 52021-05051 |
ADT27#,ZRT27# |
1 | ||
| 52161T - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
ADT27#,ZRT27# (J) |
2 | ||
| 52161-02030 |
ADT27#,ZRT27# (L) |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-05040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52535-05040 |
ADT27#,ZRT27# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-05040 |
ADT27#,ZRT27# |
1 | ||
| 52536-05040 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52537 - RETAINER, FRONT BUMPER END, RH | ||||
| 52535-50060 |
ADT27#,ZRT27# |
1 | ||
| 52538 - RETAINER, FRONT BUMPER END, LH | ||||
| 52535-50060 |
ADT27#,ZRT27# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-05010 |
ADT27#,ZRT27# |
1 | ||
| 52611-05011 |
ADT27#,ZRT27# |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 52618-05010 |
ADT27#,ZRT27# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-05090 |
ADT27#,ZRT27# NO PAINT REQ. |
1 | ||
| 53112-05080 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) NO PAINT REQ. |
1 | ||
| 53285J - COVER, FRONT BUMPER ARM HOLE, RH | ||||
| 53285-05901 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E FRONT FOG LAMP-WITH |
1 | ||
| 53285-05901 |
ADT27#,ZRT27#..E,F |
1 | ||
| 53285-05901 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E |
1 | ||
| 53285-05903 |
ADT27#,ZRT27# |
1 | ||
| 53286C - COVER, FRONT BUMPER ARM HOLE, LH | ||||
| 53286-05901 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E |
1 | ||
| 53286-05901 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E FRONT FOG LAMP-WITH |
1 | ||
| 53286-05901 |
ADT27#,ZRT27#..E,F |
1 | ||
| 53286-05903 |
ADT27#,ZRT27# |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-58010 |
ADT27#,ZRT27# |
2 | ||
| 53879-58010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 57013C - BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH | ||||
| 57013-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 57013-05030 |
ADT27#,ZRT27# |
1 | ||
| 57014A - BRACKET SUB-ASSY, FRONT SIDE MEMBER, LH | ||||
| 57014-05030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 57014-05030 |
ADT27#,ZRT27# |
1 | ||
| 76851G - GROMMET, SCREW, NO.1 | ||||
| 90189-06234 |
ADT27#,ZRT27# |
2 | ||
| 90189-05144 |
ADT27#,ZRT27# |
2 | ||
| 90189-05144 |
ADT27#,ZRT27# |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 52127-05060 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E FRONT FOG LAMP-WITH |
1 | ||
| 52127-05060 |
ADT27#,ZRT27#..E,F |
1 | ||
| 81481-05010 |
ADT270,ZRT270,271..N FRONT FOG LAMP-WITH |
1 | ||
| 81481-05010 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81481-05010 |
ADT270,ZRT270,271..N HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 52128-05080 |
ADT27#,ZRT27#..E,F |
1 | ||
| 81482-05010 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81482-05010 |
ADT270,ZRT270,271..N HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81482-05010 |
ADT270,ZRT270,271..N FRONT FOG LAMP-WITH |
1 | ||
| 52128-05080 |
ZRT270..WG..E;ADT270,ZRT270,271..N;ZRT271..RHD..WG..CVT..E FRONT FOG LAMP-WITH |
1 | ||
| 81483D - PROTECTOR, FOG LAMP, RH | ||||
| 81483-05010 |
ADT270,ZRT270,271..N FRONT FOG LAMP-WITH |
1 | ||
| 81483-05010 |
ADT270,ZRT270,271..N HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81483-05010 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81484B - PROTECTOR, FOG LAMP, LH | ||||
| 81484-05010 |
ADT270,ZRT270,271..N HEAD LAMP CLEANER-WITH&FRONT FOG LAMP-WITH |
1 | ||
| 81484-05010 |
ADT27#,ZRT27#..E,G |
1 | ||
| 81484-05010 |
ADT270,ZRT270,271..N FRONT FOG LAMP-WITH |
1 | ||
| Common parts | ||||
| 90109-06190 | ||||
| 90159-50311 | ||||
| 90159-W0007 | ||||
| 90167-50063 | ||||
| 90189-05144 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 5302 | ||||
| 7601 | ||||
| 8101 | ||||
