ADT270R-AEFNYW (2011)

Toyota Avensis

Production Nov 2011 - May 2015
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

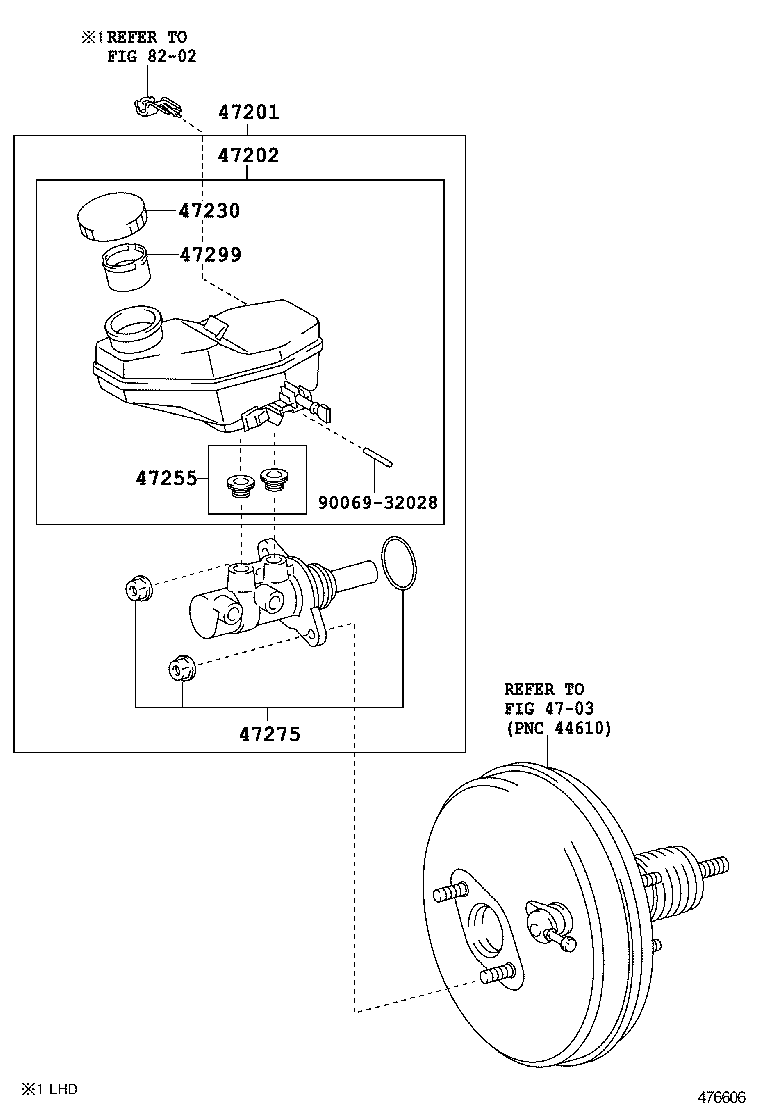

Click highlighted areas on diagram

diagram 4703 47201 47202 47230 47255 47275 47299 8202 9006932028
Part # Description Qty Price
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-09400

ZRT270..RHD..E;ADT27#,ZRT271,272..RHD..(DCR,DCRL,HTWVM)

 1
47201-09400

ADT27#,ZRT27#..RHD

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-09100

ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)

 1
47220-09100

ADT27#,ZRT27#..RHD

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-0D010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47230-0D010

ADT27#,ZRT27#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-09040

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47255-09040

ADT27#,ZRT27#

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-09010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47275-09010

ADT27#,ZRT27#

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-02160

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
47299-02160

ADT27#,ZRT27#

 1
Common parts
90069-32028
Linked diagrams
4703
8202
