ADT270R-AEFEYW (2008)
Toyota Avensis

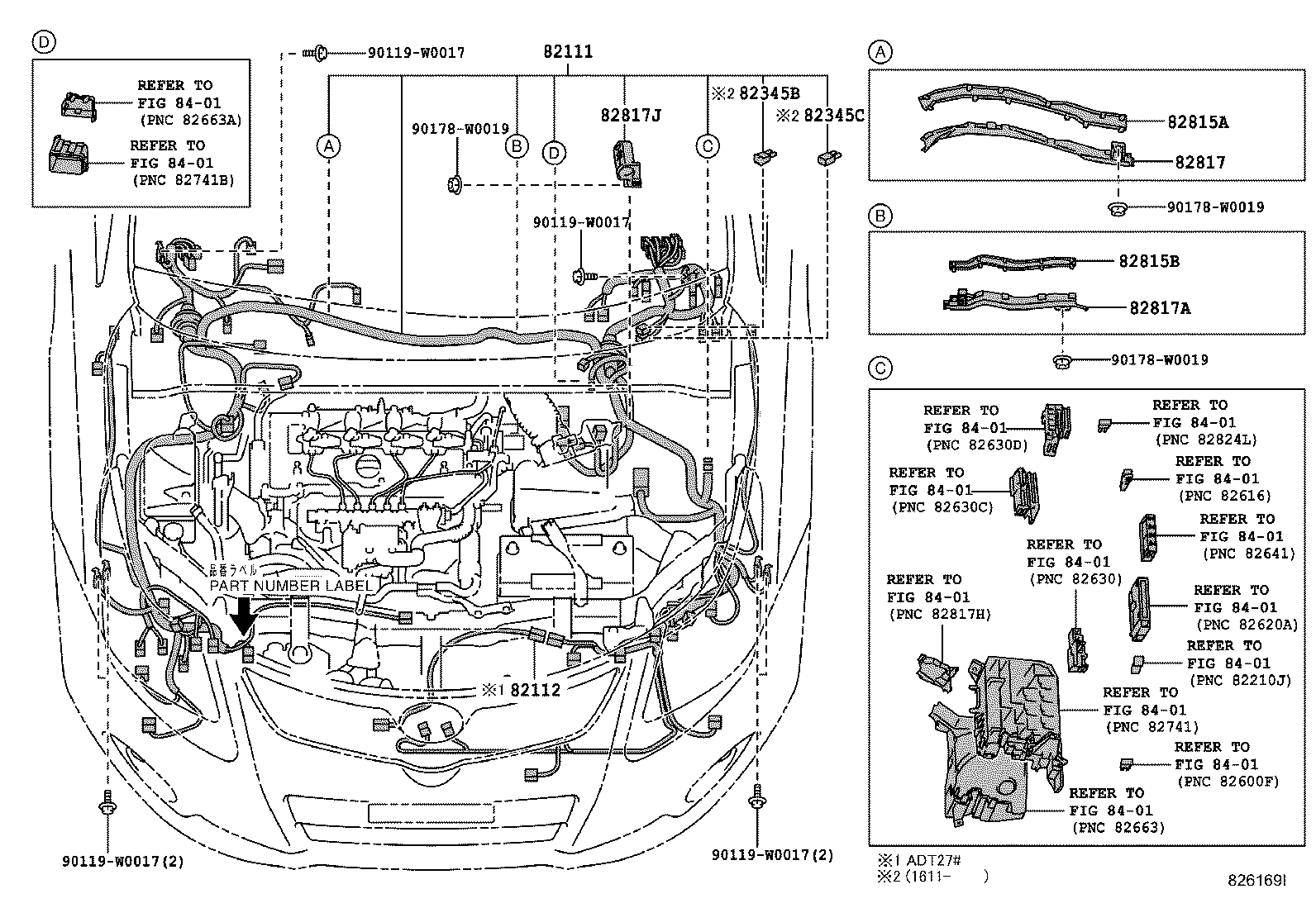

ILLUST NO. 1 OF11(0811- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-05J20 |
ADT27#..RHD..6F..(E,F,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-DISCHARGE & AFS&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-05J10 |
ADT27#..RHD..6F |
1 | ||
| 82111-05J11 |
ADT27#..RHD..6F |
1 | ||
| 82111-05J21 |
ADT27#..RHD..6F..(E,F,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-DISCHARGE & AFS&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-05J12 |
ADT27#..RHD..6F |
1 | ||
| 82111-05J22 |
ADT27#..RHD..6F..(E,F,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-DISCHARGE & AFS&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-05J10 |
ADT27#..RHD..6F |
1 | ||
| 82111-05J20 |
ADT27#..RHD..6F..(E,F,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-DISCHARGE & AFS&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-05J21 |
ADT27#..RHD..6F..(E,F,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-DISCHARGE & AFS&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-05J11 |
ADT27#..RHD..6F |
1 | ||
| 82111-05J22 |
ADT27#..RHD..6F..(E,F,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEADLAMP-DISCHARGE & AFS&HEAD LAMP CLEANER-WITH |
1 | ||
| 82111-05J12 |
ADT27#..RHD..6F |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-05010 |
ADT271;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12B10 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12B20 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-12J30 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90178-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF11(0811- )ADT27#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-05B80 |
ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82121-05B90 |
ADT270..E,N ENGINE-1ADFTV(DPF) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-05090 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-05270 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-12280 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-02070 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-02080 |
ADT271;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-02110 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-05240 |
ADT271;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-02380 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-02390 |
ADT271;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-02420 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-05490 |
ADT271;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-02440 |
ADT271..6F;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-20100 |
ADT27# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
ADT27#,ZRT27# |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-05020 |
ADT271;ADT270..RHD;ADT270..LHD..(E,N) |
1 | ||
| Common parts | ||||
| 90116-06127 | ||||
| 90119-06995 | ||||
| 90119-W0017 | ||||
| 90119-W0059 | ||||
| 90119-W0061 | ||||
| 90178-W0019 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||

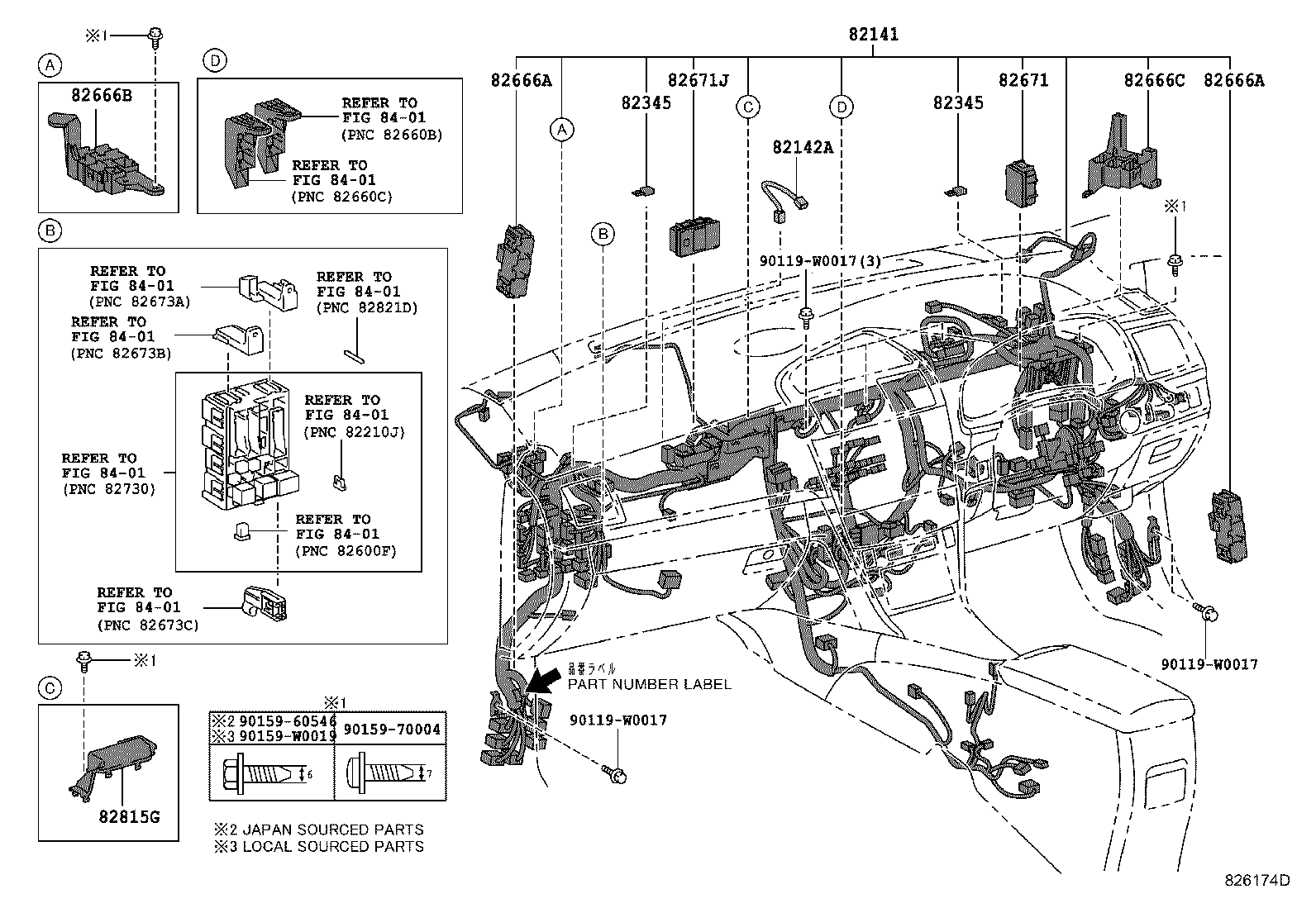

ILLUST NO. 3 OF11(0811- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-05Y10 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 82141-05W10 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82141-05W90 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05W30 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W20 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE & LUXURY PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMARTENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82141-05Y30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05Y30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05Y20 |
ADT27#,ZRT27#..RHD..6F..(E,F) |
1 | ||
| 82141-05Y60 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE & LUXURY PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMARTENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05Y70 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE & LUXURY PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMARTENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W30 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W20 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82141-05W10 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05W61 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W61 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05W90 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05W80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05Y11 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 82141-05Y11 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82141-05Y30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05Y30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05Y20 |
ADT27#,ZRT27#..RHD..6F..(E,F) LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05Y70 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05Y60 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05B70 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82145-05B80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82145-05B50 |
ADT27#,ZRT27#..RHD..6F..(E,F) |
1 | ||
| 82145-05B60 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82145-05B60 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W62 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05W62 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W81 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05Y31 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05Y31 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05W81 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B81 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B61 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82145-05B61 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B81 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82141-05W31 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W91 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W21 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82141-05W11 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05Y12 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 82141-05Y12 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82141-05Y21 |
ADT27#,ZRT27#..RHD..6F..(E,F) LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05Y61 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05B71 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82145-05B51 |
ADT27#,ZRT27#..RHD..6F..(E,F) |
1 | ||
| 82141-05Y71 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05N80 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 82145-05U30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 82145-05U30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05Q40 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05P00 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05N70 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) |
1 | ||
| 82145-05N90 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82145-05N81 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 82145-05U50 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05Q20 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82145-05Q20 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 82145-05Q70 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05Q80 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05Q30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82145-05T90 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82145-05U00 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05T80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82145-05U31 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05U60 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05Y10 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 82141-05W10 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82141-05W30 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W20 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE & LUXURY PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMARTENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82141-05W90 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05Y30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05Y20 |
ADT27#,ZRT27#..RHD..6F..(E,F) |
1 | ||
| 82141-05Y70 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE & LUXURY PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMARTENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05Y60 |
ZRT272..RHD..HTWVM;ADT270,ZRT271..RHD..6F..E SOL-PLUS GRADE & LUXURY PACKAGE&CRUISE CONTROL-WITH&WIRELESS DOOR LOCK-WITH(SMARTENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W10 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05W80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROLSYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W20 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82141-05W30 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W90 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W61 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);MANUALAIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05Y20 |
ADT27#,ZRT27#..RHD..6F..(E,F) LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05Y11 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER);MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82141-05Y60 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05Y30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);LIGHTCONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05Y70 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05B50 |
ADT27#,ZRT27#..RHD..6F..(E,F) |
1 | ||
| 82145-05B80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B60 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B70 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82141-05Y31 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);LIGHTCONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W62 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);MANUALAIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W81 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROLSYSTEM-WITH(AUTO)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B61 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05B81 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82141-05W91 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W21 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82141-05W31 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05W11 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05Y12 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER);MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82141-05Y21 |
ADT27#,ZRT27#..RHD..6F..(E,F) LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82141-05Y71 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82141-05Y61 |
ZRT272..RHD..4FC;ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05B51 |
ADT27#,ZRT27#..RHD..6F..(E,F) |
1 | ||
| 82145-05B71 |
ADT27#,ZRT27#..RHD..(E,F) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82145-05N80 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 82145-05U30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC);MANUALAIR CONDITIONER PACKAGE&AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 82145-05Q40 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05P00 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05N70 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) |
1 | ||
| 82145-05N90 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82145-05N81 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) AUDIO-ENTRY NAVI |
1 | ||
| 82145-05Q20 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) ENGLAND SPEC&BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER);MANUAL AIR CONDITIONER PACKAGE |
1 | ||
| 82145-05U50 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05Q80 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05Q30 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82145-05Q70 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05T90 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82145-05U00 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82145-05T80 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82145-05U31 |
ADT27#,ZRT27#..RHD..6F..(E,F)..(DCR,HTWVM) MANUAL AIR CONDITIONER PACKAGE&AUDIO-ENTRY NAVI |
1 | ||
| 82145-05U60 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&LIGHT CONTROL SYSTEM-WITH(AUTO)&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-05010 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02210 |
ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-02210 |
ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-05170 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-05200 |
ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82671-20350 |
ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82671J - BLOCK, JUNCTION, NO.2 | ||||
| 82671-20360 |
ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12310 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90159-60546 | ||||
| 90159-70004 | ||||
| 90159-W0019 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 4 OF11(0811- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-05700 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82151-05700 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82151-05700 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82151-05690 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82151-05700 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REARVIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82151-05700 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REARVIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 82151-05700 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&OUTSIDE REARVIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82151-05680 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-05680 |
ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) |
1 | ||
| 82152-05690 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-05290 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 82153-05300 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82153-05300 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-05290 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 82154-05300 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82154-05300 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
ILLUST NO. 5 OF11(0811- )SED
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-05J60 |
ADT27#..RHD..SED |
1 | ||
| 82161-05J30 |
ADT27#..RHD..SED |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM;ADT271,ZRT272..LHD..SED..(G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-G FABRIC, SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM;ADT271,ZRT272..LHD..SED..(G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05E90 |
ADT27#,ZRT27#..RHD..SED..(DCR,DCRL,HTWVM) |
1 | ||
| 82162-05F10 |
ADT27#,ZRT27#..RHD..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM;ADT271,ZRT272..LHD..SED..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM;ADT271,ZRT272..LHD..SED..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-G FABRIC,SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05F00 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-G FABRIC,SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05G30 |
ADT27#,ZRT27#..RHD..SED..(DCR,DCRL,HTWVM) |
1 | ||
| 82162-05G40 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM;ADT271,ZRT272..LHD..SED..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05G40 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM;ADT271,ZRT272..LHD..SED..(G,V) SOL-PLUS GRADE & LUXURY PACKAGE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05G40 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-G FABRIC,SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05G40 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-G FABRIC,SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05G50 |
ADT27#,ZRT27#..RHD..SED..(E,F,G,V)..(DCR,DCRL,HTWVM) WIRELESS DOOR LOCK-WITH(SMART ENTRY) |
1 | ||
| 82162-05G40 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 82162-05G31 |
ADT27#,ZRT27#..RHD..SED |
1 | ||
| 82162-05G40 |
ADT270,ZRT271..SED..E;ZRT272..RHD..SED..HTWVM SOL-PLUS GRADE&WIRELESS DOOR LOCK-WITH(SMART ENTRY)&SEAT COVER MATERIAL-LEATHER&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-05020 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 82164-05010 |
ADT270..RHD..SED..(E,F);ADT270,ZRT272..LHD..SED..E..(DCR,HTWC);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) HEADLAMP-DISCHARGE & AFS |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-05010 |
ADT270..LHD..SED..E;ADT270..RHD..SED..(E,F);ADT271,ZRT27#..SED..(E,G,V)..(DCR,DCRL,HTWVM) CLEARANCE & BACK SONAR-WITH |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-05790 |
ADT27#,ZRT27#..RHD..(E,F)..(DCR,HTWVM) BASE PACKAGE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 82171-05820 |
ADT27#,ZRT27#..RHD..(E,F) OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED) |
1 | ||
| 82171-05800 |
ADT27#,ZRT27#..RHD..(E,F) |
1 | ||
| 82171-05790 |
ZRT271..RHD..WG..6F..E;ZRT270,271..RHD..SED..E;ADT27#,ZRT272..RHD..(E,F) |
1 | ||
| 82171-05820 |
ADT27#,ZRT27#..RHD..(E,F) LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82171-05B30 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY |
1 | ||
| 82171-05A90 |
ADT27#,ZRT27#..RHD..(E,F,N)..(DCR,HTWVM) |
1 | ||
| 82171-05B10 |
ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) LIGHT CONTROL SYSTEM-WITH(AUTO)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE |
1 | ||
| 82171-05B10 |
ADT270..RHD..F;ADT271,ZRT270..RHD..E LIGHT CONTROL SYSTEM-WITH(AUTO) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-05040 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-05180 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-05210 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-20270 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-05190 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-05210 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-05280 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-05290 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-05670 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-05680 |
ADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC) |
1 | ||
| Common parts | ||||
| 90119-W0017 | ||||
| 90467-07117 | ||||
| 90980-11012 | ||||
| 90980-12373 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 6 OF11(0811- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-05090 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82191-05100 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 82191-05090 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-05090 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82191-05100 |
ADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM) |
1 | ||
| 82191-05090 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-05080 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82192-05080 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-05080 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E SEAT COVER MATERIAL-LEATHER |
1 | ||
| 82192-05080 |
ADT271..RHD..(G,V);ADT270,ZRT271,272..RHD..E..(DCR,HTWVM) SOL-PLUS GRADE & LUXURY PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
ILLUST NO. 7 OF11(0811- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23292-26030 | ||||
| 82715-02540 | ||||
| 82715-02750 | ||||
| 82715-02820 | ||||
| 82715-02860 | ||||
| 82715-02880 | ||||
| 82715-02890 | ||||
| 82715-05240 | ||||
| 82715-05260 | ||||
| 82715-05280 | ||||
| 82715-05330 | ||||
| 82715-05340 | ||||
| 82715-05350 | ||||
| 82715-05370 | ||||
| 82715-05410 | ||||
| 82715-05460 | ||||
| 82715-05490 | ||||
| 82715-05550 | ||||
| 82715-12890 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12B20 | ||||
| 82715-12C30 | ||||
| 82715-12K70 | ||||
| 82715-12P60 | ||||
| 82715-20A10 | ||||
| 82715-20A20 | ||||
| 82715-20A70 | ||||
| 82715-20C20 | ||||
| 82715-28L90 | ||||
| 82715-42740 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-64010 | ||||
| 82715-6A460 | ||||
| 82729-20070 | ||||
| 82729-20150 | ||||
| 90105-W0011 | ||||
| 90119-W0019 | ||||
| 90119-W0030 | ||||
| 90119-W0037 | ||||
| 90119-W0059 | ||||
| 90119-W0061 | ||||
| 90119-W0173 | ||||
| 91621-40814 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| 91672-81018 | ||||

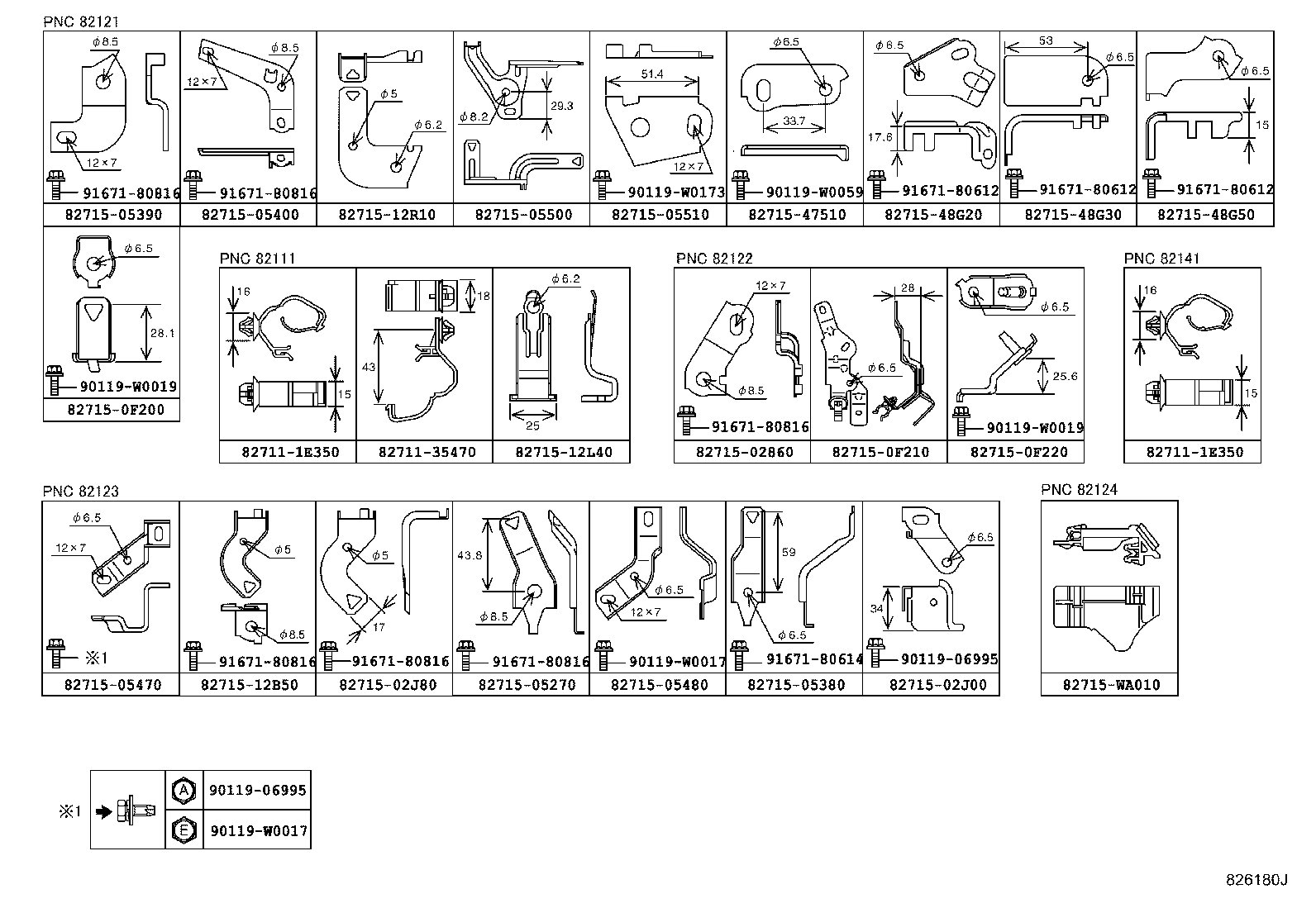

ILLUST NO. 7 OF11(0811- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-35470 | ||||
| 82715-02860 | ||||
| 82715-02J00 | ||||
| 82715-02J80 | ||||
| 82715-05270 | ||||
| 82715-05380 | ||||
| 82715-05390 | ||||
| 82715-05400 | ||||
| 82715-05470 | ||||
| 82715-05480 | ||||
| 82715-05500 | ||||
| 82715-05510 | ||||
| 82715-0F200 | ||||
| 82715-0F210 | ||||
| 82715-0F220 | ||||
| 82715-12B50 | ||||
| 82715-12L40 | ||||
| 82715-12R10 | ||||
| 82715-47510 | ||||
| 82715-48G20 | ||||
| 82715-48G30 | ||||
| 82715-48G50 | ||||
| 82715-WA010 | ||||
| 90119-06995 | ||||
| 90119-W0017 | ||||
| 90119-W0019 | ||||
| 90119-W0059 | ||||
| 90119-W0173 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80816 | ||||

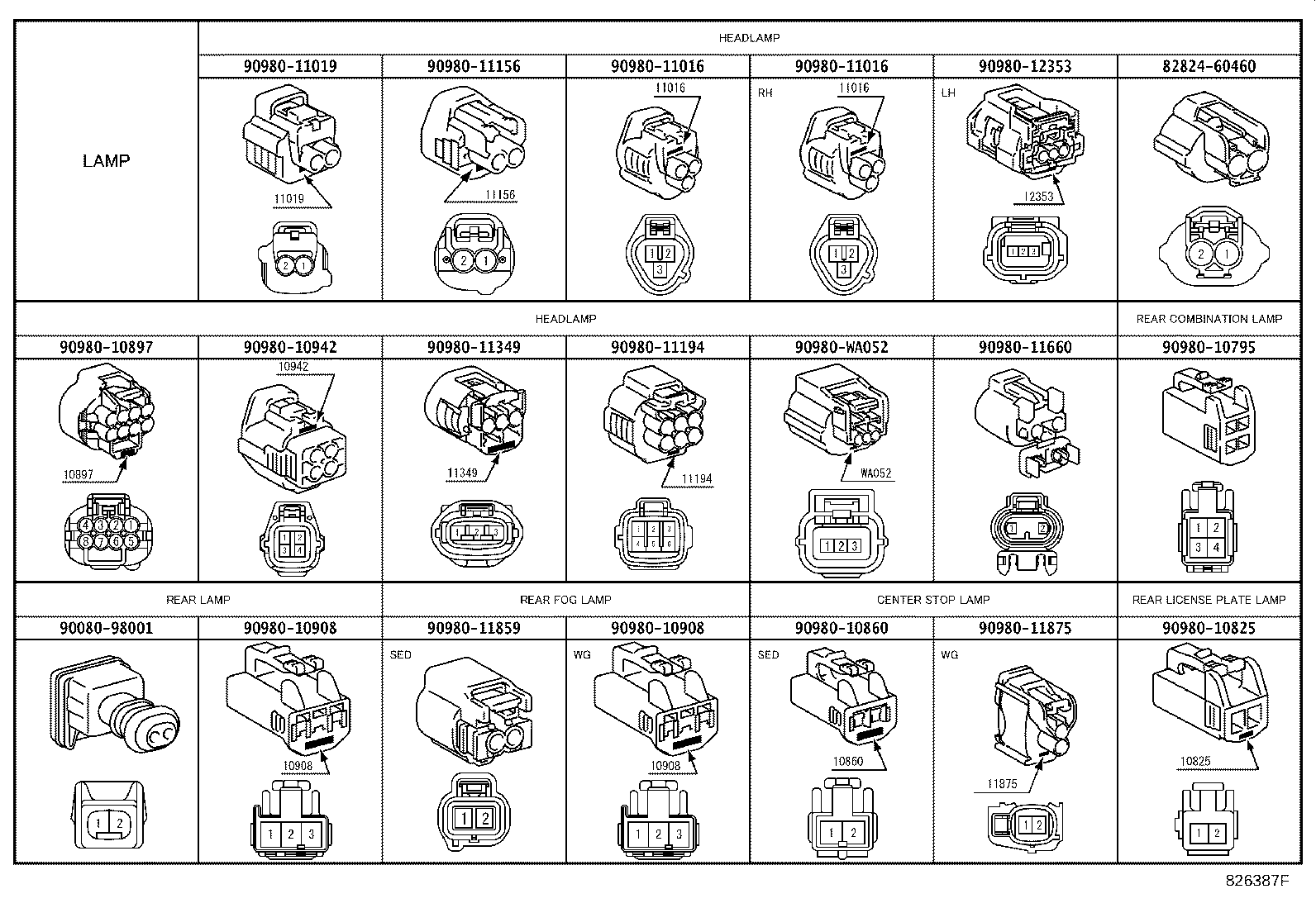

ILLUST NO. 9 OF11(0811- )
CONNECTOR 1/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98001 | ||||
| 90980-10795 | ||||
| 90980-10825 | ||||
| 90980-10860 | ||||
| 90980-10897 | ||||
| 90980-10908 | ||||
| 90980-10942 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11156 | ||||
| 90980-11194 | ||||
| 90980-11349 | ||||
| 90980-11660 | ||||
| 90980-11859 | ||||
| 90980-11875 | ||||
| 90980-12353 | ||||
| 90980-WA052 | ||||
ILLUST NO.10 OF11(0811- )
CONNECTOR 2/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-11070 | ||||
| 90980-12292 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||

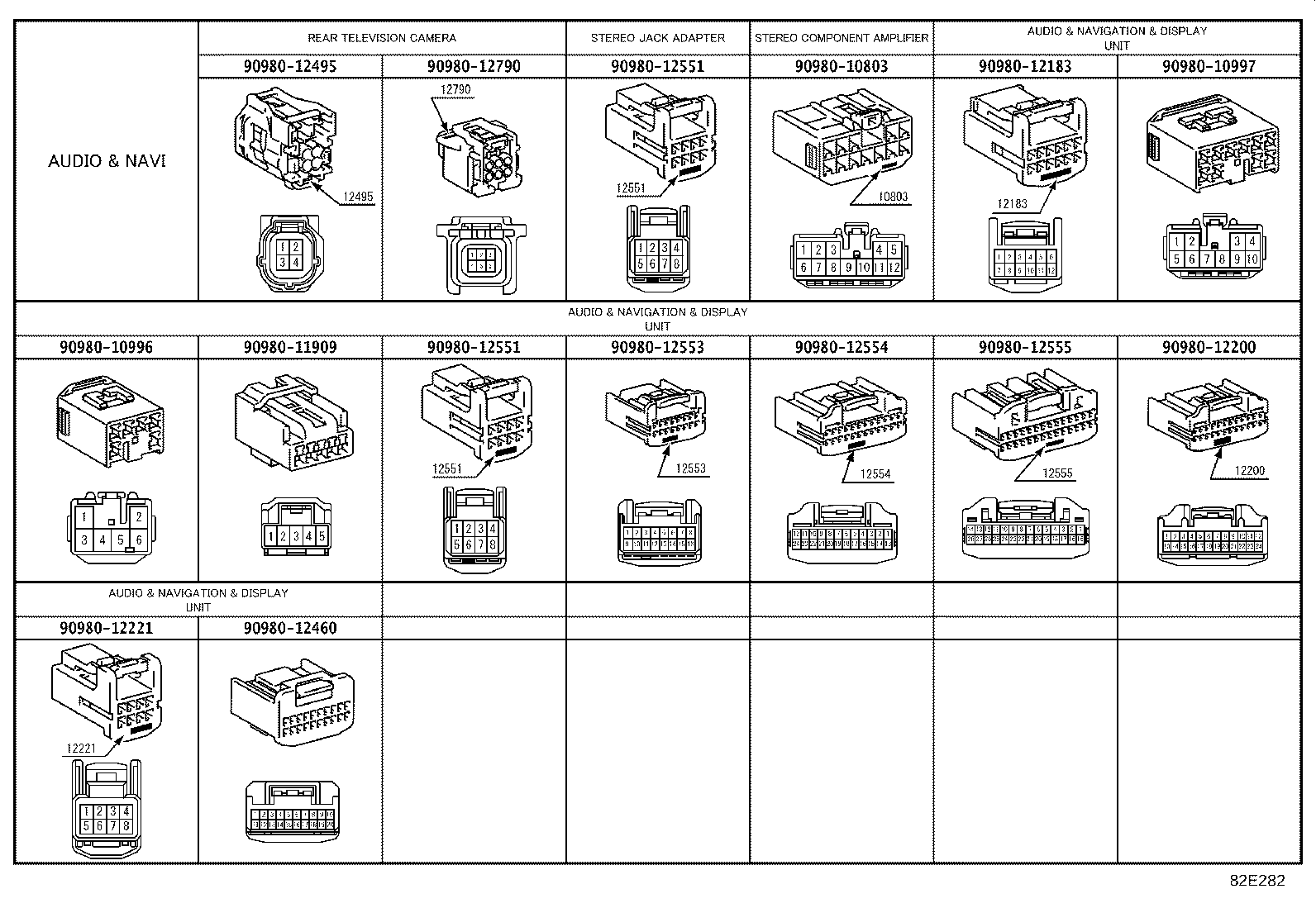

ILLUST NO.11 OF11(0811- )
CONNECTOR 3/3
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10803 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12183 | ||||
| 90980-12200 | ||||
| 90980-12221 | ||||
| 90980-12460 | ||||
| 90980-12495 | ||||
| 90980-12551 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12555 | ||||
| 90980-12790 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
