ADT270R-AEFEYW (2008)

Toyota Avensis

Production Nov 2008 - Nov 2011
Engine 1ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0811- )

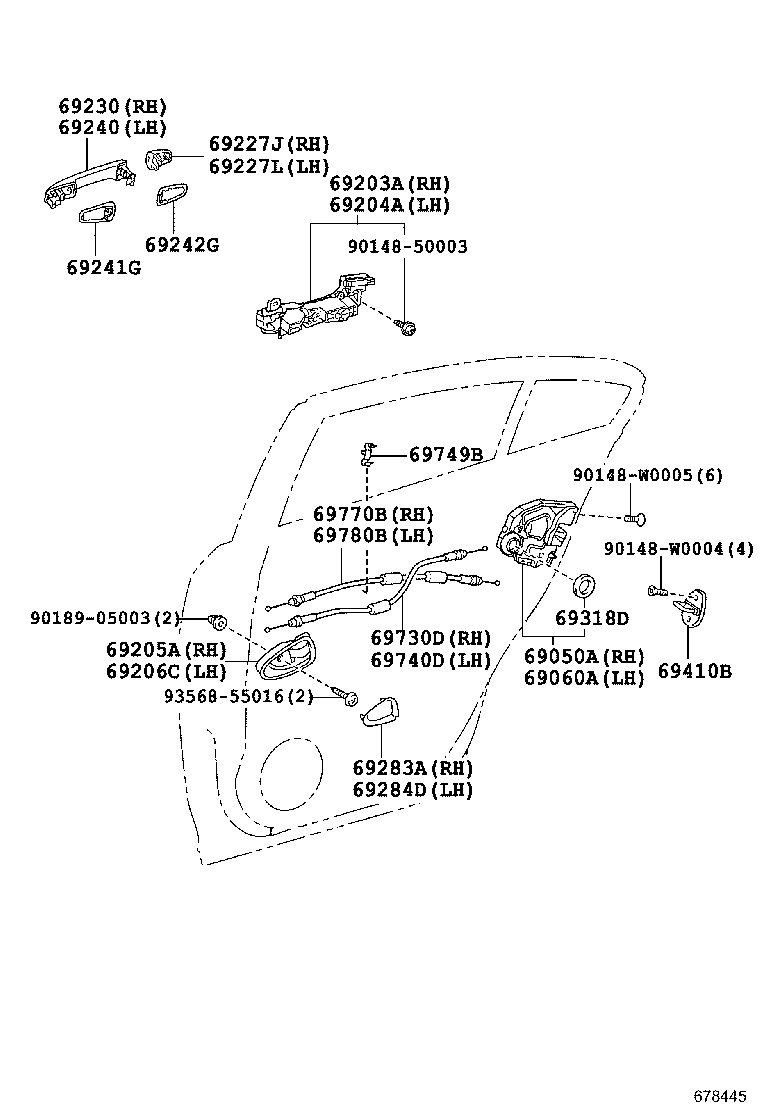

Click highlighted areas on diagram

diagram 69050A 69060A 69203A 69204A 69205A 69206C 69227J 69227L 69230 69240 69241G 69242G 69283A 69284D 69318D 69410B 69730D 69740D 69749B 69770B 69780B 9014850003 90148W0004 90148W0005 9018905003 9356855016
Part # Description Qty Price
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-02240

ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-02230

ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-05040

ADT27#,ZRT27#

 1
69203-05042

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-05040

ADT27#,ZRT27#

 1
69204-05042

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH
69205-05050E0

ADT27#,ZRT27#..E,F,G,V

GREGE,TRIM4#

 1
69205-05051E0

ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V

GREGE,TRIM4#

 1
69205-05050C0

ADT27#,ZRT27#

BLACK,TRIM2#

 1
69205-05051C0

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

BLACK,TRIM2#

 1
69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH
69206-05050C0

ADT27#,ZRT27#

BLACK,TRIM2#

 1
69206-05050E0

ADT27#,ZRT27#..E,F,G,V

GREGE,TRIM4#

 1
69206-05051C0

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

BLACK,TRIM2#

 1
69206-05051E0

ADT270,ZRT271..E;ZRT272..LHD..HTWC;ZRT272..RHD..HTWVM;ADT271,ZRT272..G,V

GREGE,TRIM4#

 1
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69250-05902

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

LESS COLOR

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69250-05902

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

LESS COLOR

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-05914

ADT27#,ZRT27#

PAINT REQ.

 1
69211-05918

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

PAINT REQ.

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69211-05918

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

PAINT REQ.

 1
69211-05914

ADT27#,ZRT27#

PAINT REQ.

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-05010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-05010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
69283-05020C0

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

BLACK,TRIM2#

 1
69283-05020E0

ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)

GREGE,TRIM4#

 1
69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
69284-05020E0

ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)

GREGE,TRIM4#

 1
69284-05020C0

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

BLACK,TRIM2#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
69410B - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-05020

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-05020

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 1
69749B - CLAMP, REAR DOOR LOCK LINK
69749-32040

ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)

 2
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-05040

ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-05040

ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)

 1
Common parts
90148-50003
90148-W0004
90148-W0005
90189-05003
93568-55016
