ADT270R-AEFEYW (2008)
Toyota Avensis
ILLUST NO. 1 OF 4(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-05320 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,TYPE A:REFER ILLUST. |
4 | ||
| 42611-05320 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU),TYPE A:REFER ILLUST. |
4 | ||
| 42611-05330 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42611-05320 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
4 | ||
| 42611-05340 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU),TYPE C:REFER ILLUST. |
4 | ||
| 42611-05340 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE C:REFERILLUST. |
4 | ||
| 42611-05340 |
ZRT272..G;ADT271..E,G;ADT270..RHD..F 17X7J, #,TYPE C:REFER ILLUST. |
4 | ||
| 42611-YY270 |
ADT270,ZRT271..E;ADT271,ZRT272..G;ZRT272..RHD..HTWVM 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE H:REFER ILLUST. |
4 | ||
| 42611-05340 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
4 | ||
| 42611-05330 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42611-05340 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
4 | ||
| 42611-YY400 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMI ROUGHROAD SPEC ACCESSORY,TYPE F:REFER ILLUST. |
4 | ||
| 42611-05330 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TYPE B:REFER ILLUST. |
4 | ||
| 42611-YY400 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMI,TYPE F:REFER ILLUST. |
4 | ||
| 42611-05320 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
4 | ||
| 42611-YY410 |
ADT271..6FC..G;ADT27#,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMI ROUGHROAD SPEC ACCESSORY,TYPE G:REFER ILLUST. |
4 | ||
| 42611-YY410 |
ADT270..LHD..E;ADT271..6FC..G;ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMI,TYPE G:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-05320 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT27#,ZRT27#..E,F,G 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE C:REFERILLUST. |
1 | ||
| 42611-05330 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
1 | ||
| 42611-05360 |
ADT271..6F;ADT270,ZRT27#;ADT271..6FC..G 17X4T,SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST. |
1 | ||
| 42611-05330 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..E,N 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05360 |
ADT27#,ZRT27# 17X4T,TYPE E:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT271..E,G;ADT270,ZRT272..F,G 17X7J, #,SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..E 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-05320 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT27#,ZRT27#..E,F,G 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE C:REFERILLUST. |
1 | ||
| 42611-05330 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
1 | ||
| 42611-05360 |
ADT271..6F;ADT270,ZRT27#;ADT271..6FC..G 17X4T,SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST. |
1 | ||
| 42611-05330 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..E,N 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05360 |
ADT27#,ZRT27# 17X4T,TYPE E:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT271..E,G;ADT270,ZRT272..F,G 17X7J, #,SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..E 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,TYPE A:REFER ILLUST. |
20 | ||
| 90942-01033 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) TYPE B:REFER ILLUST. |
20 | ||
| 90942-01007 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU),TYPE A:REFER ILLUST. |
20 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01007 |
ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,TYPE A:REFER ILLUST. |
20 | ||
| 90942-01033 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) TYPE B:REFER ILLUST. |
20 | ||
| 90942-01007 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU),TYPE A:REFER ILLUST. |
20 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) SPARE TIRE-GROUND TIRE |
4 | ||
| 90942-05009 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
4 | ||
| 90942-05009 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..(E,N)..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE |
1 | ||
| 90942-05009 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE |
1 | ||
| 90942-05009 |
ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL&SPARE TIRE-GROUND TIRE |
1 | ||
| 90942-05009 |
ADT270,ZRT27#..(E,G)..(DCR,HTWVM);ADT271,ZRT272..LHD..(E,G)..(DCR,DCRL,HTWC) TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE |
1 | ||
| 90942-05009 |
ADT270,ZRT27#..(E,G,N)..(DCR,HTWVM);ADT271,ZRT272..LHD..(E,G)..(DCR,DCRL,HTWC) SPARE TIRE-GROUND TIRE |
1 | ||
| 90942-05009 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE |
1 | ||
| 90942-05009 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 90942-05009 |
ADT270,ZRT271..E;ZRT272..RHD..HTWVM;ADT271,ZRT272..LHD..G TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE |
1 | ||
| Linked diagrams | ||||
| 7403 | ||||
ILLUST NO. 3 OF 4(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-02201 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) *ALU,TYPE A:REFER ILLUST. |
4 | ||
| 42621 - CAP, WHEEL | ||||
| 42602-05121 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU),TYPE A:REFER ILLUST. |
4 | ||
| 42602-05120 |
ADT270,ZRT27#..E TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU),TYPE A:REFER ILLUST. |
4 | ||
| 42602-05120 |
ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,TYPE A:REFER ILLUST. |
4 | ||
| 42602-05121 |
ADT270,ZRT27#..E..(DCR,HTWVM) TIRE & DISC WHEEL-205/60R16 STEEL,TYPE A:REFER ILLUST. |
4 | ||

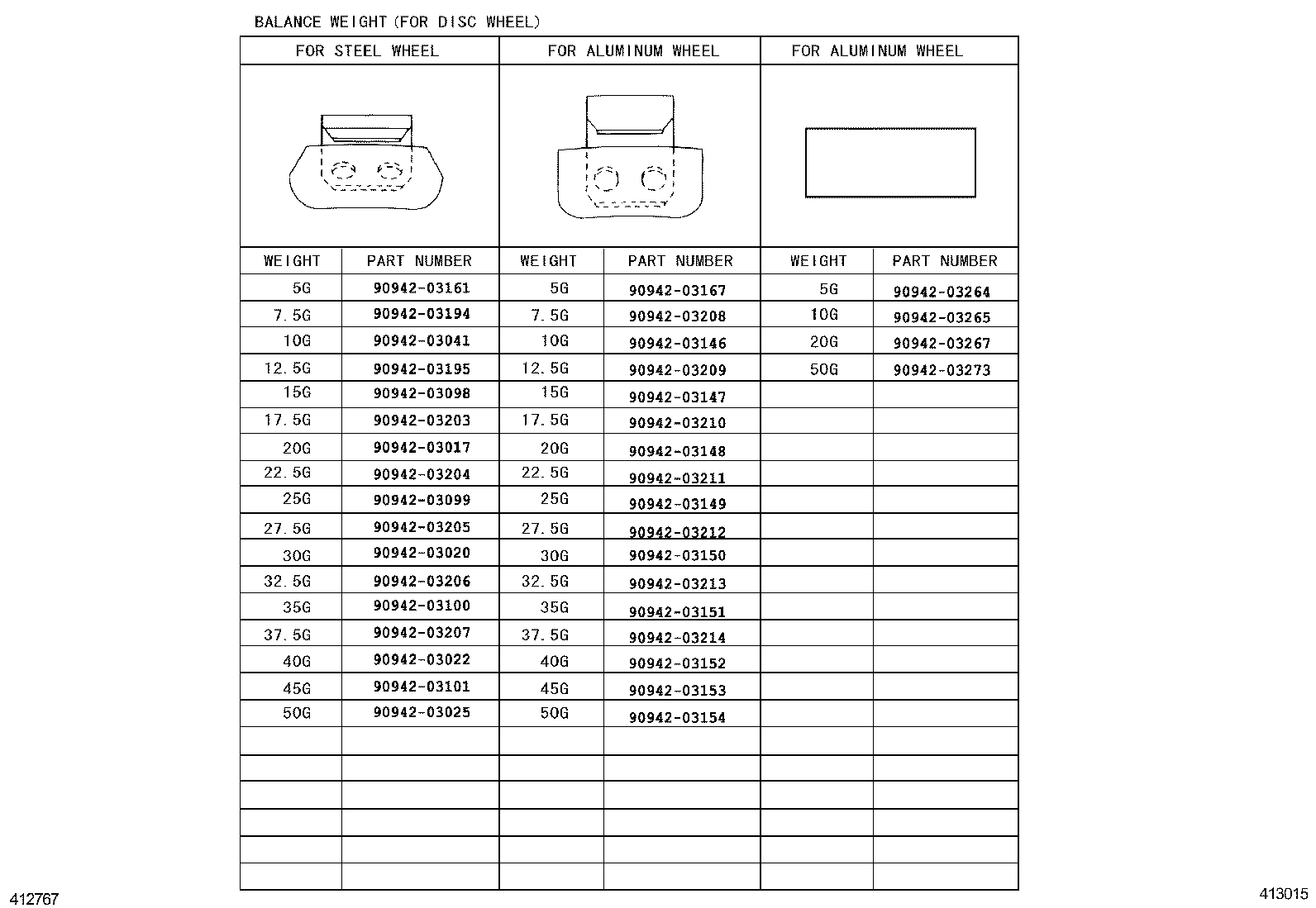

ILLUST NO. 4 OF 4(0811-1111)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03017 | ||||
| 90942-03020 | ||||
| 90942-03022 | ||||
| 90942-03025 | ||||
| 90942-03041 | ||||
| 90942-03098 | ||||
| 90942-03099 | ||||
| 90942-03100 | ||||
| 90942-03101 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03161 | ||||
| 90942-03167 | ||||
| 90942-03194 | ||||
| 90942-03195 | ||||
| 90942-03203 | ||||
| 90942-03204 | ||||
| 90942-03205 | ||||
| 90942-03206 | ||||
| 90942-03207 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03264 | ||||
| 90942-03265 | ||||
| 90942-03267 | ||||
| 90942-03273 | ||||
ILLUST NO. 2 OF 4(0811- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-05320 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,TYPE A:REFER ILLUST. |
4 | ||
| 42611-05320 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU),TYPE A:REFER ILLUST. |
4 | ||
| 42611-05330 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42611-05320 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
4 | ||
| 42611-05340 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU),TYPE C:REFER ILLUST. |
4 | ||
| 42611-05340 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE C:REFERILLUST. |
4 | ||
| 42611-05340 |
ZRT272..G;ADT271..E,G;ADT270..RHD..F 17X7J, #,TYPE C:REFER ILLUST. |
4 | ||
| 42611-YY270 |
ADT270,ZRT271..E;ADT271,ZRT272..G;ZRT272..RHD..HTWVM 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE H:REFER ILLUST. |
4 | ||
| 42611-05340 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
4 | ||
| 42611-05330 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
4 | ||
| 42611-05340 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,TYPE C:REFER ILLUST. |
4 | ||
| 42611-YY400 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMI ROUGHROAD SPEC ACCESSORY,TYPE F:REFER ILLUST. |
4 | ||
| 42611-05330 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TYPE B:REFER ILLUST. |
4 | ||
| 42611-YY400 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMI,TYPE F:REFER ILLUST. |
4 | ||
| 42611-05320 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
4 | ||
| 42611-YY410 |
ADT271..6FC..G;ADT27#,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMI ROUGHROAD SPEC ACCESSORY,TYPE G:REFER ILLUST. |
4 | ||
| 42611-YY410 |
ADT270..LHD..E;ADT271..6FC..G;ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMI,TYPE G:REFER ILLUST. |
4 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-05320 |
ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT27#,ZRT27#..E,F,G 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 17X7J, #,TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-GROUND TIRE,TYPE C:REFERILLUST. |
1 | ||
| 42611-05330 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
1 | ||
| 42611-05360 |
ADT271..6F;ADT270,ZRT27#;ADT271..6FC..G 17X4T,SPARE TIRE-GROUND TIRE,TYPE E:REFER ILLUST. |
1 | ||
| 42611-05330 |
ZRT272..LHD..HTWC;ADT270,ZRT27#..E..(DCR,HTWVM) 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE B:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..E,N 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 STEEL,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05360 |
ADT27#,ZRT27# 17X4T,TYPE E:REFER ILLUST. |
1 | ||
| 42611-05340 |
ADT271..E,G;ADT270,ZRT272..F,G 17X7J, #,SPARE TIRE-GROUND TIRE,TYPE C:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..E 16X6.5J, #,SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
| 42611-05320 |
ADT270,ZRT27#..(E,N)..(DCR,HTWVM) 16X6.5J, #,TIRE & DISC WHEEL-205/60R16 ALUMINUM,ROUGH ROAD SPEC(*VHU)&SPARE TIRE-GROUND TIRE,TYPE A:REFER ILLUST. |
1 | ||
