ADT270R-AEFEYW (2008)
Toyota Avensis
(0811- )1ADFTV..SED ; (0811- )1ADFTV..WG..E,N

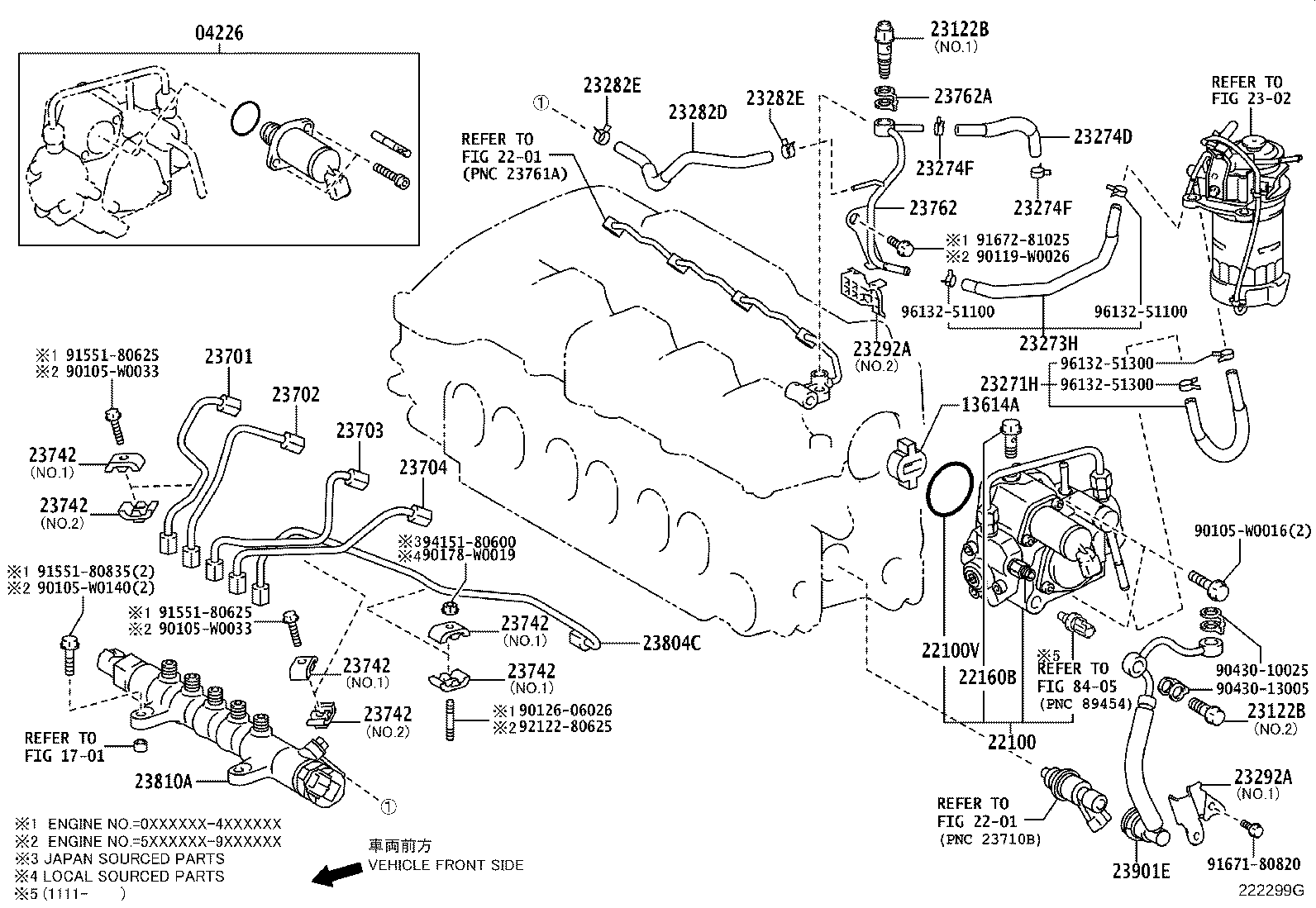

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-26010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 04226-26010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1 | ||||
| 13614-26010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 13614-26010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0R040 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22100-0R040 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 22193-0R020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22193-0R020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 22160B - SCREW | ||||
| 22569-0R020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22569-0R020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 23769-26030 |
1ADFTV,2AD#..ADT27# *145,NO.1,*119,NO.1 |
1 | ||
| 2376A-26020 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26030 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26010 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 23769-26030 |
1ADFTV,2AD#..ADT27# *145,NO.1,*119,NO.1 |
1 | ||
| 2376A-26020 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26030 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26010 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-26190 |
1ADFTV,2AD#..ADT27# (J) |
1 | ||
| 23271-0R030 |
2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N |
1 | ||
| 23271-0R030 |
1ADFTV,2AD#..ADT27# (L) |
1 | ||
| 23271-0R030 |
1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F;2ADFHV..ADT271..LHD..6F..V |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-0R010 |
1ADFTV,2AD#..ADT27# (L) |
1 | ||
| 23273-0R010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G |
1 | ||
| 23273-26070 |
1ADFTV,2AD#..ADT27# (J) |
1 | ||
| 23273-0R010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N |
1 | ||
| 23274D - HOSE, FUEL, NO.3 | ||||
| 23274-26080 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23274-26080 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 96135-51100 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 96135-51100 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-26070 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23282-26070 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 90467-11076 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 90467-11076 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23292A - PROTECTOR, FUEL HOSE | ||||
| 23292-26030 |
1ADFTV..ADT270..E,N ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD),*145,NO.1,*119,NO.1 |
1 | ||
| 23292-0R010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N NO.2 |
1 | ||
| 23292-0R010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G NO.2 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23701-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23701-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23701-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23702-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23702-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23702-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23703-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23703-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23703-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-26060 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23704-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23704-26060 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23704-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23762 - PIPE, NOZZLE LEAKAGE, NO.2 | ||||
| 23762-26021 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23762-26021 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2 | ||||
| 90904-30012 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 90904-30012 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-0R020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23804-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23804-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23804-0R020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0R040 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23810-0R040 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23812D - PIPE, FUEL, NO.2 | ||||
| 23812-26020 |
1ADFTV..ADT270..E,N *145,*119 |
1 | ||
| 23812-26020 |
1ADFTV..ADT270..RHD..F *145,*119 |
1 | ||
| Common parts | ||||
| 90105-W0016 | ||||
| 90105-W0033 | ||||
| 90105-W0140 | ||||
| 90119-W0026 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90430-10025 | ||||
| 90430-13005 | ||||
| 91551-80625 | ||||
| 91551-80830 | ||||
| 91551-80835 | ||||
| 91672-81025 | ||||
| 92122-80625 | ||||
| 94151-80600 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2201 | ||||
| 8405 | ||||
(0811- )1ADFTV..E,G,N ; (0811- )1ADFTV..LHD..F
W(DPF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04226 - VALVE KIT, SUCTION CONTROL | ||||
| 04226-26010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 04226-26010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 13614A - COUPLING, SUPPLY PUMP DRIVE, NO.1 | ||||
| 13614-26010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 13614-26010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0R040 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22100-0R040 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 22100V - RING, O(FOR INJECTION PUMP) | ||||
| 22193-0R020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22193-0R020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 22160B - SCREW | ||||
| 22569-0R020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 22569-0R020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 23769-26030 |
1ADFTV,2AD#..ADT27# *145,NO.1,*119,NO.1 |
1 | ||
| 2376A-26020 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26030 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26010 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 23122B - VALVE, CHECK | ||||
| 23769-26030 |
1ADFTV,2AD#..ADT27# *145,NO.1,*119,NO.1 |
1 | ||
| 2376A-26020 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26030 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 2376A-26010 |
1ADFTV,2AD#..ADT27# *145,NO.2,*119,NO.2 |
1 | ||
| 23271H - HOSE, FUEL, NO.1 | ||||
| 23271-26190 |
1ADFTV,2AD#..ADT27# (J) |
1 | ||
| 23271-0R030 |
2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N |
1 | ||
| 23271-0R030 |
1ADFTV,2AD#..ADT27# (L) |
1 | ||
| 23271-0R030 |
1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F;2ADFHV..ADT271..LHD..6F..V |
1 | ||
| 23273H - HOSE, FUEL, NO.2 | ||||
| 23273-0R010 |
1ADFTV,2AD#..ADT27# (L) |
1 | ||
| 23273-0R010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G |
1 | ||
| 23273-26070 |
1ADFTV,2AD#..ADT27# (J) |
1 | ||
| 23273-0R010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N |
1 | ||
| 23274D - HOSE, FUEL, NO.3 | ||||
| 23274-26080 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23274-26080 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 96135-51100 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23274F - CLIP(FOR FUEL HOSE NO.3) | ||||
| 96135-51100 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 96135-51100 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23282D - HOSE, FUEL, NO.4 | ||||
| 23282-26070 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23282-26070 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 90467-11076 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23282E - CLIP(FOR FUEL HOSE NO.4) | ||||
| 90467-11076 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
2 | ||
| 90467-11076 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
2 | ||
| 23292A - PROTECTOR, FUEL HOSE | ||||
| 23292-26030 |
1ADFTV..ADT270..E,N ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD),*145,NO.1,*119,NO.1 |
1 | ||
| 23292-0R010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N NO.2 |
1 | ||
| 23292-0R010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G NO.2 |
1 | ||
| 23292A - PROTECTOR, FUEL HOSE | ||||
| 23292-26030 |
1ADFTV..ADT270..E,N ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD),*145,NO.1,*119,NO.1 |
1 | ||
| 23292-0R010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N NO.2 |
1 | ||
| 23292-0R010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G NO.2 |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23701-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23701-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23701-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23702-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23702-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23702-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23703-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23703-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23703-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-26060 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23704-0R030 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23704-26060 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23704-0R030 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23742 - CLAMP, INJECTION PIPE, NO.2 | ||||
| 23742-27010 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.2,*119,NO.2 |
2 | ||
| 23742-27010 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,NO.1,*119,NO.1 |
4 | ||
| 23742-58020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,NO.2,*119,NO.2 |
2 | ||
| 23762 - PIPE, NOZZLE LEAKAGE, NO.2 | ||||
| 23762-26021 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23762-26021 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2 | ||||
| 90904-30012 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 90904-30012 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-0R020 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (L),*119,*145 |
1 | ||
| 23804-26050 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N (J),*119 |
1 | ||
| 23804-26050 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (J),*119 |
1 | ||
| 23804-0R020 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G (L),*119,*145 |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0R040 |
2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N *145,*119 |
1 | ||
| 23810-0R040 |
2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G *145,*119 |
1 | ||
| 23901E - TUBE SUB-ASSY, FUEL | ||||
| 23901-26040 |
1ADFTV..ADT270..E,N ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD),*145,*119 |
1 | ||
| Common parts | ||||
| 90105-W0016 | ||||
| 90105-W0033 | ||||
| 90105-W0140 | ||||
| 90119-W0026 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90430-10025 | ||||
| 90430-13005 | ||||
| 91551-80625 | ||||
| 91551-80835 | ||||
| 91671-80820 | ||||
| 91672-81025 | ||||
| 92122-80625 | ||||
| 94151-80600 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2201 | ||||
| 8405 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
