ADT270L-AEFGYW (2011)
Toyota Avensis
ILLUST NO. 1 OF 2(0811-1505)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-05051C0 |
ADT27#,ZRT27#..LHD..(E,F,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55302-05060C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55302-05060C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55302-05052C0 |
ZRT270..LHD..N;ADT27#,ZRT271,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55302-05052C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55302-05062C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55302-05062C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-05030C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55303-05030C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55303-05030C0 |
ADT27#,ZRT27#..LHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05100 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55306-05100 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55306-05100 |
ADT270..LHD..F |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-05030 |
ADT270..LHD..F |
1 | ||
| 55307-05030 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55307-05030 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55315A - SPACER, INSTRUMENT PANEL, NO.1 | ||||
| 55315-05050 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
5 | ||
| 55315-05050 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
5 | ||
| 55315-05050 |
ADT27#,ZRT27# |
5 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-05010C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55317-05010C0 |
ADT27#,ZRT27#..LHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 55317-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55318-05010C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55318-05010C0 |
ADT27#,ZRT27#..LHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-05150 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55330-05151 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55343B - BRACE, INSTRUMENT PANEL TO COWL, CENTER | ||||
| 55343-02060 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55343-02060 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
1 | ||
| 55343-02060 |
ADT27#,ZRT27# |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-05060 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
1 | ||
| 55355-05060 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55355-05060 |
ADT27#,ZRT27# |
1 | ||
| 55355-05090 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-05091C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55401-05091C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55401-05091C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55401-05101C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55401-05101C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55401-05101C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55401-05101C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55401-05091C0 |
ZRT270..LHD..N;ADT27#,ZRT271,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-05110 |
ADT270..LHD..F |
1 | ||
| 55474-05110 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55474-05110 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-05210 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55475-05210 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55475-05210 |
ADT270..LHD..F |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-53030 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
2 | ||
| 55557-53030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 55557-53030 |
ADT27#,ZRT27# |
2 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-05010C0 |
ADT27#,ZRT27#..LHD..(E,F,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55981-05011C0 |
ZRT270..LHD..N;ADT27#,ZRT271,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55981-05011C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 58959E - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
ADT27#,ZRT27# |
2 | ||
| 58959-60060 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
2 | ||
| 58959-60060 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
2 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-05010 |
ADT270..LHD..F |
1 | ||
| 73960-05010 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 73960-05010 |
ADT27#,ZRT27#..LHD |
1 | ||
| 73960-05011 |
ADT27#,ZRT27#..LHD |
1 | ||
| Common parts | ||||
| 90105-W0175 | ||||
| 90119-W0037 | ||||
| 90159-60431 | ||||
| 90159-70004 | ||||
| 90159-W0007 | ||||
| 90159-W0019 | ||||
| 90167-W0007 | ||||
| 90178-W0031 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90183-06025 | ||||
| 90467-12080 | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 8202 | ||||

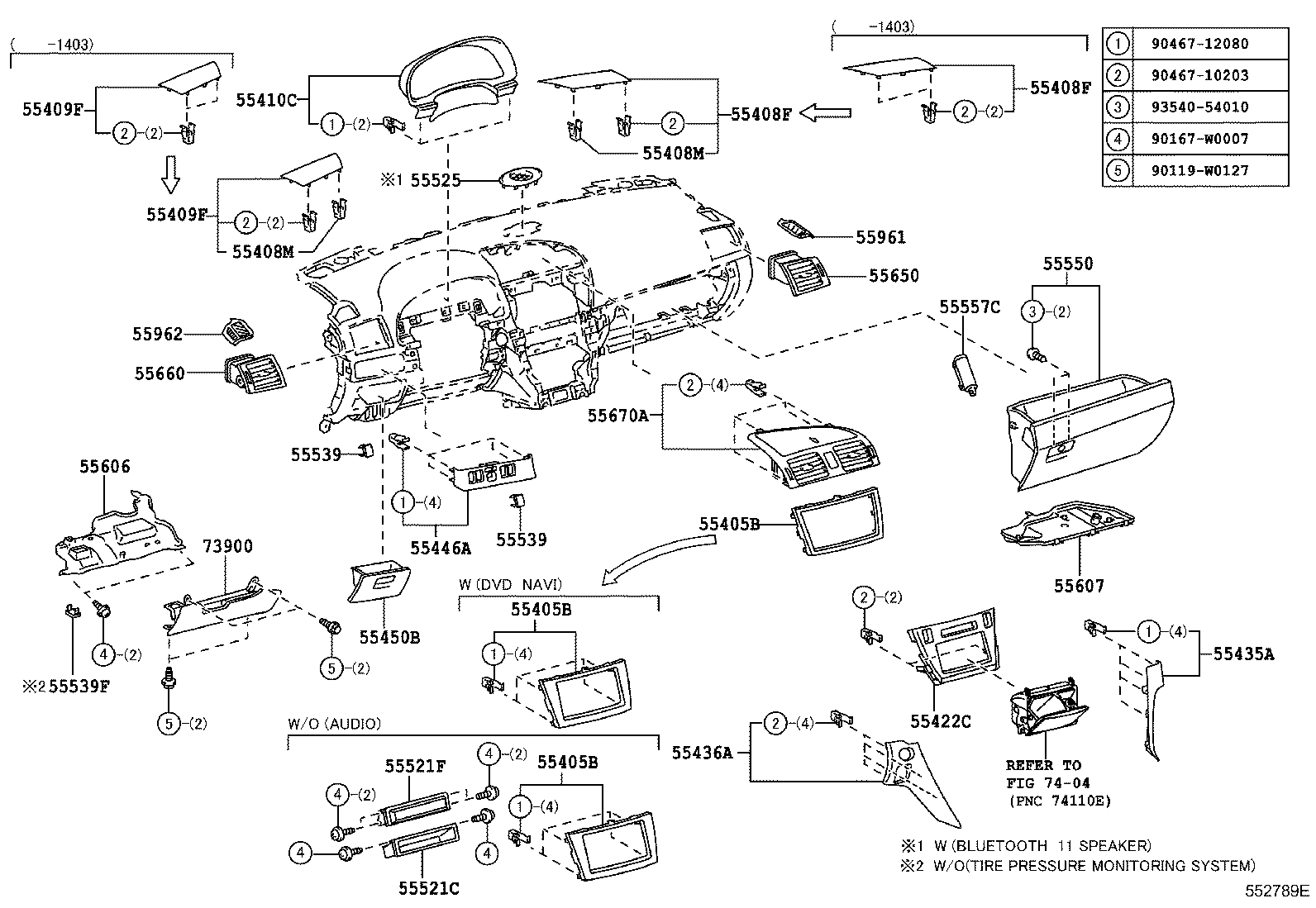

ILLUST NO. 2 OF 2(1111-1505)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 55405-05200 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05190 |
ADT27#,ZRT27#..E,F |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..E,F AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05240 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(SILVER)&AUDIO-DISPLAY AUDIO & 11SPEAKER |
1 | ||
| 55405-05250 |
ADT27#,ZRT27#..E..(DCR,HTWVM) AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405-05261 |
ADT27#,ZRT271,272..G |
1 | ||
| 55405-05240 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(SILVER)&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB |
1 | ||
| 55405-05240 |
ADT27#,ZRT27#..E,N |
1 | ||
| 55405-05271 |
ADT27#,ZRT271,272..G AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405-05240 |
ADT27#,ZRT271,272..G SOL-PLUS GRADE(SILVER 2) |
1 | ||
| 55405-05250 |
ADT27#,ZRT271,272..G SOL-PLUS GRADE(SILVER 2)&AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 55405-05200 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05190 |
ADT27#,ZRT27#..E,F |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..E,F AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05240 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(SILVER)&AUDIO-DISPLAY AUDIO & 11SPEAKER |
1 | ||
| 55405-05250 |
ADT27#,ZRT27#..E..(DCR,HTWVM) AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405-05261 |
ADT27#,ZRT271,272..G |
1 | ||
| 55405-05240 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(SILVER)&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB |
1 | ||
| 55405-05240 |
ADT27#,ZRT27#..E,N |
1 | ||
| 55405-05271 |
ADT27#,ZRT271,272..G AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405-05240 |
ADT27#,ZRT271,272..G SOL-PLUS GRADE(SILVER 2) |
1 | ||
| 55405-05250 |
ADT27#,ZRT271,272..G SOL-PLUS GRADE(SILVER 2)&AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER |
1 | ||
| 55405-05210 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE & LUXURY PACKAGE&AUDIO-RADIO/CD&BLUETOOTH 6SPEAKER |
1 | ||
| 55405-05200 |
ADT270,ZRT271..6F..E;ZRT272..RHD..6F..HTWVM SOL-PLUS GRADE&AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH&6SP,W(MAP DISC) |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..(E,F,N)..(DCR,HTWVM) AUDIO-DVD NAVI&BLUETOOTH 6SP, W/O(MAP DISC) |
1 | ||
| 55405-05190 |
ADT27#,ZRT27#..E,F |
1 | ||
| 55405-05180 |
ADT27#,ZRT27#..E,F AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55405-05240 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(SILVER)&AUDIO-DISPLAY AUDIO & 11SPEAKER |
1 | ||
| 55405-05250 |
ADT27#,ZRT27#..E..(DCR,HTWVM) AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405-05261 |
ADT27#,ZRT271,272..G |
1 | ||
| 55405-05240 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(SILVER)&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB |
1 | ||
| 55405-05240 |
ADT27#,ZRT27#..E,N |
1 | ||
| 55405-05271 |
ADT27#,ZRT271,272..G AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55405-05240 |
ADT27#,ZRT271,272..G SOL-PLUS GRADE(SILVER 2) |
1 | ||
| 55405-05250 |
ADT27#,ZRT271,272..G SOL-PLUS GRADE(SILVER 2)&AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-05010C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55472-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55472-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55472-05010C0 |
ADT270..LHD..F;ZRT272..RHD..HTWC BLACK,TRIM2#,4# |
1 | ||
| 55472-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05011C0 |
ZRT270..N;ADT27#,ZRT271,272..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55472-05011C0 |
ZRT270..E;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55472-05010C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55472-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55472-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55472-05010C0 |
ADT270..LHD..F;ZRT272..RHD..HTWC BLACK,TRIM2#,4# |
1 | ||
| 55472-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05011C0 |
ZRT270..N;ADT27#,ZRT271,272..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55472-05011C0 |
ZRT270..E;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55472-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
ADT27#,ZRT27# MELLOW WHITE |
2 | ||
| 55408M - CLIP(FOR INSTRUMENT PANEL SPEAKER PANEL) | ||||
| 90467-13082A0 |
ADT27#,ZRT27# MELLOW WHITE |
2 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-05010C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55473-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55473-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05011C0 |
ZRT270..N;ADT27#,ZRT271,272..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55473-05010C0 |
ADT270..LHD..F;ZRT272..RHD..HTWC BLACK,TRIM2#,4# |
1 | ||
| 55473-05011C0 |
ZRT270..E;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55473-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55473-05010C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55473-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55473-05010C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05011C0 |
ZRT270..N;ADT27#,ZRT271,272..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55473-05010C0 |
ADT270..LHD..F;ZRT272..RHD..HTWC BLACK,TRIM2#,4# |
1 | ||
| 55473-05011C0 |
ZRT270..E;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05020C0 |
ADT270,ZRT271..E;ADT271,ZRT272..G,V;ZRT272..RHD..HTWVM AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55473-05020C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55473-05021C0 |
ZRT270..E;ADT27#,ZRT271,272..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-05030C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55410-05030C0 |
ADT27#,ZRT27#..LHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 55410-05030C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55422C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER | ||||
| 55422-05101 |
ADT27#,ZRT27#..E |
1 | ||
| 55422-05110 |
ADT27#,ZRT271,272..LHD..G WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05120 |
ADT27#,ZRT271,272..G |
1 | ||
| 55422-05130 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G SOL-PLUS GRADE(SILVER 2)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05130 |
ADT27#,ZRT271,272..LHD..G PREMIUM GRADE(SILVER)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05130 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(SILVER)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05110 |
ADT27#,ZRT271,272..LHD..G WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 55422-05140 |
ZRT270..E;ADT27#,ZRT271,272..G SOL-PLUS GRADE(NICKEL 2)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05130 |
ZRT270..E;ADT27#,ZRT271,272..G SOL-PLUS GRADE(SILVER 2)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05091 |
ADT27#,ZRT27#..LHD..E..(DCR,HTWVM) WITH(WIND SHIELD GLASS DEICER) |
1 | ||
| 55422-05110 |
ADT27#,ZRT271,272..G SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05140 |
ADT27#,ZRT271,272..LHD..G PREMIUM GRADE(NICKEL)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05140 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G SOL-PLUS GRADE(NICKEL 2)&WITH(WIND SHIELD GLASS DEICER)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55422-05140 |
ZRT272..LHD..G;ADT27#,ZRT271..G PREMIUM GRADE(NICKEL)&SEAT COVER MATERIAL-LEATHER(PERFORATED) |
1 | ||
| 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55435-05010C0 |
ADT27#,ZRT27#..LHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 55435-05010C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55435-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55436-05010C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55436-05020C0 |
ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55436-05020C0 |
ADT27#,ZRT27#..LHD..(E,G,V) WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2#,4# |
1 | ||
| 55436-05020C0 |
ADT270..LHD..F WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM2#,4# |
1 | ||
| 55436-05010C0 |
ADT27#,ZRT27#..LHD..E BLACK,TRIM1#,2#,4# |
1 | ||
| 55436-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55436-05020C0 |
ADT27#,ZRT27#..LHD..E WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#,2#,4# |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-05050C0 |
ADT270..LHD..F OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),BLACK,TRIM2#,4# |
1 | ||
| 55446-05060C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55446-05060C0 |
ADT27#,ZRT27#..LHD..E BLACK,TRIM2#,4# |
1 | ||
| 55446-05050C0 |
ADT27#,ZRT27#..LHD..E OUTSIDE REAR VIEW MIRROR-ELECTRIC RETRACTABLE & W/HEATER(COLORED),BLACK,TRIM2#,4# |
1 | ||
| 55446-05050C0 |
ADT27#,ZRT27#..LHD..E OUTER REAR VIEW MIRROR-ELECTRIC RETRACTABLE(COLORED),W(HEATER),BLACK,TRIM1#,2#,4# |
1 | ||
| 55446-05050C0 |
ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55446-05060C0 |
ADT27#,ZRT27#..LHD..E BLACK,TRIM1#,2#,4# |
1 | ||
| 55450B - BOX ASSY, COIN | ||||
| 55450-05010C0 |
ADT27#,ZRT27#..LHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| 55450-05010C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 55450-05010C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-02070 |
ADT270..LHD..F;ZRT272..RHD..HTWC AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55521-02070 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55521-05040 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55521-02070 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55521F - COVER, STEREO OPENING, NO.2 | ||||
| 55521-02090 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55521-02090 |
ADT270..LHD..F;ZRT272..RHD..HTWC AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55521-05050 |
ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM) AUDIO-RADIO LESS & W(GPS+BLUETOOTH+6SPEAKER) |
1 | ||
| 55521-02090 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) AUDIO-WITHOUT(AUDIO)&WITH(6-SPEAKER) |
1 | ||
| 55525 - COVER, SPEAKER HOLE, NO.1 | ||||
| 55525-05010C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-RADIO/CD CHANGER&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55525-05010C0 |
ZRT272..HTWC;ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G AUDIO-DISPLAY AUDIO & 11SPEAKER,BLACK,TRIM1#,2#,4# |
1 | ||
| 55525-05010C0 |
ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) AUDIO-HARD DISC NAVI&BLUETOOTH&11SPEAKER,BLACK,TRIM2#,4# |
1 | ||
| 55525-05010C0 |
ZRT272..HTWC;ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB,BLACK,TRIM1#,2#,4# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05100 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55539-05100 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
1 | ||
| 55539-05100 |
ADT27#,ZRT27# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05100 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55539-05100 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
1 | ||
| 55539-05100 |
ADT27#,ZRT27# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-48020 |
ADT27#,ZRT27#..DCR,DCRL,HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE |
1 | ||
| 55539-48020 |
ADT27#,ZRT27#..DCR,DCRL,HTWVM REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE&WITHOUT(DESTINATION PACKAGE) |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-05090C0 |
ADT270..LHD..F;ADT271,ZRT270,272..LHD..E..(DCR,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55550-05090C0 |
ZRT272..LHD..HTWC;ADT270,ZRT271..LHD..E;ADT271,ZRT272..LHD..(G,V) BLACK,TRIM2#,4# |
1 | ||
| 55550-05111C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55550-05111C0 |
ZRT270..LHD..N;ADT27#,ZRT271,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55550-05112C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55550-05112C0 |
ZRT270..LHD..N;ADT27#,ZRT271,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55557C - DAMPER, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
ADT27#,ZRT27# |
1 | ||
| 55557-33030 |
ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) |
1 | ||
| 55557-33030 |
ADT27#,ZRT27# |
1 | ||
| 55557-33030 |
ADT270..LHD..F;ZRT272..RHD..HTWC |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-05050 |
ADT270..LHD..F |
1 | ||
| 55606-05050 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55606-05070 |
ADT27#..LHD |
1 | ||
| 55606-05050 |
ADT27#..LHD..(E,G,N,V) |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-05050 |
ADT27#,ZRT27#..LHD..(E,G,N,V) |
1 | ||
| 55607-05050 |
ADT27#,ZRT27#..LHD |
1 | ||
| 55607-05050 |
ADT270..LHD..F |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-05140C0 |
ADT27#,ZRT27#..E,F,G,V BLACK,TRIM2#,4# |
1 | ||
| 55650-05150C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55650-05150C0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55650-05150C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,BLACK,TRIM2# |
1 | ||
| 55650-05141C0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55650-05150C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G NORWAY,SWEDEN,FINLAND,DENMARK SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55650-05150C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) LITHUANIA SPEC,BLACK,TRIM2# |
1 | ||
| 55650-05141C0 |
ZRT270..E;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55650-05150C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) LATVIA SPEC,BLACK,TRIM2# |
1 | ||
| 55650-05150C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G ESTONIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55650-05150C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G LATVIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55650-05150C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) ESTONIA SPEC,BLACK,TRIM2# |
1 | ||
| 55650-05150C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G LITHUANIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-05101C0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55660-05110C0 |
ADT27#,ZRT271,272..E..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 55660-05110C0 |
ZRT270..E;ZRT272..HTWC;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55660-05100C0 |
ADT27#,ZRT27#..E,F,G,V BLACK,TRIM2#,4# |
1 | ||
| 55660-05110C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G NORWAY,SWEDEN,FINLAND,DENMARK SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55660-05110C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G LATVIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55660-05110C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) NORWAY,SWEDEN,FINLAND,DENMARK SPEC,BLACK,TRIM2# |
1 | ||
| 55660-05110C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) LATVIA SPEC,BLACK,TRIM2# |
1 | ||
| 55660-05101C0 |
ZRT270..E;ADT27#,ZRT271,272..G BLACK,TRIM1#,2#,4# |
1 | ||
| 55660-05110C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) LITHUANIA SPEC,BLACK,TRIM2# |
1 | ||
| 55660-05110C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G ESTONIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55660-05110C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G LITHUANIA SPEC,BLACK,TRIM1#,2#,4# |
1 | ||
| 55660-05110C0 |
ADT27#,ZRT271,272..LHD..E..(DCR,HTWVM) ESTONIA SPEC,BLACK,TRIM2# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-05110 |
ADT270,ZRT271..LHD..6F..E SOL-PLUS GRADE & LUXURY PACKAGE |
1 | ||
| 55670-05110 |
ADT270,ZRT271..LHD..6F..E SOL-PLUS GRADE |
1 | ||
| 55670-05090 |
ADT27#,ZRT27#..LHD..(E,F) |
1 | ||
| 55670-05160 |
ADT27#,ZRT27#..LHD..(E,N) |
1 | ||
| 55670-05171 |
ADT27#,ZRT271,272..LHD..G |
1 | ||
| 55670-05160 |
ADT27#,ZRT271,272..LHD..G PREMIUM GRADE(SILVER) |
1 | ||
| 55670-05160 |
ADT27#,ZRT271,272..LHD..G SOL-PLUS GRADE(SILVER 2) |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-05050C0 |
ADT270..LHD..F;ZRT272..RHD..HTWC BLACK,TRIM2#,4# |
1 | ||
| 55961-05050C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 55961-05050C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-05050C0 |
ADT270..LHD..F;ZRT272..RHD..HTWC BLACK,TRIM2#,4# |
1 | ||
| 55962-05050C0 |
ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM) BLACK,TRIM2#,4# |
1 | ||
| 55962-05050C0 |
ADT27#,ZRT27#..E,G BLACK,TRIM1#,2#,4# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-05030C0 |
ADT270..LHD..F BLACK,TRIM2#,4# |
1 | ||
| 73900-05030C0 |
ADT27#,ZRT27#..LHD..(E,G,V) BLACK,TRIM2#,4# |
1 | ||
| 73900-05031C0 |
ZRT270..LHD..N;ADT27#,ZRT271,272..LHD..(E,N)..(DCR,HTWVM) BLACK,TRIM2# |
1 | ||
| 73900-05031C0 |
ZRT270..LHD..E;ADT27#,ZRT271,272..LHD..G BLACK,TRIM1#,2#,4# |
1 | ||
| 73900-05030C0 |
ADT27#,ZRT27#..LHD..(E,G) BLACK,TRIM1#,2#,4# |
1 | ||
| Common parts | ||||
| 90119-W0127 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 93540-54010 | ||||
| Linked diagrams | ||||
| 7404 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
