ADT251R-AWFQXW (2006)
Toyota Avensis
ILLUST NO. 3 OF 3(0802- )1ADFTV,2AD#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-26011 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-26020 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16295A - CLIP(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-26010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-26011 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-41501 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16331J - THERMOSTAT, MANIFOLD | ||||
| 90916-03141 |
1ADFTV,2AD#..ADT25# |
1 | ||
| Linked diagrams | ||||
| 1104 | ||||
| 2606 | ||||

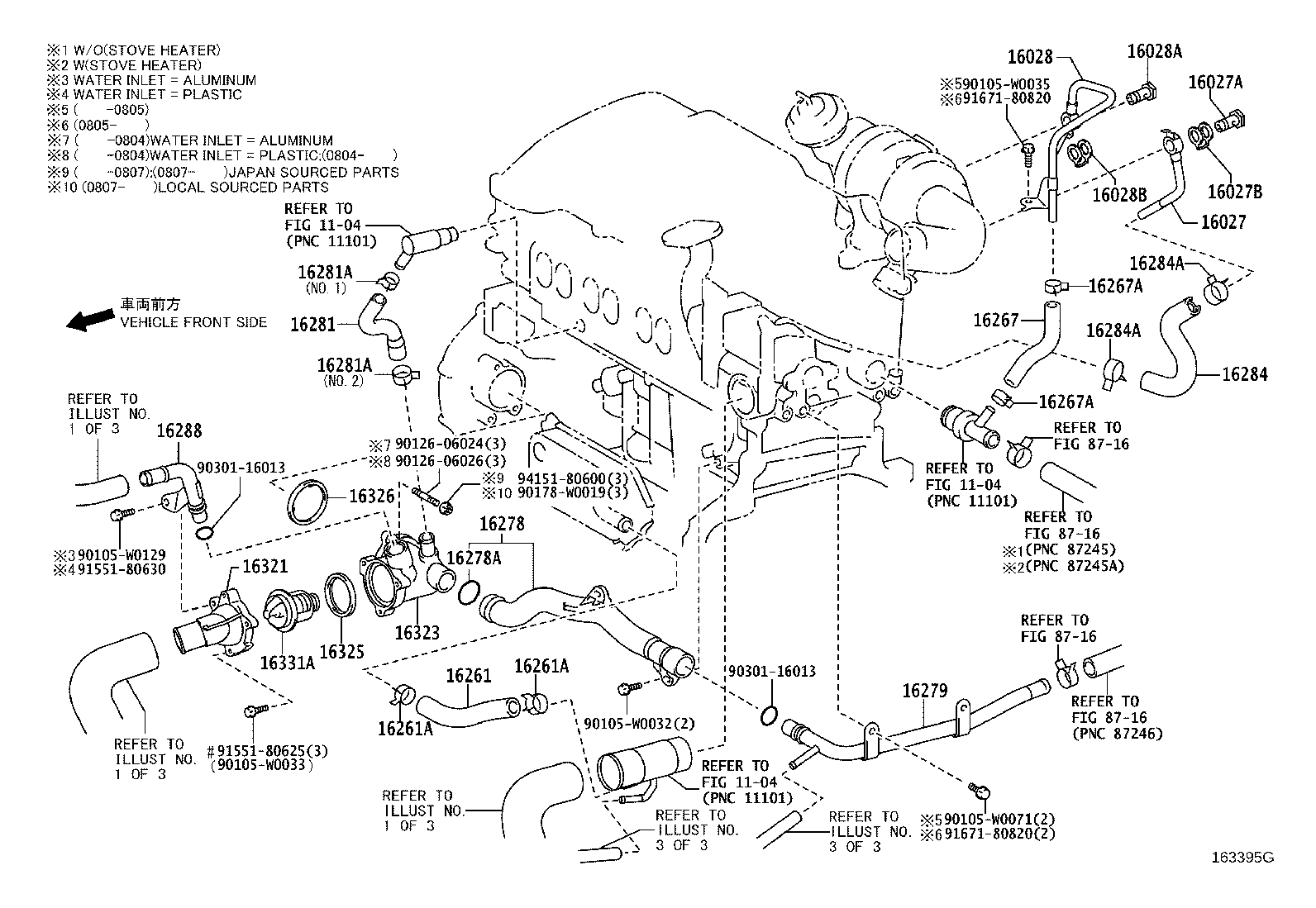

ILLUST NO. 2 OF 3(0802- )2ADFHV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-26010 |
2ADFHV..ADT251 |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| 96341-11200 |
2ADFHV..ADT251 |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| 90430-12037 |
2ADFHV..ADT251 |
1 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16028-26011 |
2ADFHV..ADT251 |
1 | ||
| 16028-26010 |
2ADFHV..ADT251 |
1 | ||
| 16028A - BOLT, UNION(FOR TURBO WATER PIPE NO.2) | ||||
| 96341-11200 |
2ADFHV..ADT251 |
1 | ||
| 16028B - GASKET(FOR TURBO WATER PIPE NO.2) | ||||
| 90430-12037 |
2ADFHV..ADT251 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-0R020 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16261-0R081 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-21006 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-26020 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16267-26021 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 90467-15022 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-0R010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16258-0R010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-0R040 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16279-0R010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-0R010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16281-0R010 |
1ADFTV,2AD#..ADT25# PNC 16321=ALUMINUM |
1 | ||
| 16281-0R030 |
1ADFTV,2AD#..ADT25# PNC 16321=PLASTIC |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96134-52100 |
1ADFTV,2AD#..ADT25# NO.2 |
1 | ||
| 96134-41900 |
1ADFTV,2AD#..ADT25# NO.1 |
1 | ||
| 96134-52100 |
1ADFTV,2AD#..ADT25# NO.2,PNC 16321=ALUMI |
1 | ||
| 90467-21010 |
1ADFTV,2AD#..ADT25# NO.2PNC16321=PLASTIC |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96134-52100 |
1ADFTV,2AD#..ADT25# NO.2 |
1 | ||
| 96134-41900 |
1ADFTV,2AD#..ADT25# NO.1 |
1 | ||
| 96134-52100 |
1ADFTV,2AD#..ADT25# NO.2,PNC 16321=ALUMI |
1 | ||
| 90467-21010 |
1ADFTV,2AD#..ADT25# NO.2PNC16321=PLASTIC |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-26010 |
2ADFHV..ADT251 |
1 | ||
| 16284-26040 |
2ADFHV..ADT251 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
2ADFHV..ADT251 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
2ADFHV..ADT251 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-0R011 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-26010 |
1ADFTV,2AD#..ADT25# ALUMINUM |
1 | ||
| 16321-0R011 |
1ADFTV,2AD#..ADT25# PLASTIC |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-26010 |
1ADFTV,2AD#..ADT25# ALUMINUM |
1 | ||
| 16323-0R011 |
1ADFTV,2AD#..ADT25# PLASTIC |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-26011 |
1ADFTV,2AD#..ADT25# OD=60.3,ID=51.0 |
1 | ||
| 16325-62010 |
1ADFTV,2AD#..ADT25# OD=59.0,ID=51.9 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-26020 |
1ADFTV,2AD#..ADT25# PNC 16321=ALUMINUM |
1 | ||
| 16326-26011 |
1ADFTV,2AD#..ADT25# PNC 16321=PLASTIC |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03125 |
1ADFTV,2AD#..ADT25# *WAX 82-95 |
1 | ||
| Common parts | ||||
| 90105-W0032 | ||||
| 90105-W0033 | ||||
| 90105-W0035 | ||||
| 90105-W0071 | ||||
| 90105-W0129 | ||||
| 90126-06024 | ||||
| 90126-06026 | ||||
| 90178-W0019 | ||||
| 90301-16013 | ||||
| 91551-80625 | ||||
| 91551-80630 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 8716 | ||||
