ADT251R-ALFQXW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 2ADFHV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0604- )2ADFHV

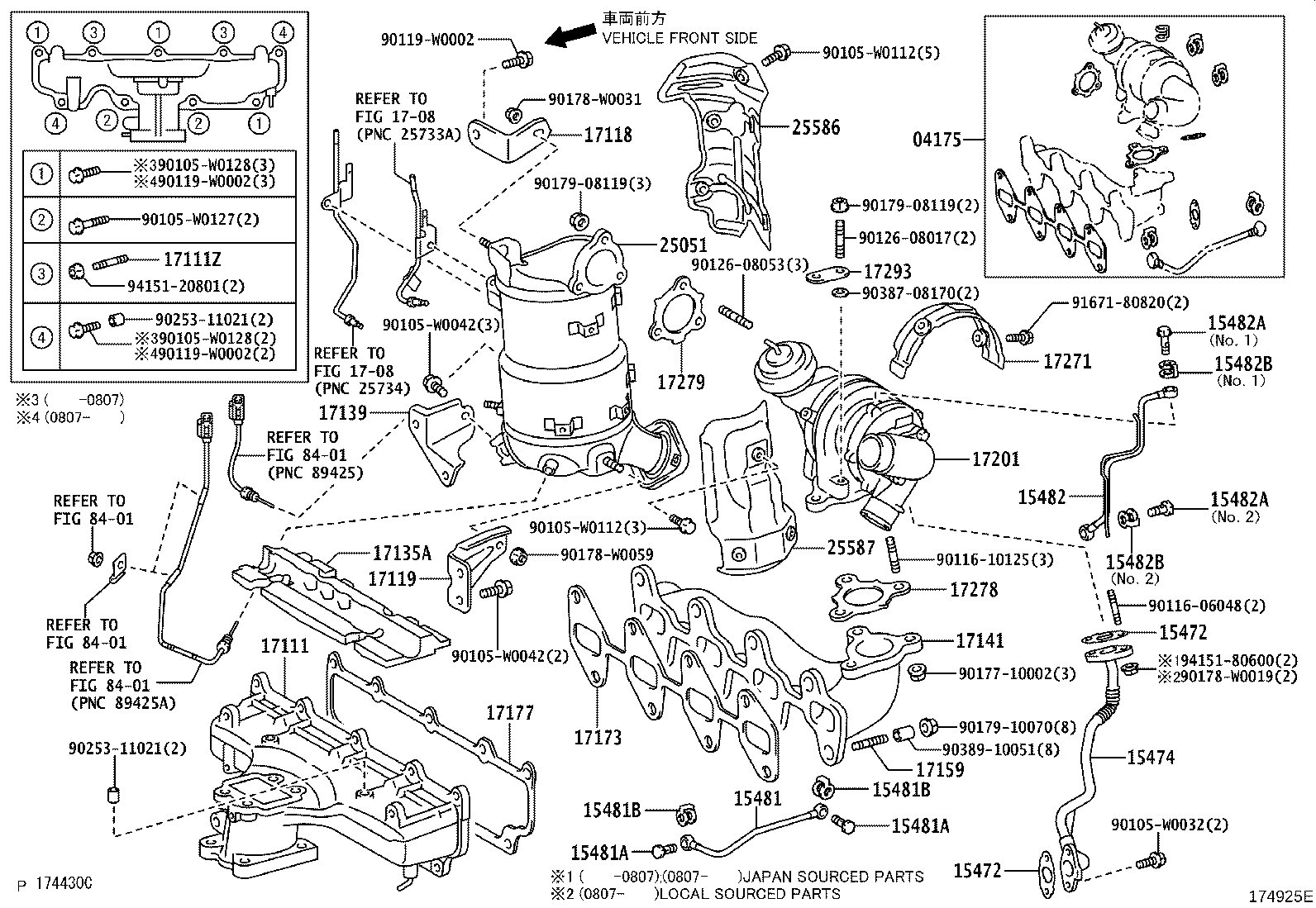

Click highlighted areas on diagram

diagram 04175 15472 15472 15474 15481 15481A 15481A 15481B 15481B 15482 15482A 15482A 15482B 15482B 1708 1708 17111 17111Z 17118 17119 17135A 17139 17141 17159 17173 17177 17201 17271 17278 17279 17293 25051 25586 25587 8401 8401 8401 8401 90105W0032 90105W0042 90105W0042 90105W0112 90105W0112 90105W0127 90105W0128 90105W0128 9011606048 9011610125 90119W0002 90119W0002 90119W0002 9012608017 9012608053 9017710002 90178W0019 90178W0031 90178W0059 9017908119 9017908119 9017910070 9025311021 9025311021 9038708170 9038910051 9167180820 9415120801 9415180600
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-0R100

2ADFHV..ADT251

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0R010

1ADFTV,2AD#..ADT25#

 2
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-0R010

1ADFTV,2AD#..ADT25#

 2
15474 - PIPE, TURBO OIL OUTLET
15474-26010

1ADFTV,2AD#..ADT25#

 1
15481 - PIPE, TURBO OIL, NO.1
15481-0R010

1ADFTV,2AD#..ADT25#

 1
15481A - BOLT, UNION, NO.1
90401-12039

1ADFTV,2AD#..ADT25#

 2
15481A - BOLT, UNION, NO.1
90401-12039

1ADFTV,2AD#..ADT25#

 2
15481B - GASKET(FOR UNION BOLT NO.1)
90430-12037

1ADFTV,2AD#..ADT25#

 2
15481B - GASKET(FOR UNION BOLT NO.1)
90430-12037

1ADFTV,2AD#..ADT25#

 2
15482 - PIPE, TURBO OIL, NO.2
15482-0R020

2ADFHV..ADT251

 1
15482A - BOLT, UNION, NO.2
90401-10061

2AD#..ADT251

NO.1

 1
90401-12039

1ADFTV,2AD#..ADT25#

NO.2

 1
15482A - BOLT, UNION, NO.2
90401-10061

2AD#..ADT251

NO.1

 1
90401-12039

1ADFTV,2AD#..ADT25#

NO.2

 1
15482B - GASKET(FOR UNION BOLT NO.2)
90430-12037

1ADFTV,2AD#..ADT25#

NO.2

 1
90904-30011

1ADFTV,2AD#..ADT25#

NO.1

 1
15482B - GASKET(FOR UNION BOLT NO.2)
90430-12037

1ADFTV,2AD#..ADT25#

NO.2

 1
90904-30011

1ADFTV,2AD#..ADT25#

NO.1

 1
17111 - MANIFOLD, INTAKE
17101-0R011

1ADFTV,2AD#..ADT25#

 1
17101-0R010

1ADFTV,2AD#..ADT25#

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90116-08167

1ADFTV,2AD#..ADT25#

 2
17118 - STAY, MANIFOLD
17118-26030

2ADFHV..ADT251

 1
17119 - STAY, MANIFOLD, NO.2
17119-26010

2ADFHV..ADT251

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17853-26010

2ADFHV..ADT251

 1
17139 - STAY, MANIFOLD, NO.2
17139-26010

2ADFHV..ADT251

 1
17141 - MANIFOLD, EXHAUST
17141-0R010

1ADFTV,2AD#..ADT25#

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90126-10024

1ADFTV,2AD#..ADT25#

 8
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-0R010

1ADFTV,2AD#..ADT25#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17171-0R010

1ADFTV,2AD#..ADT25#

 1
17201 - TURBOCHARGER SUB-ASSY
17201-0R020

2ADFHV..ADT251

 1
17201-0R022

2ADFHV..ADT251

 1
17201-0R021

2ADFHV..ADT251

 1
17271 - INSULATOR, TURBO, NO.1
17271-0R020

1ADFTV,2AD#..ADT25#

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-0R020

2ADFHV..ADT251

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-0R010

1ADFTV,2AD#..ADT25#

 1
17293 - STAY, TURBOCHARGER
17293-26010

1ADFTV,2AD#..ADT25#

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-0R020

2ADFHV..ADT251

*114=TOYOTA/0R020/Y,(L)

 1
25051-26041

2ADFHV..ADT251

*114=TOYOTA/26041/Y

 1
25051-26040

2ADFHV..ADT251

*114=TOYOTA/26040/Y,(J)

 1
25051-0R020

2ADFHV..ADT251

*114=TOYOTA/0R020/Y

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-26010

2ADFHV..ADT251

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-26020

2ADFHV..ADT251

 1
25587-26010

2ADFHV..ADT251

 1
Common parts
90105-W0032
90105-W0042
90105-W0112
90105-W0127
90105-W0128
90116-06048
90116-10125
90119-W0002
90126-08017
90126-08053
90177-10002
90178-W0019
90178-W0031
90178-W0059
90179-08119
90179-10070
90253-11021
90387-08170
90389-10051
91671-80820
94151-20801
94151-80600
Linked diagrams
1708
8401
