ADT251R-ALFNYW (2006)
Toyota Avensis
(0301- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

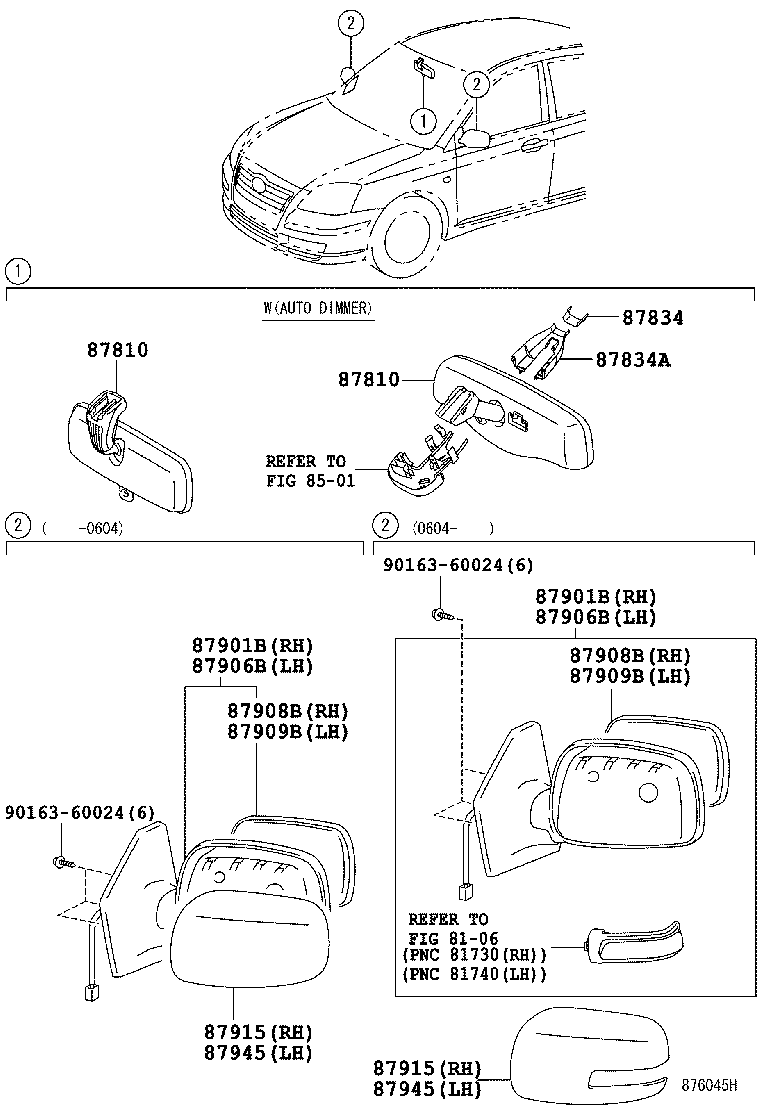

| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0D011 |
ADT25#,ZZT25#..ENTRY |
1 | ||
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0D011 |
ADT25#,ZZT25#..ENTRY |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-05130 |
ADT251,CDT250,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87901-05170 |
ADT25#,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87901B - MIRROR SUB-ASSY, OUTER REAR VIEW, RH | ||||
| 87901-05130 |
ADT251,CDT250,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87901-05170 |
ADT25#,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87906-05130 |
ADT251,CDT250,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87906-05160 |
ADT25#,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87906B - MIRROR SUB-ASSY, OUTER REAR VIEW, LH | ||||
| 87906-05130 |
ADT251,CDT250,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87906-05160 |
ADT25#,ZZT25#..RHD..ENTRY NO PAINT REQ. |
1 | ||
| 87908B - MIRROR SUB-ASSY, RH | ||||
| 87908-05160 |
ADT251,CDT250,ZZT25#..RHD..ENTRY |
1 | ||
| 87908-05370 |
ADT25#,ZZT25#..RHD..ENTRY |
1 | ||
| 87908B - MIRROR SUB-ASSY, RH | ||||
| 87908-05160 |
ADT251,CDT250,ZZT25#..RHD..ENTRY |
1 | ||
| 87908-05370 |
ADT25#,ZZT25#..RHD..ENTRY |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87909-05160 |
ADT251,CDT250,ZZT25#..RHD..ENTRY |
1 | ||
| 87909-05350 |
ADT25#,ZZT25#..RHD..ENTRY |
1 | ||
| 87909B - MIRROR SUB-ASSY, LH | ||||
| 87909-05160 |
ADT251,CDT250,ZZT25#..RHD..ENTRY |
1 | ||
| 87909-05350 |
ADT25#,ZZT25#..RHD..ENTRY |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-05901 |
ADT251,AZT25#,CDT250,ZZT25# PAINT REQ. |
1 | ||
| 87915-05912 |
ADT25#,AZT25#,ZZT25# PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-05901 |
ADT251,AZT25#,CDT250,ZZT25# PAINT REQ. |
1 | ||
| 87915-05912 |
ADT25#,AZT25#,ZZT25# PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-05912 |
ADT25#,AZT25#,ZZT25# PAINT REQ. |
1 | ||
| 87945-05901 |
ADT251,AZT25#,CDT250,ZZT25# PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-05912 |
ADT25#,AZT25#,ZZT25# PAINT REQ. |
1 | ||
| 87945-05901 |
ADT251,AZT25#,CDT250,ZZT25# PAINT REQ. |
1 | ||
| Common parts | ||||
| 90163-60024 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8501 | ||||
