ADT251R-ALFNYW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

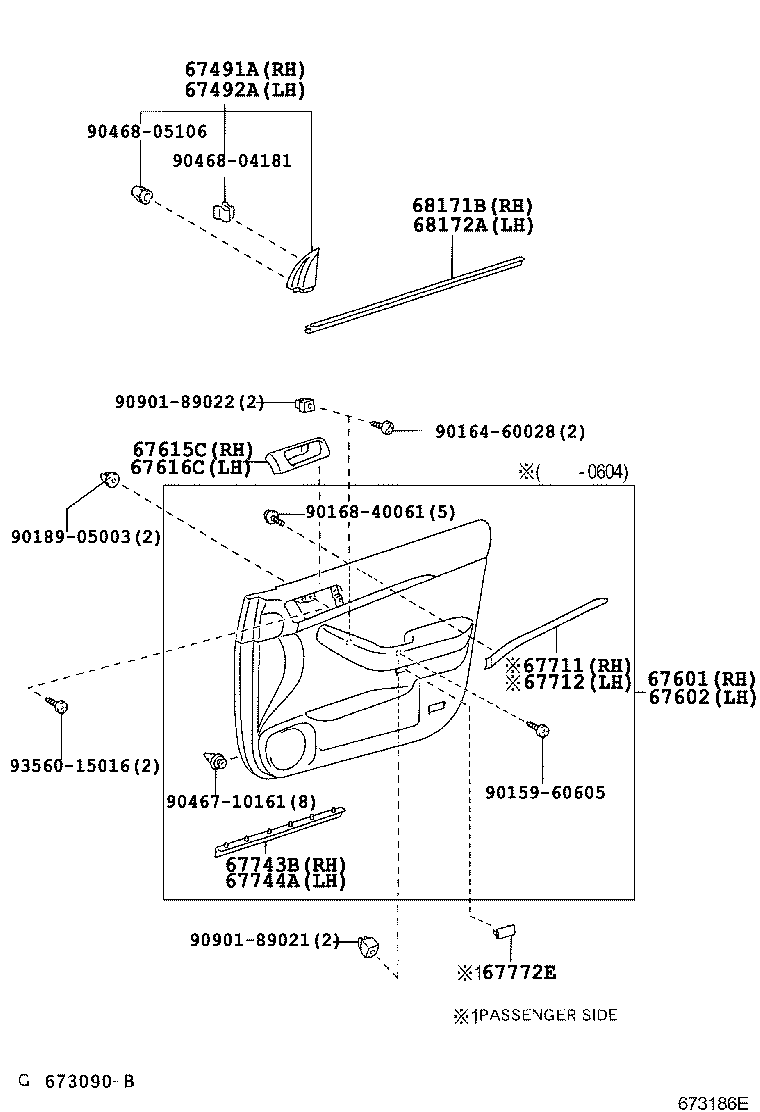

ILLUST NO. 1 OF 2(0301- )

Click highlighted areas on diagram

diagram 67491A 67492A 67601 67602 67615C 67616C 67711 67712 67743B 67744A 67772E 68171B 68172A 9015960605 9016460028 9016840061 9018905003 9046710161 9046804181 9046805106 9090189021 9090189022 9356015016
Part # Description Qty Price
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-05060

ADT25#,AZT25#,ZZT25#

 1
67491-05060

ADT251,AZT25#,CDT250,ZZT25#

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-05060

ADT251,AZT25#,CDT250,ZZT25#

 1
67492-05060

ADT25#,AZT25#,ZZT25#

 1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-05400B0

ADT251,CDT250,ZZT25#..RHD..ENTRY

DK. GRAY,TRIM1#

 1
67610-05610B0

ADT25#,ZZT25#..RHD..ENTRY

DK.GRAY,TRIM1#

 1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-05400B0

ADT251,CDT250,ZZT25#..RHD..ENTRY

DK. GRAY,TRIM1#

 1
67620-05610B0

ADT25#,ZZT25#..RHD..ENTRY

DK.GRAY,TRIM1#

 1
67615C - BASE, FRONT DOOR TRIM, RH
67615-05020B0

ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..ENTRY,TEC

DK. GRAY,TRIM1#

 1
67615-05020B0

ZZT251..RHD;ZZT251..LHD..ENTRY;ADT25#,ZZT250..ENTRY

DK. GRAY,TRIM1#

 1
67616C - BASE, FRONT DOOR TRIM, LH
67616-05020B0

ZZT251..RHD;ZZT251..LHD..ENTRY;ADT25#,ZZT250..ENTRY

DK. GRAY,TRIM1#

 1
67616-05020B0

ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..ENTRY,TEC

DK. GRAY,TRIM1#

 1
67743B - MOULDING, FRONT DOOR TRIM, NO.2 RH
67743-05010

ADT25#,AZT25#,ZZT25#

 1
67743-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
67744A - SEAL, FRONT DOOR TRIM, LH
67744-05010

ADT25#,AZT25#,ZZT25#

 1
67744-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
67772E - CAP, FRONT DOOR TRIM RETAINER
67772-05030B0

ADT25#,AZT25#,ZZT25#

DK.GRAY,TRIM1#

 1
67772-05030B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-05051

ADT25#,AZT25#,ZZT25#

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-05051

ADT25#,AZT25#,ZZT25#

 1
Common parts
90159-60605
90164-60028
90168-40061
90189-05003
90467-10161
90468-04181
90468-05106
90901-89021
90901-89022
93560-15016
