ADT251R-AEFNYW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(0301- )

Click highlighted areas on diagram

diagram 86120 86211 86212 86221A 86221D 90153W0001 90153W0001 9151560616 9151560616 9151560616 9151560616
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-05110

ADT25#,ZZT25#..ENTRY

PANASONIC,ID=W58830

 1
86120-05110

ADT25#,ZZT25#..ENTRY

PANASONIC,ID=W58830,AUDIO-LCA COVER 8SP/BKT/STRG.SW

 1
86120-05111

ADT25#,ZZT25#..ENTRY

PANASONIC,ID=W58830

 1
86120-05111

ADT25#,ZZT25#..ENTRY

PANASONIC,ID=W58830,AUDIO-LCA COVER 8SP/BKT/STRG.SW

 1
86120-05111

ADT25#,ZZT25#..ENTRY

PANASONIC,ID=W58830,TYPE C:REFER TO ILLUSTRATION

 1
86120-05110

ADT25#,ZZT25#..ENTRY

PANASONIC,ID=W58830,TYPE C:REFER TO ILLUSTRATION

 1
86211 - BRACKET, RADIO, NO.1
86211-05060

ADT25#,AZT25#,ZZT25#

 1
86211-05060

CDT250..DCR;ADT251,AZT25#,ZZT25#

 1
86212 - BRACKET, RADIO, NO.2
86212-05060

CDT250..DCR;ADT251,AZT25#,ZZT25#

 1
86212-05060

ADT25#,AZT25#,ZZT25#

 1
Common parts
90153-W0001
91515-60616

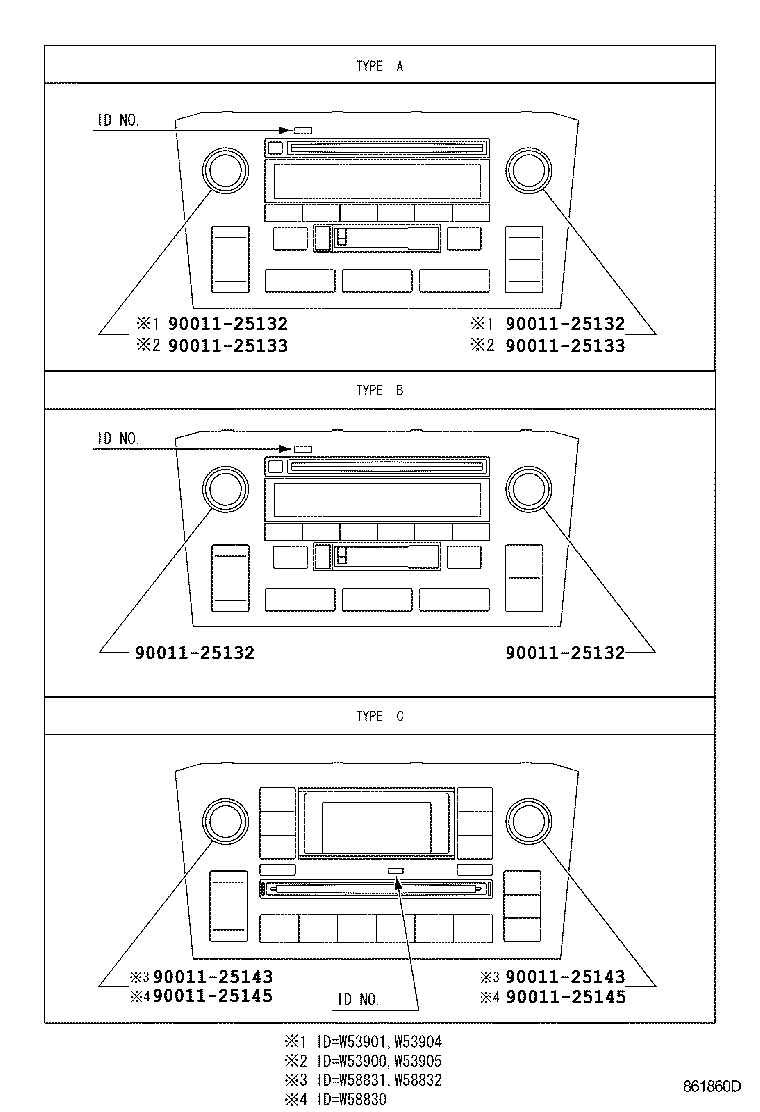

ILLUST NO. 2 OF 3(0301- )

Click highlighted areas on diagram

diagram 9001125132 9001125132 9001125132 9001125132 9001125133 9001125133 9001125143 9001125143 9001125145 9001125145
Part # Description Qty Price
Common parts
90011-25132
90011-25133
90011-25143
90011-25145

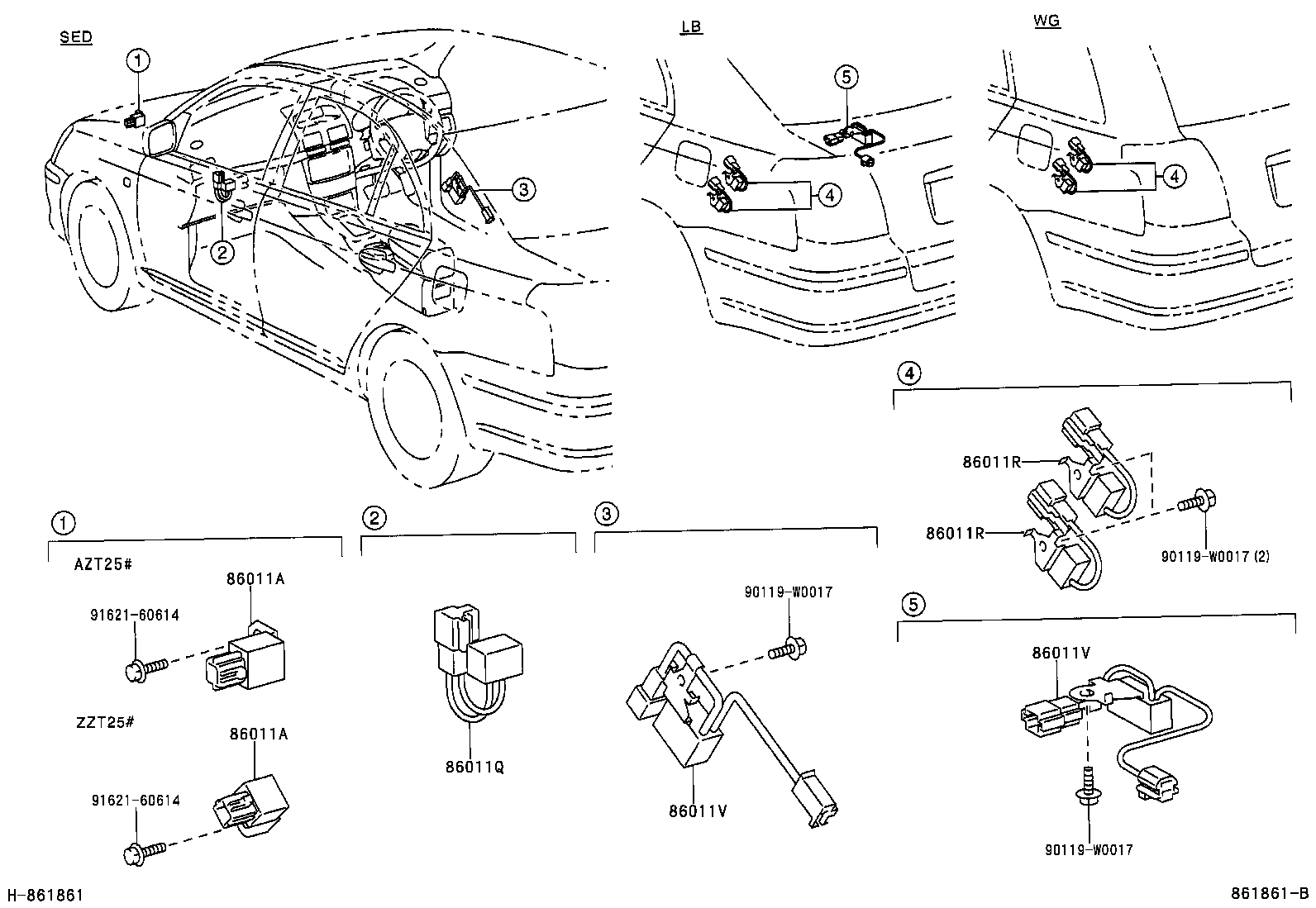

ILLUST NO. 3 OF 3(0301- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011Q 86011R 86011R 86011V 86011V 90119W0017 90119W0017 90119W0017 9162160614 9162160614
Part # Description Qty Price
86011Q - CONDENSER, RADIO SETTING
90980-04116

ADT25#,AZT25#,ZZT25#

 1
90980-04116

CDT250..DCR;ADT251,AZT25#,ZZT25#

 1
86011V - CONDENSER, RADIO SETTING
90080-88005

CDT250..SED..DCR;ADT251,AZT25#,ZZT25#..SED

 1
90080-88005

ADT25#,AZT25#,ZZT25#..SED

 1
86011V - CONDENSER, RADIO SETTING
90080-88005

CDT250..SED..DCR;ADT251,AZT25#,ZZT25#..SED

 1
90080-88005

ADT25#,AZT25#,ZZT25#..SED

 1
Common parts
90119-W0017
91621-60614
