ADT251R-AEFNYW (2006)

Toyota Avensis

Production Apr 2006 - Nov 2008
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0604- )

Click highlighted areas on diagram

MANUAL SEAT,RH

diagram 7104 7104 71071S 71073S 71377A 71430S 71511S 71551S 71610S 71811D 71861 71910A 71931 71931 72010 72125A 72125A 72137B 72157A 72407B 72457 72459 72525A 72543 72572B 72573 8202 8266658030 8401 8421 9008014041 9008014050 9008014050 9008046007 9008046007 9011910921 9011910921 9011910921 9014860038 9016740044 9016740044 9016740044 9016740044
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-05580B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05700B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05701B0

ADT25#,ZZT25#..ENTRY

DARK GREY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-05750B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71073-05690B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
71430-05680B1

ADT251,CDT250,ZZT25#..ENTRY

DK. GRAY,TRIM1#

 1
71430-05800B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-05060

AZT250..HTWC;ADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)

 1
71511-05060

AZT250..HTWC;ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71051-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
71051-02010

ADT251,AZT25#,CDT250,ZZT25#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02120B0

ADT250,ZZT25#..RHD;ADT250,ZZT25#..LHD..TEC;ADT251,AZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
71811-02120B0

ADT251,AZT25#,CDT250,ZZT25#..RHD

DK.GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-02050B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
71861-02050B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-CA010B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71910-05170B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-05010

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
72010-05010

ADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 4
72125-02010

ADT251,AZT25#,CDT250,ZZT25#

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 4
72125-02010

ADT251,AZT25#,CDT250,ZZT25#

 4
72137B - COVER, SEAT TRACK, RH
72137-05040B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72137-05040B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-05040B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72157-05040B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72407B - HOUSING SUB-ASSY, FRONT SEAT RECLINING RH
72407-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
72407-02010

ADT251,AZT25#,CDT250,ZZT25#

 1
72457 - KNOB, VERTICAL SEAT ADJUSTER
72457-0F010B0

ADT250,ZZT25#..RHD;ADT250,ZZT25#..LHD..TEC;ADT251,AZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72459 - CAP, VERTICAL SEAT ADJUSTER KNOB
72459-02010B1

ADT250,ZZT25#..RHD;ADT250,ZZT25#..LHD..TEC;ADT251,AZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0F010B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72543 - PLATE, RECLINING CONTROL, RH
72543-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
72572B - CAP, RECLINING ADJUSTER KNOB, RH
72572-02010

ADT251,AZT25#,CDT250,ZZT25#

 1
72572-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
72573 - LEVER, RECLINING CONTROL, RH
72573-02010

ADT251,AZT25#,CDT250,ZZT25#

 1
72573-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
Common parts
82666-58030
90080-14041
90080-14050
90080-46007
90119-10921
90148-60038
90167-40044
Linked diagrams
7104
8202
8401
8421

(0604- )

Click highlighted areas on diagram

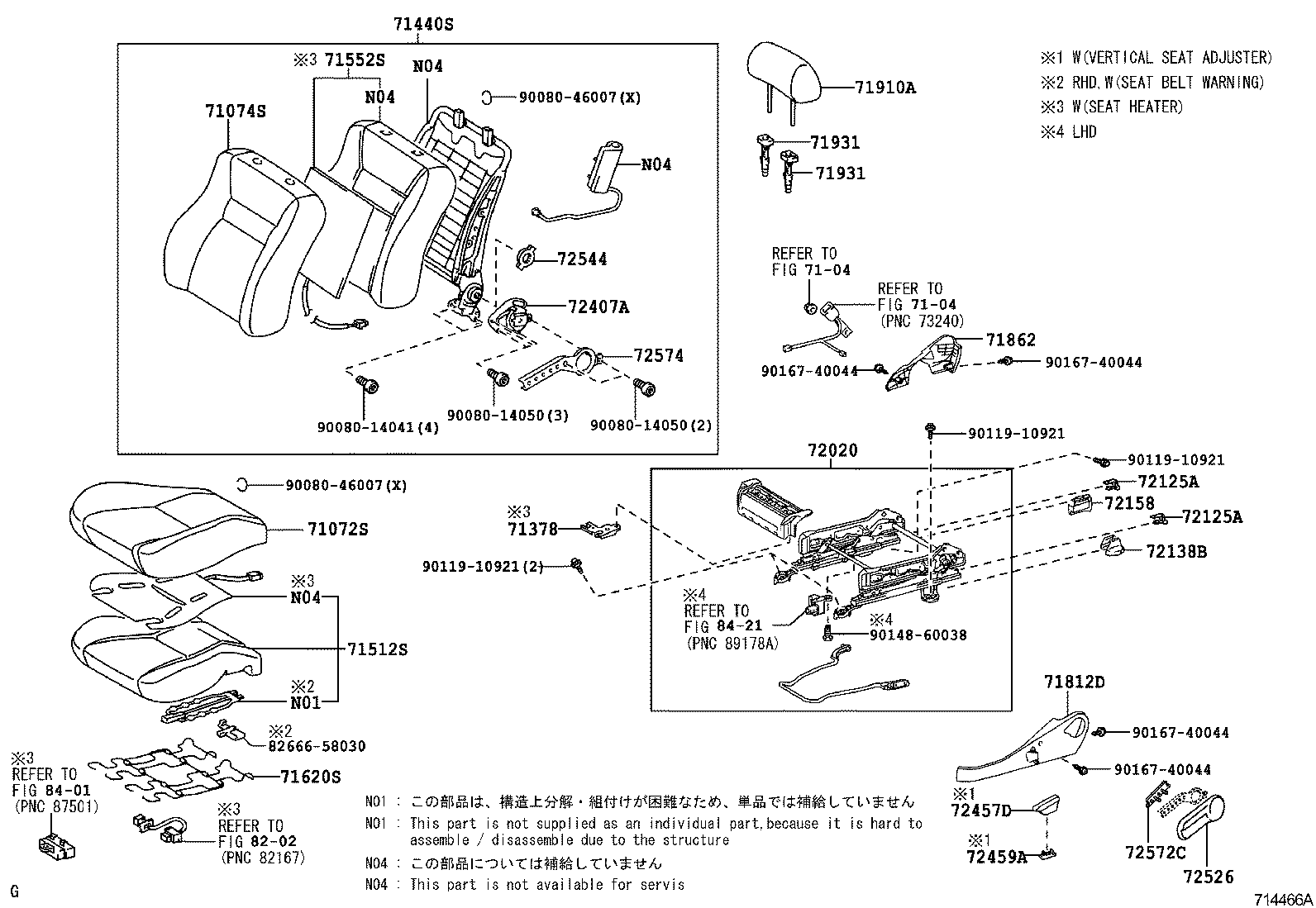

MANUAL SEAT,LH

diagram 7104 7104 71072S 71074S 71378 71440S 71512S 71552S 71620S 71812D 71862 71910A 71931 71931 72020 72125A 72125A 72138B 72158 72407A 72457D 72459A 72526 72544 72572C 72574 8202 8266658030 8401 8421 9008014041 9008014050 9008014050 9008046007 9008046007 9011910921 9011910921 9011910921 9014860038 9016740044 9016740044 9016740044 9016740044
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-05580B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05700B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05701B0

ADT25#,ZZT25#..ENTRY

DARK GREY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-05570B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71074-05530B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
71440-05570B1

ADT251,CDT250,ZZT25#..ENTRY

DK. GRAY,TRIM1#

 1
71440-05690B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-05010

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
71502-05010

ADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71051-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
71051-02010

ADT251,AZT25#,CDT250,ZZT25#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02130B0

ADT251,AZT25#,CDT250,ZZT25#..RHD

DK.GRAY,TRIM1#

 1
71812-02130B0

ADT25#,ZZT25#..RHD..ENTRY

DK.GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-02050B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
71862-02050B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-CA010B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71910-05170B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-05010

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
72020-05010

ADT25#,ZZT25#..RHD..ENTRY

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 4
72125-02010

ADT251,AZT25#,CDT250,ZZT25#

 4
72125A - COVER, SEAT TRACK, UPPER REAR
72125-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 4
72125-02010

ADT251,AZT25#,CDT250,ZZT25#

 4
72138B - COVER, SEAT TRACK, LH
72138-05030B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72138-05030B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-05040B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72158-05040B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH
72407-02020

ADT251,AZT25#,CDT250,ZZT25#

 1
72407-02020

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0F010B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72544 - PLATE, RECLINING CONTROL, LH
72543-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
72572C - CAP, RECLINING ADJUSTER KNOB, LH
72572-02020

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
72572-02020

ADT251,AZT25#,CDT250,ZZT25#

 1
72574 - LEVER, RECLINING CONTROL, LH
72574-02010

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

 1
72574-02010

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
82666-58030
90080-14041
90080-14050
90080-46007
90119-10921
90148-60038
90167-40044
Linked diagrams
7104
8202
8401
8421

(0604- )

Click highlighted areas on diagram

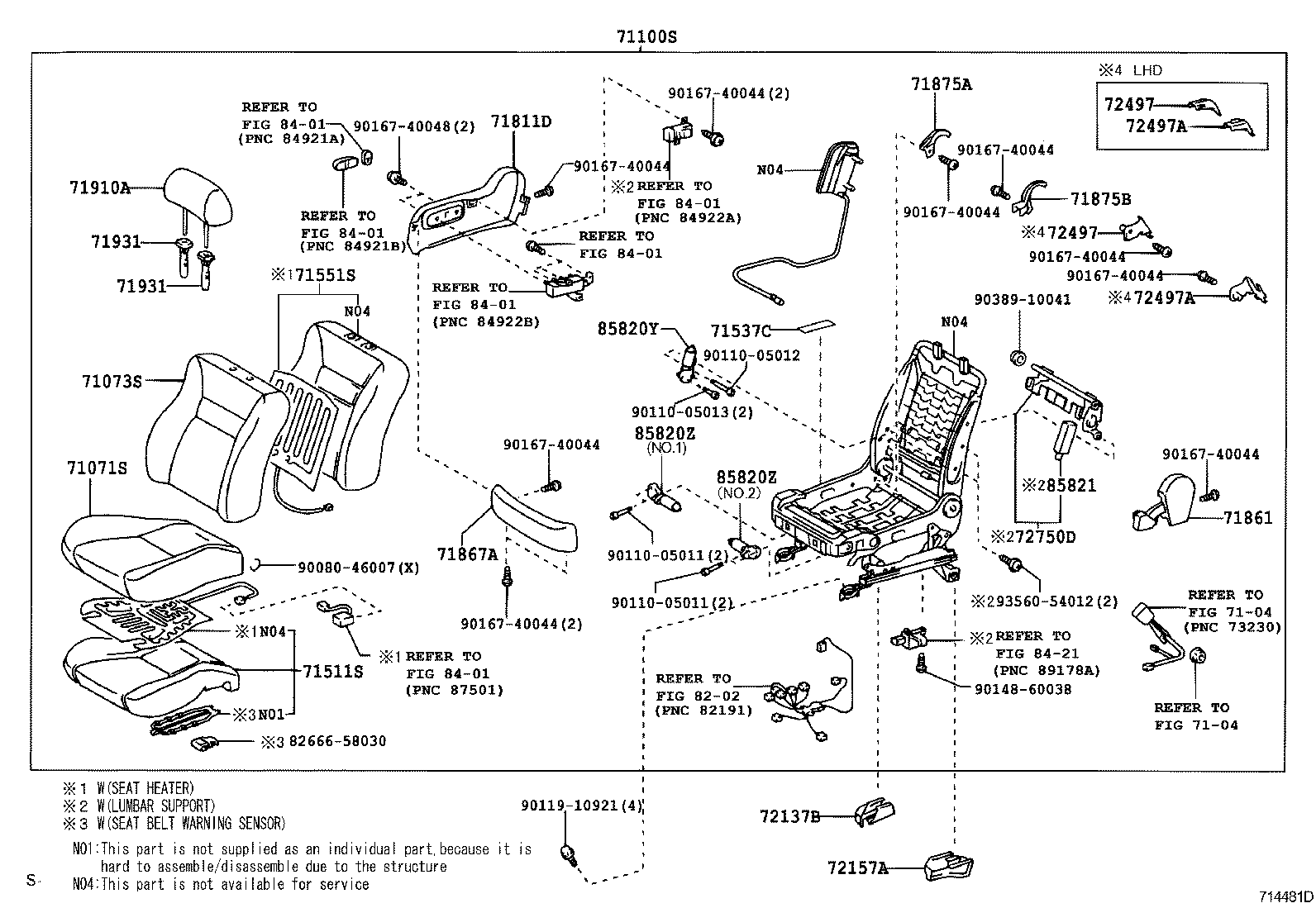

W(POWER SEAT)-RH

diagram 7104 7104 71071S 71073S 71100S 71511S 71537C 71551S 71811D 71861 71867A 71875A 71875B 71910A 71931 71931 72137B 72157A 72497 72497 72497A 72497A 72750D 8202 8266658030 8401 8401 8401 8401 8401 8401 8421 85820Y 85820Z 85820Z 85821 9008046007 9011005011 9011005011 9011005012 9011005013 9011910921 9014860038 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9038910041 9356054012
Part # Description Qty Price
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-05580B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05700B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05701B0

ADT25#,ZZT25#..ENTRY

DARK GREY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-05750B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71073-05690B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-05060

AZT250..HTWC;ADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)

 1
71511-05060

AZT250..HTWC;ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-02120B0

ADT250,ZZT25#..RHD;ADT250,ZZT25#..LHD..TEC;ADT251,AZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
71811-02120B0

ADT251,AZT25#,CDT250,ZZT25#..RHD

DK.GRAY,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-02050B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
71861-02050B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-CA010B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71910-05170B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
72137B - COVER, SEAT TRACK, RH
72137-05040B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72137-05040B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72157A - COVER, SEAT TRACK BRACKET, INNER RH
72157-05040B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72157-05040B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
Common parts
82666-58030
90080-46007
90110-05011
90110-05012
90110-05013
90119-10921
90148-60038
90167-40044
90167-40048
90389-10041
93560-54012
Linked diagrams
7104
8202
8401
8421

(0604- )

Click highlighted areas on diagram

W(POWER SEAT)-LH

diagram 7104 7104 71072S 71074S 71200S 71512S 71537D 71552S 71812D 71862 71868A 71876 71876A 71910A 71931 71931 72138B 72158 72497C 72497C 72497D 72497D 72760D 8202 8266658030 8401 8401 8401 8401 8401 8401 8421 85820Y 85820Z 85820Z 85821 9008046007 9011005011 9011005011 9011005012 9011005013 9011910921 9014860038 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9038910041 9356054012
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71071-05580B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05700B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71071-05701B0

ADT25#,ZZT25#..ENTRY

DARK GREY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-05570B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71074-05530B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-05010

ADT251,AZT25#,CDT250,ZZT25#..RHD

 1
71502-05010

ADT25#,AZT25#,ZZT25#..RHD..(ENTRY,TEC)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-02130B0

ADT251,AZT25#,CDT250,ZZT25#..RHD

DK.GRAY,TRIM1#

 1
71812-02130B0

ADT25#,ZZT25#..RHD..ENTRY

DK.GRAY,TRIM1#

 1
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-02050B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
71862-02050B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-CA010B1

ADT251,CDT250,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71910-05170B0

ADT25#,ZZT25#..ENTRY

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-02050B0

ADT25#,AZT25#,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71931-02050B0

ADT251,AZT25#,CDT250,ZZT25#

W/O(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT251,AZT25#,CDT250,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
71930-02070B0

ADT25#,AZT25#,ZZT25#

W(LOCK),DK.GRAY,TRIM1#

 2
72138B - COVER, SEAT TRACK, LH
72138-05030B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72138-05030B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
72158 - COVER, SEAT TRACK BRACKET, INNER LH
72158-05040B0

ADT251,AZT25#,CDT250,ZZT25#

DK.GRAY,TRIM1#

 1
72158-05040B0

ADT25#,AZT25#,ZZT25#..ENTRY,TEC

DK.GRAY,TRIM1#

 1
Common parts
82666-58030
90080-46007
90110-05011
90110-05012
90110-05013
90119-10921
90148-60038
90167-40044
90167-40048
90389-10041
93560-54012
Linked diagrams
7104
8202
8401
8421
