ADT251R-AEFNYW (2006)
Toyota Avensis

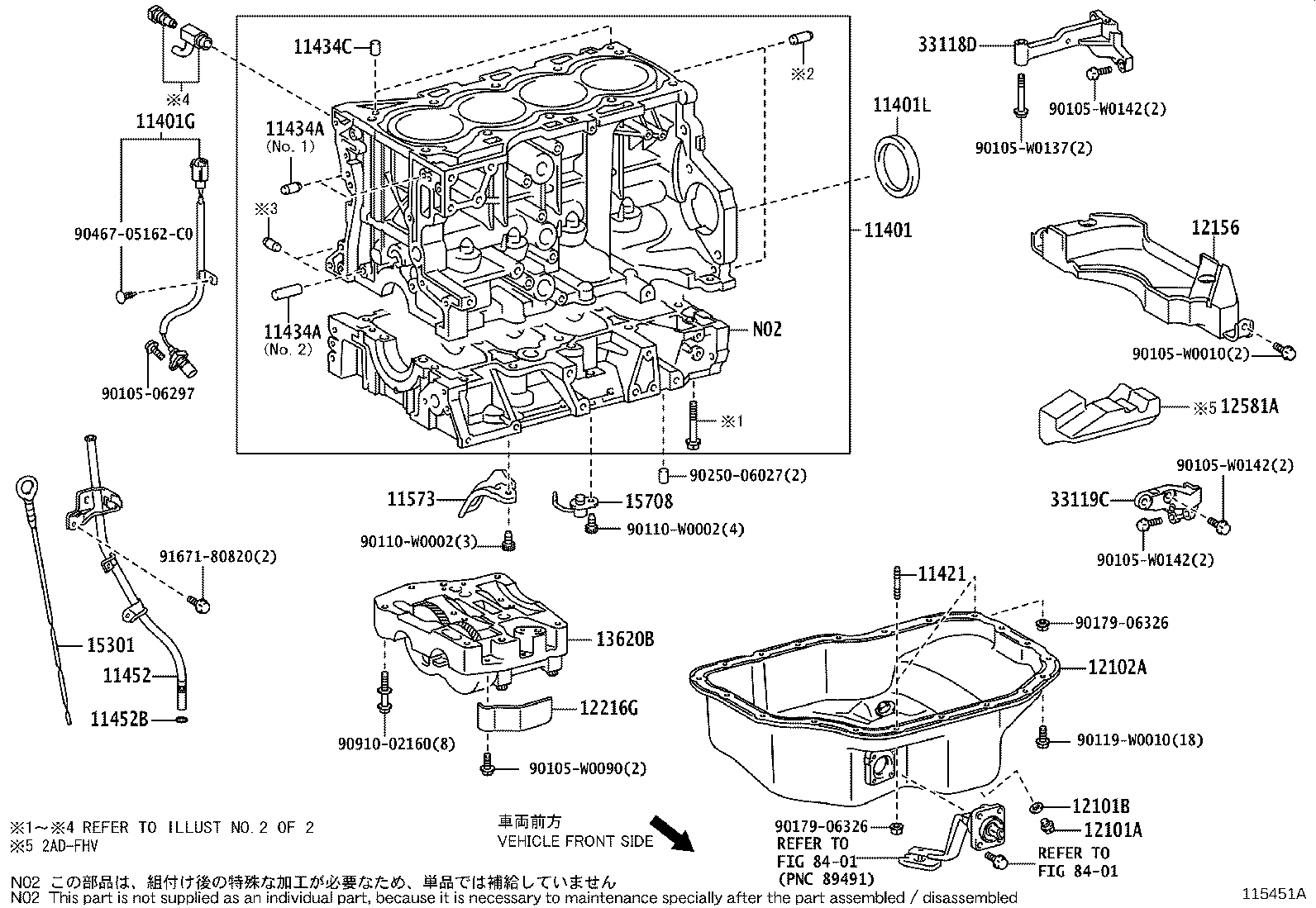

ILLUST NO. 1 OF 2(0805- )2AD#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-09250 |
1ADFTV,2AD#..ADT25# (L) |
1 | ||
| 11410-09380 |
1ADFTV,2AD#..ADT25# (L) |
1 | ||
| 11410-29355 |
1ADFTV,2AD#..ADT25# (J) |
1 | ||
| 11410-29395 |
1ADFTV,2AD#..ADT25# (J) |
1 | ||
| 11410-29415 |
2AD#..ADT251 (J) |
1 | ||
| 11410-09415 |
2AD#..ADT251 (L) |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05069 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 11401L - SEAL, ENGINE REAR OIL | ||||
| 90311-W0010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 90311-W0006 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 11421 - BOLT, STUD(FOR OIL PAN) | ||||
| 90116-06134 |
1ADFTV,2AD#..ADT25# |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1ADFTV,2AD#..ADT25# L=18,OD=8,NO.1 |
2 | ||
| 90250-10030 |
1ADFTV,2AD#..ADT25# L=36,OD=10,NO.2 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
1ADFTV,2AD#..ADT25# L=18,OD=8,NO.1 |
2 | ||
| 90250-10030 |
1ADFTV,2AD#..ADT25# L=36,OD=10,NO.2 |
1 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08074 |
1ADFTV,2AD#..ADT25# L=15,OD=8 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-26020 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 96741-19010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 11573 - PLATE, OIL REFLECTOR | ||||
| 11573-26010 |
1ADFTV,2AD#..ADT25# |
3 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
1AZ#,2AD#,2AZFSE..ADT251,AZT25# |
1 | ||
| 90341-12012 |
1ADFTV,1AZ#,2AD#,2AZFSE..ADT25#,AZT25# |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
1ADFTV,1AZ#,2AD#,2AZFSE..ADT25#,AZT25# |
1 | ||
| 90430-12031 |
1AZ#,2AD#,2AZFSE..ADT251,AZT25# |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-0R010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 12156 - INSULATOR, OIL PAN | ||||
| 12156-0R010 |
1ADFTV,2AD#..ADT25# |
1 | ||
| 12216G - PLATE, OIL BAFFLE | ||||
| 12216-26011 |
2AD#..ADT251 |
1 | ||
| 13620B - BALANCER ASSY, ENGINE | ||||
| 13620-26015 |
2AD#..ADT251 |
1 | ||
| 13620-26014 |
2AD#..ADT251 |
1 | ||
| 13620-26013 |
2AD#..ADT251 |
1 | ||
| 13620-26060 |
2AD#..ADT251 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-26020 |
2AD#..ADT251 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-0R010 |
1ADFTV,2AD#..ADT25# |
4 | ||
| 33118D - PLATE, STIFFENER, RH | ||||
| 33118-05010 |
ADT25# |
1 | ||
| 33119C - PLATE, STIFFENER, LH | ||||
| 33119-05010 |
ADT25# |
1 | ||
| Common parts | ||||
| 90105-06297 | ||||
| 90105-W0010 | ||||
| 90105-W0090 | ||||
| 90105-W0137 | ||||
| 90105-W0142 | ||||
| 90110-W0002 | ||||
| 90119-W0010 | ||||
| 90179-06326 | ||||
| 90250-06027 | ||||
| 90467-05162C0 | ||||
| 90910-02160 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
