8718 - HEATING & AIR CONDITIONING - COOLER PIPING

ADT251R-AEFGYW (2005)

Toyota Avensis

Production Apr 2005 - Apr 2006

Engine 2ADFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0301- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

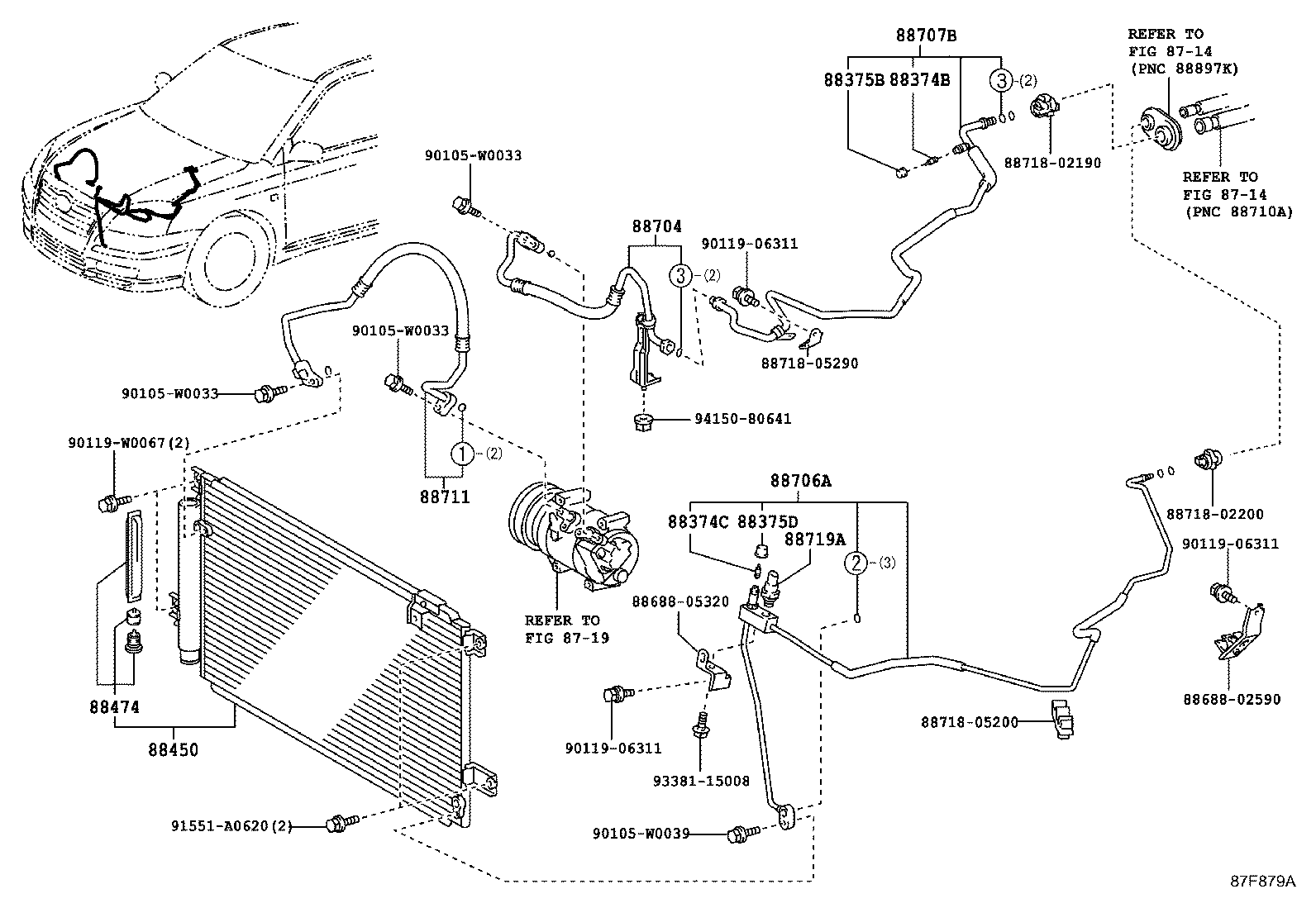

ILLUST NO. 1 OF 2(0507- )ADT25#..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88374C - VALVE, SERVICE, NO.2
88374-30010	AZT251;AZT250..SED;ZZT251..RHD..TEC;ADT251,ZZT250..RHD;ZZT251..RHD..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4	01/2003 - 12/2005	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	ADT251..RHD;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)	01/2003 - 11/2005	1
88375-30280	ADT251..RHD;AZT25#,ZZT25#..LHD	12/2005 - 04/2006	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05160	ADT251..RHD	04/2005 - 04/2006	1
88474 - DRYER, COOLER
88474-17010	ADT251;CDT250..RHD	01/2003 - 04/2006	1
88704 - HOSE SUB-ASSY, SUCTION
88704-05351	ADT251..RHD	07/2005 - 04/2006	1
88704-05350	ADT251..RHD	04/2005 - 07/2005	1
88706A - TUBE SUB-ASSY, LIQUID, A
88716-05540	ADT251..RHD	04/2005 - 12/2005	1
88716-05550	ADT251..RHD	12/2005 - 04/2006	1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-05050	ADT251..RHD	04/2005 - 07/2005	1
88707-05051	ADT251..RHD	07/2005 - 04/2006	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-05330	ADT251	04/2005 - 11/2005	1
88703-05331	ADT251	12/2005 - 04/2006	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	ADT251;AZT25#,ZZT25#..LHD	12/2005 - 04/2006	1
88719-40020	ADT251;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)	01/2003 - 11/2005	1
Common parts
88688-02590
88688-05320
88718-02190
88718-02200
88718-05200
88718-05290
88718-2J090
90105-W0015
90105-W0033
90105-W0039
90119-06311
90119-W0067
91551-A0620
93381-15008
94150-80641
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0504-0507)ADT251..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88374C - VALVE, SERVICE, NO.2
88374-30010	AZT251;AZT250..SED;ZZT251..RHD..TEC;ADT251,ZZT250..RHD;ZZT251..RHD..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4	01/2003 - 12/2005	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	AZT25#,ZZT25#;ADT251,CDT250..RHD	01/2003 - 04/2006	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280	ADT251..RHD;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)	01/2003 - 11/2005	1
88375-30280	ADT251..RHD;AZT25#,ZZT25#..LHD	12/2005 - 04/2006	1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05160	ADT251..RHD	04/2005 - 04/2006	1
88474 - DRYER, COOLER
88474-17010	ADT251;CDT250..RHD	01/2003 - 04/2006	1
88704 - HOSE SUB-ASSY, SUCTION
88704-05351	ADT251..RHD	07/2005 - 04/2006	1
88704-05350	ADT251..RHD	04/2005 - 07/2005	1
88706A - TUBE SUB-ASSY, LIQUID, A
88716-05540	ADT251..RHD	04/2005 - 12/2005	1
88716-05550	ADT251..RHD	12/2005 - 04/2006	1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-05050	ADT251..RHD	04/2005 - 07/2005	1
88707-05051	ADT251..RHD	07/2005 - 04/2006	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-05330	ADT251	04/2005 - 11/2005	1
88703-05331	ADT251	12/2005 - 04/2006	1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020	ADT251;AZT25#,ZZT25#..LHD	12/2005 - 04/2006	1
88719-40020	ADT251;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)	01/2003 - 11/2005	1
Common parts
88688-02590
88688-05320
88718-02190
88718-02200
88718-05200
88718-05290
90105-W0033
90105-W0039
90119-06311
90119-W0067
91551-A0620
93381-15008
94150-80641
Linked diagrams
8714
8719
