ADT251R-AEFGYW (2005)
Toyota Avensis
ILLUST NO. 2 OF 3(0301- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55064-05010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55064-05010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55064-05010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-05040 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-05040 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 55063 - REGISTER SUB-ASSY, INSTRUMENT, NO.3 | ||||
| 55063-05040 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-05020 |
ADT251..RHD..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-05020 |
ADT251..RHD..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-05020 |
ADT251..RHD..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-05020B0 |
CDT250..RHD..ELEGT..DCR;ADT251,AZT25#,ZZT251..RHD..ELEGT DK.GRAY,TRIM0#,1# |
1 | ||
| 55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1 | ||||
| 55474-05040 |
CDT250..RHD..ELEGT..DCR;ADT251,AZT25#,ZZT251..RHD..ELEGT |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-05040 |
CDT250..RHD..ELEGT..DCR;ADT251,AZT25#,ZZT251..RHD..ELEGT |
1 | ||
| 55475-05120 |
ADT251,AZT25#,CDT250,ZZT251..RHD..ELEGT AIR BAG MANUAL ON-OFF SWITCH-AIR BAG MANUAL ON-OFF SW |
1 | ||
| 55620C - HOLDER, INSTRUMENT PANEL CUP | ||||
| 55620-05020 |
CDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-05130 |
CDT250..DCR;ADT251,AZT25#,ZZT25# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-05090 |
CDT250..DCR;ADT251,AZT25#,ZZT25# |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDT250..ELEGT..DCR;ADT251,AZT25#,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY DK.GRAY,TRIM0#,1# |
2 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-02040B0 |
CDT250..ELEGT..DCR;ADT251,AZT25#,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY DK.GRAY,TRIM0#,1# |
2 | ||
| Common parts | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8603 | ||||
ILLUST NO. 3 OF 3(0301- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-35010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-05050 |
ADT251,AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55506-35020A0 |
CDT250..ELEGT..DCR;ADT251,AZT25#,ZZT25#..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 55506-35020B1 |
CDT250..DCR;ADT251,AZT25#,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-05050 |
CDT250..DCR;ADT251,AZT25#,ZZT25# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-05060A0 |
AZT25#..LHD..ELEGT;CDT250..ELEGT..DCR;AZT250..RHD..5F..ELEGT;ZZT251..LHD..4FC..ELEGT;ADT251,ZZT25#..MTM..ELEGT;ZZT251..LHD..SED..4FC..ENTRY IVORY,TRIM0# |
1 | ||
| 55539-05060B0 |
AZT25#..LHD;CDT250..DCR;AZT250..RHD..5F;ZZT251..LHD..4FC;ADT251,ZZT25#..MTM DK.GRAY,TRIM1# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55540-05020B0 |
ADT251,AZT25#,CDT250,ZZT25#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55540-05020A0 |
ADT251,AZT25#,CDT250,ZZT251..RHD..ELEGT IVORY,TRIM0# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-05080A0 |
CDT250..RHD..ELEGT..DCR;ADT251,AZT25#,ZZT251..RHD..ELEGT IVORY,TRIM0# |
1 | ||
| 55550-05080B0 |
CDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD DK.GRAY,TRIM1# |
1 | ||
| 84656J - COVER, BEZEL SWITCH HOLE | ||||
| 84656-05070A0 |
ADT251,AZT25#,CDT250,ZZT251..RHD..ELEGT IVORY,TRIM0# |
1 | ||
| 84656-05070B0 |
ADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC) DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90167-W0001 | ||||
| 90167-W0007 | ||||
| 90467-10203 | ||||
| 90468-05135 | ||||
| Linked diagrams | ||||
| 8401 | ||||

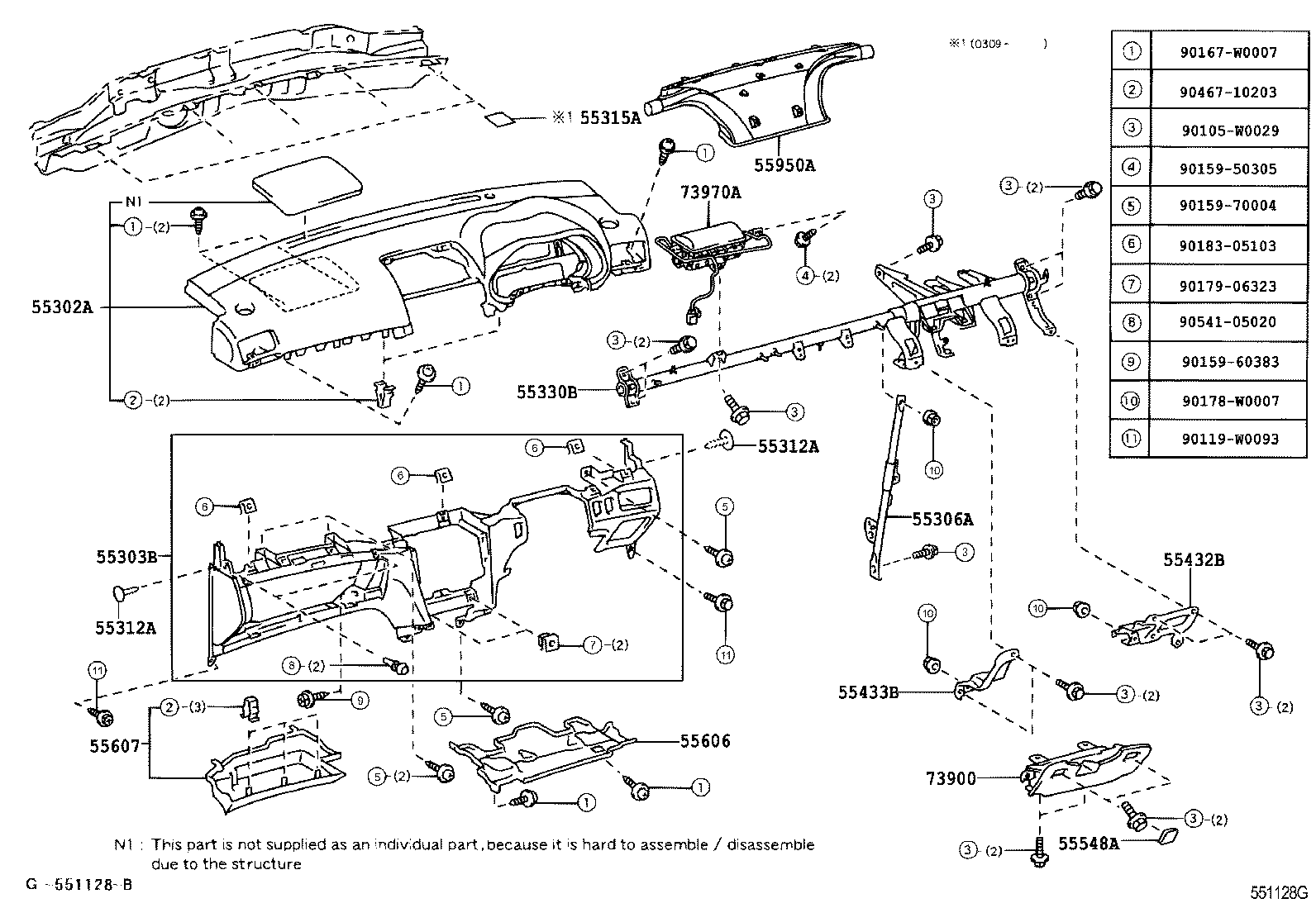

ILLUST NO. 1 OF 3(0301-0604)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55302-05020B0 |
CDT250..RHD..ELEGT..DCR;ADT251,AZT25#,ZZT251..RHD..ELEGT DK.GRAY,TRIM0#,1# |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-05021A0 |
ADT251,AZT25#,CDT250,ZZT251..RHD..ELEGT IVORY,TRIM0# |
1 | ||
| 55303-05021B0 |
ADT251,AZT25#,CDT250,ZZT25#..RHD DK.GRAY,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-05090 |
CDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-20400 |
CDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-20180 |
CDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-05030A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
2 | ||
| 55548-05030B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-05040 |
CDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-05020 |
CDT250..RHD..DCR;ADT251,AZT25#,ZZT25#..RHD |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-05070 |
CDT250..RHD..DCR;ADT251,AZT25#..RHD |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-05020A0 |
ADT251,AZT25#,CDT250,ZZT251..RHD..ELEGT IVORY,TRIM0# |
1 | ||
| 73900-05020B0 |
ADT251,AZT25#,CDT250,ZZT25#..RHD DK.GRAY,TRIM1# |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-05080 |
ADT251,AZT25#,CDT250,ZZT25#..RHD |
1 | ||
| Common parts | ||||
| 90105-W0029 | ||||
| 90119-W0093 | ||||
| 90159-50305 | ||||
| 90159-60383 | ||||
| 90159-70004 | ||||
| 90167-W0007 | ||||
| 90178-W0007 | ||||
| 90179-06323 | ||||
| 90183-05103 | ||||
| 90467-10203 | ||||
| 90541-05020 | ||||
