ADT251R-AEFGYW (2005)
Toyota Avensis
(0504- )ADT25#
EA60,EA61

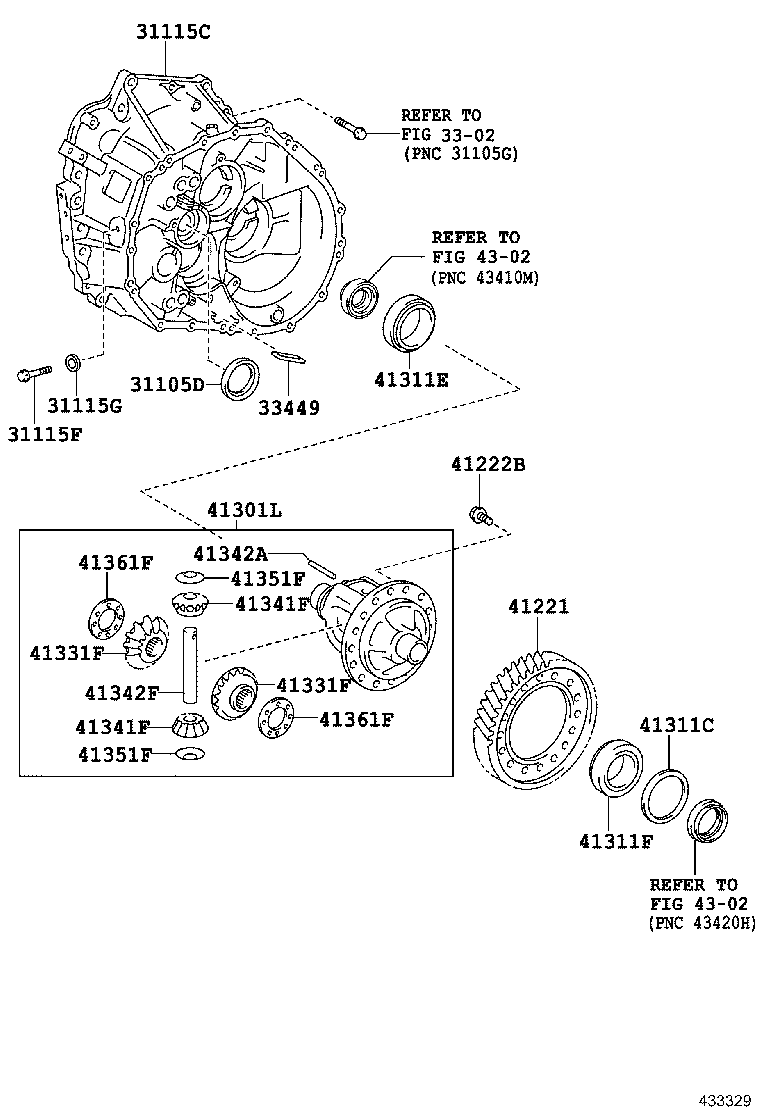

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105D - SEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE) | ||||
| 90311-30017 |
ADT251 |
1 | ||
| 31115C - CASE, FRONT TRANSAXLE(MTM) | ||||
| 31115-20080 |
ADT251 |
1 | ||
| 31115F - BOLT(FOR FRONT TRANSAXLE CASE) | ||||
| 90105-12354 |
ADT251 |
1 | ||
| 31115G - GASKET(FOR FRONT TRANSAXLE CASE) | ||||
| 90430-13004 |
ADT251 |
1 | ||
| 33449 - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
ADT251 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-20410 |
ADT251 |
1 | ||
| 41222B - BOLT (FOR FRONT DIFFERENTIAL RING GEAR SET) | ||||
| 90105-12319 |
ADT251,AZT250,CDT250..MTM |
16 | ||
| 41301L - CASE SUB-ASSY, FRONT DIFFERENTIAL, NO.1 | ||||
| 41301-20250 |
ADT251..DCR |
1 | ||
| 41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR) | ||||
| 90564-56078 |
ADT251 T=2.25,MARK 5 |
1 | ||
| 90564-56074 |
ADT251 T=2.05,MARK 1 |
1 | ||
| 90564-56075 |
ADT251 T=2.10,MARK 2 |
1 | ||
| 90564-56076 |
ADT251 T=2.15,MARK 3 |
1 | ||
| 90564-56080 |
ADT251 T=2.35,MARK 7 |
1 | ||
| 90564-56083 |
ADT251 T=2.50,MARK A |
1 | ||
| 90564-56082 |
ADT251 T=2.45,MARK 9 |
1 | ||
| 90564-56073 |
ADT251 T=2.00,MARK 0 |
1 | ||
| 90564-56084 |
ADT251 T=2.55,MARK B |
1 | ||
| 90564-56077 |
ADT251 T=2.20,MARK 4 |
1 | ||
| 90564-56089 |
ADT251 T=2.80,MARK G |
1 | ||
| 90564-56081 |
ADT251 T=2.40,MARK 8 |
1 | ||
| 90564-56085 |
ADT251 T=2.60,MARK C |
1 | ||
| 90564-56090 |
ADT251 T=2.85,MARK H |
1 | ||
| 90564-56087 |
ADT251 T=2.70,MARK E |
1 | ||
| 90564-56079 |
ADT251 T=2.30,MARK 6 |
1 | ||
| 90564-56088 |
ADT251 T=2.75,MARK F |
1 | ||
| 90564-56086 |
ADT251 T=2.65,MARK D |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50100 |
ADT251 |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-50103 |
ADT251 |
1 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-42040 |
ADT251 |
2 | ||
| 41331F - GEAR, FRONT DIFFERENTIAL SIDE | ||||
| 41331-42040 |
ADT251 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35050 |
ADT251 |
2 | ||
| 41341F - PINION, FRONT DIFFERENTIAL | ||||
| 41341-35050 |
ADT251 |
2 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-20070 |
ADT251 |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ADT251 |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-20050 |
ADT251 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20310 |
ADT251 T=1.30 |
2 | ||
| 41361-20350 |
ADT251 T=1.50 |
2 | ||
| 41361-20240 |
ADT251 T=1.25 |
2 | ||
| 41361-20360 |
ADT251 T=1.55 |
2 | ||
| 41361-20340 |
ADT251 T=1.45 |
2 | ||
| 41361-20370 |
ADT251 T=1.60 |
2 | ||
| 41361-20320 |
ADT251 T=1.35 |
2 | ||
| 41361-20410 |
ADT251 T=1.80 |
2 | ||
| 41361-20390 |
ADT251 T=1.70 |
2 | ||
| 41361-20380 |
ADT251 T=1.65 |
2 | ||
| 41361-20330 |
ADT251 T=1.40 |
2 | ||
| 41361-20430 |
ADT251 T=1.90 |
2 | ||
| 41361-20400 |
ADT251 T=1.75 |
2 | ||
| 41361-20440 |
ADT251 T=1.95 |
2 | ||
| 41361-20420 |
ADT251 T=1.85 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-20310 |
ADT251 T=1.30 |
2 | ||
| 41361-20350 |
ADT251 T=1.50 |
2 | ||
| 41361-20240 |
ADT251 T=1.25 |
2 | ||
| 41361-20360 |
ADT251 T=1.55 |
2 | ||
| 41361-20340 |
ADT251 T=1.45 |
2 | ||
| 41361-20370 |
ADT251 T=1.60 |
2 | ||
| 41361-20320 |
ADT251 T=1.35 |
2 | ||
| 41361-20410 |
ADT251 T=1.80 |
2 | ||
| 41361-20390 |
ADT251 T=1.70 |
2 | ||
| 41361-20380 |
ADT251 T=1.65 |
2 | ||
| 41361-20330 |
ADT251 T=1.40 |
2 | ||
| 41361-20430 |
ADT251 T=1.90 |
2 | ||
| 41361-20400 |
ADT251 T=1.75 |
2 | ||
| 41361-20440 |
ADT251 T=1.95 |
2 | ||
| 41361-20420 |
ADT251 T=1.85 |
2 | ||
| Linked diagrams | ||||
| 3302 | ||||
| 4302 | ||||
