ADT251R-AEFGYW (2005)

Toyota Avensis

Production Apr 2005 - Apr 2006
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0504- )1ADFTV,2AD#

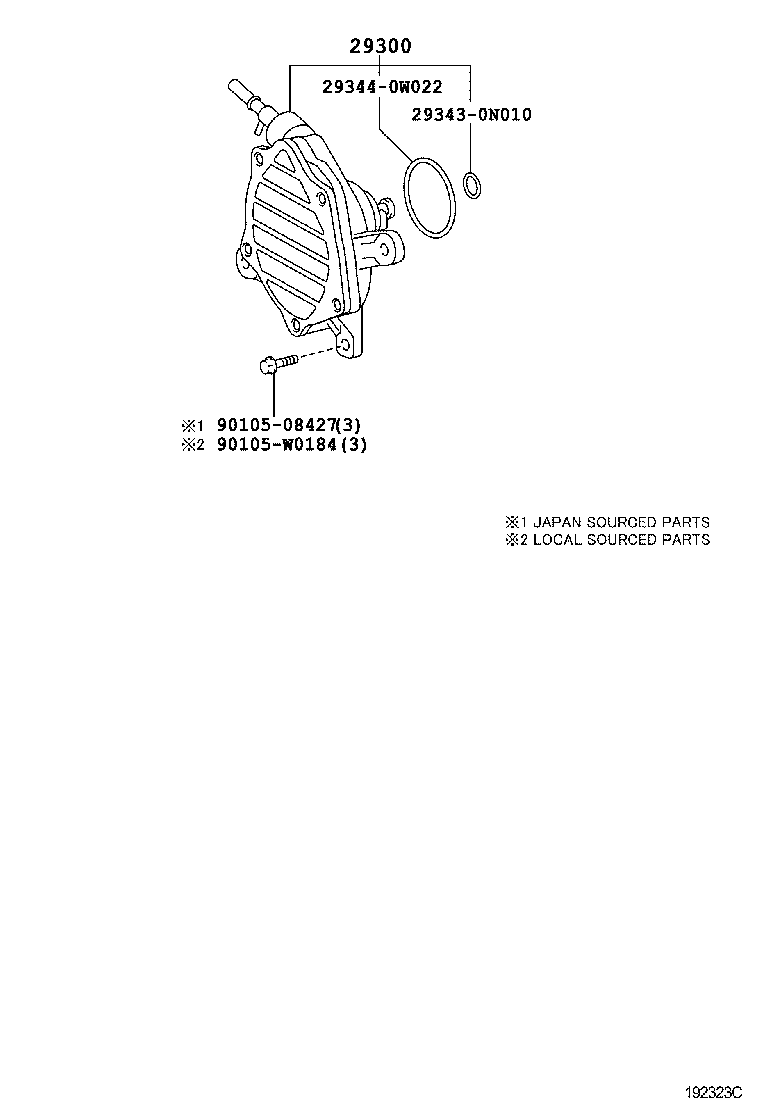

Click highlighted areas on diagram

diagram 29300 293430N010 293440W022 9010508427 90105W0184
Part # Description Qty Price
29300 - PUMP ASSY, VACUUM
29300-0R010

2AD#..ADT251

 1
Common parts
29343-0N010
29344-0W022
90105-08427
90105-W0184
