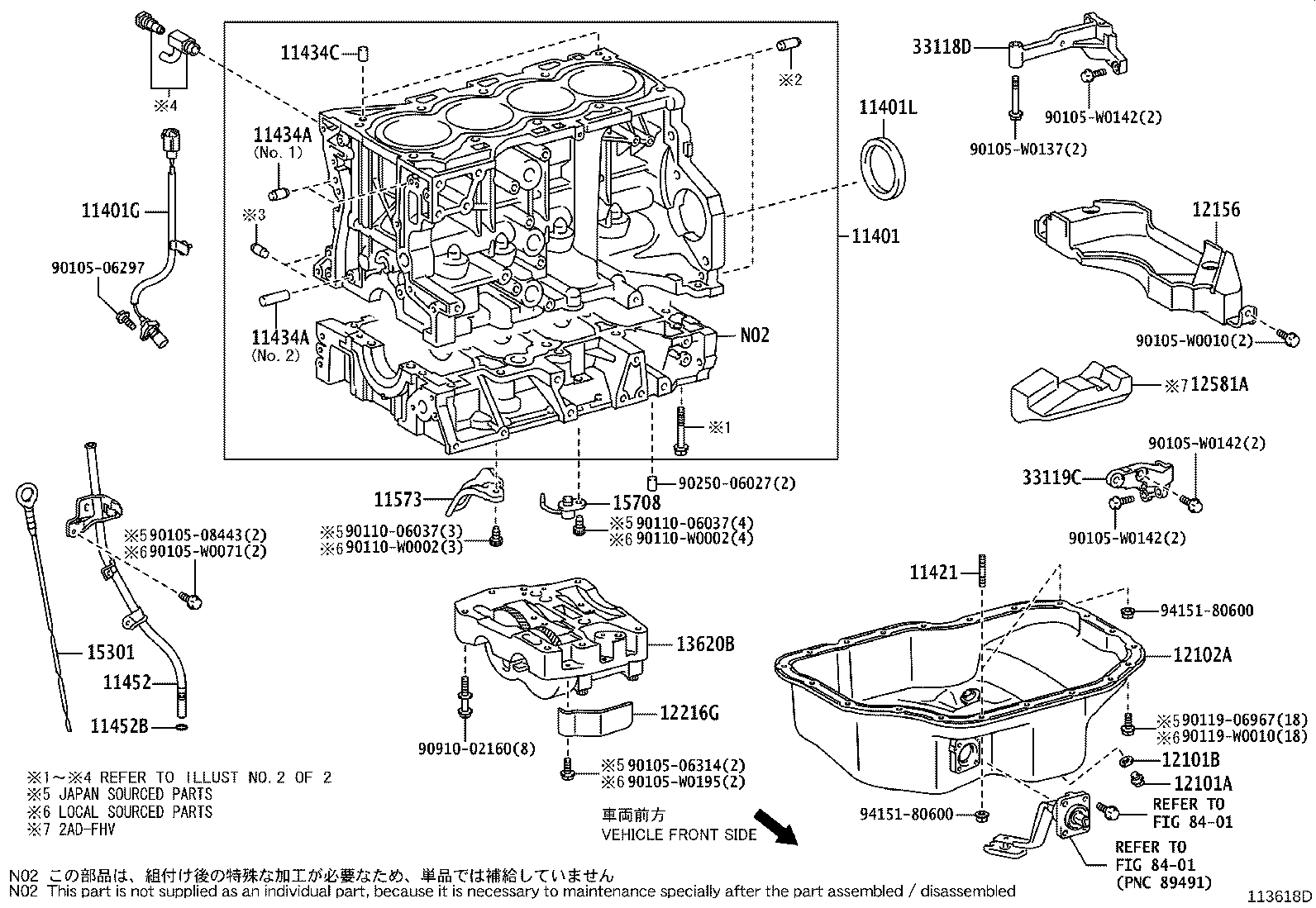

Toyota Avensis ADT251 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29336	2AD#..ADT251	04/2005 - 08/2005	1
11410-29355	2AD#..ADT251 (J)	08/2005 - 04/2006	1
11410-09250	2AD#..ADT251 (L)	08/2005 - 04/2006	1
11401G - SENSOR, CRANK POSITION
90919-05069	2AD#..ADT251	07/2005 - 04/2006	1
90919-05064	2AD#..ADT251	04/2005 - 07/2005	1
11401L - SEAL, ENGINE REAR OIL
90311-W0006	2AD#..ADT251	04/2005 - 04/2006	1
11421 - BOLT, STUD(FOR OIL PAN)
90116-06134	2AD#..ADT251	04/2005 - 04/2006	2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120	2AD#..ADT251 L=18,OD=8,NO.1	04/2005 - 04/2006	2
90250-10030	2AD#..ADT251 L=36,OD=10,NO.2	04/2005 - 04/2006	1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120	2AD#..ADT251 L=18,OD=8,NO.1	04/2005 - 04/2006	2
90250-10030	2AD#..ADT251 L=36,OD=10,NO.2	04/2005 - 04/2006	1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074	2AD#..ADT251 L=15,OD=8	04/2005 - 04/2006	2
11452 - GUIDE, OIL LEVEL GAGE
11452-26020	2AD#..ADT251	04/2005 - 04/2006	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96741-19010	2AD#..ADT251	04/2005 - 04/2006	1
11573 - PLATE, OIL REFLECTOR
11573-26010	2AD#..ADT251	04/2005 - 04/2006	3
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	1AZ#,2AD#,2AZFSE..ADT251,AZT25#	01/2003 - 04/2006	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1AZ#,2AD#,2AZFSE..ADT251,AZT25#	01/2003 - 04/2006	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-0R010	2AD#..ADT251	04/2005 - 04/2006	1
12156 - INSULATOR, OIL PAN
12156-0R010	2AD#..ADT251	04/2005 - 04/2006	1
12216G - PLATE, OIL BAFFLE
12216-26010	2AD#..ADT251..ELEGT,ENTRY,TEC	04/2005 - 12/2005	1
12216-26011	2AD#..ADT251	12/2005 - 04/2006	1
13620B - BALANCER ASSY, ENGINE
13620-26013	2AD#..ADT251	11/2005 - 04/2006	1
13620-26012	2AD#..ADT251	04/2005 - 11/2005	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-26020	2AD#..ADT251	04/2005 - 04/2006	1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-0R010	2AD#..ADT251	04/2005 - 04/2006	4
33118D - PLATE, STIFFENER, RH
33118-05010	ADT251	04/2005 - 04/2006	1
33119C - PLATE, STIFFENER, LH
33119-05010	ADT251	04/2005 - 04/2006	1
Common parts
90105-06297
90105-06314
90105-08443
90105-W0010
90105-W0071
90105-W0137
90105-W0142
90105-W0195
90110-06037
90110-W0002
90119-06967
90119-W0010
90250-06027
90910-02160
94151-80600
Linked diagrams
8401

Part #	Description	Period	Qty
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075	2AD#..ADT251	04/2005 - 04/2006	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	1AZ#,2AD#..ADT251,AZT250	01/2003 - 04/2006	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02157	2AD#..ADT251	04/2005 - 04/2006	10
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	1AZ#,2AD#,2AZFSE..ADT251,AZT25# L=22,OD=10	01/2003 - 04/2006	2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-08120	2AD#..ADT251	04/2005 - 04/2006	2
Common parts
90105-W0135
91551-F0860

ADT251R-AEFGYW (2005)

ILLUST NO. 1 OF 2(0504-0507)2AD#

ILLUST NO. 2 OF 2(0504- )1ADFTV,2AD#
