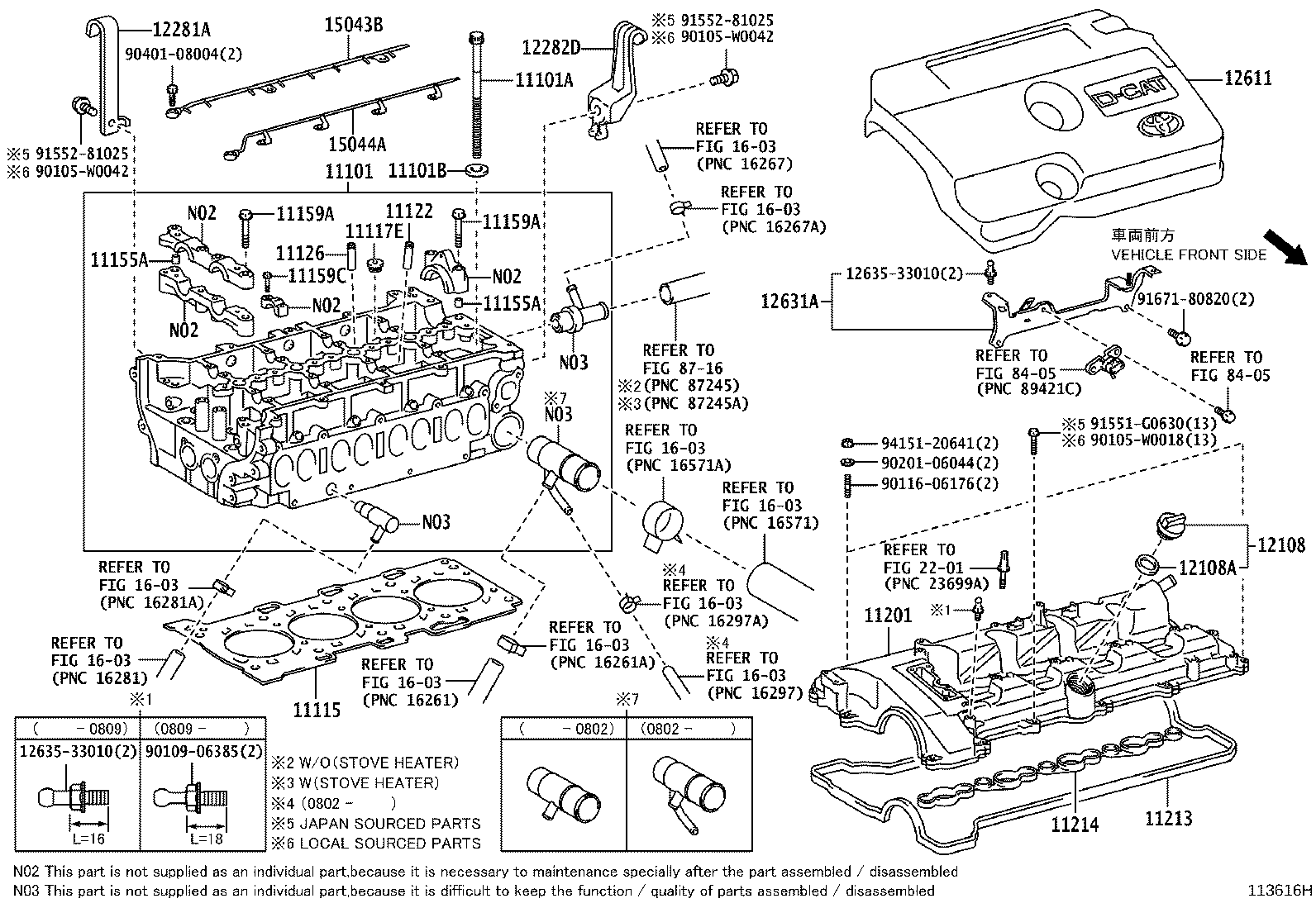

Toyota Avensis ADT251 CYLINDER HEAD

Part #	Description	Period	Qty
11101 - HEAD SUB-ASSY, CYLINDER
11101-29575	2ADFHV..ADT251	04/2005 - 04/2006	1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02158	2AD#..ADT251	04/2005 - 04/2006	10
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90560-13023	2AD#..ADT251	04/2005 - 04/2006	10
11115 - GASKET, CYLINDER HEAD
11115-26051A0	2AD#..ADT251 MARKA,REFER REPAIR MANUAL	04/2005 - 04/2006	1
11115-26051B0	2AD#..ADT251 MARKB,REFER REPAIR MANUAL	04/2005 - 04/2006	1
11115-26051D0	2AD#..ADT251 MARKD,REFER REPAIR MANUAL	04/2005 - 04/2006	1
11115-26051C0	2AD#..ADT251 MARKC,REFER REPAIR MANUAL	04/2005 - 04/2006	1
11115-26051E0	2AD#..ADT251 MARKE,REFER REPAIR MANUAL	04/2005 - 04/2006	1
11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1
90341-14015	2AD#..ADT251	04/2005 - 04/2006	4
11122 - BUSH, INTAKE VALVE GUIDE
11122-0R010	2AD#..ADT251 STD	04/2005 - 04/2006	8
11123-0R010	2AD#..ADT251 O/S 0.05	04/2005 - 04/2006	8
11126 - BUSH, EXHAUST VALVE GUIDE
11122-0R010	2AD#..ADT251 STD	04/2005 - 04/2006	8
11123-0R010	2AD#..ADT251 O/S 0.05	04/2005 - 04/2006	8
11155A - PIN, RING W/HEAD
90253-11021	2AD#..ADT251	04/2005 - 04/2006	6
11155A - PIN, RING W/HEAD
90253-11021	2AD#..ADT251	04/2005 - 04/2006	6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-W0138	2ADFHV..ADT251 (L)	10/2005 - 04/2006	6
91551-80860	2AD#..ADT251 (J)	04/2005 - 04/2006	6
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90105-W0138	2ADFHV..ADT251 (L)	10/2005 - 04/2006	6
91551-80860	2AD#..ADT251 (J)	04/2005 - 04/2006	6
11159C - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
91551-80632	2AD#..ADT251 (J)	04/2005 - 04/2006	16
90105-W0139	2ADFHV..ADT251 (L)	10/2005 - 04/2006	16
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-26030	2ADFHV..ADT251	04/2005 - 04/2006	1
11213 - GASKET, CYLINDER HEAD COVER
11213-0R010	2AD#..ADT251	04/2005 - 04/2006	1
11214 - GASKET, CYLINDER HEAD COVER, NO.2
11214-26010	2ADFHV..ADT251	04/2005 - 04/2006	1
12108 - CAP SUB-ASSY, OIL FILLER
12180-0N010	2AD#..ADT251	04/2005 - 04/2006	1
12108A - GASKET(FOR OIL FILLER CAP)
90080-43020	2AD#..ADT251	04/2005 - 04/2006	1
12281A - HANGER, ENGINE, NO.1
12281-26040	2AD#..ADT251	04/2005 - 04/2006	1
12282D - HANGER, ENGINE, NO.2
12282-26010	2AD#..ADT251	04/2005 - 04/2006	1
12611 - COVER, ENGINE, NO.1
12611-0R020	2ADFHV..ADT251	04/2005 - 04/2006	1
12631A - BRACKET, ENGINE COVER
12631-26010	2AD#..ADT251	04/2005 - 04/2006	1
15043B - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, RH
15043-0R010	2AD#..ADT251	04/2005 - 04/2006	1
15044A - PIPE SUB-ASSY, CAMSHAFT OIL DELIVERY, LH
15044-0R010	2AD#..ADT251	04/2005 - 04/2006	1
Common parts
12635-33010
90105-W0018
90105-W0042
90109-06385
90116-06176
90201-06044
90401-08004
91551-G0630
91552-81025
91671-80820
94151-20641
Linked diagrams
1603
2201
8405
8716

ADT251L-ALFEXW (2005)

(0504- )2ADFHV
