ADT251L-AEFEYW (2005)

Toyota Avensis

Production Apr 2005 - Apr 2006
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0504- )ADT25#

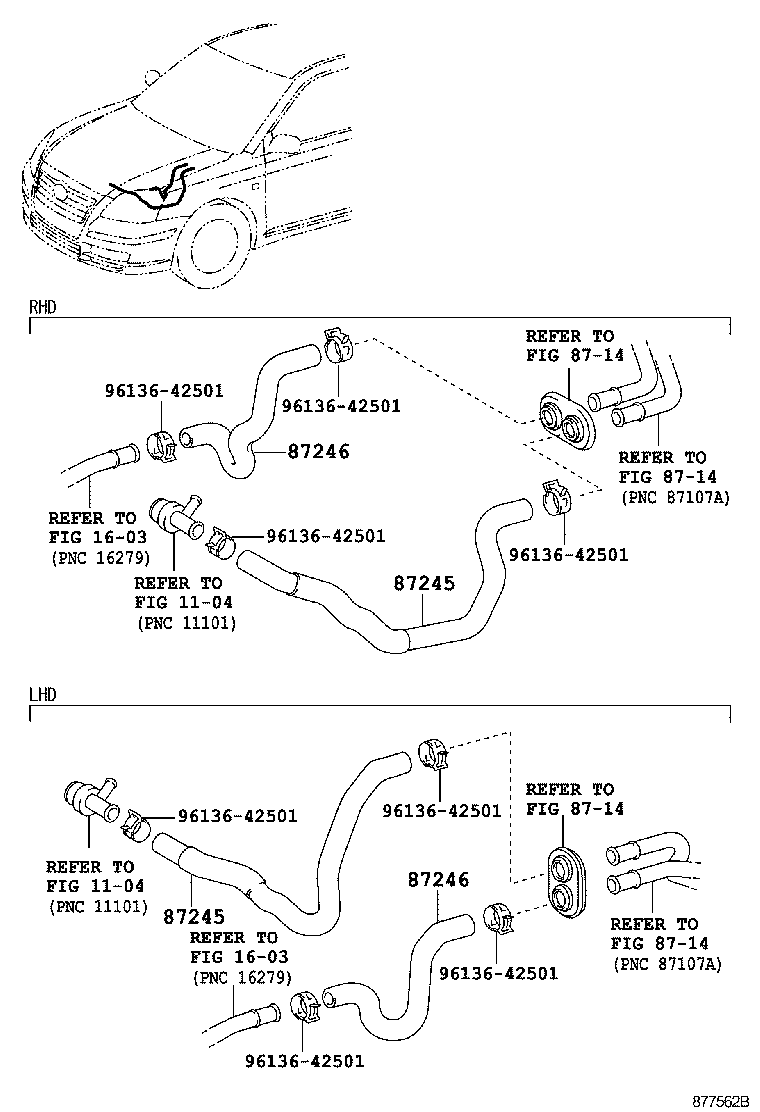

Click highlighted areas on diagram

diagram 1104 1104 1603 1603 8714 8714 8714 8714 87245 87245 87246 87246 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-05660

ADT251..LHD

HEATER-W/STOVE HEATER

 1
87245-05630

ADT251..LHD

 1
87245 - HOSE, HEATER WATER, INLET
87245-05660

ADT251..LHD

HEATER-W/STOVE HEATER

 1
87245-05630

ADT251..LHD

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-05640

ADT251..LHD

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-05640

ADT251..LHD

 1
Common parts
96136-42501
Linked diagrams
1104
1603
8714

(0504- )ADT25#..LHD

Click highlighted areas on diagram

W(STOVE HEATER)

diagram 1104 1603 87101A 87101B 87110D 87110E 8712405070 8712405070 8712405090 8714 8714 87211T 87245 87245A 87246 87260 87378A 87378B 87408A 87441C 87452Q 87476A 87617 9011906311 9017906178 9017906178 9017906178 9017906178 9046706133A0 9046724002 9046724002 91631B0616 91631B0616 91631B0628 91631B0628 9613642501 9613642501 9613642501 9613642501
Part # Description Qty Price
87101B - BRACKET SUB-ASSY, HEATER NO.2
87101-05050

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
87110D - HEATER ASSY
87100-05030

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
87245 - HOSE, HEATER WATER, INLET
87245-05660

ADT251..LHD

HEATER-W/STOVE HEATER

 1
87245-05630

ADT251..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-05650

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-05640

ADT251..LHD

 1
87260 - PUMP ASSY, HEATER
87260-05020

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
87378A - PIPE, EXHAUST
87378-05030

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
87378B - PIPE, EXHAUST, NO.2
87378-05040

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
87452Q - BRACKET, HEATER, NO.1
87452-05020

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
87476A - HOSE, HEATER FUEL, NO.1
87476-05040

ADT251..LHD

EUROPE-COLD SPEC&HEATER-W/STOVE HEATER

 1
Common parts
87124-05070
87124-05090
90119-06311
90179-06178
90467-06133A0
90467-24002
91631-B0616
91631-B0628
96136-42501
Linked diagrams
1104
1603
8714
