ADT251L-AEFEYW (2005)

Toyota Avensis

Production Apr 2005 - Apr 2006
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0301- )

Click highlighted areas on diagram

diagram 7401 81230 81230B 81240D 81240E 81240E 81241A 81260 81260F 81330 81330 81330B 81330B 81340B 81340B
Part # Description Qty Price
81241A - LENS, ROOM LAMP, NO.2
81363-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
81260 - LAMP ASSY, GLOVE BOX
81260-33030

ADT251,AZT25#,CDT250,ZZT25#

 1
81260F - BULB(FOR GLOVE BOX LAMP)
90981-11018

ADT251,AZT25#,CDT250,ZZT25#

12V 1.2W W/O SOCKET

 1
Linked diagrams
7401

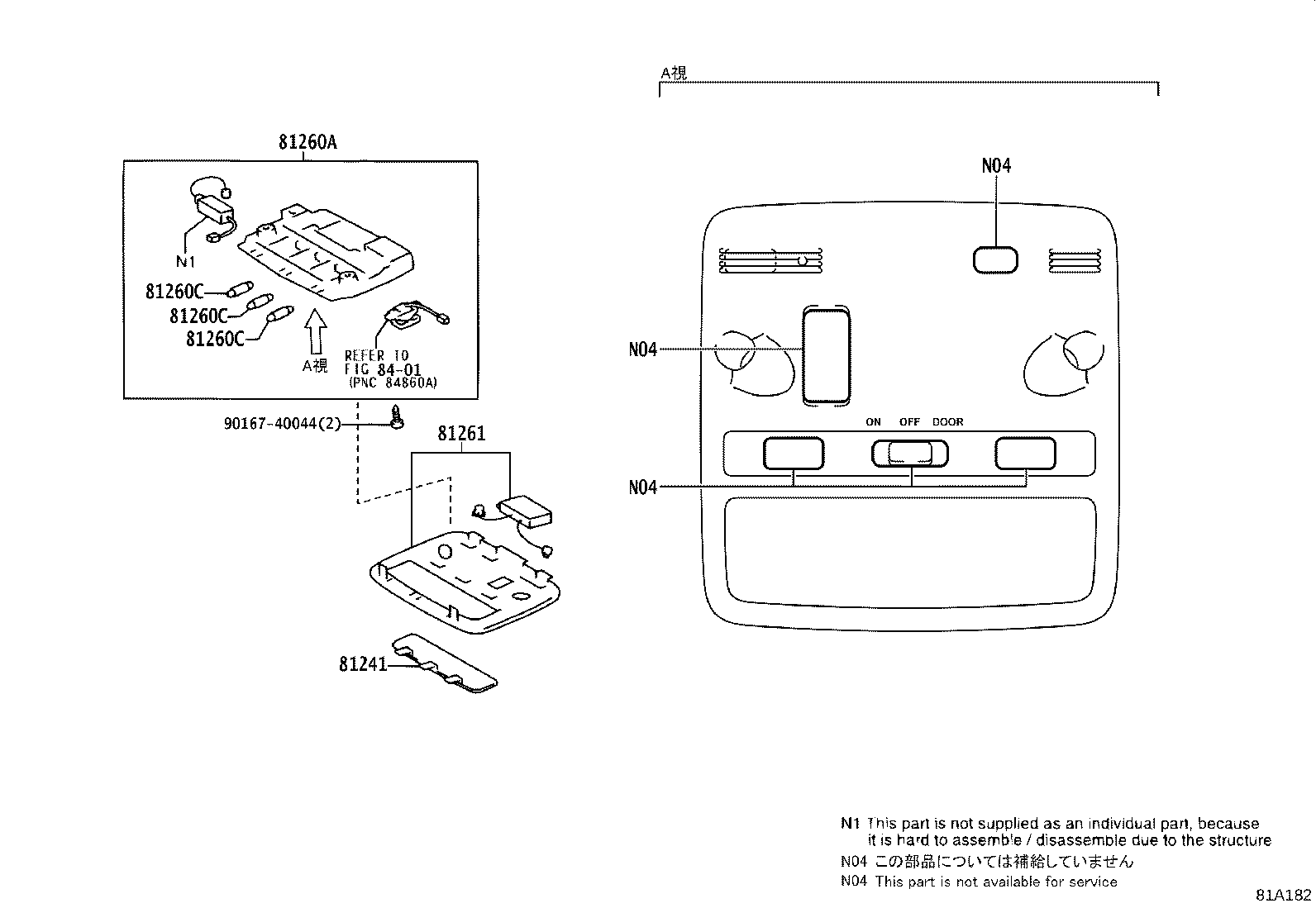

ILLUST NO. 2 OF 2(0301- )

Click highlighted areas on diagram

diagram 81241 81260A 81260C 81260C 81260C 81261 8401 9016740044
Part # Description Qty Price
81241 - LENS, ROOM LAMP, NO.1
81363-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
81261 - LENS AND COVER, MAP LAMP
81261-05060B0

ADT251..LHD

LT.GRAY,TRIM1#

 1
81261-05100B0

ADT251..LHD..(ELEGT,TEC)

WITH(MOON ROOF)&MAP NAVI,LT.GRAY,TRIM1#

 1
81261-05100B0

ADT251..LHD

WITH(MOON ROOF),LT.GRAY,TRIM1#

 1
Common parts
90167-40044
Linked diagrams
8401
