ADT251L-AEFEYW (2005)

Toyota Avensis

Production Apr 2005 - Apr 2006
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )LHD..D4,DCR,DCRL ; (0402- )ZZT25#..LHD

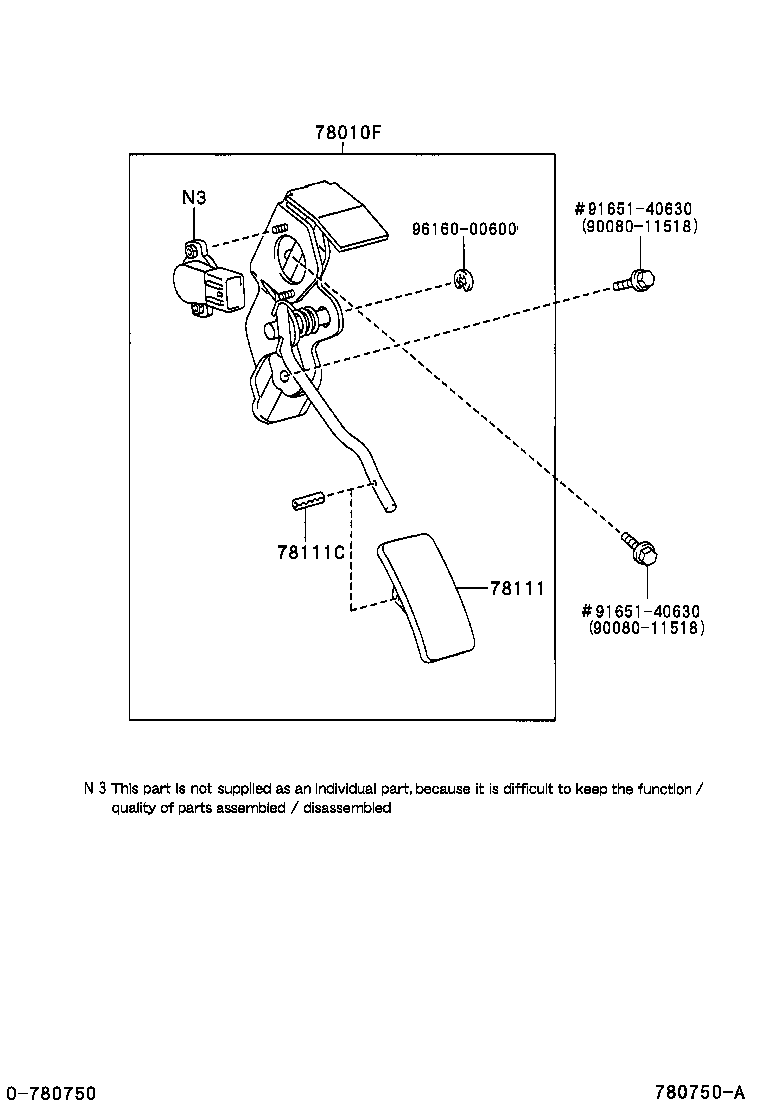

Click highlighted areas on diagram

diagram 78010F 78111 78111C 9008011518 9008011518 9165140630 9165140630 9616000600
Part # Description Qty Price
78111 - PEDAL, ACCELERATOR
78111-35030

ADT251,AZT25#,CDT250..LHD..(D4,DCR,DCRL)

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

ZZT251..RHD;AZT250..4FC..D4;ZZT251..LHD..5F;ADT251,AZT25#,CDT250,ZZT250..5F,5FC,6F

 1
Common parts
90080-11518
91651-40630
96160-00600
