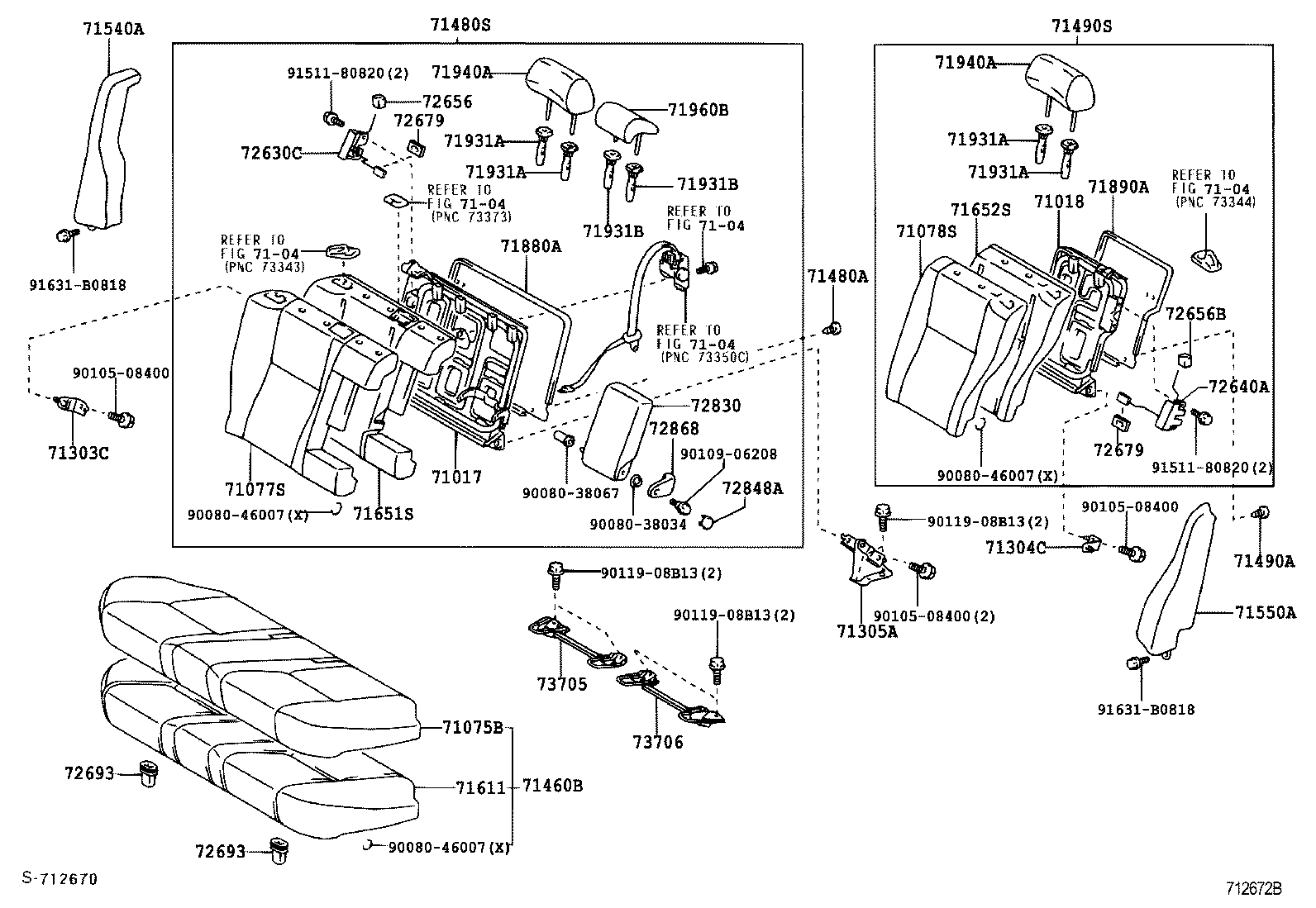

ADT251L-AEFEYW (2005)
Toyota Avensis
(0301-0604)SED..ELEGT,TEC ; (0604- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-05040 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-05040 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-05370B2 |
ADT251,AZT25#,CDT250,ZZT25#..SED..TEC DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-05370B0 |
ADT251,AZT25#,CDT250..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71077-05370B0 |
ADT251,AZT25#,CDT250..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71077-05300B4 |
ADT251,AZT25#,CDT250,ZZT25#..SED..TEC DK.GRAY,TRIM1# |
1 | ||
| 71077-05380B0 |
ADT251,AZT25#,CDT250..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71077-05380B0 |
ADT251,AZT25#,CDT250..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-05260B4 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71078-05330B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71078-05330B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-05030 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-05020 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-05031 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-05472A0 |
ADT251,AZT25#,CDT250..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71460-05472B0 |
ADT251,AZT25#,CDT250..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08220B1 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-05521A0 |
ADT251,AZT25#,CDT250..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71480-05521B0 |
ADT251,AZT25#,CDT250..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-08220B1 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
2 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-05410B5 |
ADT251,AZT25#,CDT250,ZZT25#..SED..TEC DK.GRAY,TRIM1# |
1 | ||
| 71490-05480B3 |
ADT251,AZT25#,CDT250..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71490-05480B3 |
ADT251,AZT25#,CDT250..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK. GRAY,TRIM1# |
1 | ||
| 71540-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71540-05130B1 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK. GRAY,TRIM1# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-05130B1 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK. GRAY,TRIM1# |
1 | ||
| 71550-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK. GRAY,TRIM1# |
1 | ||
| 71550-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-05050 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-05030 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71885-05030C1 |
ADT251,AZT25#,CDT250,ZZT25#..SED..TEC BLACK,TRIM1# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71886-05030C1 |
ADT251,AZT25#,CDT250,ZZT25#..SED..TEC BLACK,TRIM1# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05130B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05130B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-05110B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71960-05080B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71960-05110B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED..(ELEGT,TEC) |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED..(ELEGT,TEC) |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05020B0 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05020B0 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
1 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED..(ELEGT,TEC) |
2 | ||
| 72679 - BEZEL, REAR SEAT BACK LOCK CONTROL | ||||
| 72679-05010 |
ADT251,AZT25#,CDT250,ZZT25#..SED..(ELEGT,TEC) |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
2 | ||
| 72693 - HOOK, REAR SEAT CUSHION LOCK | ||||
| 72693-12080 |
ADT251,AZT25#,CDT250,ZZT25#..SED |
2 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-CA020B1 |
ADT251,AZT25#,CDT250,ZZT25#..TEC;ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY DK.GRAY,TRIM1# |
1 | ||
| 72830-CA040B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72830-CA040B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-05010B1 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-05020 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-05020 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| Common parts | ||||
| 90080-38034 | ||||
| 90080-38067 | ||||
| 90080-46007 | ||||
| 90105-08400 | ||||
| 90109-06208 | ||||
| 90119-08B13 | ||||
| 91511-80820 | ||||
| 91631-B0818 | ||||
| Linked diagrams | ||||
| 7104 | ||||
