ADT251L-AEFEYW (2005)
Toyota Avensis
ILLUST NO. 1 OF 2(0301-0604)
MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-05690A0 |
CDT250..LHD..(LB,WG)..ELEGT;CDT250..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..ELEGT..(D4,DCR,DCRL);ADT251,AZT25#..LHD..SED..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71071-05690B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-05600B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-05560A0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71072-05560B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-05600B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-05870A0 |
CDT250..LHD..(LB,WG)..ELEGT;CDT250..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..ELEGT..(D4,DCR,DCRL);ADT251,AZT25#..LHD..SED..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71073-05770B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71073-05870B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-05870B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-05590B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71074-05680B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-05680B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71074-05680A0 |
CDT250..LHD..(LB,WG)..ELEGT;CDT250..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..ELEGT..(D4,DCR,DCRL);ADT251,AZT25#..LHD..SED..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-05770B1 |
ADT251,AZT25#,CDT250,ZZT25#..LHD..TEC W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71430-05760B1 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK. GRAY,TRIM1# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-05650B1 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK. GRAY,TRIM1# |
1 | ||
| 71440-05660B1 |
ADT251,AZT25#,CDT250,ZZT25#..LHD..TEC W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-05030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 71501-05050 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 71502-05040 |
CDT250,ZZT25#..LHD..(LB,WG);CDT250,ZZT25#..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) W(FRONT SEAT HEATER) |
1 | ||
| 71502-05010 |
AZT250..LHD..D4;ADT251,AZT251,CDT250,ZZT25#..LHD |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-05040 |
AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);CDT250,ZZT25#..LHD..(LB,WG);CDT250,ZZT251..LHD..SED..(ELEGT,TEC);ADT251,AZT251,ZZT250..LHD..(ELEGT,TEC) W(FRONT SEAT HEATER) |
1 | ||
| 71511-05060 |
ADT251,AZT25#,CDT250,ZZT25#..LHD |
1 | ||
| 71502-05030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 71512-05010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71051-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-CA040B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
2 | ||
| 71910-CA020B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
2 | ||
| 71910-CA040B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72407A - HOUSING SUB-ASSY, FRONT SEAT RECLINING, LH | ||||
| 72407-02020 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 72407B - HOUSING SUB-ASSY, FRONT SEAT RECLINING RH | ||||
| 72407-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 72573 - LEVER, RECLINING CONTROL, RH | ||||
| 72573-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 72574 - LEVER, RECLINING CONTROL, LH | ||||
| 72574-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90080-14041 | ||||
| 90080-14050 | ||||
| 90080-46007 | ||||
ILLUST NO. 2 OF 2(0301-0604)
MANUAL SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71377A - BRACKET, FRONT SEAT, RH | ||||
| 71377-05010 |
ADT251..LHD;AZT250..WG..TEC..HTWC;CDT250,ZZT25#..LHD..SED..ENTRY W(FRONT SEAT HEATER) |
1 | ||
| 71378 - BRACKET, FRONT SEAT, LH | ||||
| 71378-05010 |
ADT251..LHD;AZT250..WG..TEC..HTWC;CDT250,ZZT25#..LHD..SED..ENTRY W(FRONT SEAT HEATER) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02110B0 |
ADT251,AZT25#,CDT250,ZZT25#..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811-05060B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71811-05060B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-05050B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71812-05050B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71812-02140B0 |
ADT251,AZT25#,CDT250,ZZT25#..LHD DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71861-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-05020 |
ADT251,AZT25#,CDT250,ZZT25#..LHD |
1 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-05020 |
ADT251,AZT25#,CDT250,ZZT25#..LHD |
1 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
4 | ||
| 72125A - COVER, SEAT TRACK, UPPER REAR | ||||
| 72125-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
4 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-05040B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72137-05030B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-05020B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72138-05030B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-05040B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72157-05030B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-05040B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72158-05030B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72459A - CAP, VERTICAL SEAT ADJUSTER KNOB | ||||
| 72459-02010B1 |
ADT251..LHD DK.GRAY,TRIM1# |
2 | ||
| 72572B - CAP, RECLINING ADJUSTER KNOB, RH | ||||
| 72572-02010 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 72572C - CAP, RECLINING ADJUSTER KNOB, LH | ||||
| 72572-02020 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| Common parts | ||||
| 90119-10921 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||

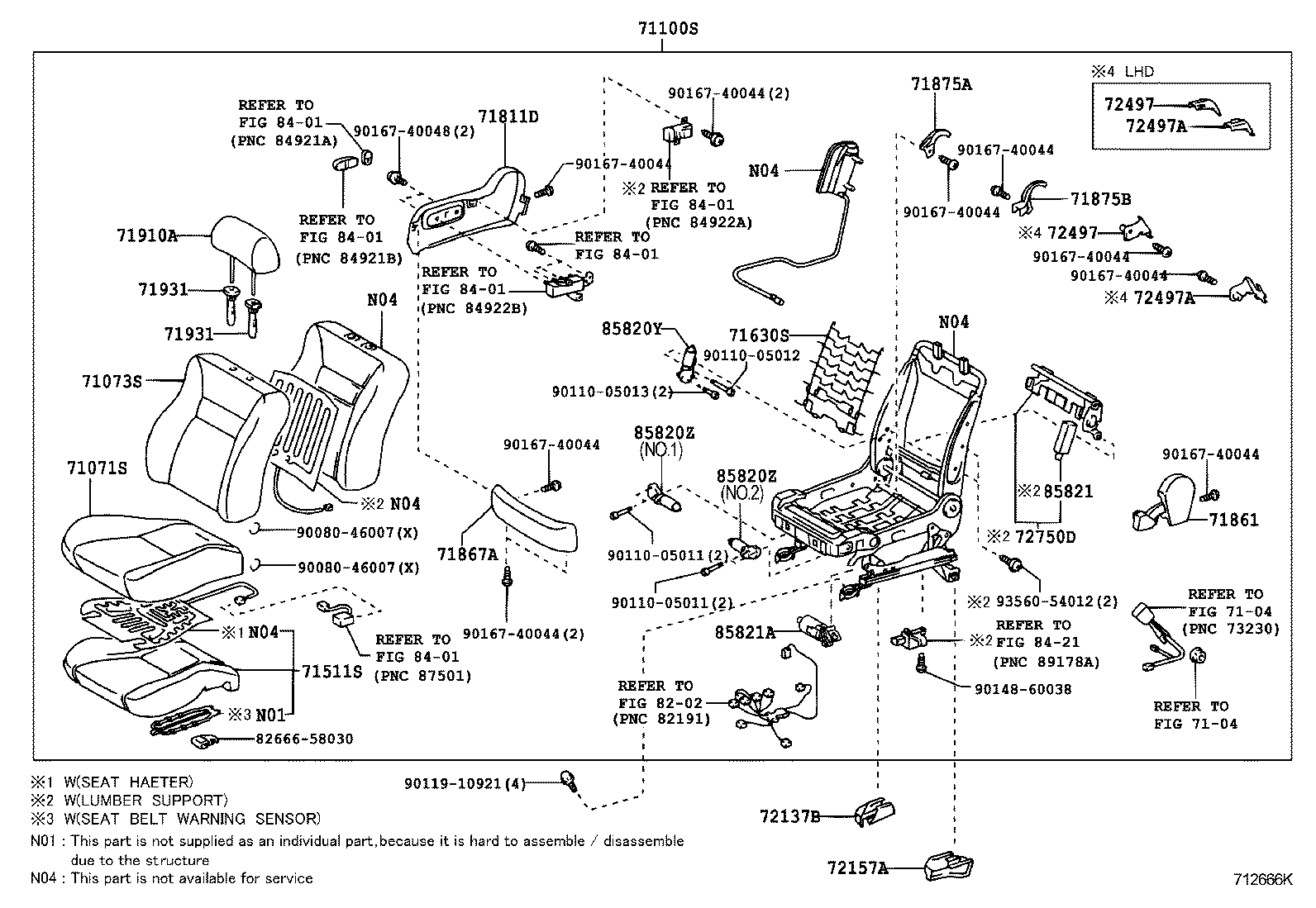

(0301-0604)
W(POWER SEAT)-RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-05690A0 |
CDT250..LHD..(LB,WG)..ELEGT;CDT250..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..ELEGT..(D4,DCR,DCRL);ADT251,AZT25#..LHD..SED..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71071-05690B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-05600B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-05870A0 |
CDT250..LHD..(LB,WG)..ELEGT;CDT250..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..ELEGT..(D4,DCR,DCRL);ADT251,AZT25#..LHD..SED..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71073-05770B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71073-05870B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71073-05870B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-05030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 71501-05050 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 71502-05040 |
CDT250,ZZT25#..LHD..(LB,WG);CDT250,ZZT25#..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) W(FRONT SEAT HEATER) |
1 | ||
| 71502-05010 |
AZT250..LHD..D4;ADT251,AZT251,CDT250,ZZT25#..LHD |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71053-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 71053-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-02110B0 |
ADT251,AZT25#,CDT250,ZZT25#..LHD DK.GRAY,TRIM1# |
1 | ||
| 71811-05060B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71811-05060B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-60110B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71861-60110B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71861-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-05010B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71867-05010B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58030B2 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71875-58030B2 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60150B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71875-60150B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-CA040B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
2 | ||
| 71910-CA020B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
2 | ||
| 71910-CA040B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72137B - COVER, SEAT TRACK, RH | ||||
| 72137-05040B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72137-05030B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-05040B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72157-05030B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72497 - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 72497-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72497 - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72497-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 72497-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72497A - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72498-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72498-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 72497A - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72498-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72498-60010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),PASSENGER SIDE |
1 | ||
| 85801-60020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DRIVER SIDE |
1 | ||
| 85801-60020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DRIVER SIDE |
1 | ||
| 85801-58020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),PASSENGER SIDE |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.1 |
1 | ||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.1 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.2 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.2 |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.1 |
1 | ||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.1 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.2 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.2 |
1 | ||
| 85821 - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 85820-60130 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 85821A - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 85801-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90080-46007 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10921 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||

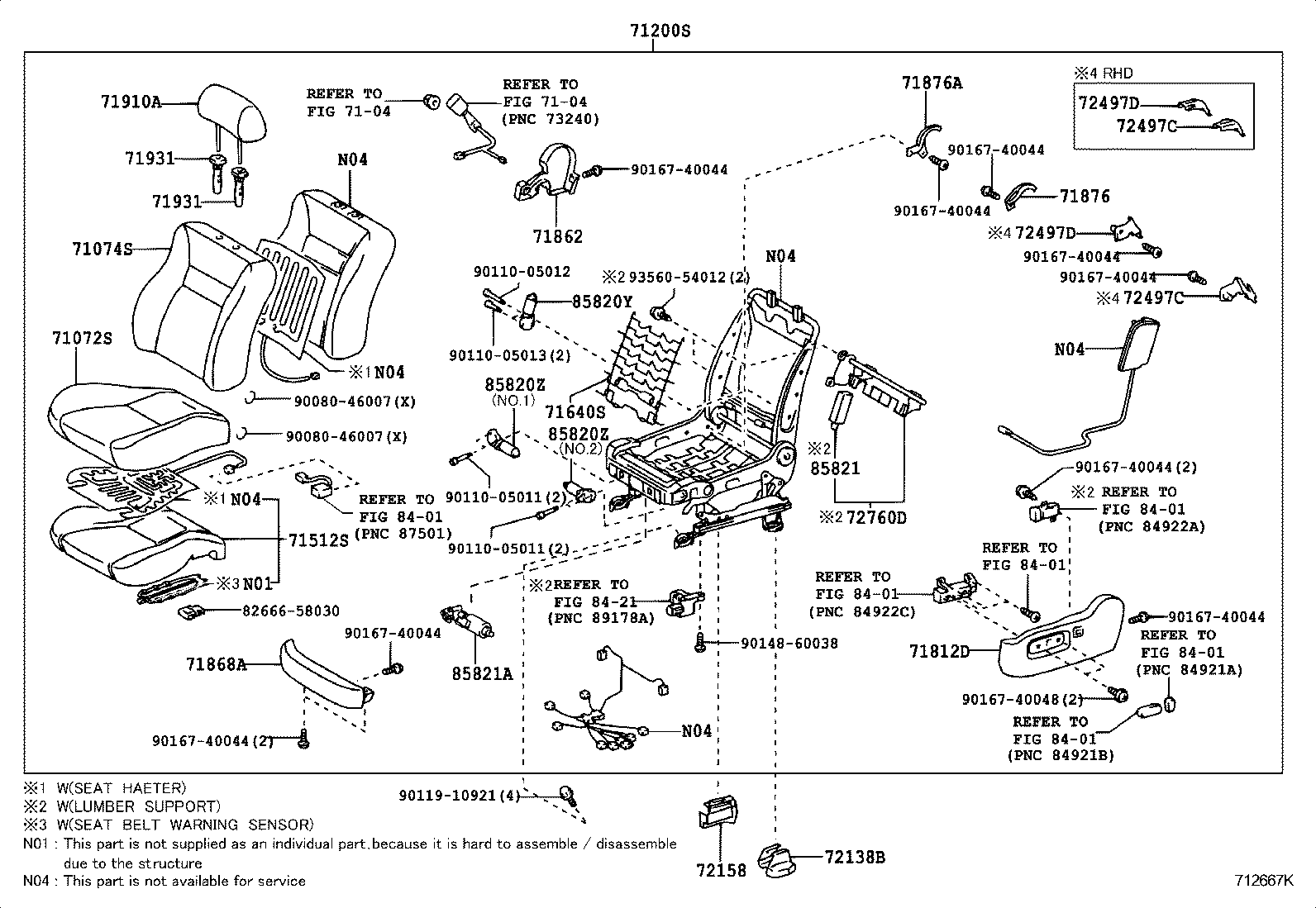

(0301-0604)
W(POWER SEAT)-LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-05560A0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71072-05560B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71071-05600B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-05590B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
1 | ||
| 71074-05680B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71074-05680B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71074-05680A0 |
CDT250..LHD..(LB,WG)..ELEGT;CDT250..LHD..SED..(ELEGT,TEC);ADT251,AZT25#..LHD..ELEGT..(D4,DCR,DCRL);ADT251,AZT25#..LHD..SED..TEC..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71200S - SEAT ASSY, FRONT LH | ||||
| 71020-05122B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71501-05040 |
AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);CDT250,ZZT25#..LHD..(LB,WG);CDT250,ZZT251..LHD..SED..(ELEGT,TEC);ADT251,AZT251,ZZT250..LHD..(ELEGT,TEC) W(FRONT SEAT HEATER) |
1 | ||
| 71511-05060 |
ADT251,AZT25#,CDT250,ZZT25#..LHD |
1 | ||
| 71502-05030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 71512-05010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-05050B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71812-05050B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71812-02140B0 |
ADT251,AZT25#,CDT250,ZZT25#..LHD DK.GRAY,TRIM1# |
1 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60100B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71862-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 71862-60100B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-05010B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71868-05010B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60150B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71876-60150B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60170B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71876-60170B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-CA040B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
2 | ||
| 71910-CA020B2 |
ADT251,AZT25#,CDT250,ZZT25#..TEC DK.GRAY,TRIM1# |
2 | ||
| 71910-CA040B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-02050B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71930-02070B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 72138B - COVER, SEAT TRACK, LH | ||||
| 72138-05020B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72138-05030B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-05040B0 |
ADT251,AZT25#,CDT250,ZZT25# DK.GRAY,TRIM1# |
1 | ||
| 72158-05030B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72497C - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72498-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 72498-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72497C - COVER, VERTICAL ADJUSTER BRACKET, OUTER | ||||
| 72498-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 72498-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72497D - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72497-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72497-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 72497D - COVER, VERTICAL ADJUSTER BRACKET, INNER | ||||
| 72497-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72497-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 72760D - ADJUSTER ASSY, LUMBAR SUPPORT, LH | ||||
| 72760-60050 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 72760-60050 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 85820Y - MOTOR ASSY, POWER SEAT | ||||
| 85801-58020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),PASSENGER SIDE |
1 | ||
| 85801-60020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DRIVER SIDE |
1 | ||
| 85801-60020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DRIVER SIDE |
1 | ||
| 85801-58020 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),PASSENGER SIDE |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.1 |
1 | ||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.1 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.2 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.2 |
1 | ||
| 85820Z - MOTOR ASSY, POWER SEAT | ||||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.1 |
1 | ||
| 85801-60030 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.1 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),NO.2 |
1 | ||
| 85801-60040 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),NO.2 |
1 | ||
| 85821 - MOTOR ASSY, POWER SEAT | ||||
| 85820-60130 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 85820-60130 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 85821A - MOTOR ASSY, POWER SEAT | ||||
| 85801-58010 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT) |
1 | ||
| 85801-58010 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| Common parts | ||||
| 82666-58030 | ||||
| 90080-46007 | ||||
| 90110-05011 | ||||
| 90110-05012 | ||||
| 90110-05013 | ||||
| 90119-10921 | ||||
| 90148-60038 | ||||
| 90167-40044 | ||||
| 90167-40048 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
