ADT251L-AEFEYW (2005)

Toyota Avensis

Production Apr 2005 - Apr 2006
Engine 2ADFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )

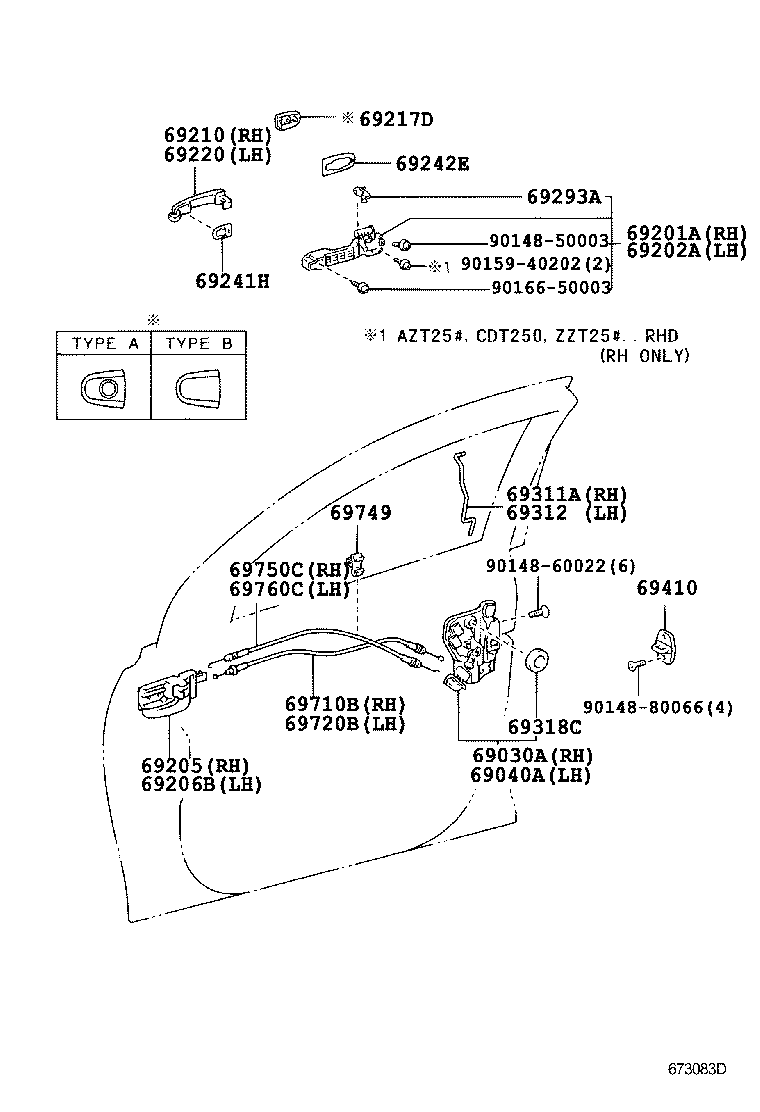

Click highlighted areas on diagram

diagram 69030A 69040A 69201A 69202A 69205 69206B 69210 69217D 69220 69241H 69242E 69293A 69311A 69312 69318C 69410 69710B 69720B 69749 69750C 69760C 9014850003 9014860022 9014880066 9015940202 9016650003
Part # Description Qty Price
69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-05060

ADT251,AZT25#,CDT250,ZZT25#..LHD

 1
69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69202-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-05040B0

ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..ENTRY,TEC

DK.GRAY,TRIM1#

 1
69206B - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-05040B0

ZZT251..LHD..SED..TEC;ZZT251..RHD..(ENTRY,TEC);ZZT251..LHD..SED..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ENTRY,TEC);ADT251,AZT25#,CDT250,ZZT250..ENTRY,TEC

DK.GRAY,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69211-05903

ADT251,AZT25#,CDT250,ZZT25#

PAINT REQ.

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69211-05903

ADT251,AZT25#,CDT250,ZZT25#

PAINT REQ.

 1
69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69241-02040

ADT251,AZT25#,CDT250,ZZT25#

 2
69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR
69242-02040

ADT251,AZT25#,CDT250,ZZT25#

 2
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-33020

ADT251,AZT25#,CDT250,ZZT25#

LH

 1
69293-33010

ADT251,AZT25#,CDT250,ZZT25#

RH

 1
69311A - ROD, FRONT DOOR LOCK OPEN, RH
69311-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
69312 - ROD, FRONT DOOR LOCK OPEN, LH
69312-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
69318C - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

ADT251;AZT250..WG..HTWC;CDT250..LHD..DCRL;ZZT251..LHD..4FC..ENTRY;AZT25#,CDT250,ZZT25#..RHD

 2
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-33010

ADT251,AZT25#,CDT250,ZZT25#

 2
69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69710-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69710-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-32040

ADT251,AZT25#,CDT250,ZZT25#

 2
69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69750-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69760-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
90148-50003
90148-60022
90148-80066
90159-40202
90166-50003
